100TECH Marine Fuel Gauge 52mm White — 5-Signal Adjustable, Smooth-Sweep Needle & IP67 Stainless Bezel

The 100TECH Marine Fuel Gauge is a 52mm, five-signal adjustable boat fuel level meter with smooth-sweep needle, seven selectable backlight colors, and IP67 stainless-steel construction for 12–24V systems.

Designed as a direct replacement or upgrade for marine and vehicle tanks, this 100TECH gauge reads multiple sender resistances, offers easy calibration, and gives a stable, bounce-free needle while underway. Its compact Φ52mm housing and stainless bezel match common dash cutouts, and the selectable color lighting helps the gauge blend with factory clusters or create a customized instrument look.

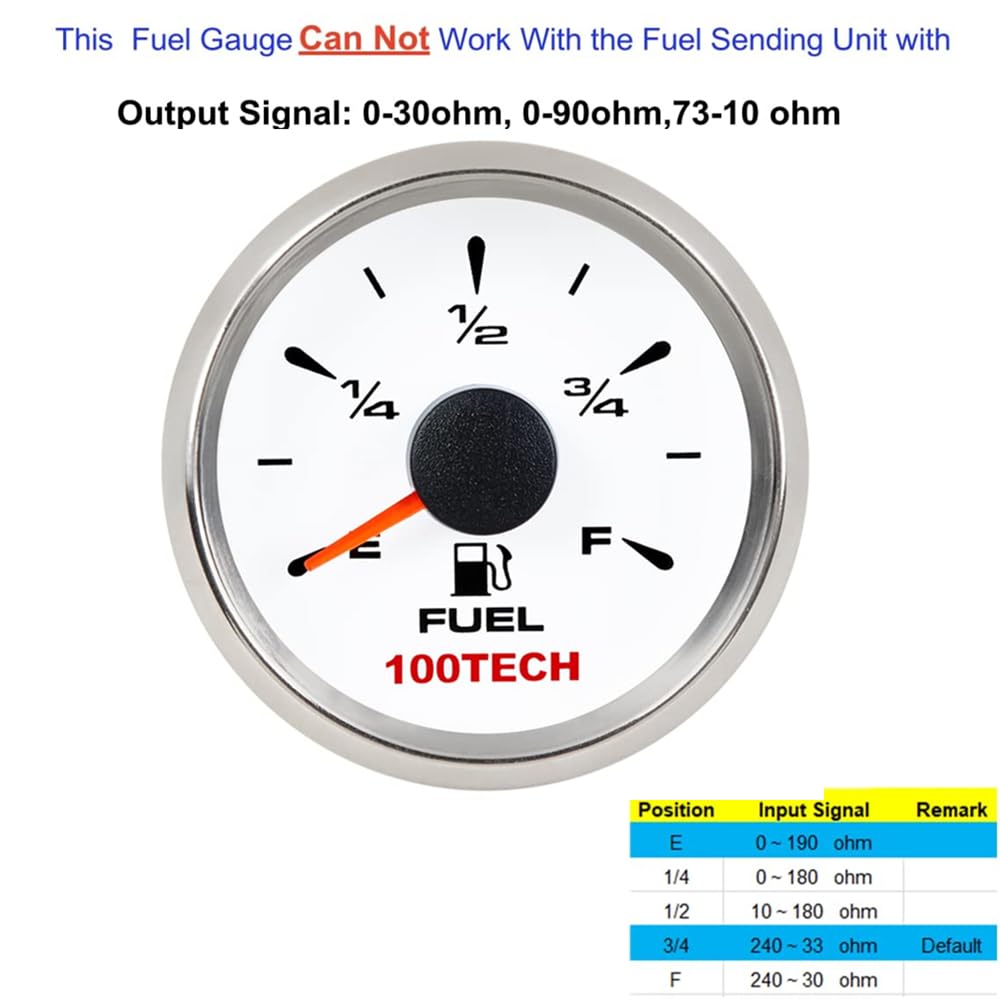

How does the gauge handle different sender resistances?

This model supports five selectable input ranges so it can work with many common fuel senders. You choose the correct signal curve by pressing a simple button; the default configuration is 240–33 ohm but you can switch to alternatives to match your sender's resistance output.

• Selectable input options: 0–190Ω, 240–33Ω (default), 240–30Ω, 0–180Ω, 10–180Ω
• Button-driven range selection for field calibration
• Not compatible with non-resistive or unsupported outputs (for example 0–30Ω)

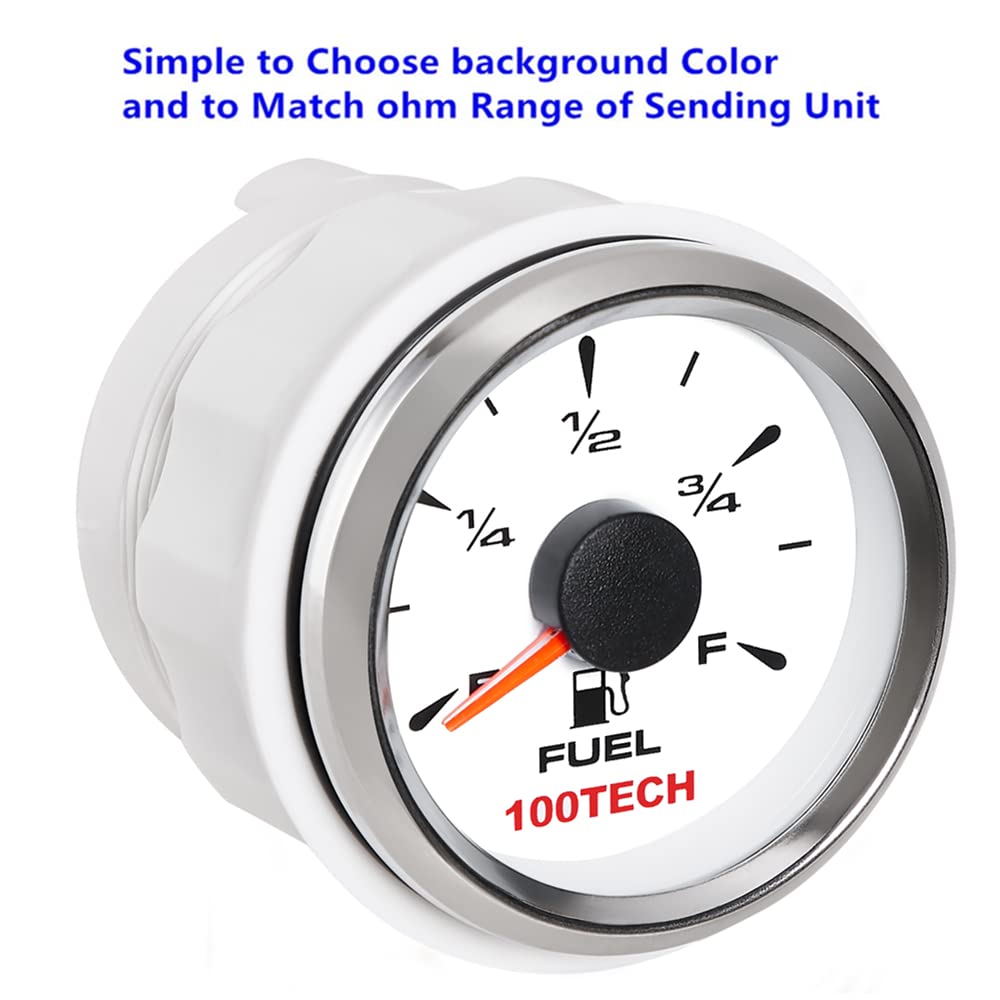

Will the needle stay steady on rough water?

The gauge uses a smooth-sweep mechanism designed to reduce oscillation and provide readable, stable indications even when the boat is moving. Compared with many stock gauges, its needle damping minimizes distracting bouncing so you get a clearer fuel reading underway or in choppy conditions.

• Sweep-style needle movement for steady readings
• Improved damping versus typical original equipment gauges

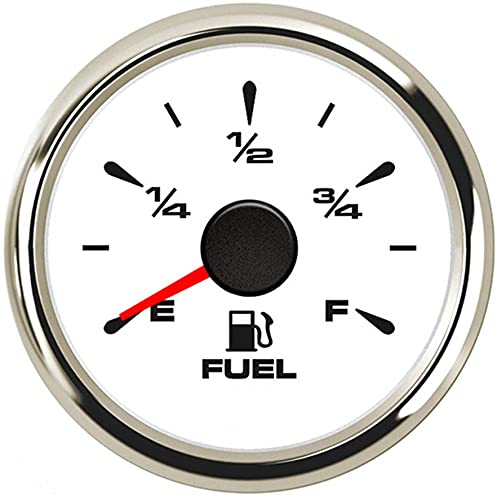

• Easy-to-read E–F scale tailored for marine use

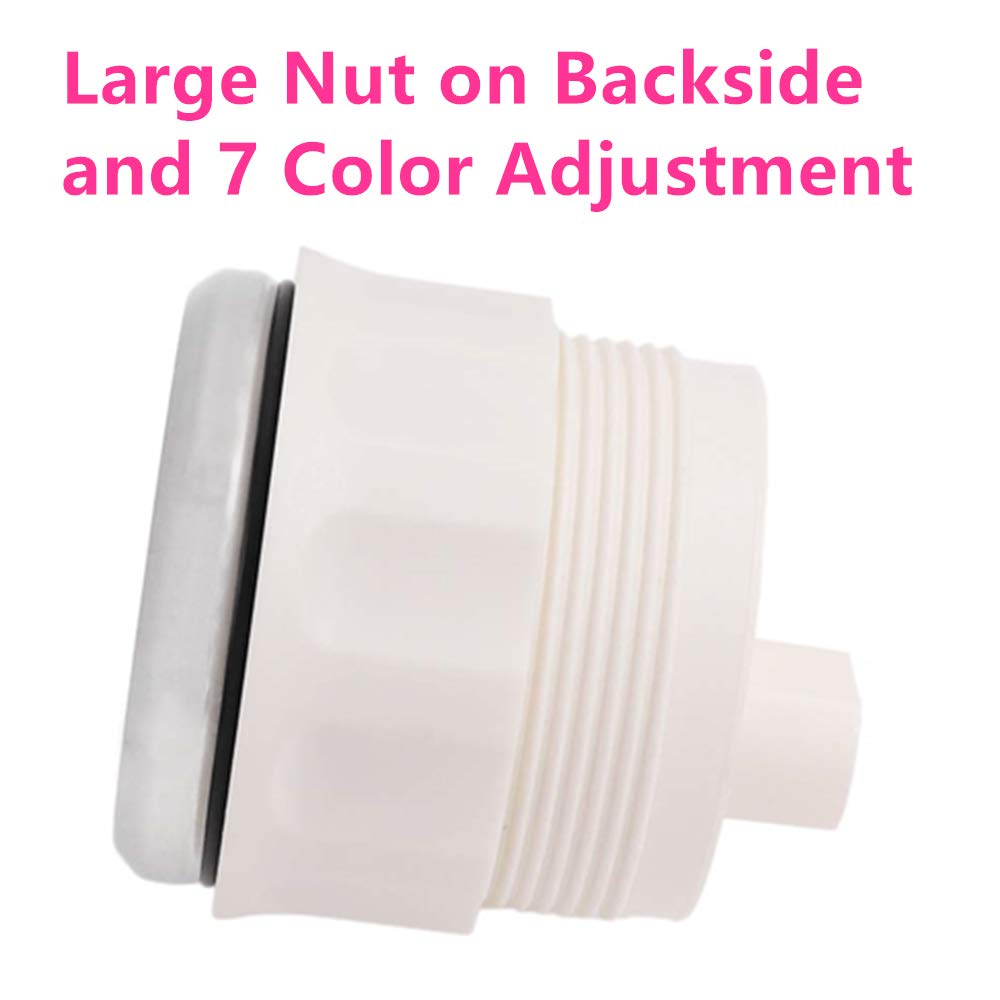

How do I match the gauge lighting to my dash?

The backlight offers seven color cycles so you can coordinate with factory dashboards or create a contrasting accent. Pick from multiple hues and set the one that best suits your instrument cluster or night-vision needs without rewiring the boat's lighting harness.

• Seven color options: red (default), green, blue, white, yellow, yellow-green, orange, purple
• Color selection via the unit’s control button—no extra parts required
• Works with 9–32V DC systems; fits 12V and 24V boats/vehicles

What about installation, durability, and warranty?

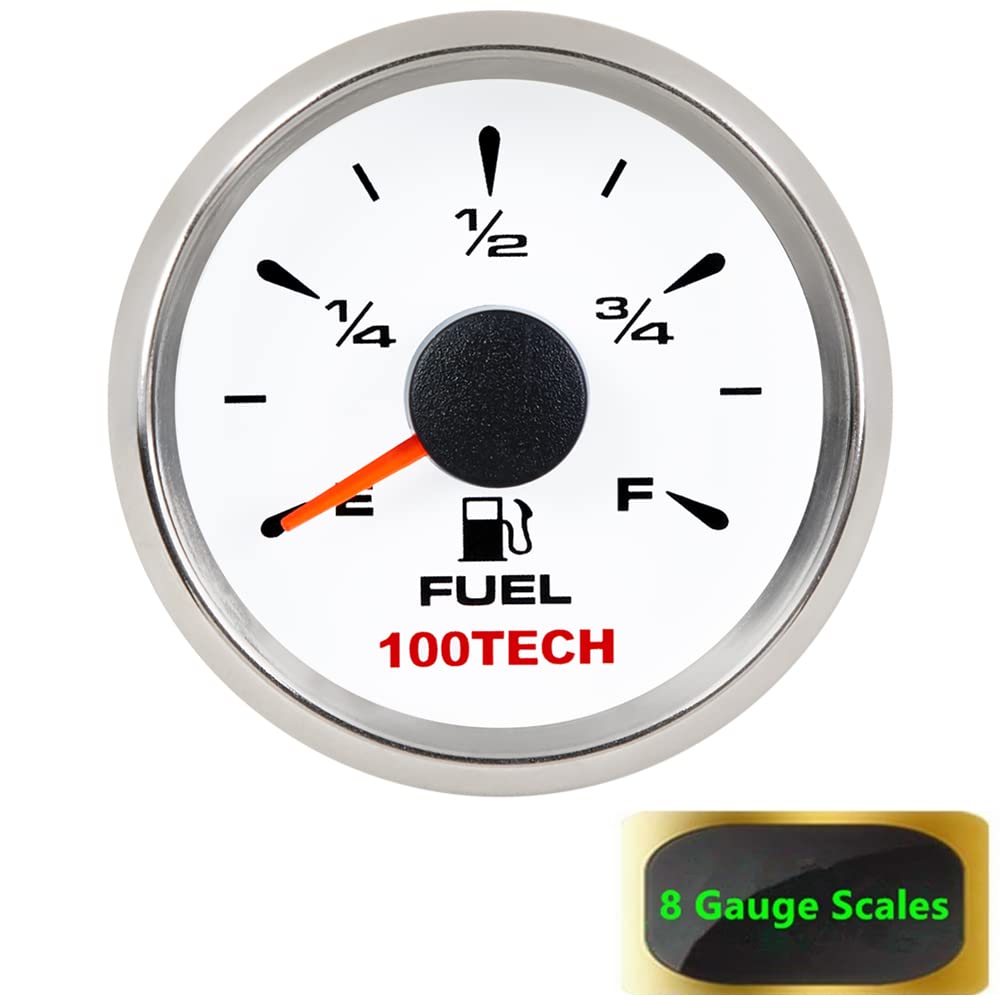

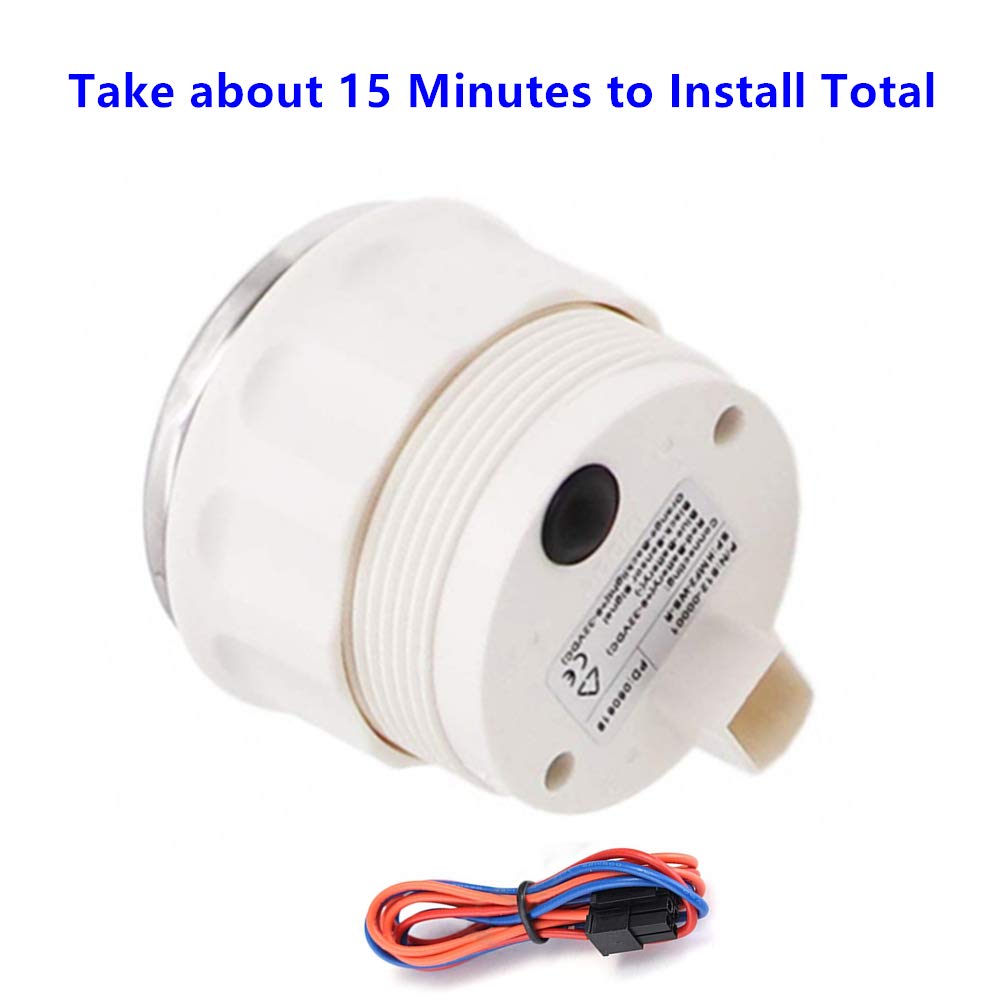

Installation is straightforward into a 2-1/16" (Φ52mm) cutout; the gauge runs on 9–32V DC and includes clear calibration steps. Its IP67 rating and 316 stainless-steel bezel make it corrosion-resistant for marine environments, and 100TECH backs the product with a two-year limited warranty plus lifetime technical support.

• Install diameter: Φ52mm (2-1/16") for standard dash holes
• Working voltage: 9–32V DC (compatible with 12V and 24V systems)
• IP67 waterproof/dustproof rating and 316 stainless bezel
• Two-year warranty and free lifetime technical support from 100TECH

Who is this for? If you need a reliable, plug-and-play replacement for a boat or vehicle fuel gauge that accepts common resistive senders, delivers a steady needle on rough water, and lets you change backlight colors to match your dash, this 100TECH unit is a practical choice. It’s best for boat owners, small commercial vessels, RVs, and DIY vehicle restorers who have compatible sender resistances and want improved readout stability and corrosion-resistant construction.
