12VDC Max 300A Continuous Duty Solenoid Relay with Resistor

LDMINDA's 12VDC solenoid relay is a nickel‑plated, continuous‑duty 4‑terminal battery isolation switch rated for transient currents up to 300A and designed with an internal resistor and diode for reliable golf cart, winch, marine, and industrial use.

This heavy‑duty solenoid combines a rugged nickel‑plated housing with high‑temperature copper coil windings and built‑in suppression components so you get dependable switching, corrosion resistance, and reduced back‑EMF in mobile or harsh environments. It replaces several OEM part numbers and mounts via a straight bracket for simple installation on vehicles and equipment that use a 12V battery system.

How does this solenoid provide reliable switching for busy electrical systems?

The relay uses a tightly wound copper coil rated for high heat and a nickel‑plated cover to resist corrosion and wear. An internal resistor and diode protect the coil and downstream electronics from voltage spikes, extending component life in frequent‑use applications.

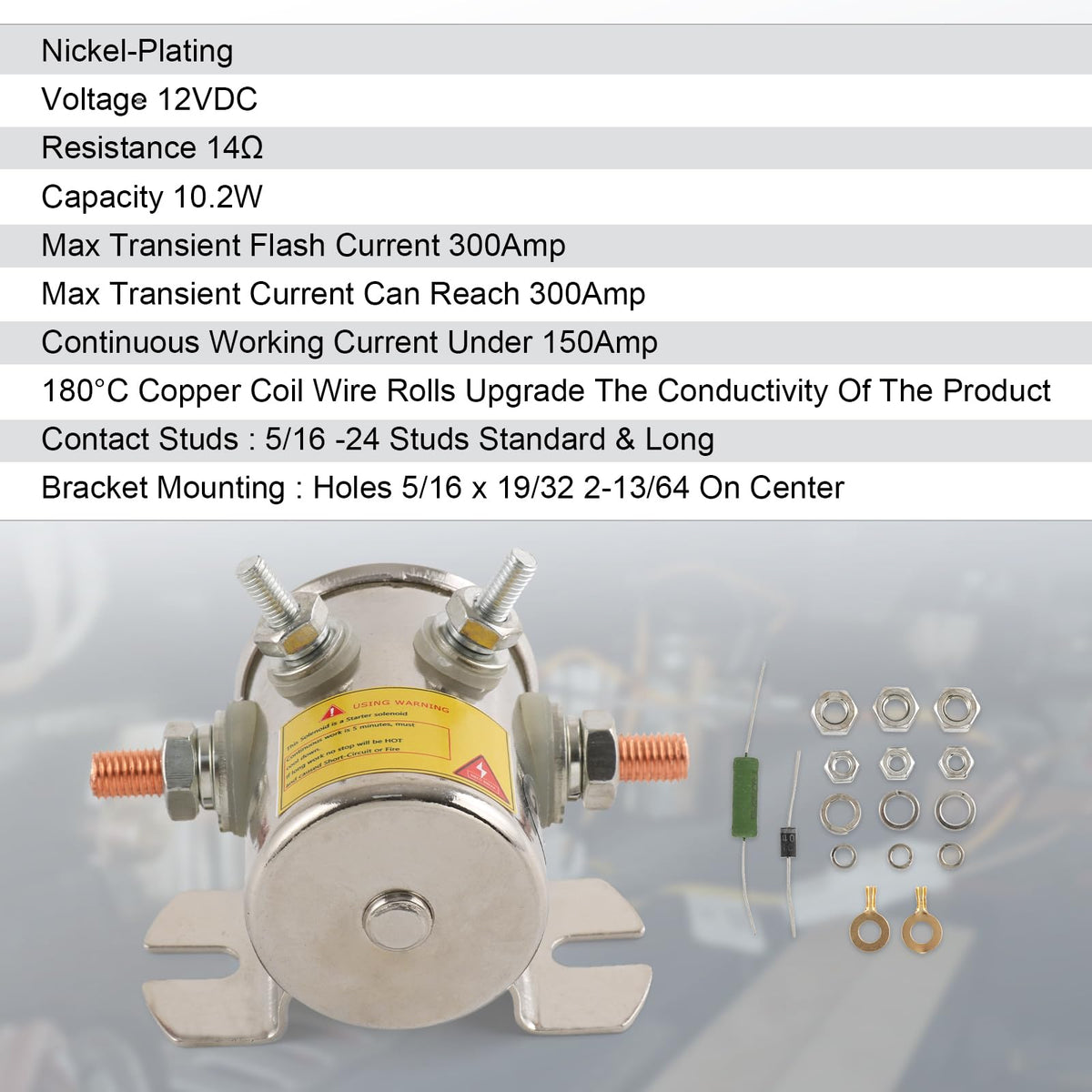

• 12VDC coil with 14Ω resistance and 10.2W coil capacity

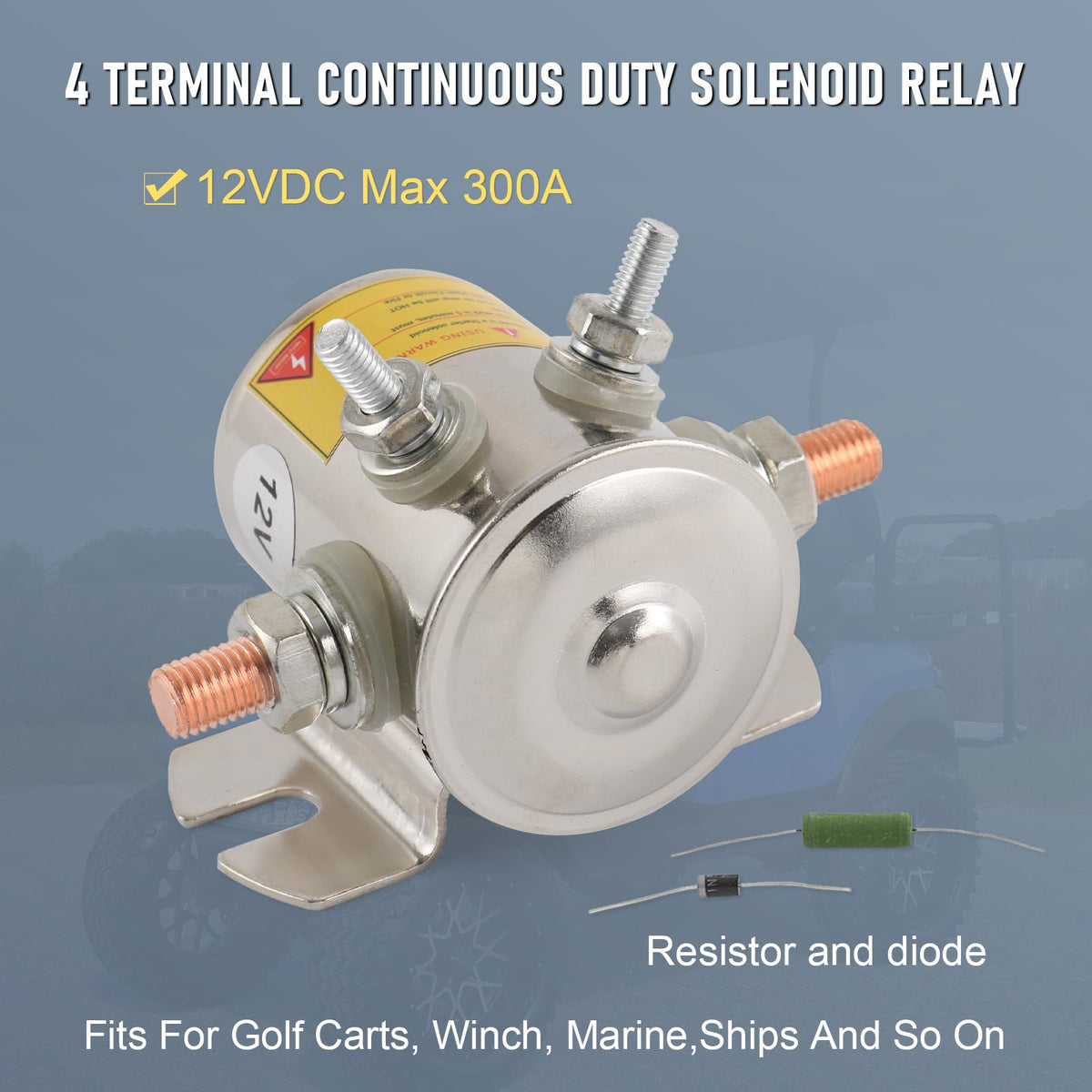

• Built‑in diode and resistor for suppression and coil protection
• Nickel‑plated casing to meet environmental plating requirements
• Copper contact points for durable electrical conduction

What current loads can I safely run through this relay?

The relay tolerates momentary surge currents up to 300A but is intended for continuous operation at lower levels; we recommend keeping continuous current below about 150A and typical working around 80A. For extended duty cycles or near‑max loads, consider a solenoid model specified for long continuous operation.

• Maximum transient flash current: 300A
• Recommended continuous current: under 150A
• Typical working current guidance: ~80A with duty cycle limits
• Break pattern suggestion: short runs with cooling intervals for high loads

Will this unit fit my existing golf cart, winch, or marine setup?

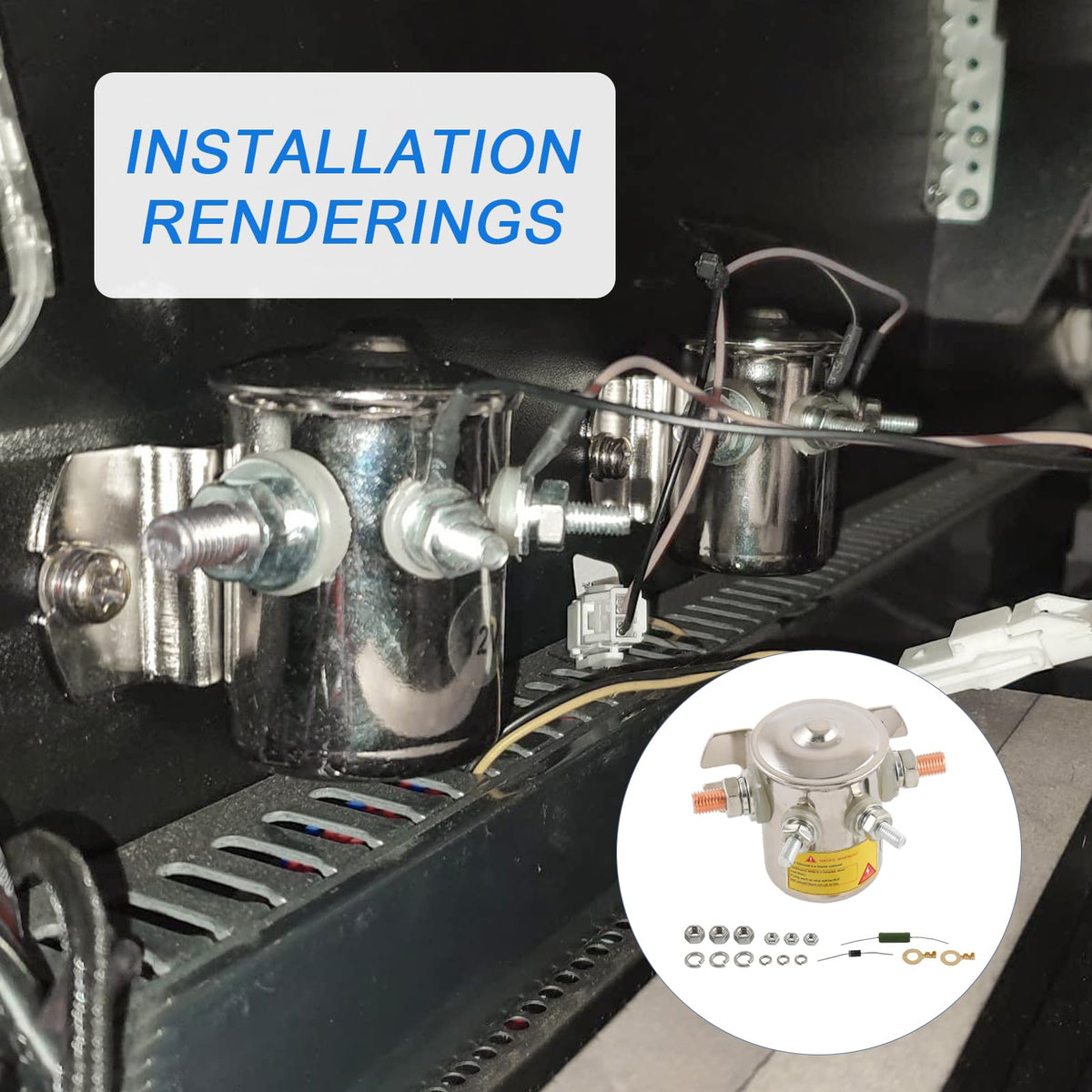

Installation is straightforward thanks to a standardized straight bracket and four terminal connections that match common battery isolation layouts. The mounting holes are spaced to common dimensions to replace several OEM part numbers, making it a direct swap in many systems.

• Bracket mounting holes: 5/16" x 19/32"; 2‑13/64" on center
• Four terminal design for battery isolation and load feed

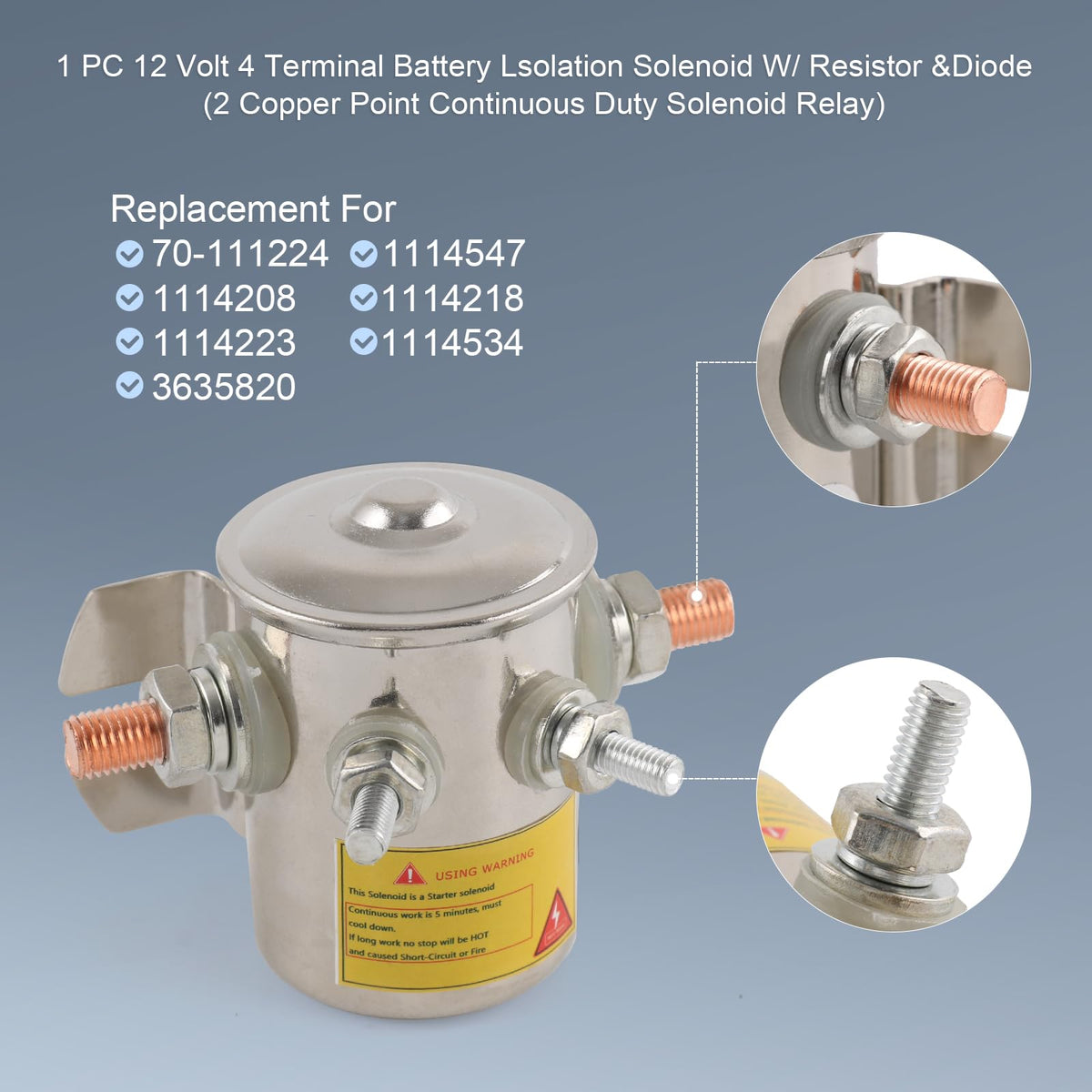

• Replaces multiple OEM numbers including 70‑111224 and 3635820

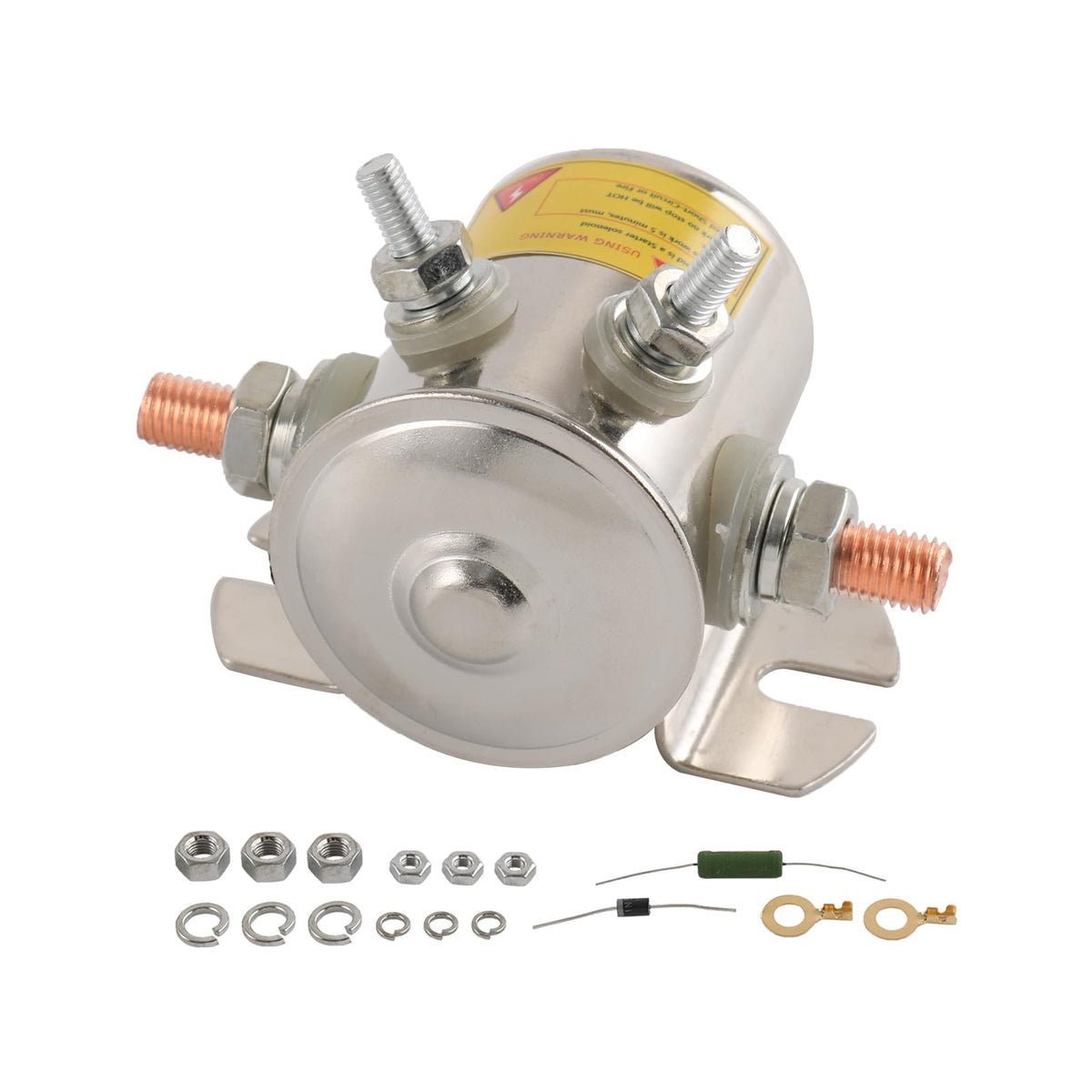

• Package includes one 12V 4‑terminal solenoid with resistor and diode

What materials and build features improve longevity in marine or outdoor use?

The solenoid coil uses 180°C‑rated copper wire for thermal endurance while the external canned coil and cover receive a nickel plating that resists oxidation and environmental degradation. Copper contact points ensure low resistance and reliable current transfer even under repeated operation.

• Coil winding: high‑temperature copper wire rated to 180°C
• Contacts: two copper contact points for durable conduction
• Exterior: nickel‑plated cover meeting plating environmental requirements
• Design: continuous duty style with four terminals for isolation functions

Who this is for: engineers, fleet technicians, marine installers, and DIY enthusiasts who need a robust, serviceable battery isolation solenoid for golf carts, winches, boats, industrial machines, or military vehicles. Choose this unit when you need a corrosion‑resistant housing, built‑in suppression, and a form factor compatible with common replacement part numbers — but select a different long‑duty model if your application requires sustained current near the 300A surge rating.
