3/4-30 Spline X 3/4" DD Black Steering Universal Joint

BUYMACHINERYPARTS 3/4-30 Spline x 3/4" DD is a heavy-duty black universal steering U-joint shaft built for precise torque transfer in grinding machines, automotive components, levelers, and automated parking lifts.

This single universal joint shaft combines a 3/4-30 spline input with a 3/4" double-diameter (DD) output in a compact 83mm length, producing a dependable link between steering or drive components where space and alignment tolerance are limited. Engineered for applications up to 4000 rpm, the design emphasizes robust spline engagement and hardened cross bearings to resist play and wear under cyclic loads.

How does this U-joint shaft fit into machinery and vehicle steering systems?

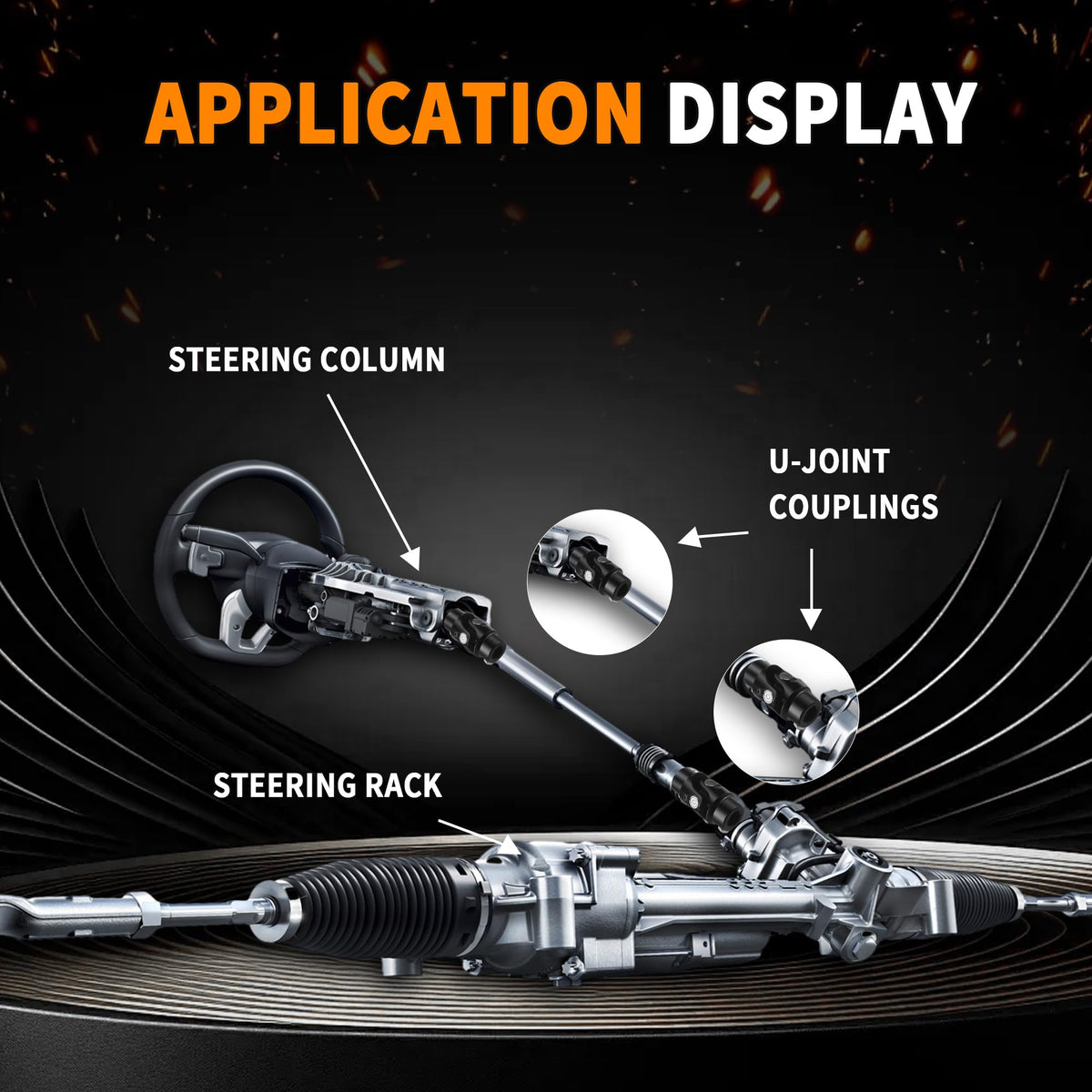

The 3/4-30 spline mating surface precisely matches corresponding spline couplings to ensure positive engagement and minimal backlash. The 3/4" DD output is common in many aftermarket and OEM steering columns, letting this part serve as a direct replacement or retrofit in compatible systems. Its 83mm overall length is optimized for compact assemblies where space is constrained.

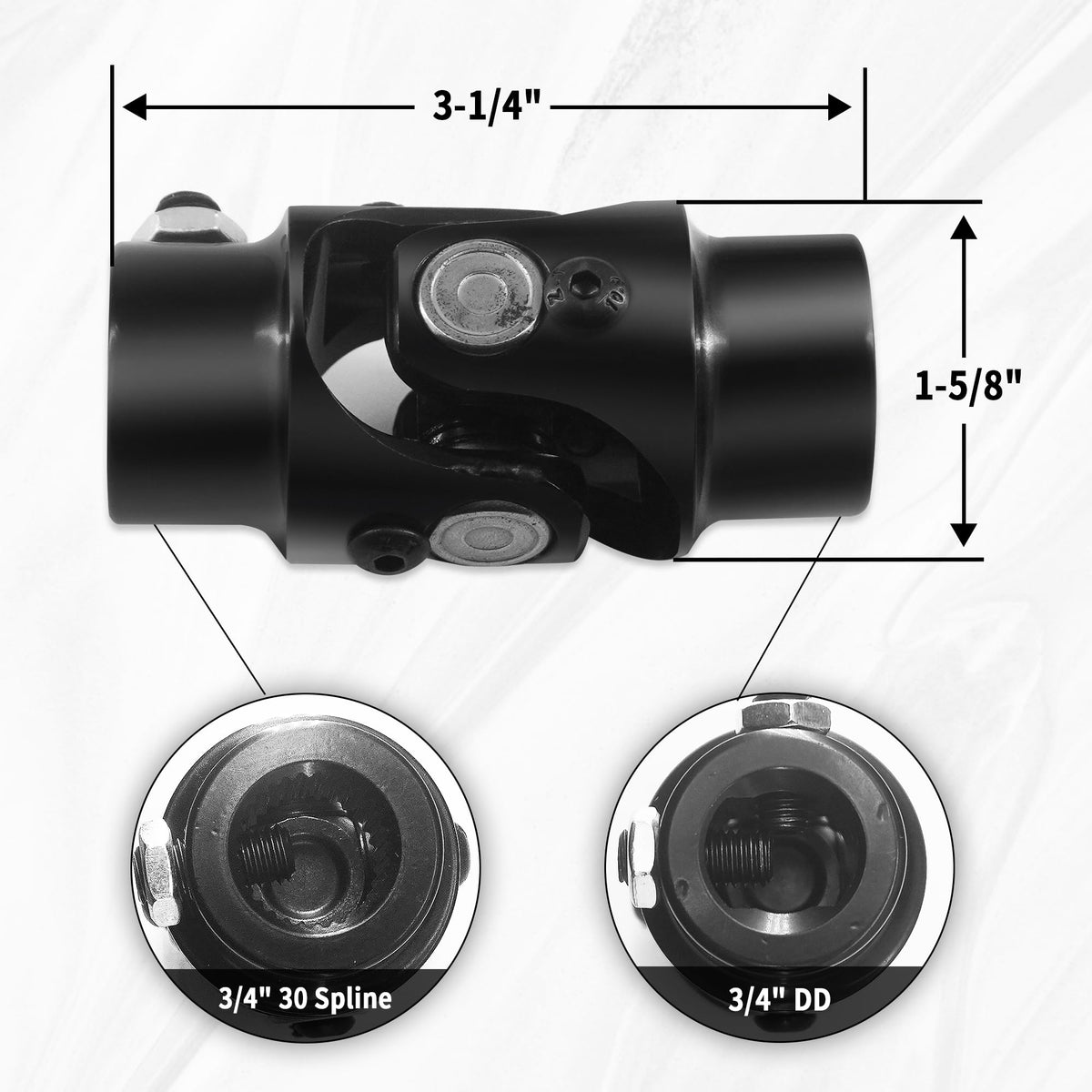

• Specification: 3/4-30 spline input, 3/4" DD output
• Total length: 83 mm to fit compact couplings
• Hardened splines reduce deformation and maintain fit
• Compatible with many steering columns and machine linkages

What performance limits and operating speeds should I expect?

This U-joint shaft is rated for maximum rotational speeds up to 4000 rpm when installed and maintained correctly. Operating within that limit helps prevent premature bearing wear and heat buildup in high-duty cycles. For intermittent or low-speed applications, it will provide long service life; continuous high-speed use requires correct lubrication and alignment.

• Maximum rated speed: 4000 rpm
• Designed for cyclical loads in industrial and automotive settings
• Lubrication and alignment extend operating life
• Not for non-specified explosive or corrosive environments

How do I install and maintain the universal joint shaft?

Installation requires matching the 3/4-30 spline to the mating shaft and securing the 3/4" DD end in its corresponding coupling or clamp. Verify spline engagement depth and torque fasteners to the equipment manufacturer’s specs. Periodic inspection for play and scheduled lubrication of the cross bearings will preserve smooth operation and prevent noise or vibration.

• Ensure proper spline alignment and full engagement
• Tighten retaining fasteners to factory torque values
• Inspect for axial play and bearing wear regularly
• Relubricate per application intervals to avoid overheating

What kinds of equipment commonly use this U-joint shaft?

Its specification suits a range of compact mechanical systems that need reliable angular power transmission. Typical uses include bench and industrial grinders, automotive steering and drivetrain links, sheet metal or concrete levelers, and automated parking lift mechanisms where compact, high-speed couplings are necessary. The universal joint is especially valuable where slight misalignment or angular movement must be accommodated without sacrificing torque transfer.

• Grinding machines and bench tools
• Automotive steering and drivetrain components
• Leveling equipment and automated parking lifts
• Other compact industrial linkages requiring 3/4" interfaces

Who is this for: Technicians, maintenance engineers, and aftermarket installers who service compact power-transmission systems and need a durable, purpose-sized replacement U-joint shaft. If you require a rugged 3/4-30 spline to 3/4" DD connection with an 83mm total length and up to 4000 rpm capability, this BUYMACHINERYPARTS component offers a straightforward, serviceable option for professional repairs and retrofits.
