A-Premium HVAC Heater Blend Door Actuator F5TZ19E616A – Ford/Lincoln/Mercury Direct-Fit, Manual Control

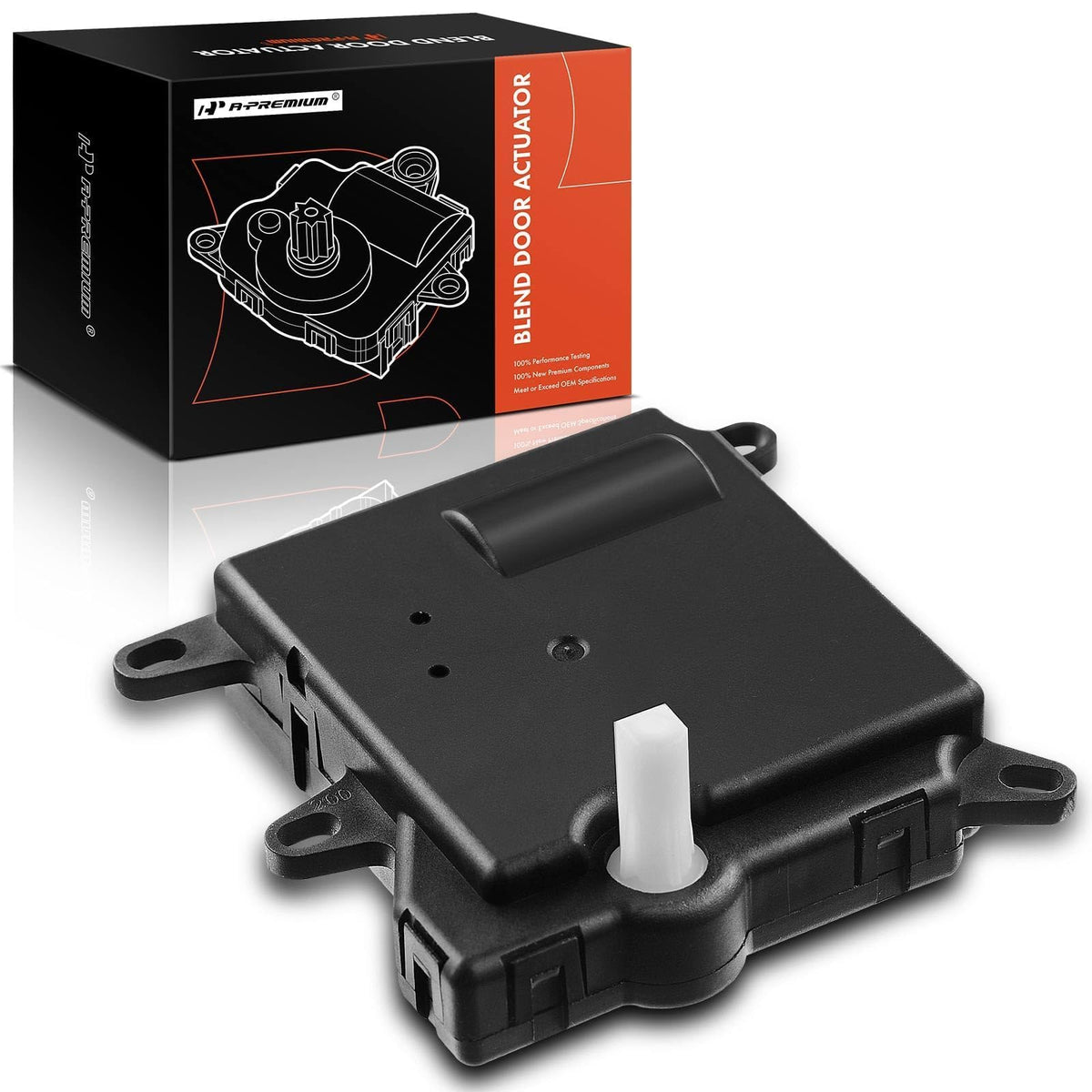

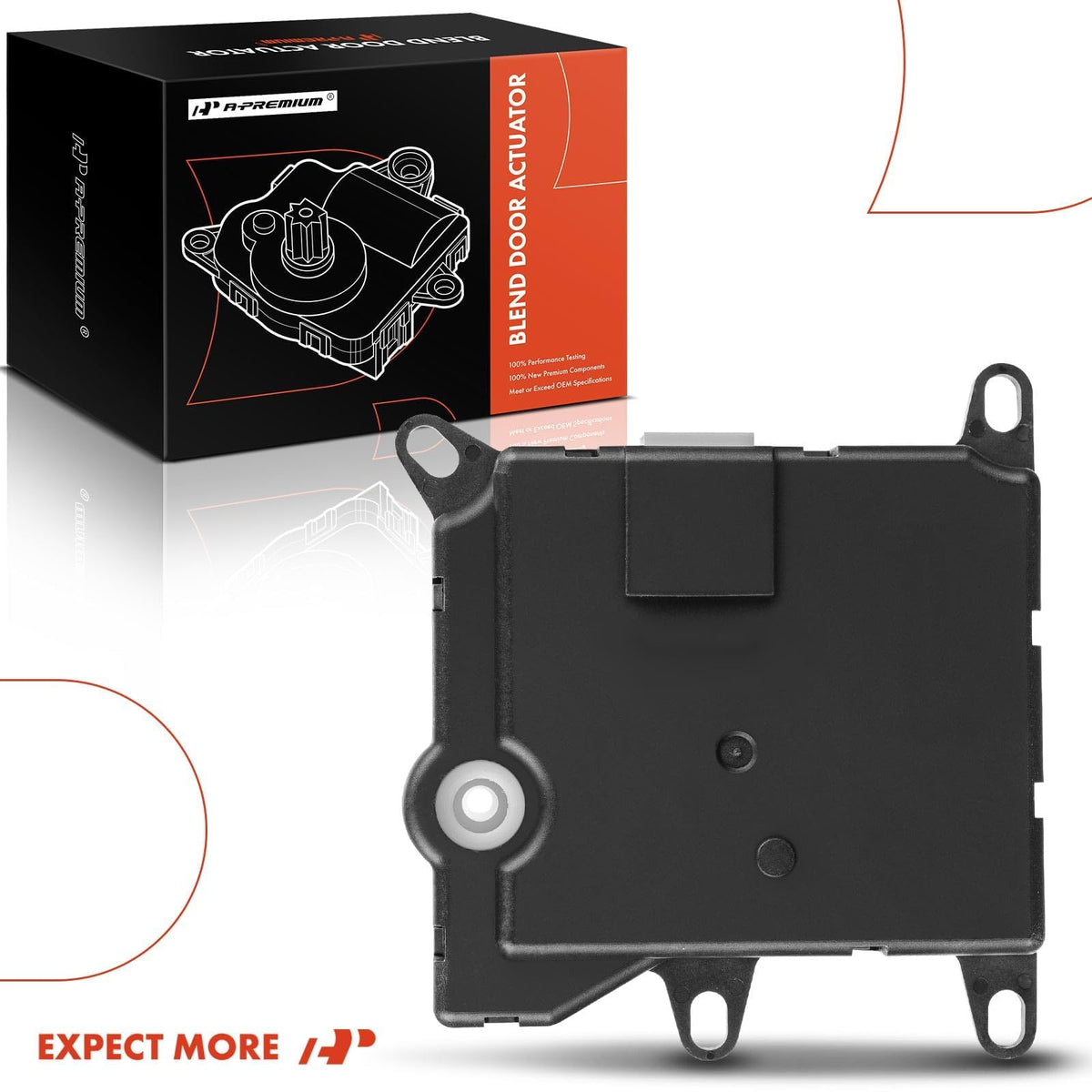

A-Premium HVAC Heater Blend Door Actuator F5TZ19E616A is a direct-fit replacement actuator for manual temperature control systems on select Ford, Lincoln and Mercury models.

If your vehicle's cabin temperature doesn't respond correctly to the control knob or you hear clicking behind the dash, the blend door actuator can be the source. This A-Premium actuator is engineered to match OEM form and function for models that use a D-shaped or standard shaft and manual temperature control, offering a reliable option to restore proper airflow mixing between heater and air conditioning ducts.

Which vehicles will accept this A-Premium actuator?

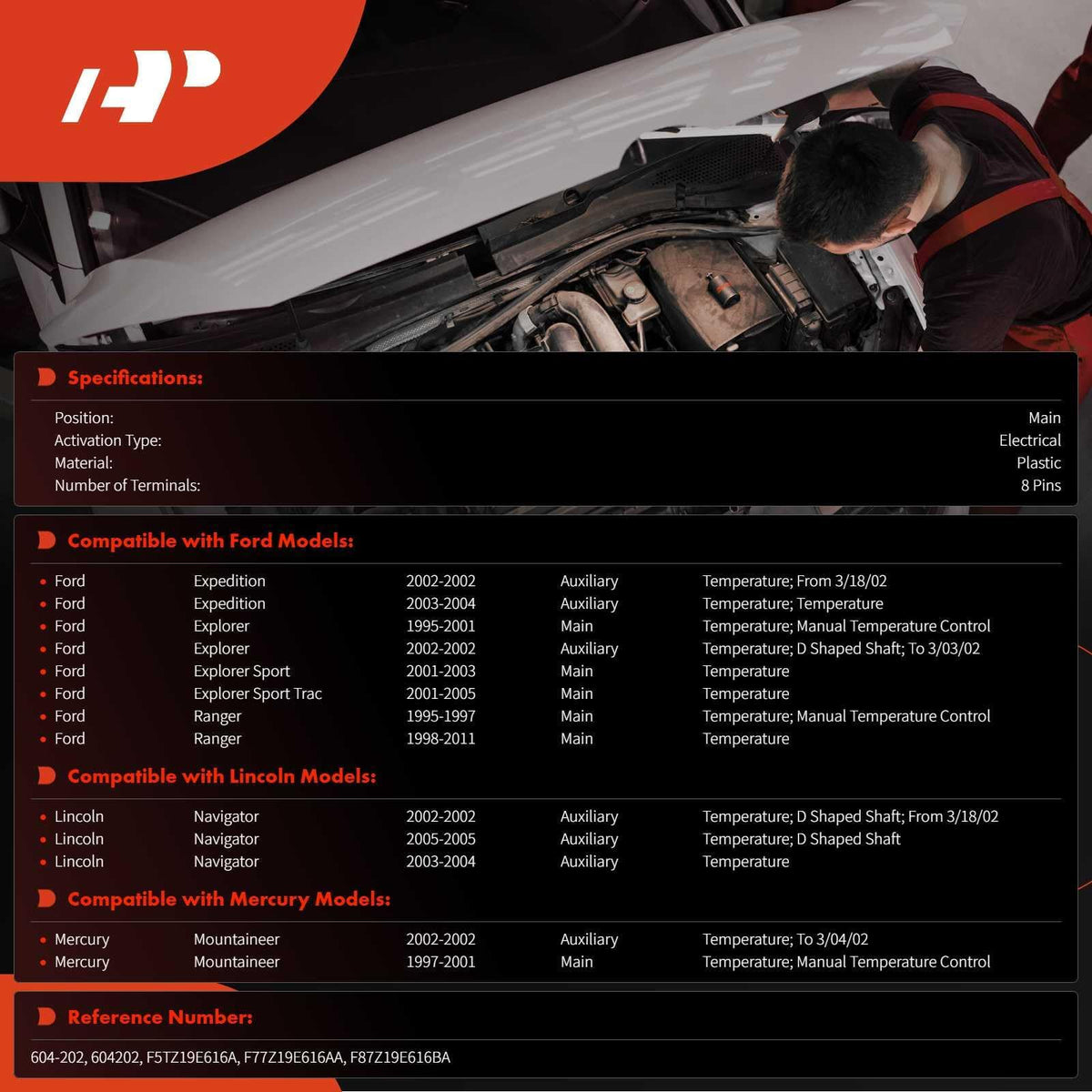

This actuator fits a range of Ford, Lincoln and Mercury vehicles from the mid-1990s through the mid-2000s that use manual temperature control. Verify your vehicle year and shaft type before ordering to ensure compatibility.

• Ford: Expedition (3/18/02–2004), Explorer (1995–2002 with D-shaped shaft to 3/03/02), Explorer Sport Trac (2001–2005), Ranger (1995–1997 manual; 1998–2011)
• Lincoln: Navigator (2002 with D-shaped shaft from 3/18/02, 2003–2005)
• Mercury: Mountaineer (1997–2001 manual; 2002 to 3/04/02)
• Reference numbers: 604-202, F5TZ19E616A, F77Z19E616AA, F87Z19E616BA

How does this actuator restore HVAC temperature control?

The blend door actuator moves the internal flaps that combine heated and cooled air to achieve the temperature set by the knob. Replacing a faulty actuator removes delayed or incorrect temperature responses and eliminates many dash-mounted clicking noises.

• Operates the main or auxiliary blend doors to control air mixing.
• Designed for manual temperature control systems only (not for automatic climate control).

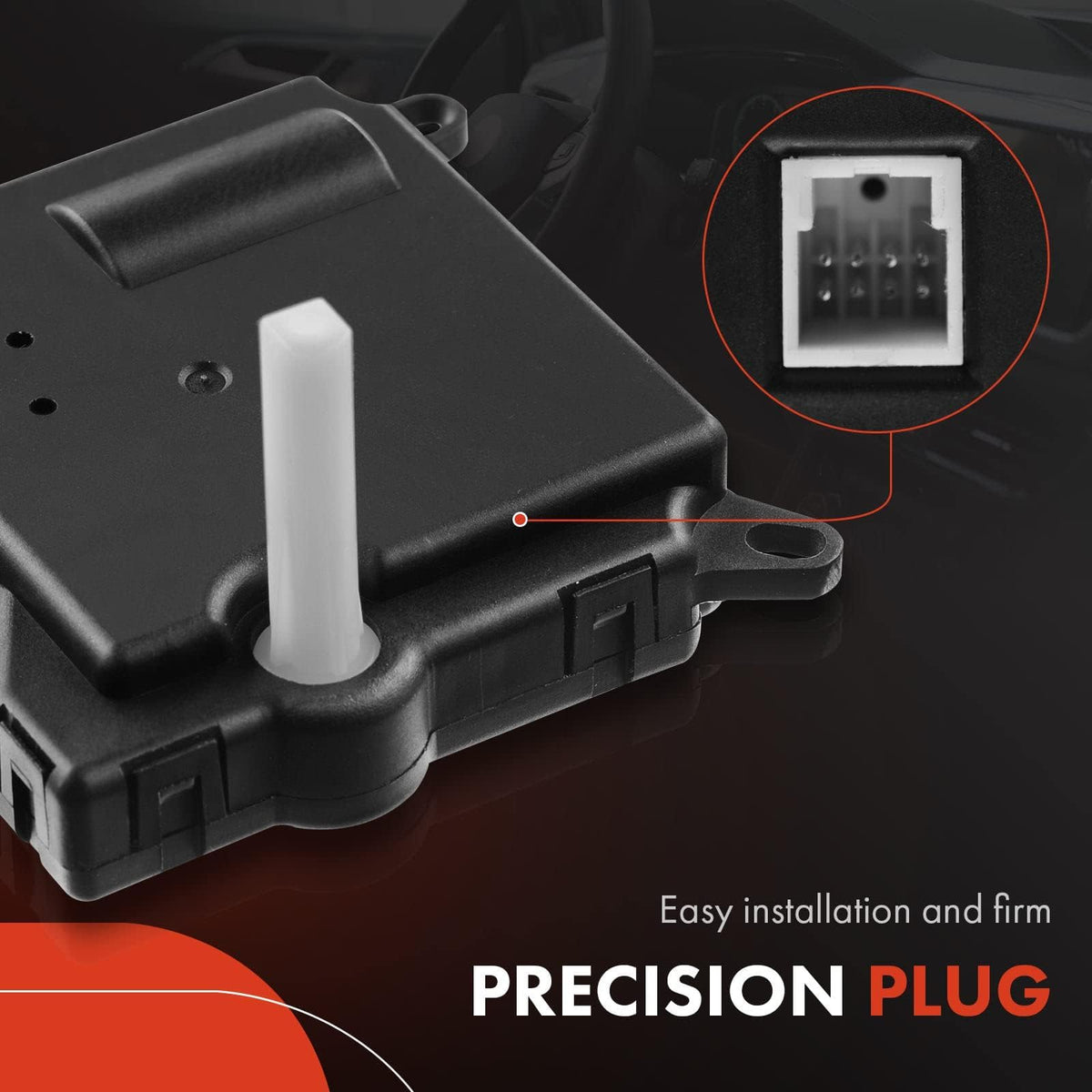

• Direct-fit mounting points and electrical connector for straightforward swap-in replacement.

What should I check before buying and installing?

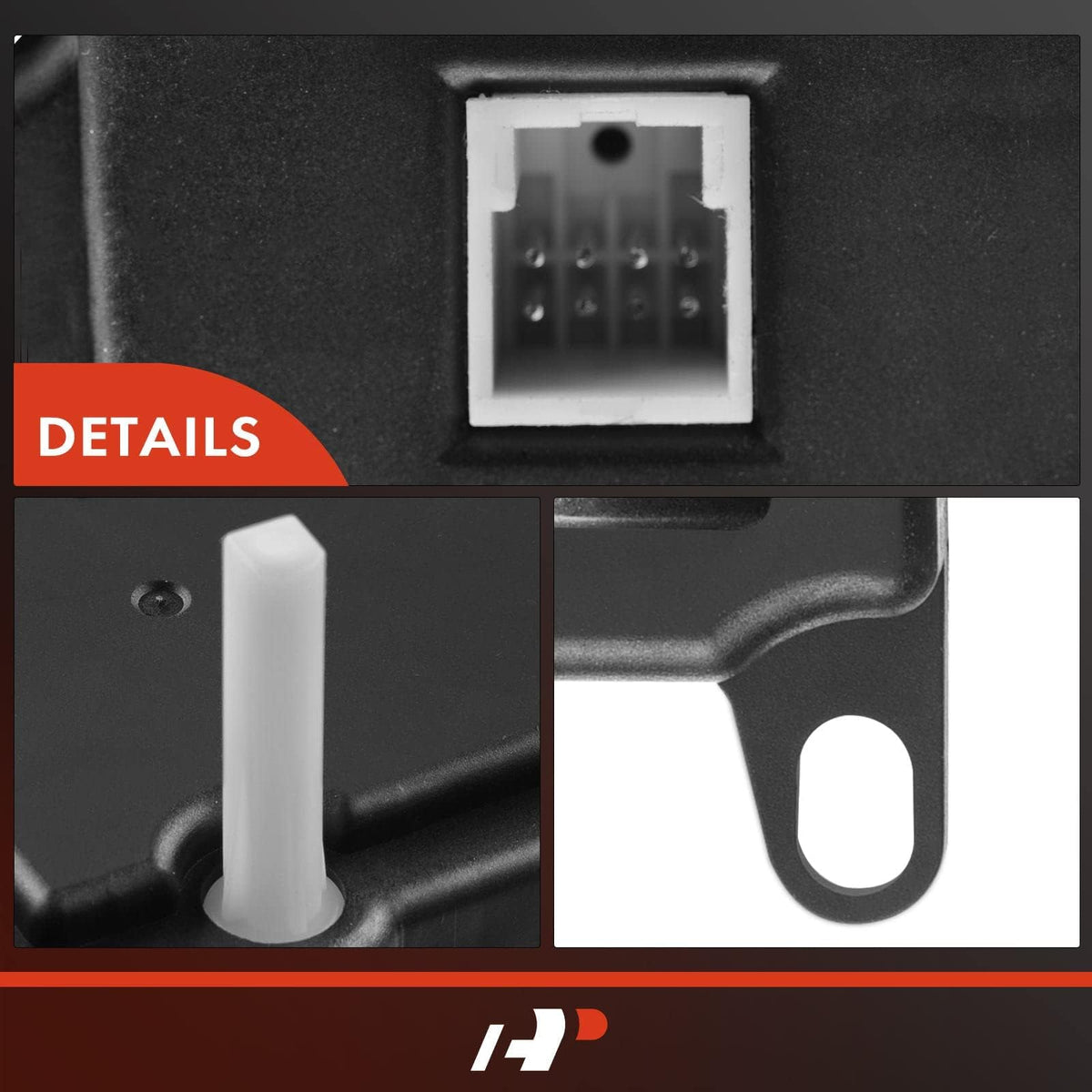

Confirm your vehicle’s control system is manual (not automatic) and identify whether the shaft is D-shaped if applicable. Inspect the old actuator for matching connector pins, mounting screw locations, and shaft type to ensure compatibility.

• Match part reference numbers or compare with the original unit physically.
• Verify location: main or auxiliary blend door—this part fits both positions on supported models.
• Confirm manual temperature control; this unit will not work with automatic climate systems.

How easy is it to replace the blend door actuator?

Difficulty varies by vehicle but most installations are moderate and can be completed with basic hand tools. Access typically requires removing small dash panels or glove box components to reach the actuator mounting screws and electrical plug.

• Typical tools: screwdriver set, socket wrench, and trim tool.
• Expect some models to require glove box or lower dash removal for access.
• Relearn or recalibrate any mechanical linkages if the manufacturer specifies after installation.

Who is this for: This A-Premium blend door actuator is aimed at mechanics, DIY enthusiasts and fleet maintainers who need a cost-effective, aftermarket replacement for failing manual-temperature-control actuators on compatible Ford, Lincoln and Mercury vehicles. Choose this part if you require a direct-fit unit with correct mounting and connector alignment that restores predictable cabin temperature control without replacing larger HVAC components.
