ABN Air Grease Gun Nozzle Kit with 10" & 18" Flexible Hoses — 7500 PSI Control Handle, 360° Z-Swivel Inlet

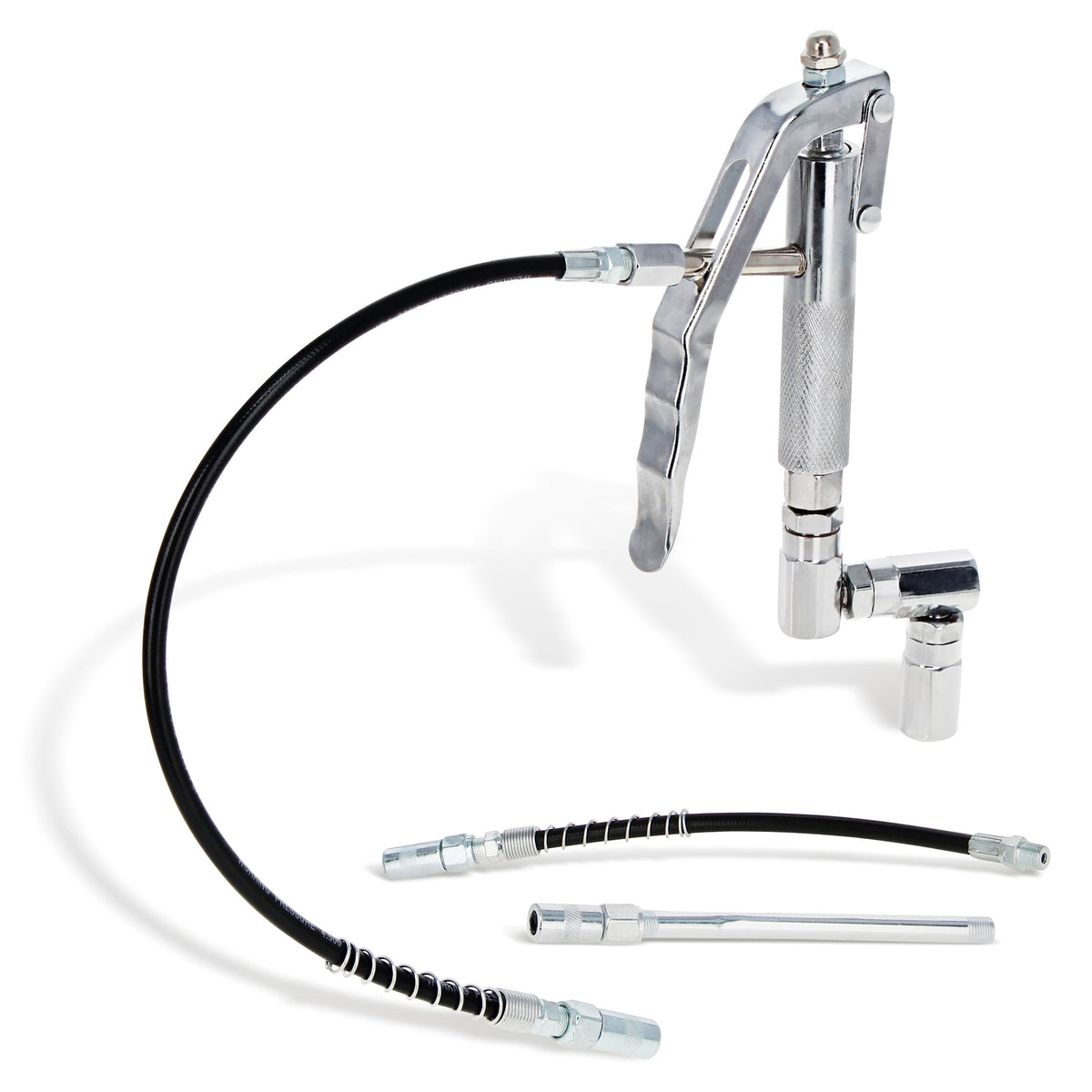

ABN Grease Gun Nozzle Kit is a compressed-air lubricating nozzle set with 10" and 18" flexible hoses, a 7" rigid tube, a one-handed 11" trigger handle, and a 7500 PSI rated 4-jaw coupler for fast, accurate grease delivery.

This kit upgrades an air-powered grease gun with versatile hose lengths, a rotating Z-swivel inlet, and a high-pressure control handle designed for tight engine bays, steering linkages and heavy equipment. It connects to standard 1/4" NPT compressor outlets and supports a wide range of pump ratios so you can pair it with most garage compressors and air-operated grease pumps (pump not included). The components are built to give technicians reach and control when routing grease into bearings, ball joints, tie rods and other routine lubrication points.

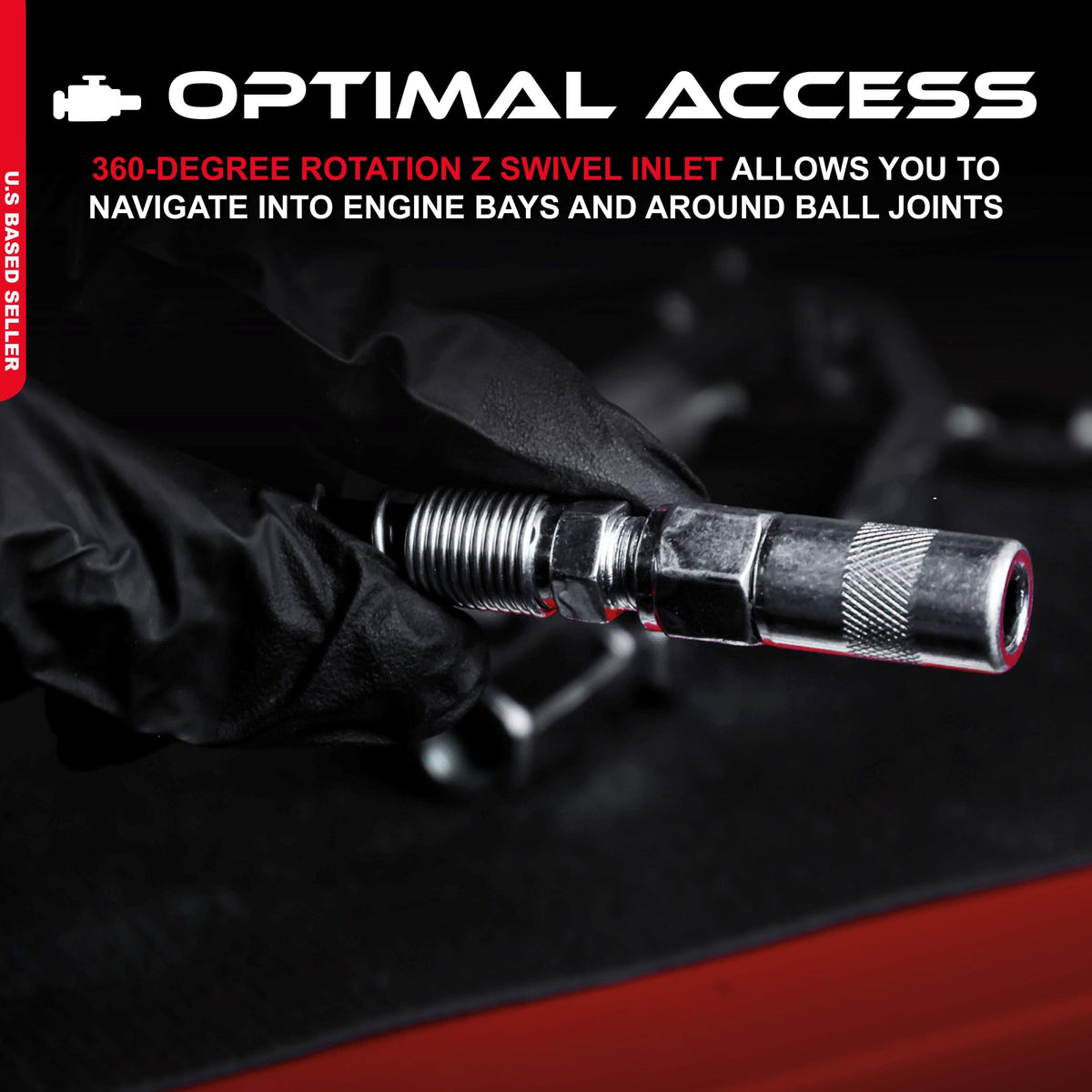

How does the 360° Z-swivel inlet improve access in cramped engine bays?

The Z-swivel inlet rotates fully to let you align the hose without twisting the tool or the workplace fittings, reducing strain and leak risk while you aim the coupler. That free rotation helps you maintain a steady seal on grease fittings at awkward angles.

• 360-degree Z-swivel prevents hose kinking and allows precise nozzle orientation
• Reduces connection strain for longer hose and fitting life
• Makes it easier to reach behind brackets and inside wheel wells

What pressure and pump ratios does this grease gun nozzle kit support?

The handle and coupler assembly are rated to operate up to 7500 PSI when attached to an appropriate air-operated pump and compressor. The inlet and fittings are designed to work with common pump ratios from 14:1 up to 70:1, giving compatibility with low- and high-ratio grease pumps for leak-free packing.

• 7500 PSI maximum working pressure when used with a compatible air pump
• Suitable for pump ratios 14:1, 40:1, 50:1, 60:1 and 70:1
• 1/4" NPT female inlet standard for most compressor hookups

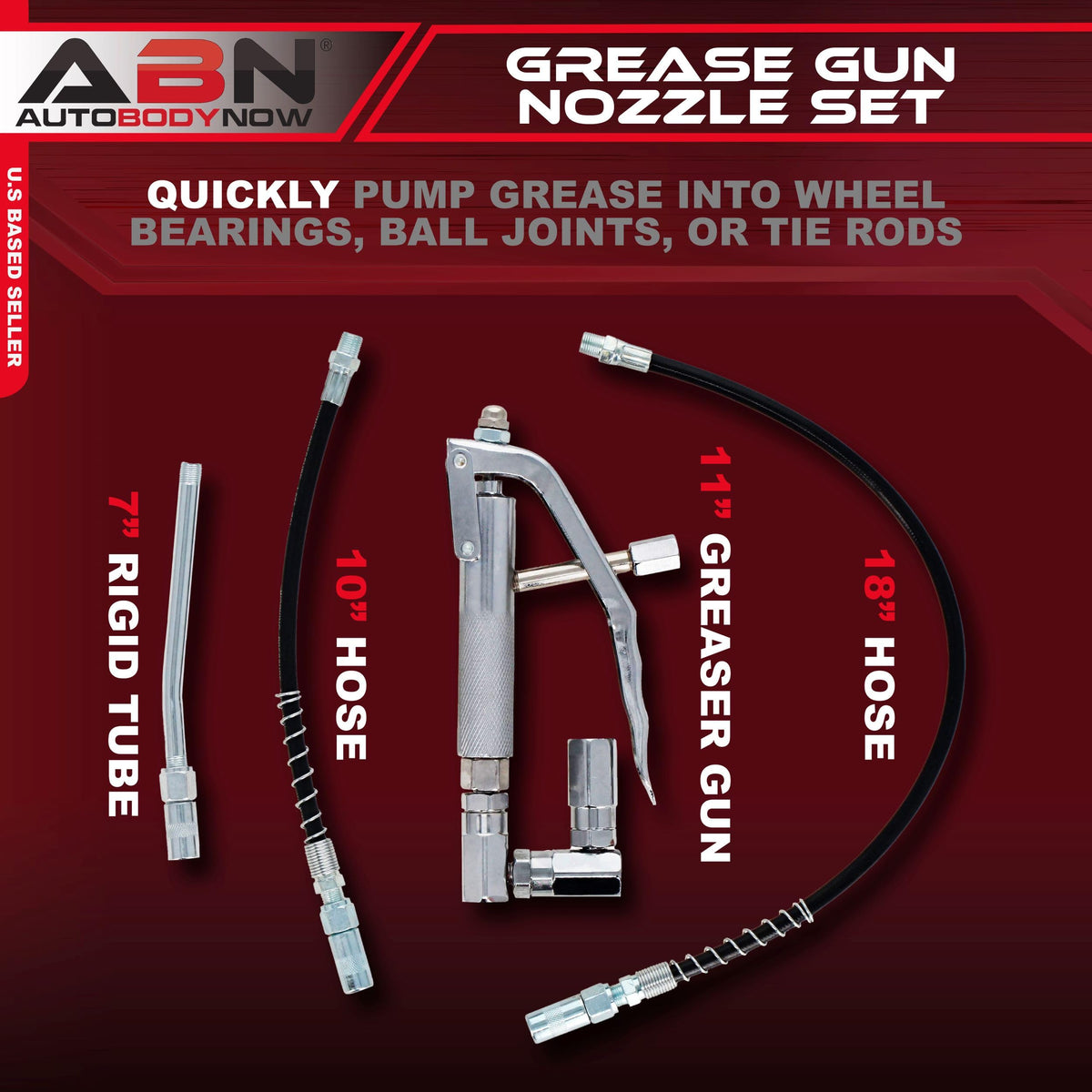

Which hose lengths and nozzle options are included, and when would I use each?

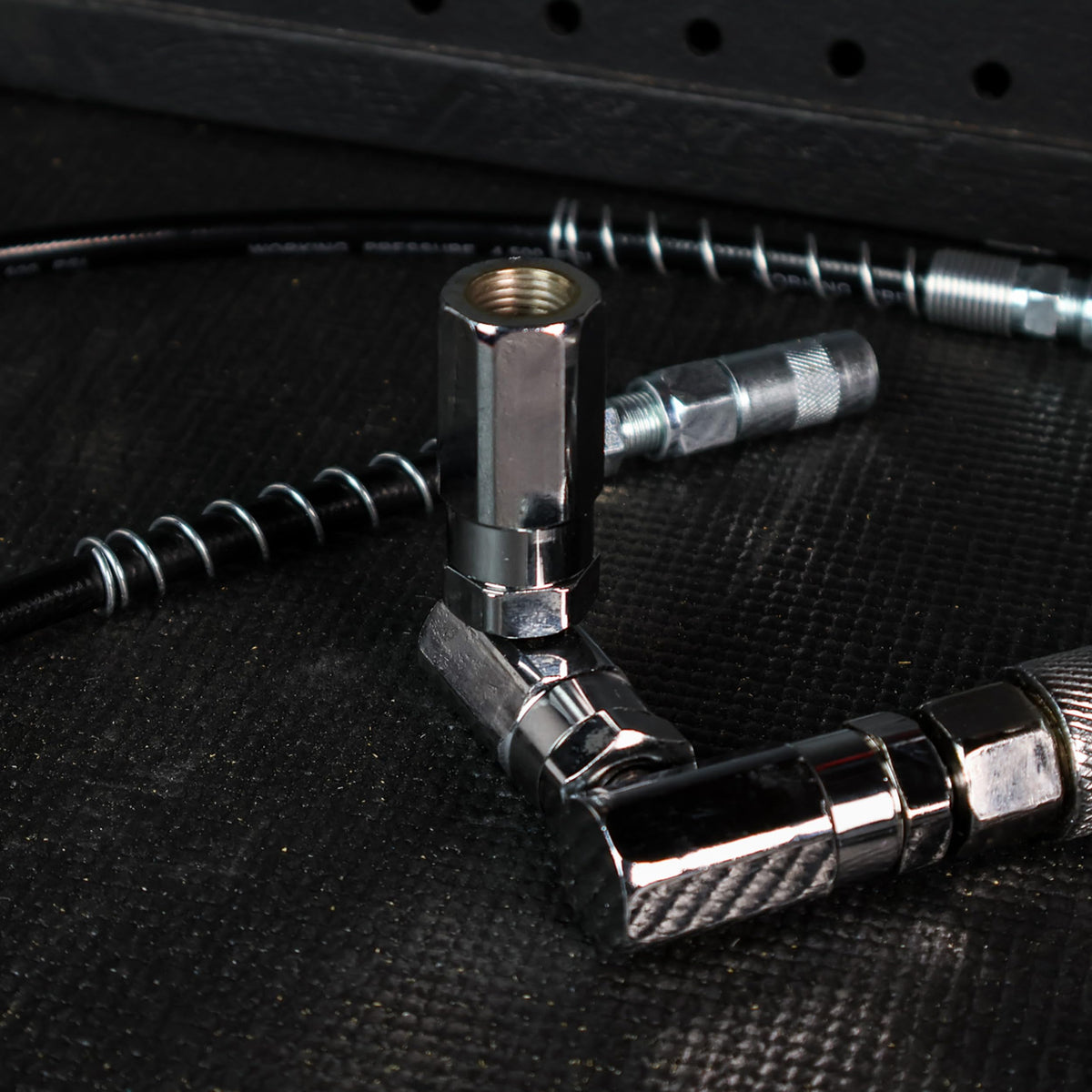

The kit includes both an 10" and an 18" flexible hose plus a 7" rigid tube, giving you short reach for tight fittings and longer reach for deeper, less accessible grease points. The 4-jaw coupler on each outlet provides a secure bite on standard grease nipples to minimize blow-back while pumping.

• 10" flexible hose for near-access fittings and quick jobs
• 18" flexible hose for recessed or hard-to-reach grease points

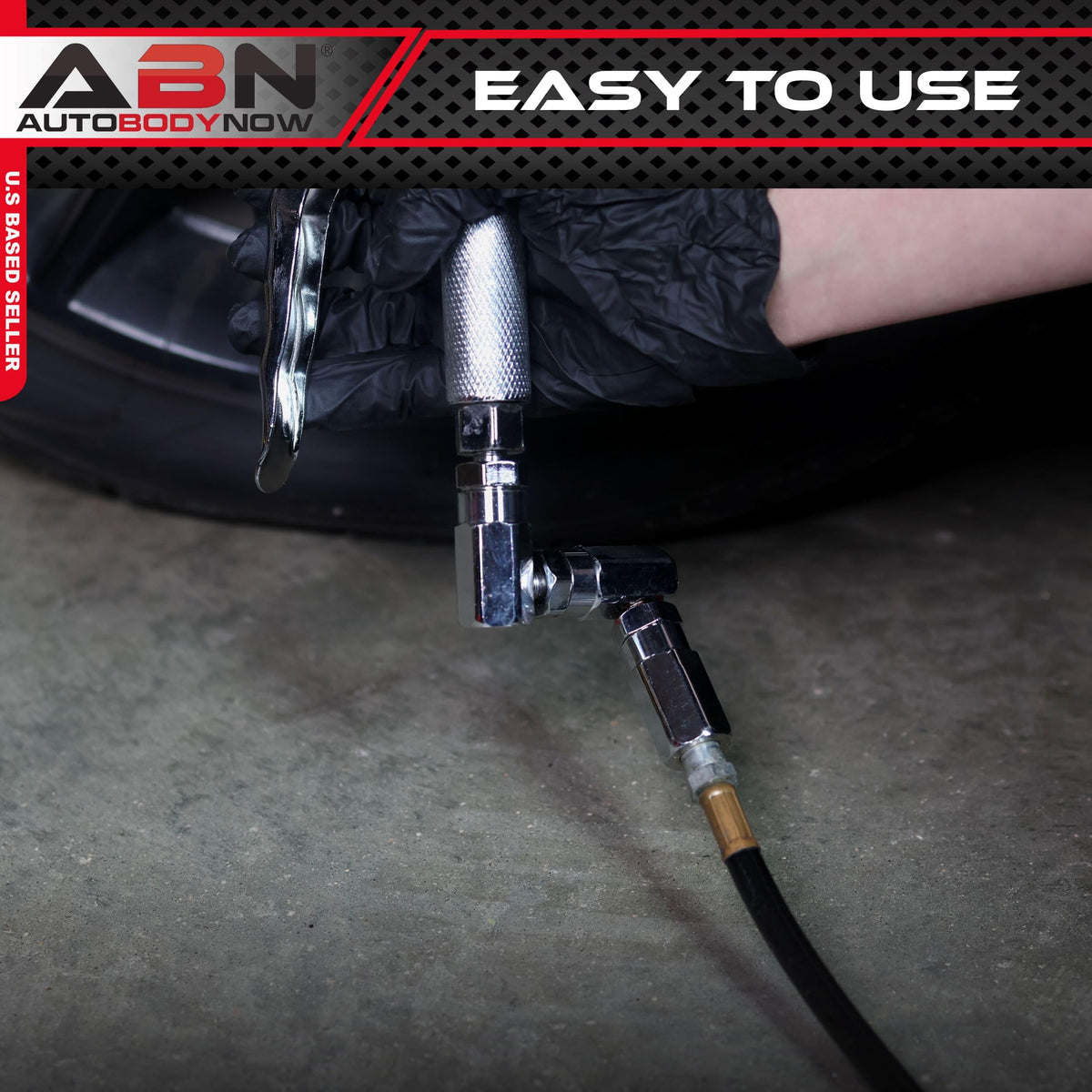

• 7" rigid tube for precise targeting and stiff access through tight openings
• 4-jaw coupler spout secures on standard grease fittings for reliable flow

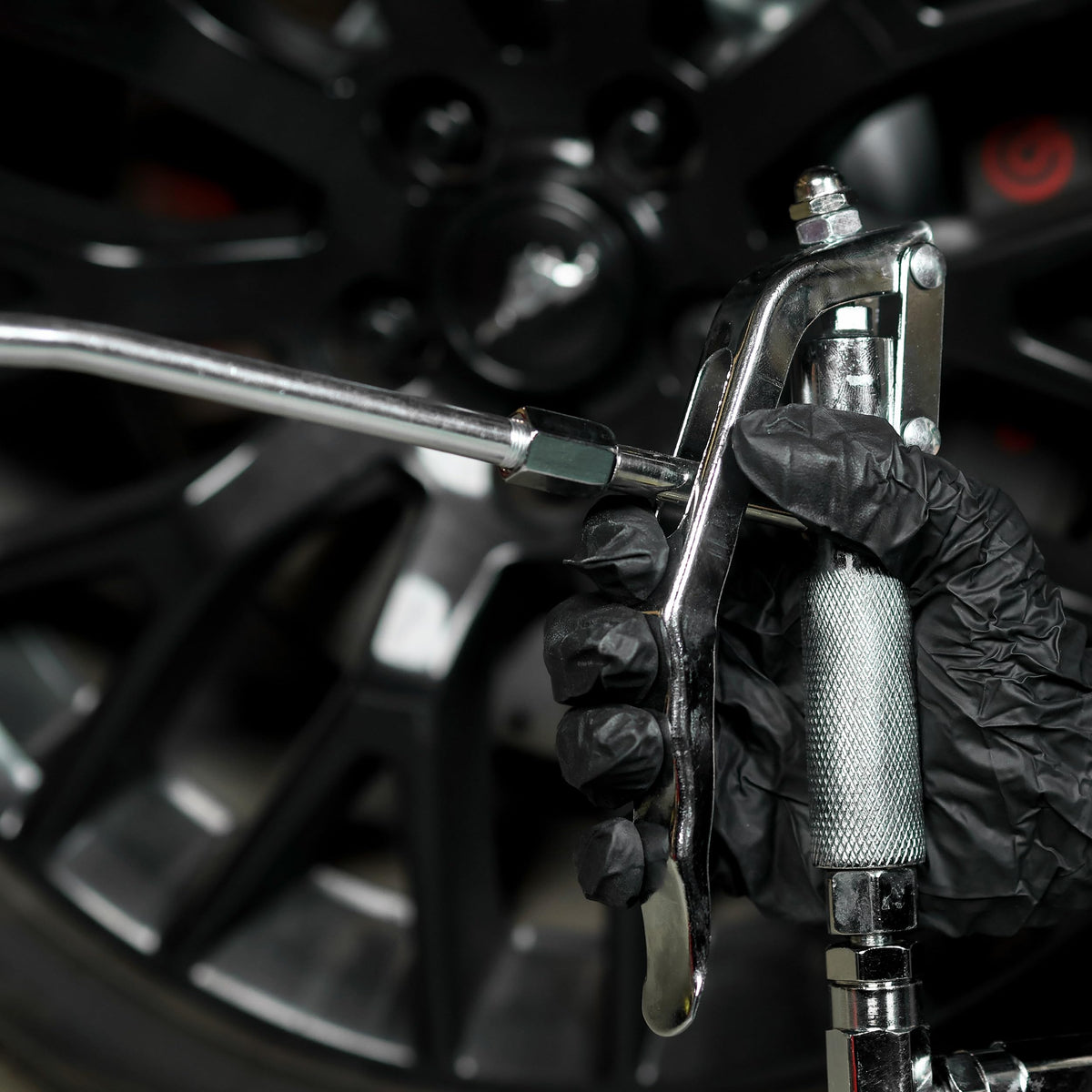

How does the one-handed trigger control help during grease service?

The 11" one-handed trigger dispenses grease smoothly, letting you control flow while holding the tool steady with your other hand or supporting the workpiece. The ergonomic grip reduces fatigue during repetitive greasing, and the trigger mechanics work in concert with the compressed-air source for consistent delivery.

• 11" trigger designed for single-hand operation and better on-tool control
• Smoother dispense reduces over-greasing and waste
• Ergonomic shape lowers hand fatigue during multiple fittings

Who this kit is for: technicians, fleet maintenance shops, home mechanics and agricultural operators who use air-driven grease pumps and need reach, rotation and pressure control for frequent lubrication tasks. If you already own an air compressor and grease pump, this nozzle kit adds flexible hose lengths, a rotating inlet and a high-pressure coupler to improve accessibility and reduce connection leaks during routine maintenance.
