ABN Pneumatic Spark Plug Cleaner — Compact Sandblaster Kit with 1.7 oz Abrasive and Dust Bag

If you maintain small engines, motorcycles, lawn equipment or cars, this ABN spark plug sandblaster delivers a fast, repeatable way to strip carbon and fouling from electrodes and insulators without grinding or oversanding. The kit pairs a durable plastic body and brass fittings with a steel clamp, comes with a fabric dust bag and 1.7 oz of abrasive media, and runs off a standard air compressor (hose and fittings not included). Follow safety precautions and use protective eyewear and a mask when you operate it.

How does the ABN cleaner remove carbon without damaging the plug?

The unit uses a controlled air-driven swirl of fine abrasive that gently removes deposits from the electrode and porcelain insulator while preserving critical dimensions. Because it’s a confined chamber with a fabric collection bag, grit is directed at the plug rather than exposed surfaces, reducing the risk of oversanding.

• Air-driven sandblast action at up to 90 PSI for efficient cleaning
• Rubber insert supports the plug electrode-side down to protect threads
• Fine abrasive designed to strip carbon without reshaping electrodes
• Fabric collection bag reduces stray media and dust

What do I need to get the cleaner running in my shop?

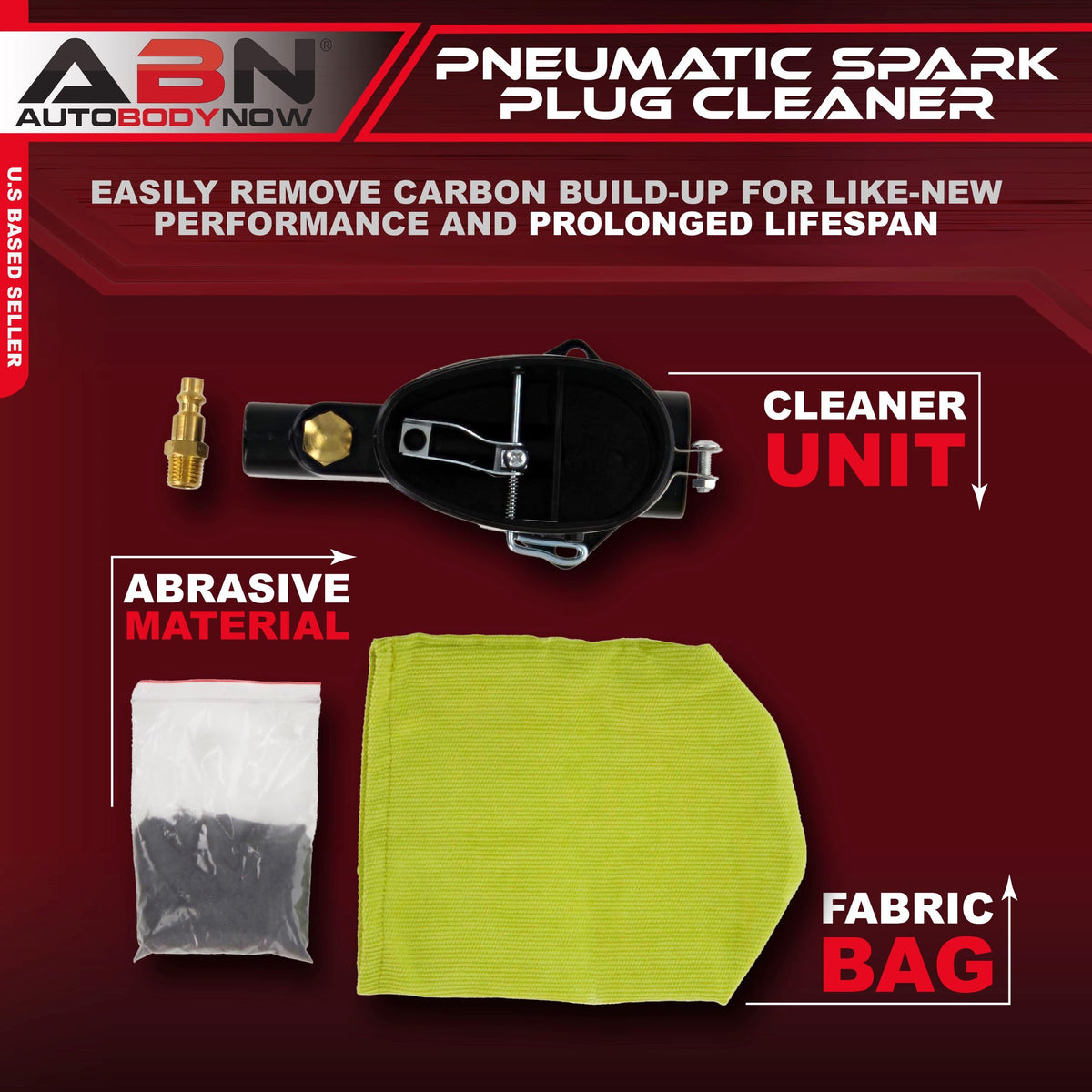

The kit includes the cleaner unit, clamp, fabric dust bag and a small bag of abrasive, but you will need shop-standard fittings to connect it. It accepts a 1/4-inch NPT air inlet with hose barb that fits a 3/8-inch air hose; you’ll also need a compressor capable of supplying around 7.7 CFM at up to 90 PSI.

• Required: air compressor, 3/8" air hose, union fitting (not included)
• Recommended: shutoff valve and regulator to control pressure precisely
• Mounts to a wall or post using the two mounting flanges for secure use
• Wear eye and respiratory protection while operating

How simple is installation, and what are the unit’s dimensions?

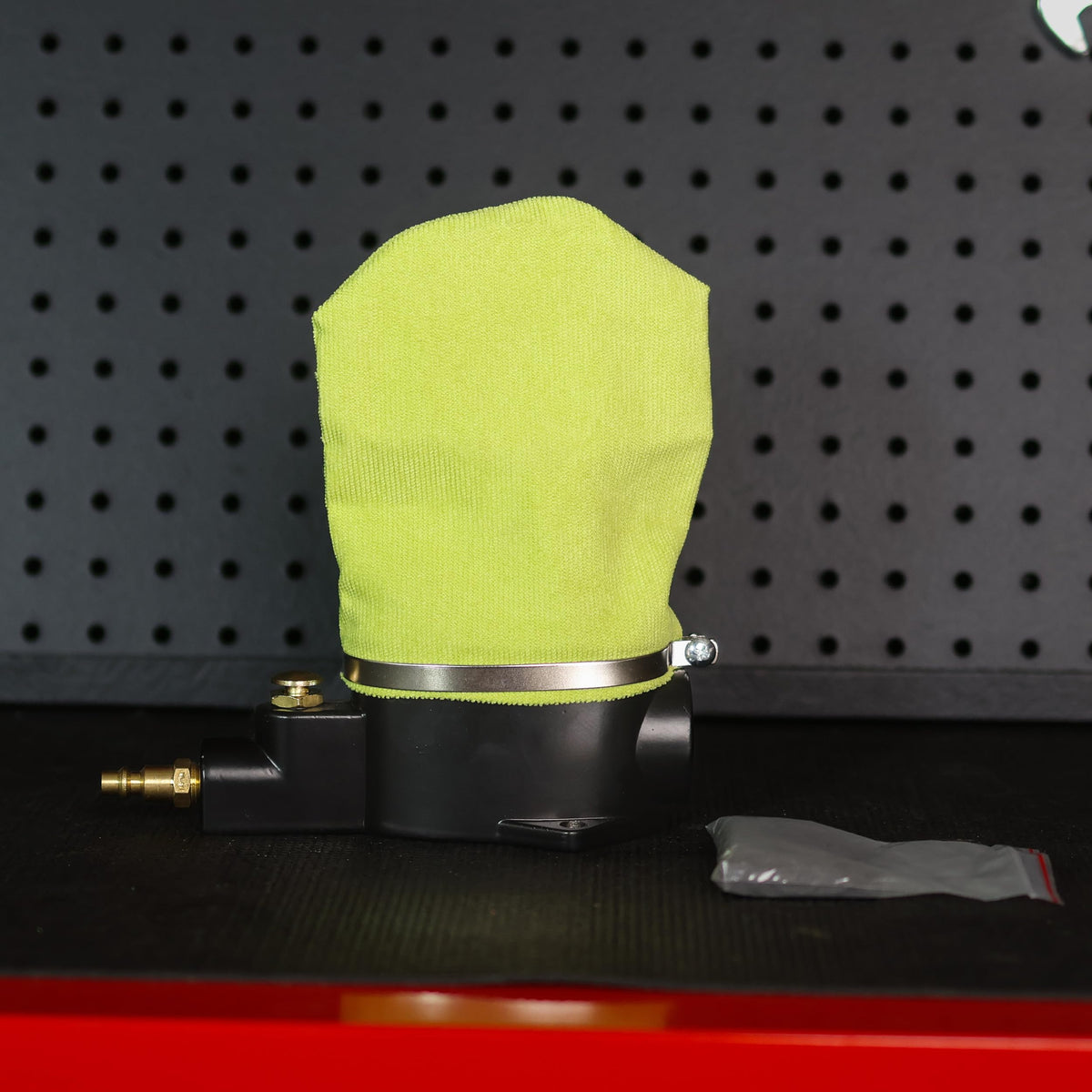

Installation is straightforward: mount vertically with the plug insertion facing upward, fill the base with abrasive, secure the cover with the included clamp, and attach your air line. The unit measures roughly 3.3 inches wide by 8 inches long and stands about 3 inches from the wall when mounted, making it easy to integrate into a workbench area.

• 2 mounting flanges for secure vertical installation
• Compact footprint: 3.3" (8.4 cm) wide, 8" (20.3 cm) long
• Cover size 6.3" by 5" (16 by 12.7 cm) with clamp-secure lid
• Durable brass fittings and steel clamp for long life

What maintenance and safety steps should I follow?

Empty and inspect the abrasive media regularly and replace it when it becomes spent or clogged; periodically check fittings, the rubber plug seal, and the collection bag for wear. Always shut off and depressurize the air supply before servicing and clean remaining grit from plug surfaces after blasting to avoid reintroduction of contaminants.

• Replace abrasive when cleaning power drops or media becomes dusty
• Inspect brass fittings and clamp for tightness and wear
• Use protective goggles, gloves, and a respirator during operation
• Clean plugs after blasting to remove residual grit before reinstalling

Who is this for? The ABN Pneumatic Spark Plug Cleaner is aimed at home mechanics, small-engine repair shops, motorcycle enthusiasts, landscapers, and anyone who services spark-plug-equipped engines and wants a repeatable, low-cost way to remove fouling. It’s not a replacement for replacing badly worn or damaged plugs, but it extends usable life for plugs that are fouled by carbon and deposits. If you run multiple small engines or maintain a fleet of mowers, motorcycles, or ATVs, this tool speeds routine maintenance and reduces parts costs while fitting easily into a basic compressor-equipped workshop.
