AC-DK 12V 2000 lb ATV/UTV Electric Winch — 50' Dyneema Rope, Wired Remote

The AC-DK 12V 2000-lb electric winch is a compact, easy-to-install recovery winch for ATVs, UTVs, trailers, boats and light towing that includes a 50' Dyneema synthetic rope, wired yellow remote, and mounting plate.

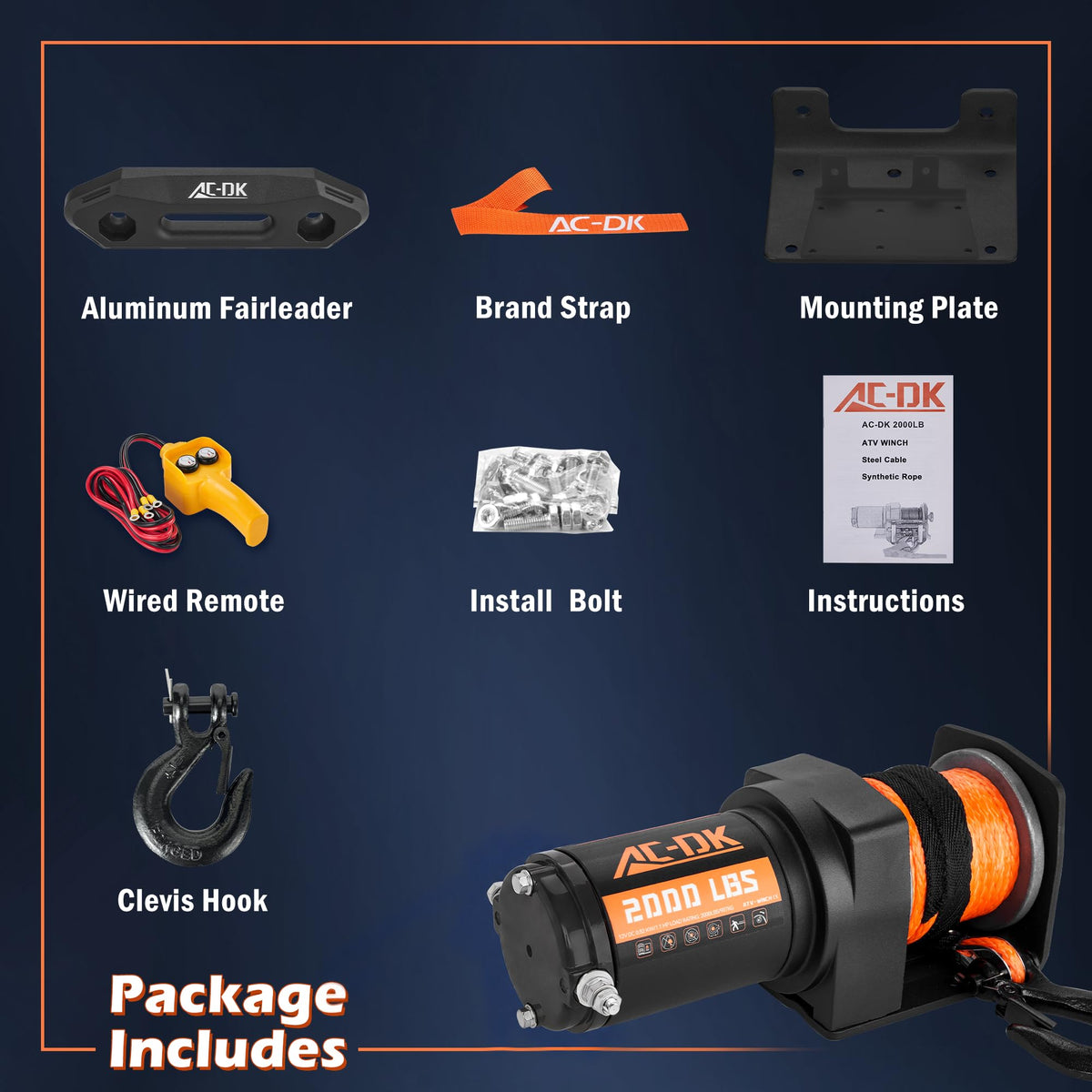

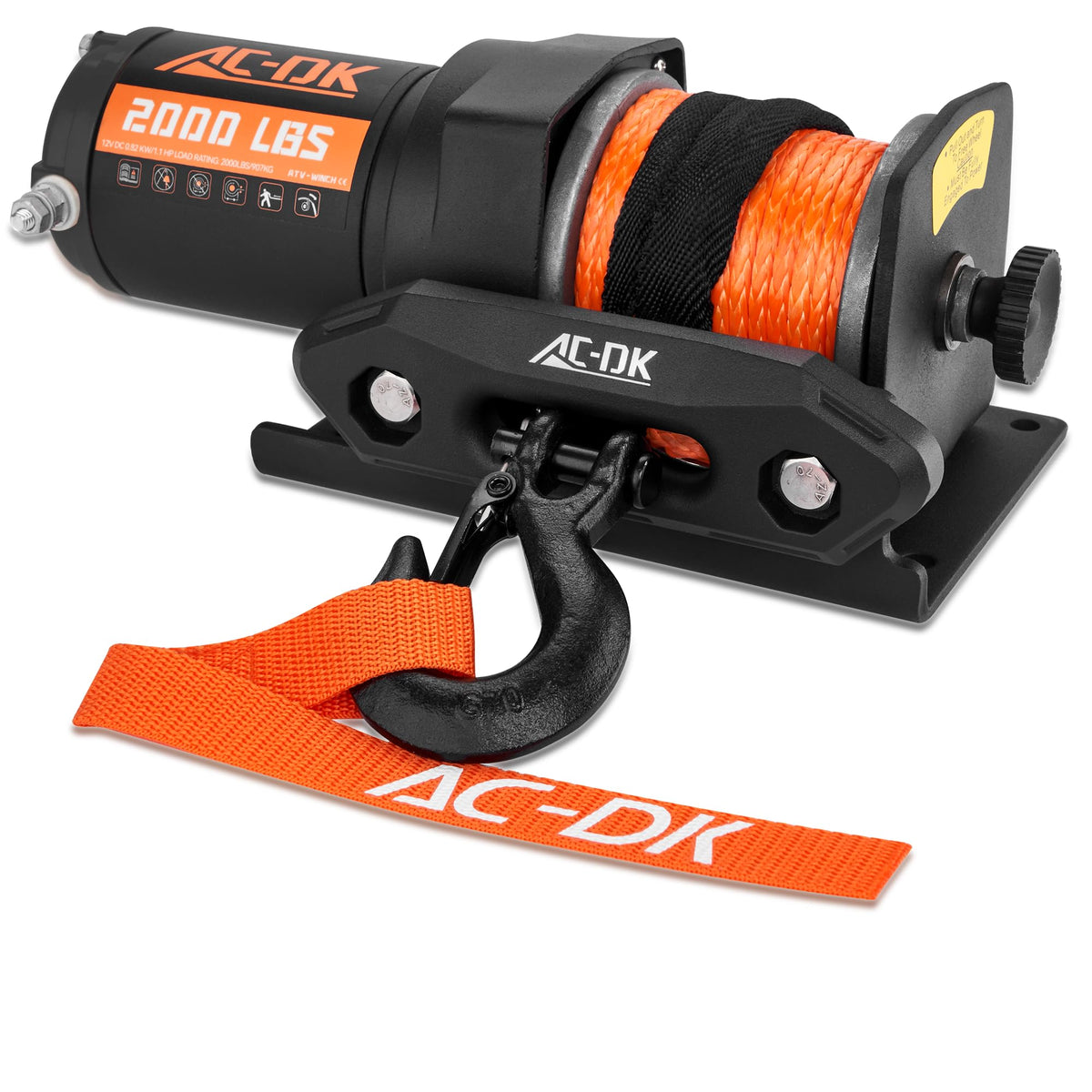

If you need a reliable low-profile winch that fits standard ATV/UTV brackets and delivers steady pulling power without the weight penalties of steel cable, this AC-DK model is built for that role. Designed around a permanent-magnet 12V motor and a combined planetary gear train, it balances pulling capacity, speed and durability. The kit also includes a bright yellow wired remote and mounting plate with common hole patterns to simplify installation.

How much weight can this winch safely pull and how fast does it operate?

The winch is rated at 2,000 lb (approx. 907 kg) of line pull, suitable for most ATVs, UTVs and light trailer or boat recovery tasks. It runs on a 12V system and features a 0.82 kW (1.1 hp) permanent magnet motor paired with a 153:1 gear ratio.

• Rated load: 2,000 lb (907 kg).
• Motor output: 0.82 kW / 1.1 hp, 12V DC.
• Gear ratio: 153:1 for steady torque and controlled spooling.

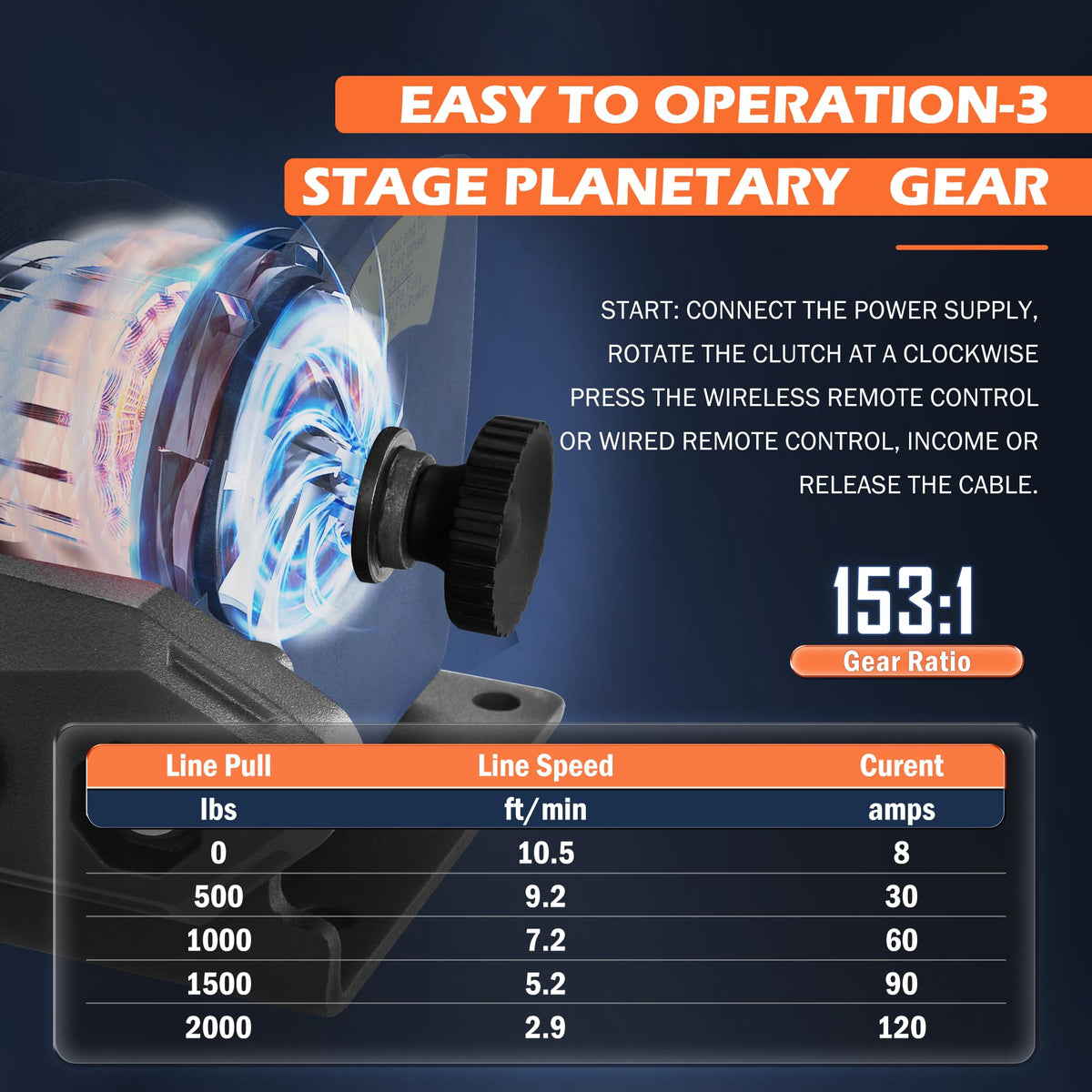

• Line speed: about 10.5 ft/min unloaded and 2.9 ft/min under full load.

What rope and safety features come with the winch?

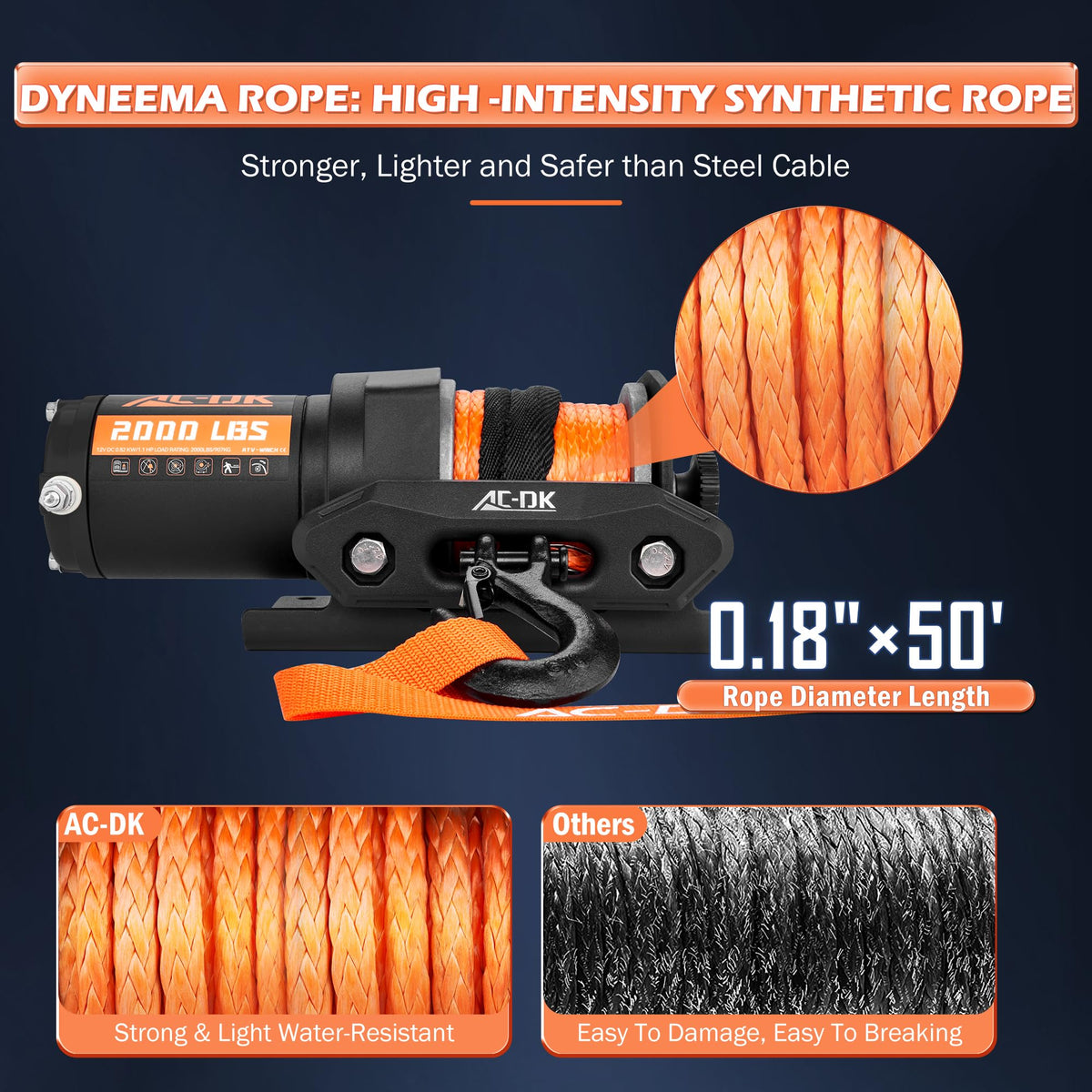

This model ships with a 3/16" diameter by 50' Dyneema synthetic rope, a modern alternative to steel cable offering lower weight and reduced snapback risk. Synthetic rope floats and resists water degradation, making it practical for wet conditions and marine use.

• Rope: 3/16" x 50' Dyneema synthetic line — lightweight and water-resistant.
• Reduced snapback hazard compared with steel cable.
• Suitable for use around water and resistant to rot or rust.
• Includes standard fairlead and mounting provisions for common brackets.

How easy is installation and what wiring does it require?

• Connect handheld remote: red to winch red, black to winch black; remote power lines to battery "+" and "-".

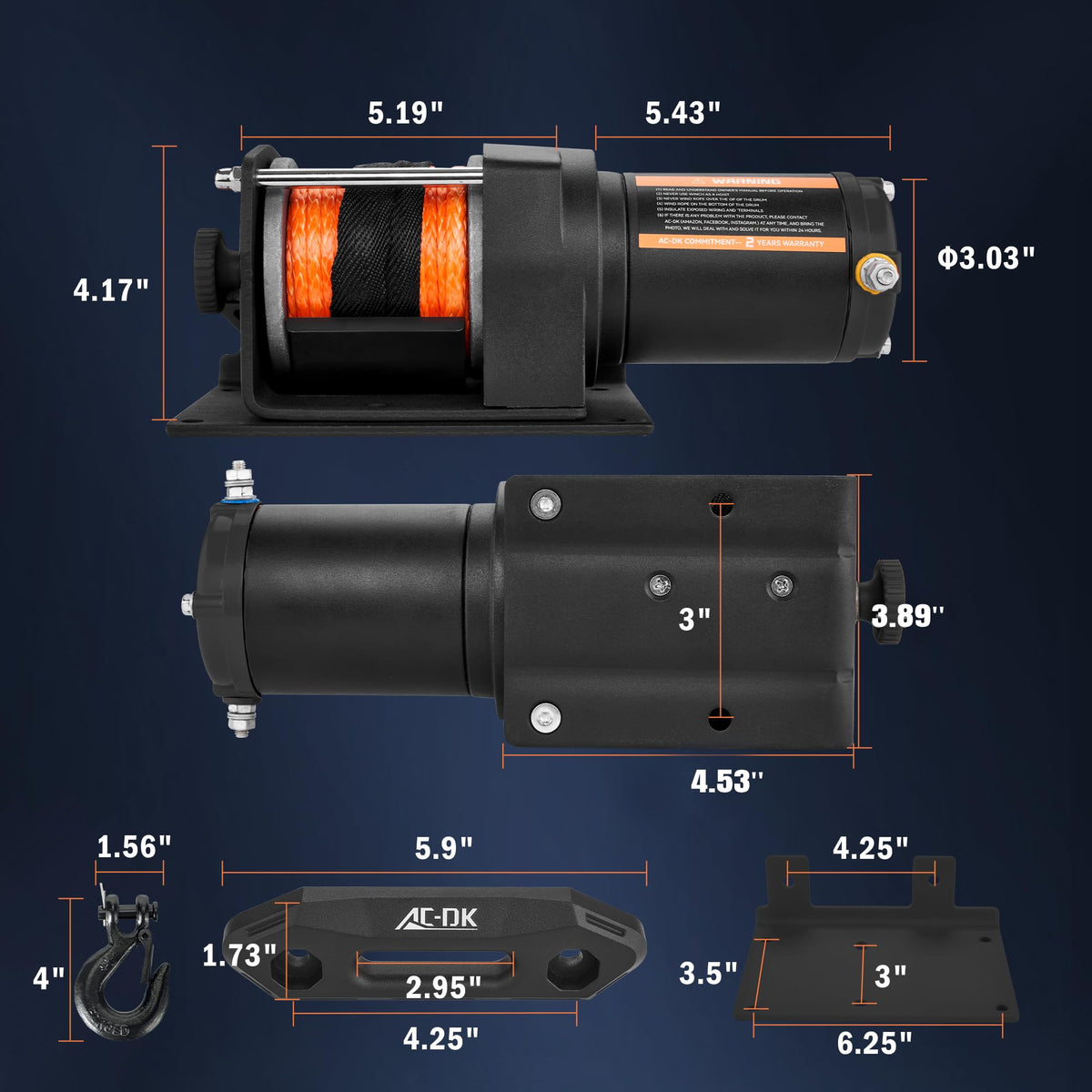

• Fairlead mounting pattern: 4 1/4" (108 mm).
• Mounting plate hole spacing: 2-hole pattern 3.10" (78 mm) and 3.00" (76 mm) — check bracket compatibility before purchasing.
• Minimum cold start current: 10 A for safer battery demands during start-up.

What warranty, support and compatibility should I expect?

• One-year quality service coverage plus lifetime technical support.
• Manufacturer assistance available for wiring, mounting and troubleshooting.
• Commonly compatible with many ATV/UTV models (examples: Outlander, Renegade, Maverick, Grizzly, Kodiak, Raptor, Pioneer, Foreman, Rancher, Brute Force, Teryx, YFZ450R).
• Contact AC-DK support for fitment questions or replacement parts.

Who is this winch for? If you own an ATV, UTV, small trailer, or recreational boat and want a lightweight, corrosion-resistant synthetic-rope winch that fits standard mounting patterns, the AC-DK 12V 2000-lb kit is a practical choice. It suits riders and owners who value easier installation, reduced rope hazard, and a compact motor-gear combination for routine recoveries, light towing tasks, and water-adjacent use. Verify your bracket’s fairlead and plate hole measurements before ordering to ensure a direct fit.
