Aeagle 12" x 2" Trailer Brake Drum Kit 8-Lug (8 on 6.5", 9/16" Stud) for 7K Axles — Includes Bearings, Seals

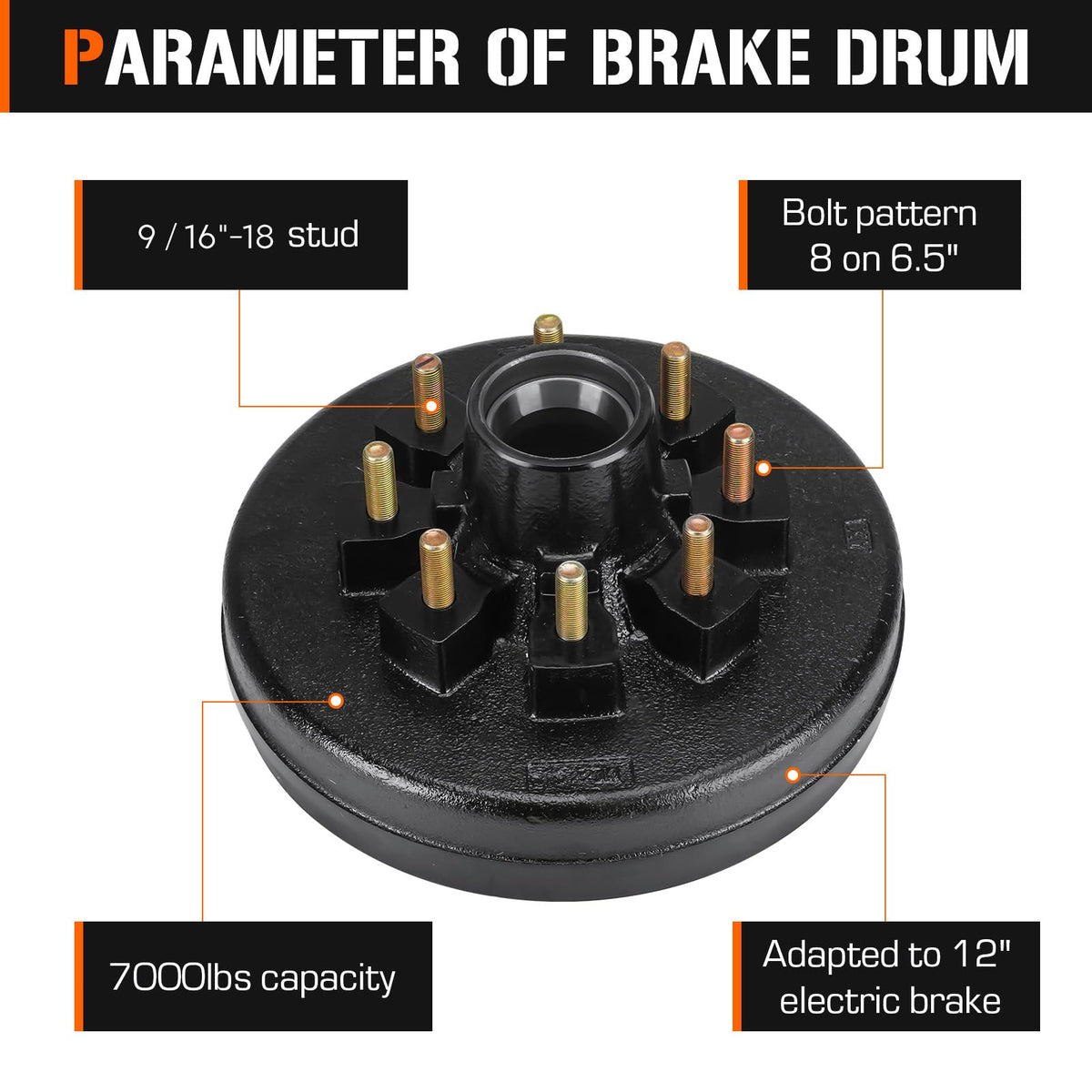

Aeagle's 12" x 2" trailer brake drum kit is a complete 8-lug replacement assembly designed for 7,000 lb (7K) axles with an 8 on 6.5" bolt pattern and 9/16" studs.

This kit combines a gray cast-iron brake drum with the matching inner and outer bearings, grease seal, dust covers, rubber plug, and hub nuts so you get everything needed to service standard-lube 7,000 lb trailer axles that accept 25580 inner cone and 14125A outer cone bearings. The drum is manufactured with a rust-resistant finish and shipped after inspection, backed by a 12-month warranty.

Will this drum kit fit my trailer axle?

Check your axle specifications before ordering: this kit fits standard-lube 7,000 lb axles that use the 8 on 6.5" bolt circle with 9/16" studs and accept 25580 and 14125A bearings. It is compatible with many Dexter, AL-KO, Lippert and Quality brand axles when those bearing sizes and lube types match.

• Required bolt pattern: 8 on 6.5"
• Stud size: 9/16"
• Bearing cone sizes: inner 25580, outer 14125A
• Only for standard lube axles — not for Nev-R-Lube or Airstream Classic (post-7/2005)

What parts are included in the Aeagle 7K brake drum kit?

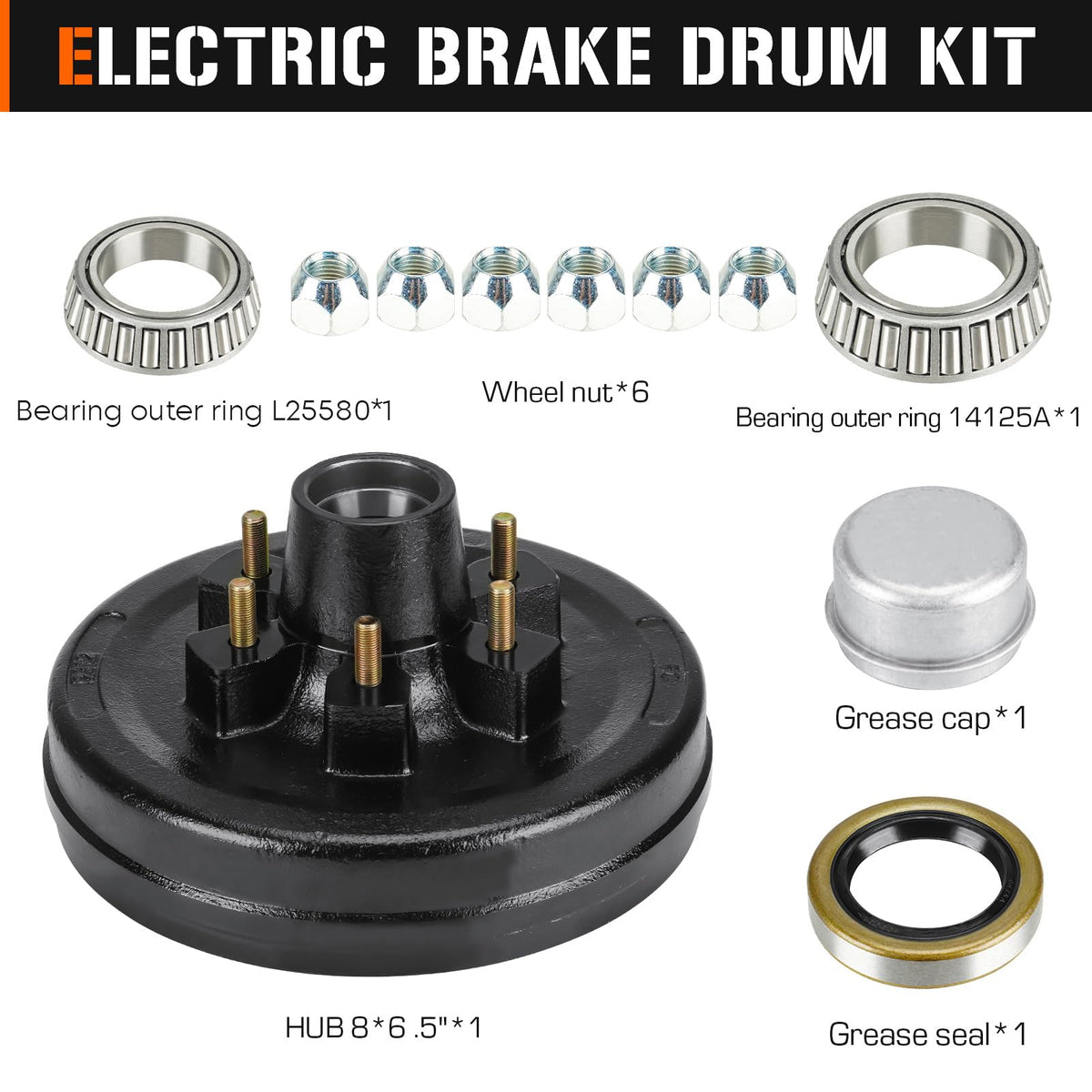

The kit is supplied as a one-stop replacement package to minimize sourcing multiple parts. You receive the drum plus bearings, seals, dust covers and the correct hub nuts to reinstall the assembly.

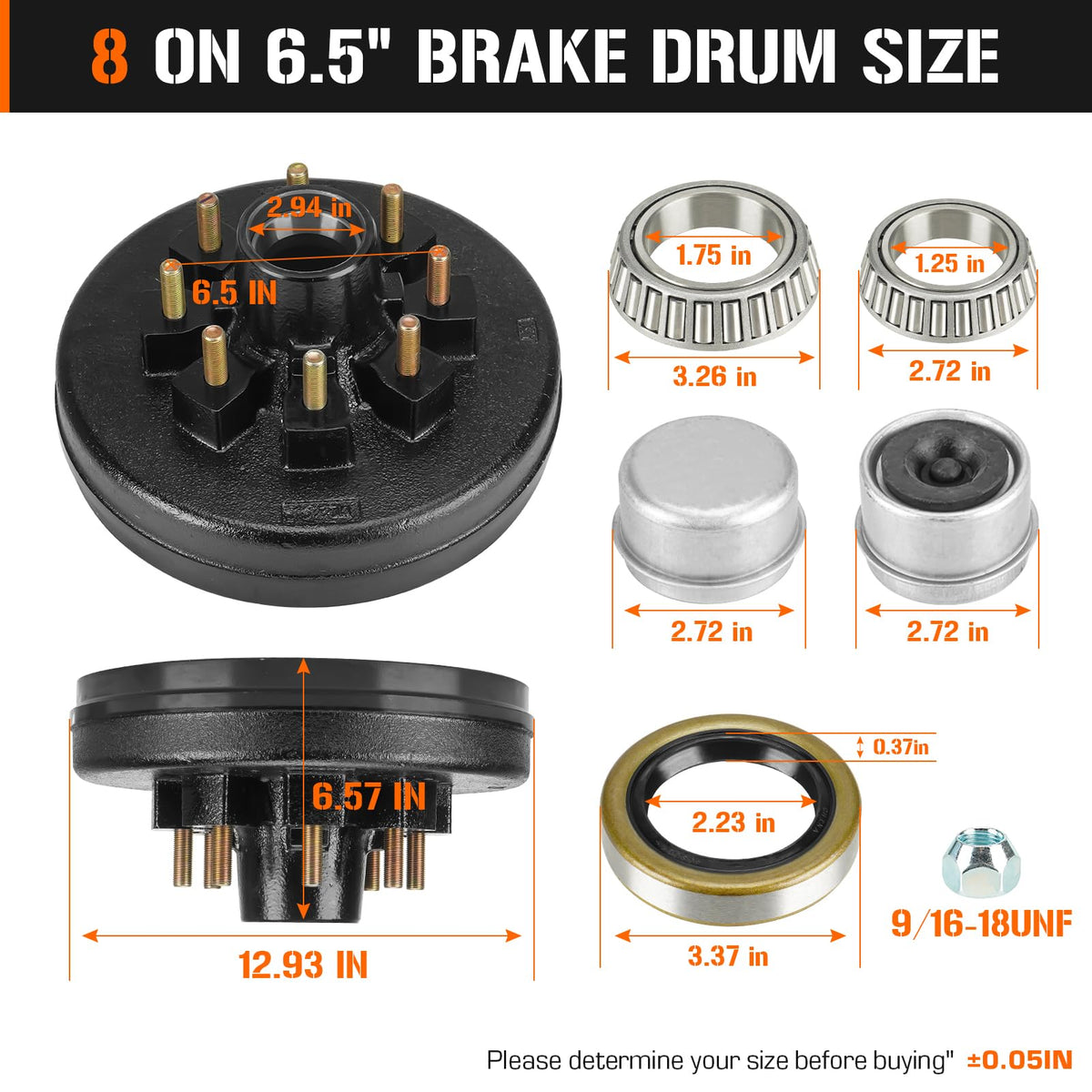

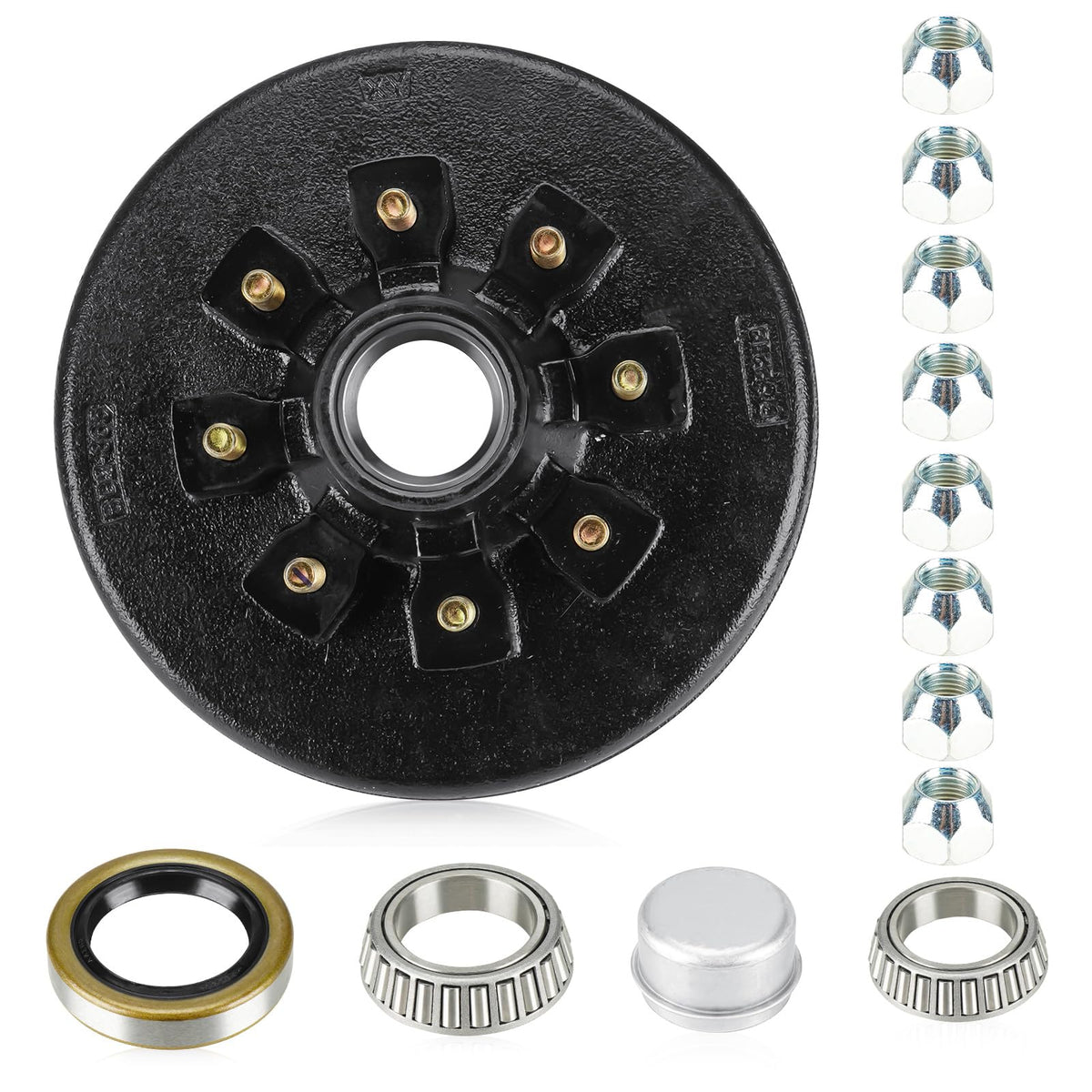

• 1 × 12" x 2" 8-lug brake drum (8 on 6.5" bolt circle)
• 1 × 25580 inner cone bearing and 1 × 14125A outer cone bearing
• 1 × grease seal (I.D. 2.23", O.D. 3.37")
• 1 × metal dust cover, 1 × rubber plug dust cover (diameter 2.72")
• 8 × hub nuts (9/16-18 UNF)

How is the drum built and what durability features does it have?

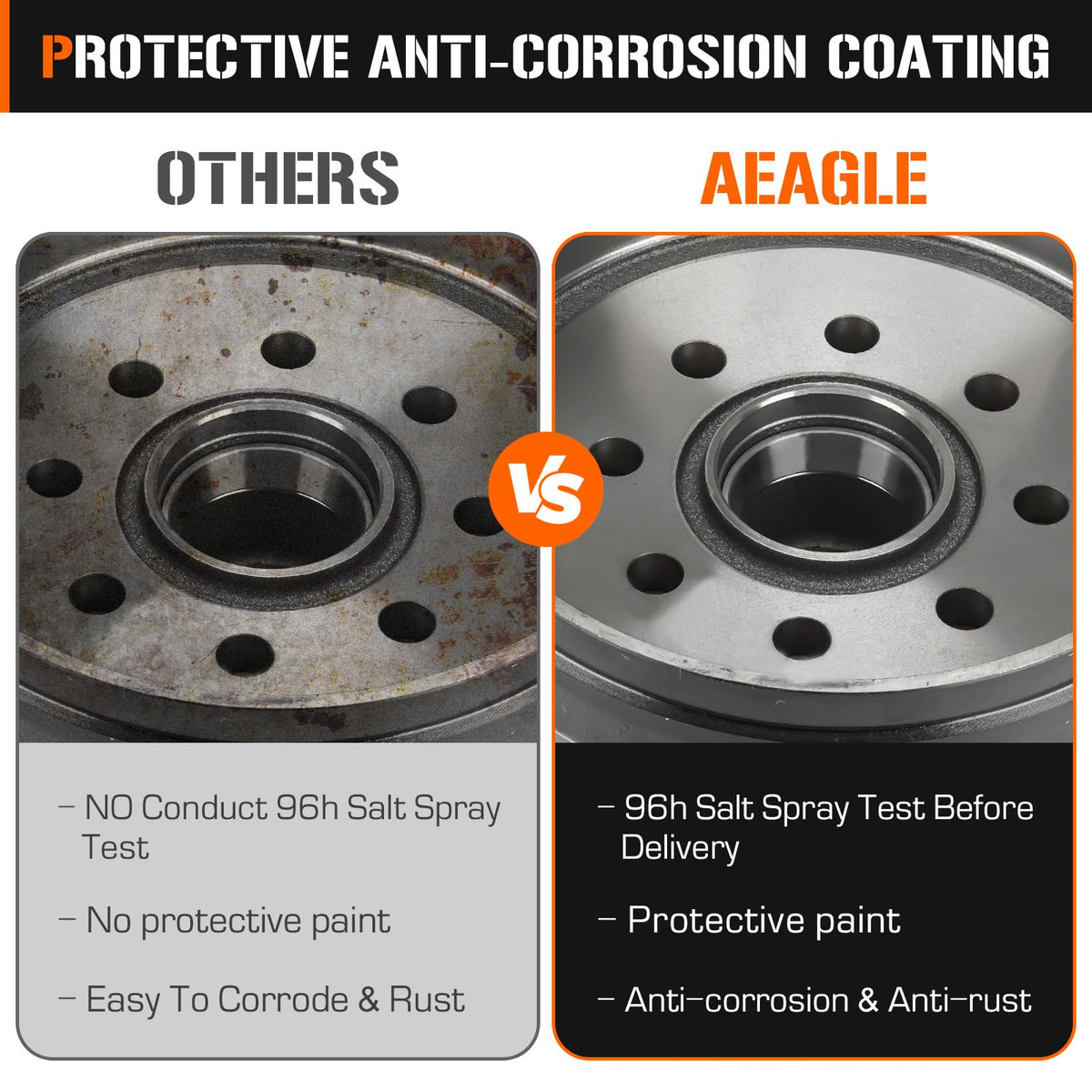

The brake drum is cast from gray iron and treated with a protective coating to resist surface rust and withstand the stresses of trailer service. Parts are inspected before dispatch and the kit ships with a 12-month warranty for added confidence.

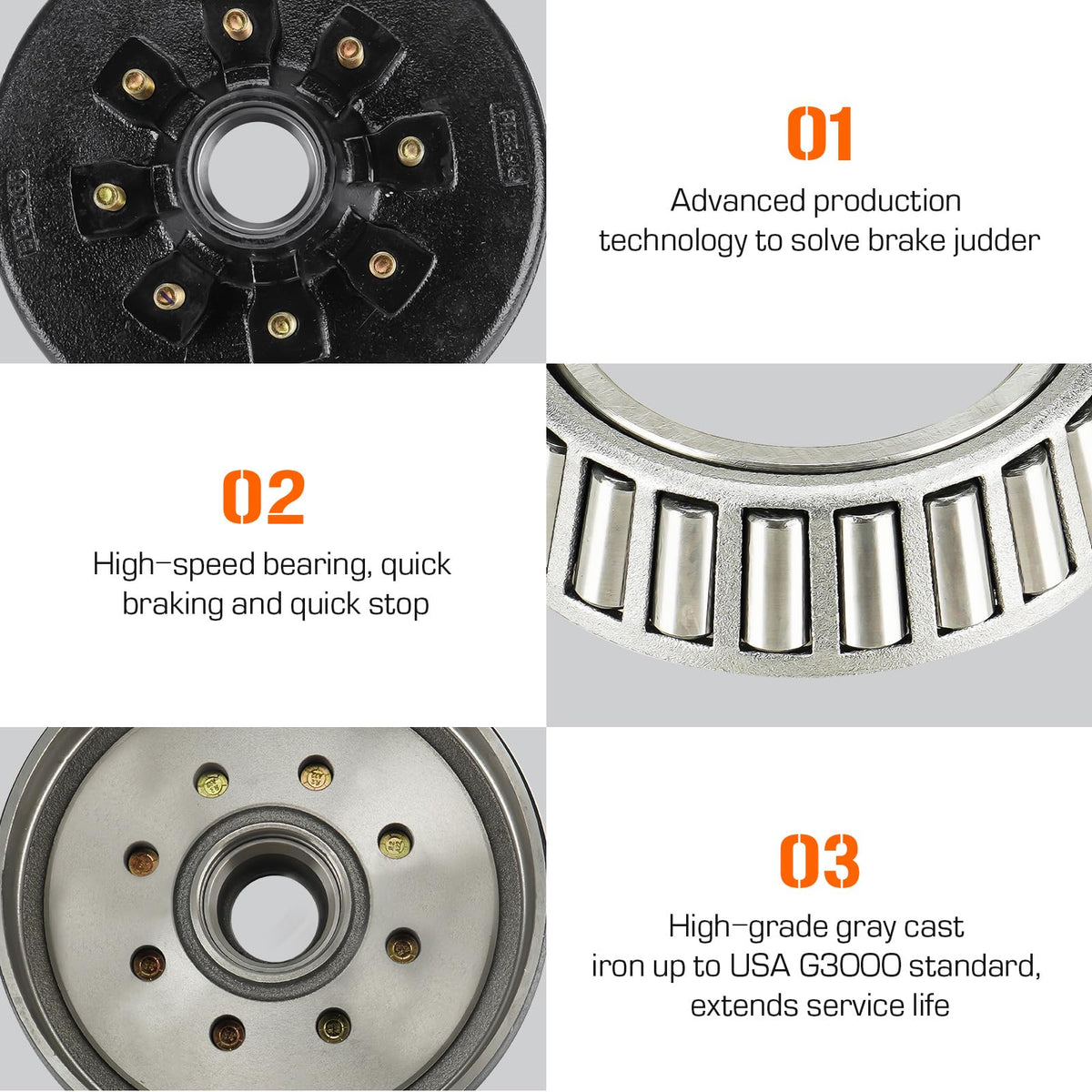

• Material: heavy-duty gray cast iron for wear resistance
• Surface: rust-resistant coating to reduce corrosion
• Quality control: tested prior to shipping
• Warranty: 12 months from purchase

Are there any important compatibility exclusions or installation notes?

This assembly is intended for standard-lube axles only. It will not fit Nev-R-Lube axles and is not compatible with Airstream Classic trailers built after July 2005. Confirm bearing sizes and bolt pattern before installation.

• Not compatible with Nev-R-Lube axle systems
• Not suitable for Airstream Classic trailers (built after 07/2005)
• Only fits axles designed for 25580 and 14125A bearings
• Professional installation or proper tools recommended for safe assembly

Who this kit is for: The Aeagle 12" x 2" 8-lug brake drum kit is aimed at trailer owners, fleet managers, and repair shops replacing worn components on 7,000 lb axles. If you maintain Dexter, AL-KO, Lippert, Quality or similar axles that use the listed bearing sizes and standard lube hubs, this kit provides the matched parts needed for a reliable rebuild. If your axle uses Nev-R-Lube technology or differs in bearing measurements, select a kit specified for those systems to ensure fit and safe operation.
