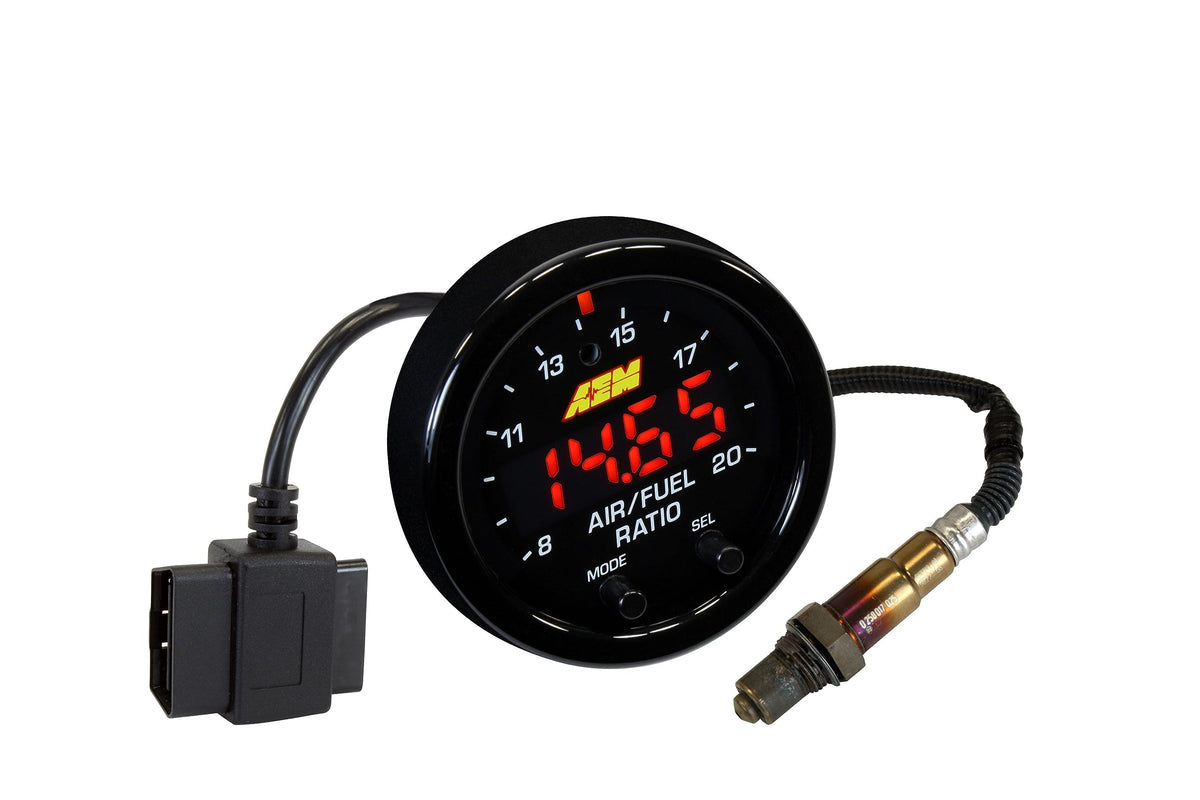

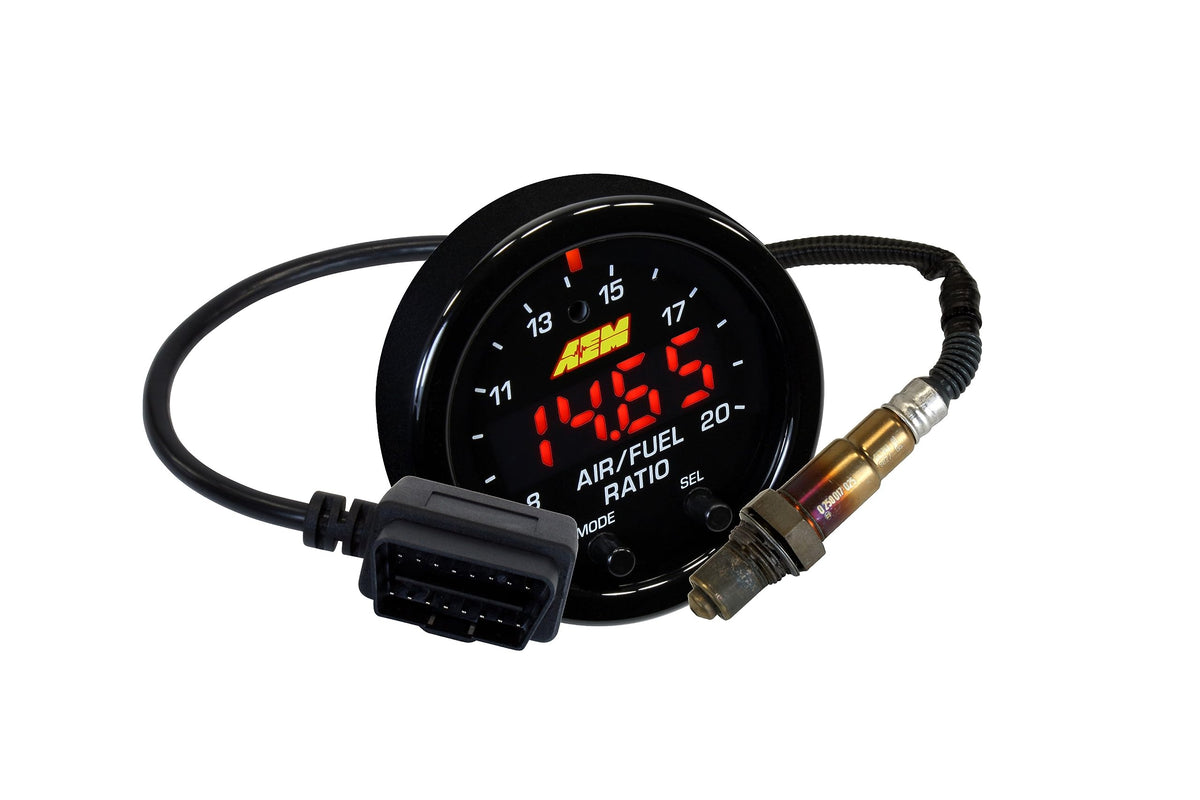

AEM X-Series Wideband AFR Controller 52mm Compact Gauge with Bosch 4.9LSU and CAN/OBD-II

This instrument combines AEM's patented X-Digital wideband technology with a compact 52mm gauge package and multiple data outputs to give tuners, racers, and advanced DIYers accurate, fast air/fuel readings and seamless integration into modern vehicle networks. It arrives factory-calibrated so most installations need no free-air setup, yet it still supports recalibration as the sensor ages. The controller is designed for both standalone logging/control and for daisy-chaining across multi-cylinder setups.

How quickly and accurately will this unit report AFR readings?

The X-Series unit uses AEM's X-Digital patented algorithm and the Bosch 4.9LSU sensor for fast, stable measurements. In independent comparisons it was one of the quickest-responding wideband controllers, making it a strong choice where rapid AFR changes matter.

• Patented X-Digital wideband processing for speed and stability

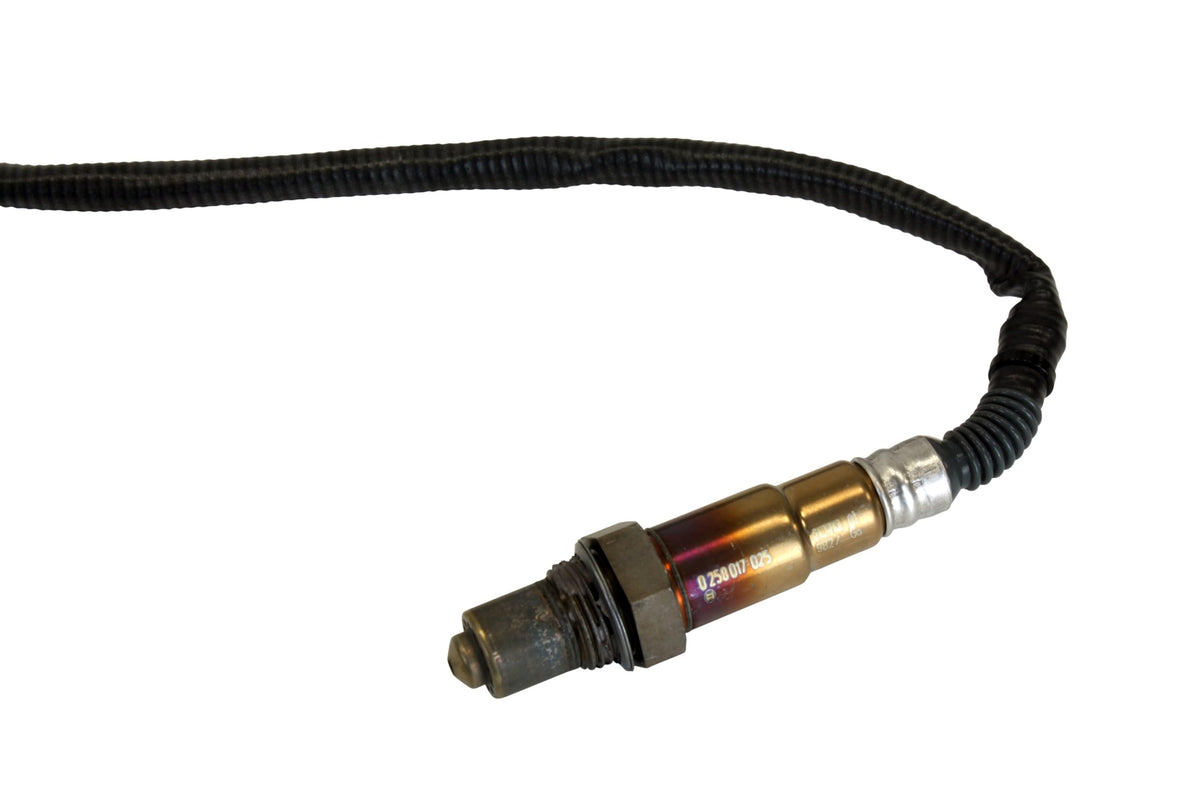

• Includes Bosch 4.9LSU sensor for reliable sensing
• Displays AFR to hundredths for fine resolution
• Fast response suitable for transient tuning and closed-loop control

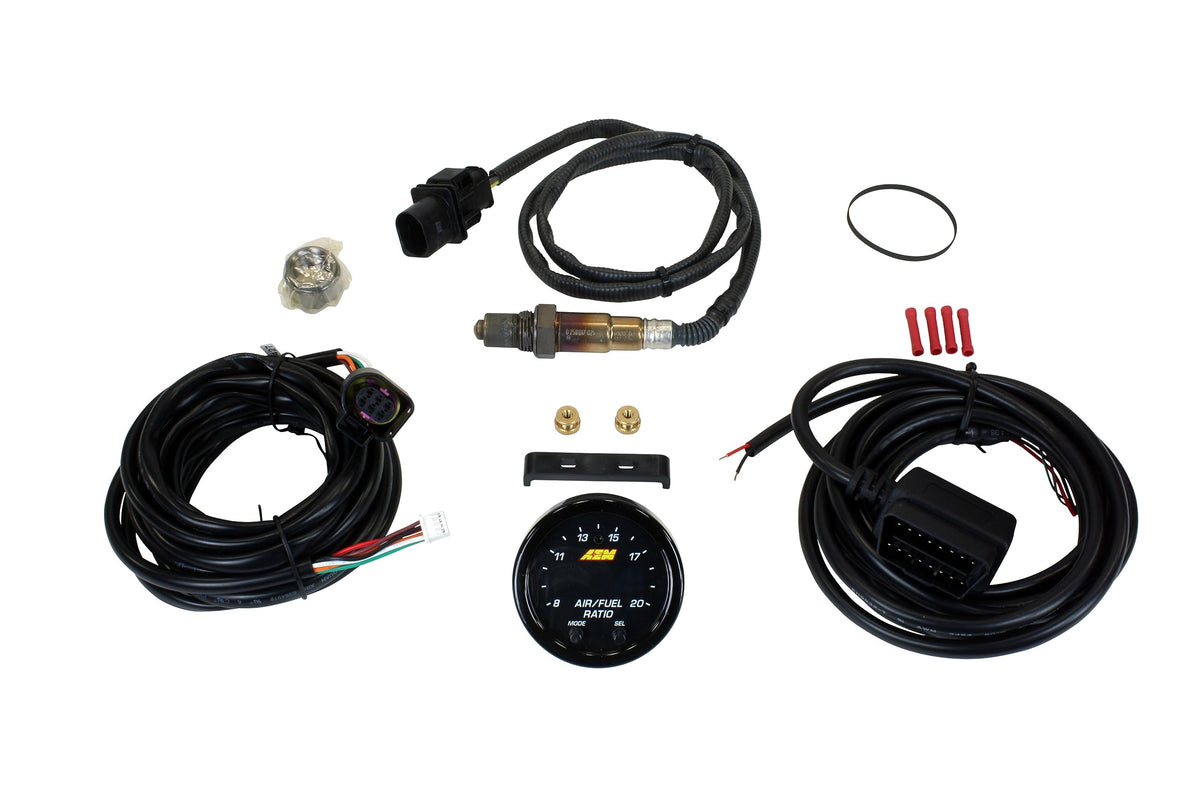

What connectivity and outputs does it support for tuning and logging?

The controller offers multiple output options so you can integrate it with dataloggers, ECUs, or OBD-II/CAN systems on newer vehicles. Its OBD-II/CAN output and AEMnet capability allow it to communicate with 2008-and-newer vehicles and to chain multiple controllers.

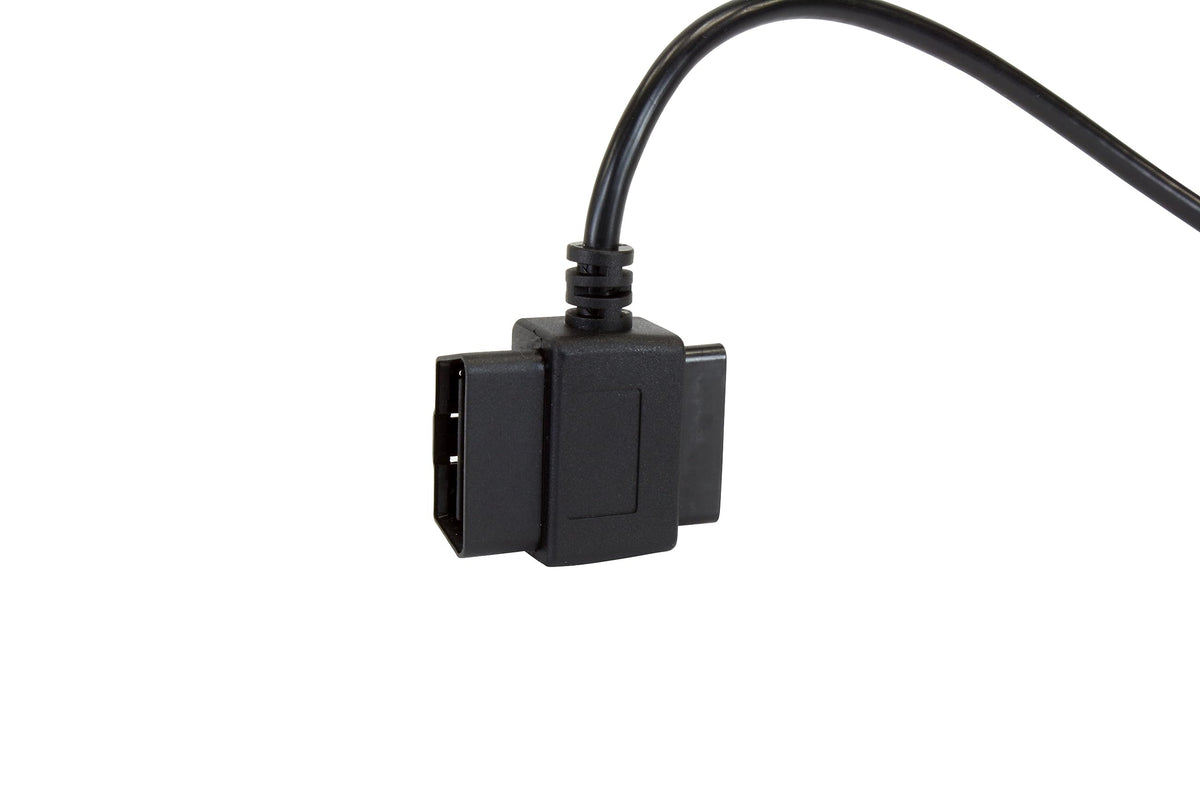

• OBD-II/CAN compatible with many 2008+ vehicles
• 0–5V analog and RS232 digital outputs for logging and feedback
• AEMnet (CANbus) supports daisy-chaining up to 16 cylinder controllers
• Vehicle/system voltage compatibility up to 16V

Is installation and calibration difficult for everyday users?

The gauge ships with a factory-calibrated resistor so most users won’t need to perform a free-air calibration during initial installation. Advanced users still have the option to recalibrate later as the sensor ages, and the compact dimensions simplify mounting in tight dashboards.

• Factory-calibrated resistor reduces setup steps
• Supports user free-air calibration if desired in the future
• Compact 52mm diameter and shallow 0.825" depth for tight mounting
• Gauge cup depth of only 0.200" keeps mounting shallow and neat

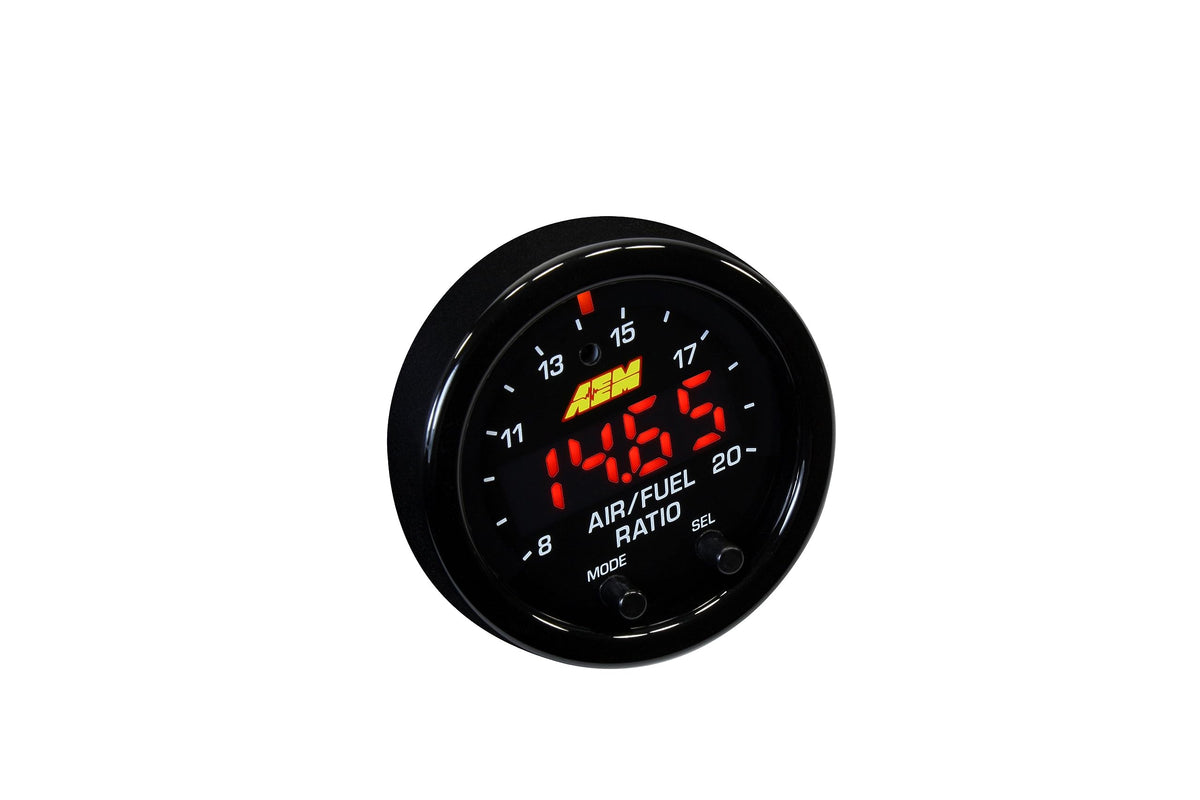

How does the physical size and display benefit installations?

Small overall dimensions make the X-Series ideal where space is limited, while the high-resolution display provides precise AFR numbers without a bulky housing. This combination is useful for custom dashboards, roll cages, or crowded dash panels.

• 52mm face fits common gauge pods and mounts
• Slim 0.825" gauge depth requires minimal clearance behind the panel
• Shallow gauge cup (0.200") for flush mounting options
• Precision readout suitable for tuning and troubleshooting

Who is this for? Tuners, racers, and serious DIY enthusiasts who need a fast, compact, and network-capable wideband AFR controller will benefit most from the AEM 30-0334. It fits installations that demand tight packaging but require accurate, rapid AFR feedback and flexible outputs for datalogging or ECU integration. Hobbyists wanting a reliable factory-calibrated unit with the option to recalibrate later will also find this model practical.
