Aeromotive Fuel Pressure Gauge 0–100 PSI - Liquid-Filled Inline 1.5" Dial, 1/8" NPT

The Aeromotive 0–100 PSI liquid-filled inline fuel pressure gauge (model 15633) is a compact, vibration-resistant analog gauge that monitors fuel pressure for EFI and carbureted engines with a 1/8" NPT connection.

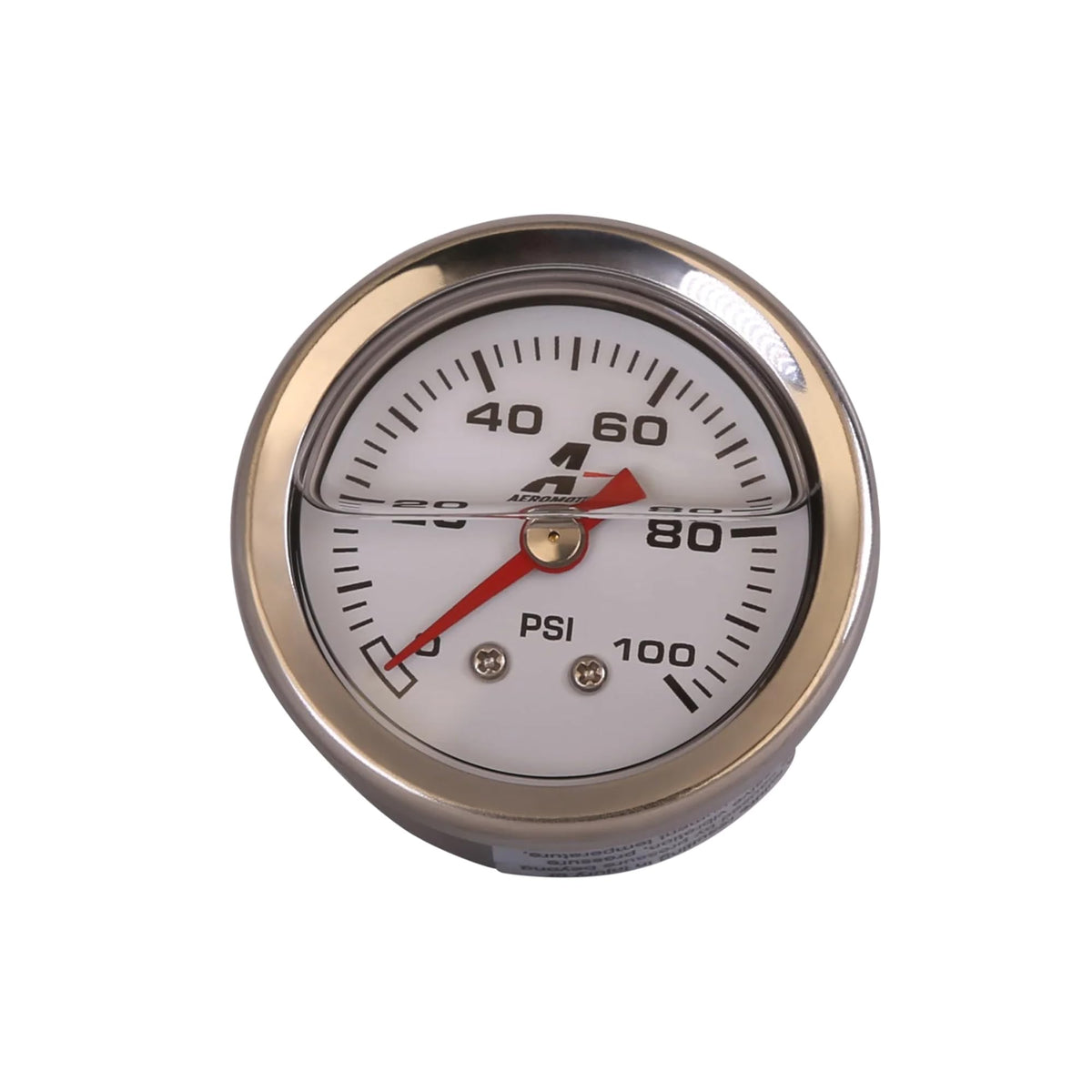

This inline gauge combines a small, easy-to-read 1.5-inch dial with liquid filling and an internal equalizer valve to deliver steady, accurate readings in engine bays. It’s engineered to resist vibration and temperature shifts common under the hood, making it a convenient diagnostic and tuning tool for performance and stock fuel systems.

How does this gauge maintain accurate readings under temperature and vibration?

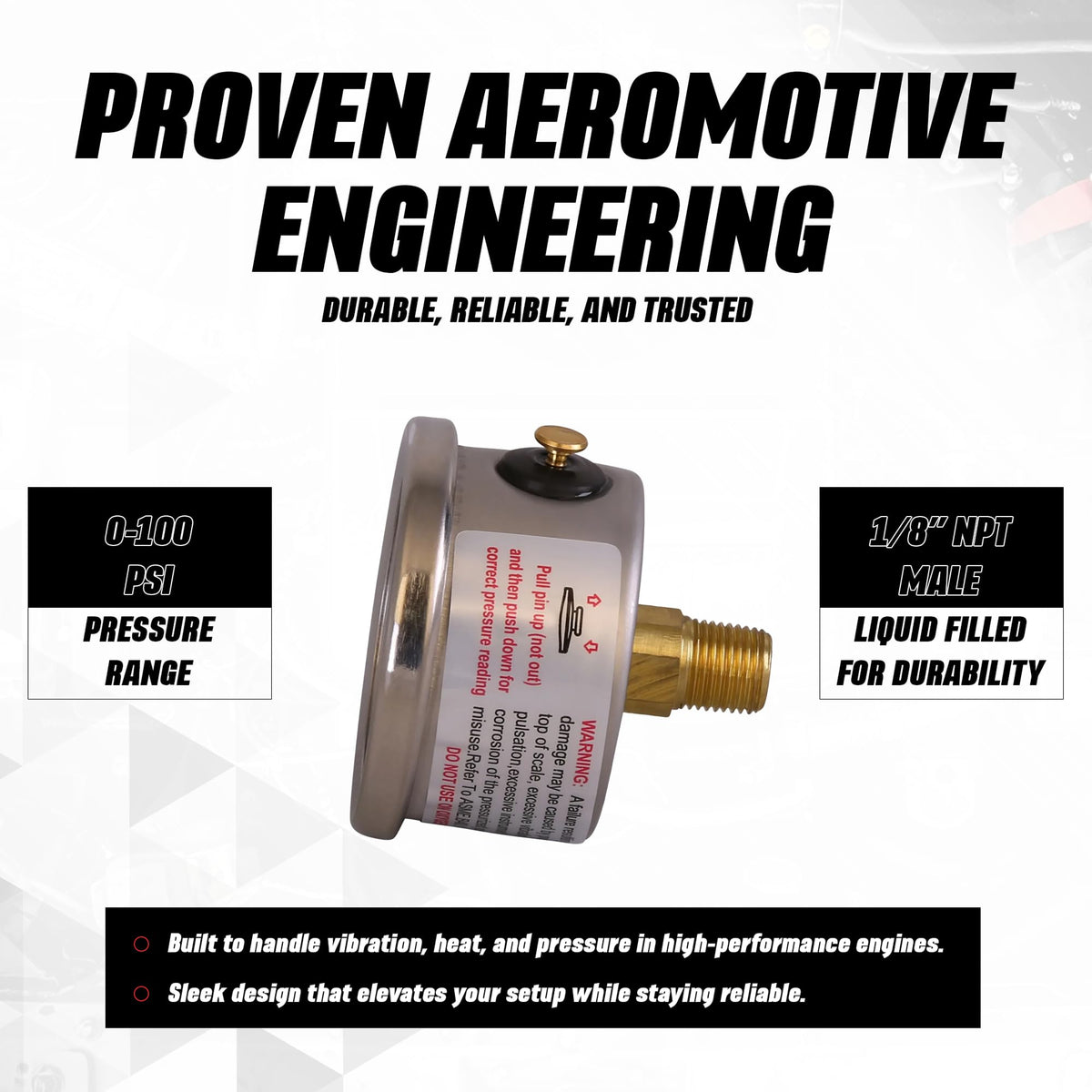

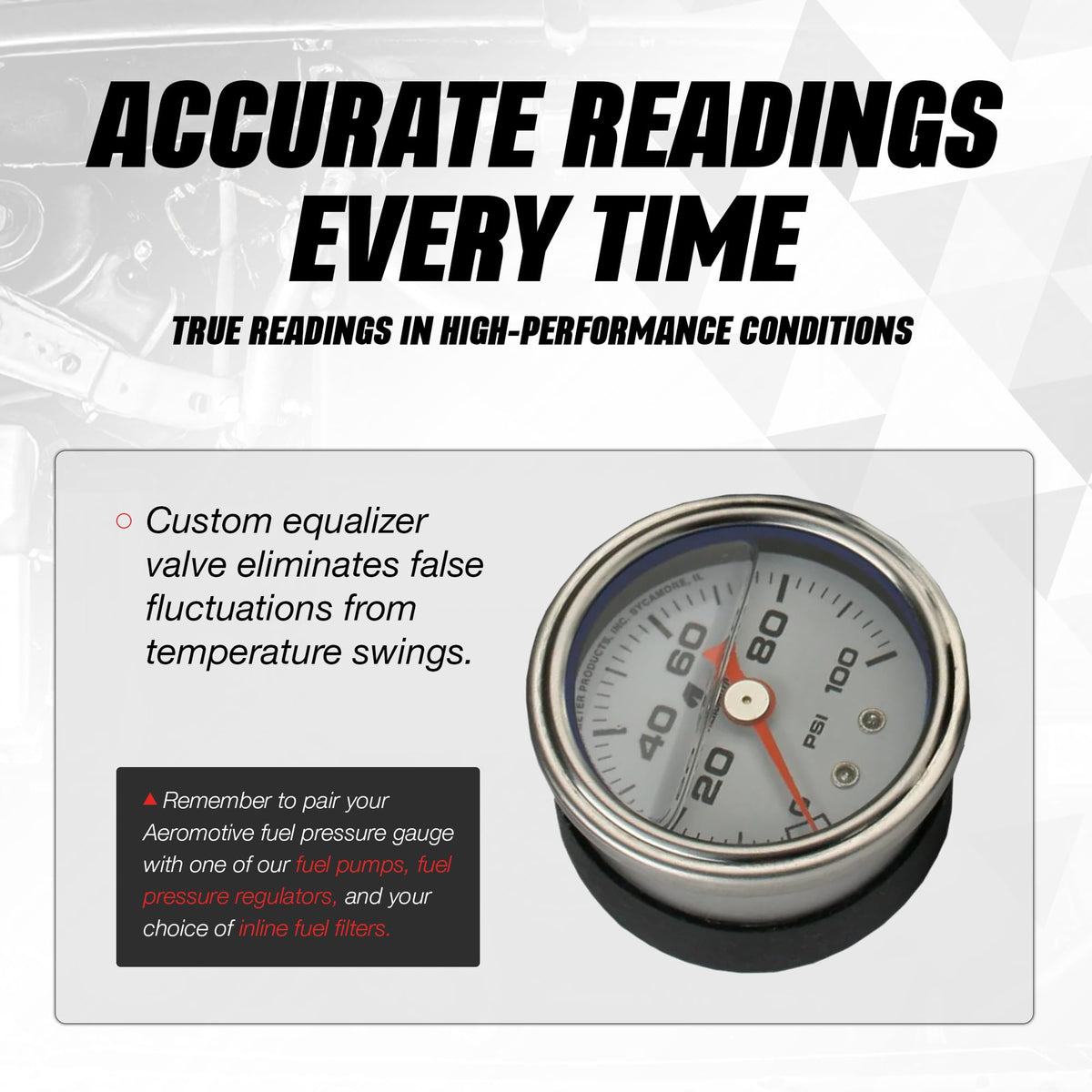

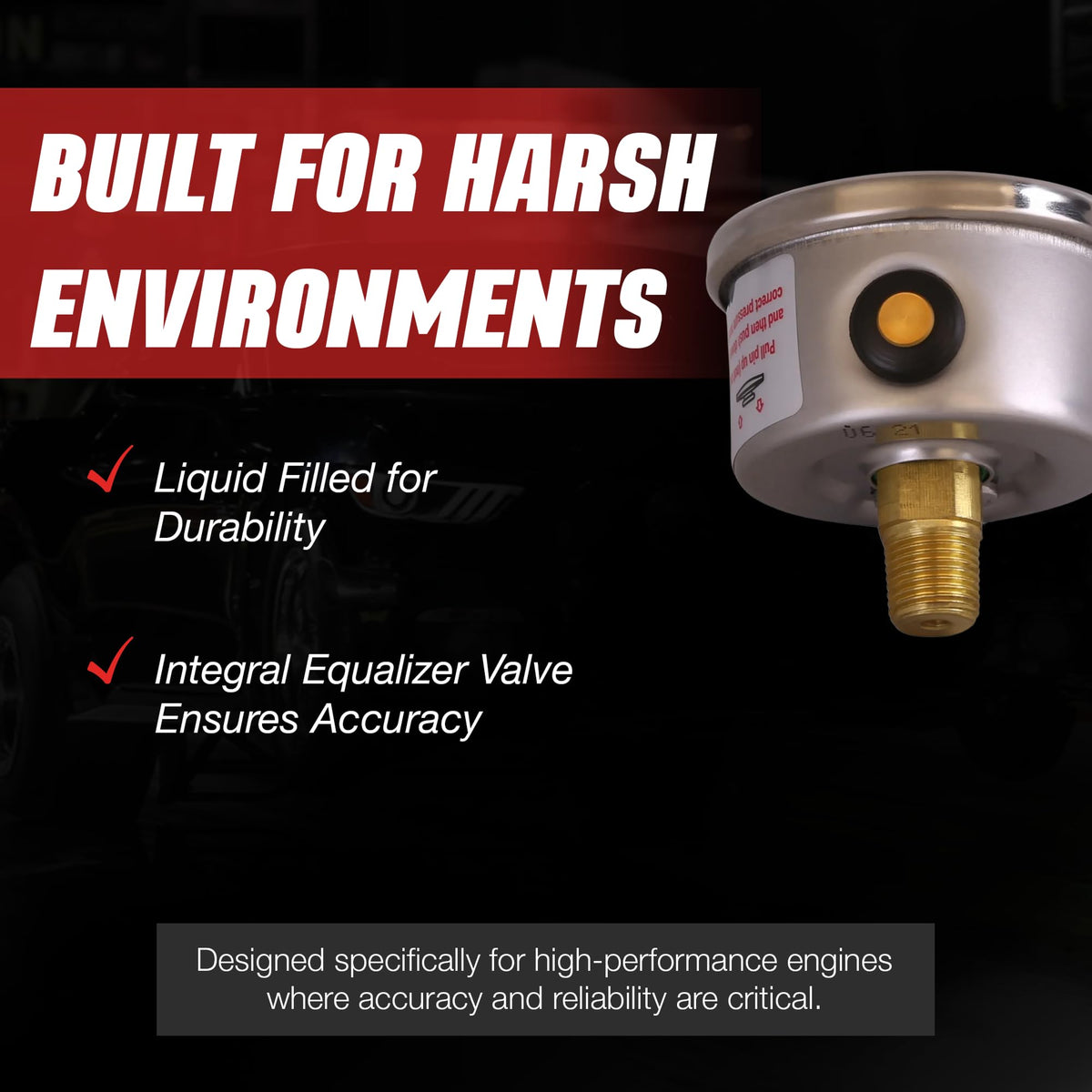

The gauge uses a liquid-filled case and an integral equalizer valve to reduce pointer bounce and compensate for pressure shifts caused by ambient temperature changes. Liquid damping stabilizes the needle, while the equalizer valve lets the case breathe so the internal movement reflects true system pressure rather than trapped air expansion.

• Liquid fill dampens vibration and prevents needle flutter.
• Equalizer valve balances internal and external pressure for consistency.
• Robust construction suited for under-hood thermal cycles.

What vehicle systems and setups is the 0–100 PSI range suitable for?

The 0–100 PSI scale covers most common fuel pressures encountered in both carbureted and electronic fuel-injection systems, from low-pressure returnless setups to higher-pressure EFI configurations. It’s a versatile range for tuning, troubleshooting, and verifying regulator performance.

• EFI systems requiring higher precision across a wide range.
• Carbureted engines and mechanical fuel pumps operating at lower pressures.
• Diagnostic checks during setup, tuning, or leak troubleshooting.

How do you install and connect this inline gauge to my fuel system?

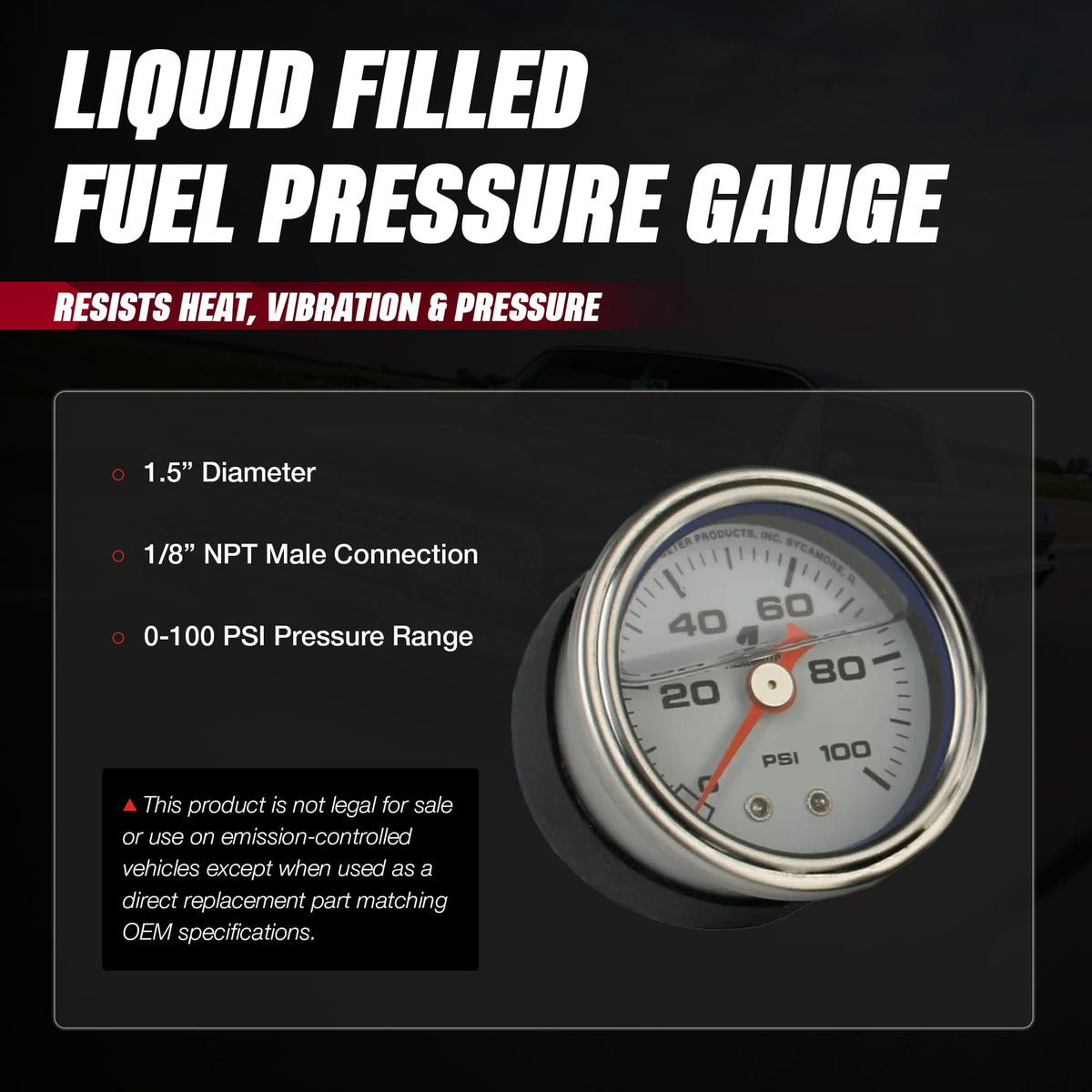

Installation is straightforward: the gauge has a 1/8" NPT male thread that screws into compatible ports on fuel pressure regulators or adapters. It’s designed for inline mounting where a compact 1.5-inch dial fits tight engine bay spaces—use proper thread sealant rated for fuel and ensure fittings are tightened to spec.

• Threads: 1/8" NPT male for regulator or adapter ports.
• Mounting: compact 1.5" dial to fit constrained locations.
• Tip: apply fuel-safe thread sealant and check for leaks after pressurizing.

Why choose an analog liquid-filled gauge instead of an electronic sensor?

Analog liquid-filled gauges offer immediate visual feedback without power or wiring and are less sensitive to electrical noise or sensor failures. They’re useful for hands-on tuning and quick inspections, and the liquid fill improves longevity by protecting internal components from vibration and shock.

• No wiring required—instant visual readout during work.
• Resistance to vibration extends service life in rough conditions.
• Clear, direct scale for quick pressure verification while tuning.

Who is this for: The Aeromotive 15633 suits mechanics, tuners, racers, and DIY enthusiasts who need a reliable, compact gauge to monitor fuel pressure in EFI or carbureted engines. If you want a durable, vibration-damped analog readout that installs into standard 1/8" NPT ports and covers a broad 0–100 PSI range, this gauge is designed for that role.
