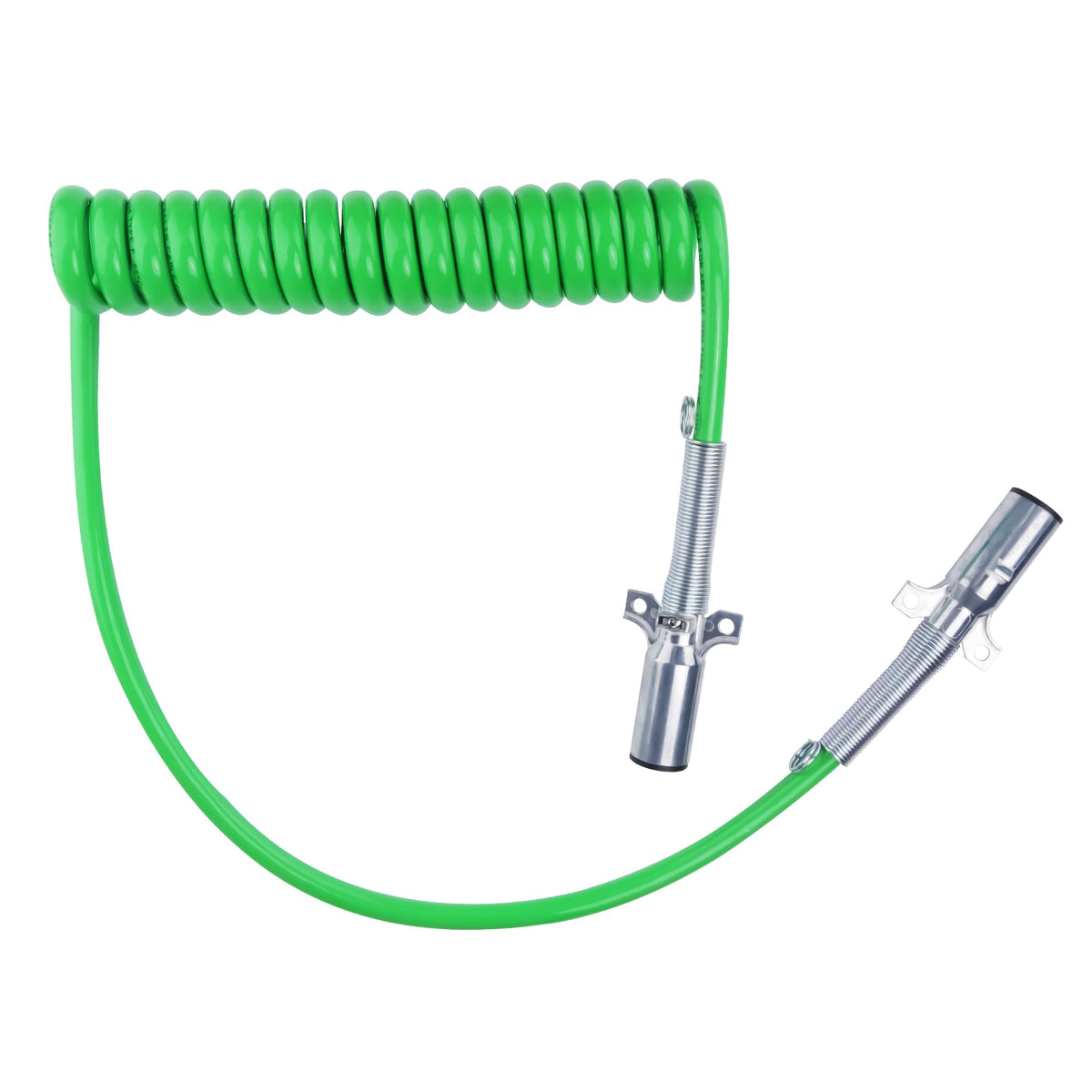

Ailbiuko 15FT 7-Way Coiled Trailer Pigtail Cord — Green ABS, SAE J560, Stainless Spring Guards

The Ailbiuko 15FT 7-way coiled pigtail is a durable, vehicle-to-trailer electrical cord that delivers all seven standard circuits in a compact, spring-protected green ABS housing.

Designed to replace common OEM pigtails (including Philips 30-4621, Velvac 590161 and others), this 15-foot coiled cable provides reliable connectivity for lights, brakes and auxiliary power between tow vehicle and trailer. Constructed with pure copper conductors, a zinc die-cast SAE J560-compatible plug, and stainless-steel spring guards at both ends, it balances flexibility with protection for everyday towing and commercial use.

How does this coiled pigtail keep wiring safe during heavy use?

The Ailbiuko cord uses stainless-steel springs at each end to prevent kinking and reduce stress where the cable meets the connector. This design minimizes strain, lowering the chance of broken conductors or insulation damage when towing or maneuvering.

• Stainless-steel spring guards absorb bending stress and prevent chafing.
• Pure copper conductors resist heat buildup for steady current flow.
• Durable green ABS jacket resists abrasion and outdoor exposure.

Will this pigtail work with standard 7-way trailer systems?

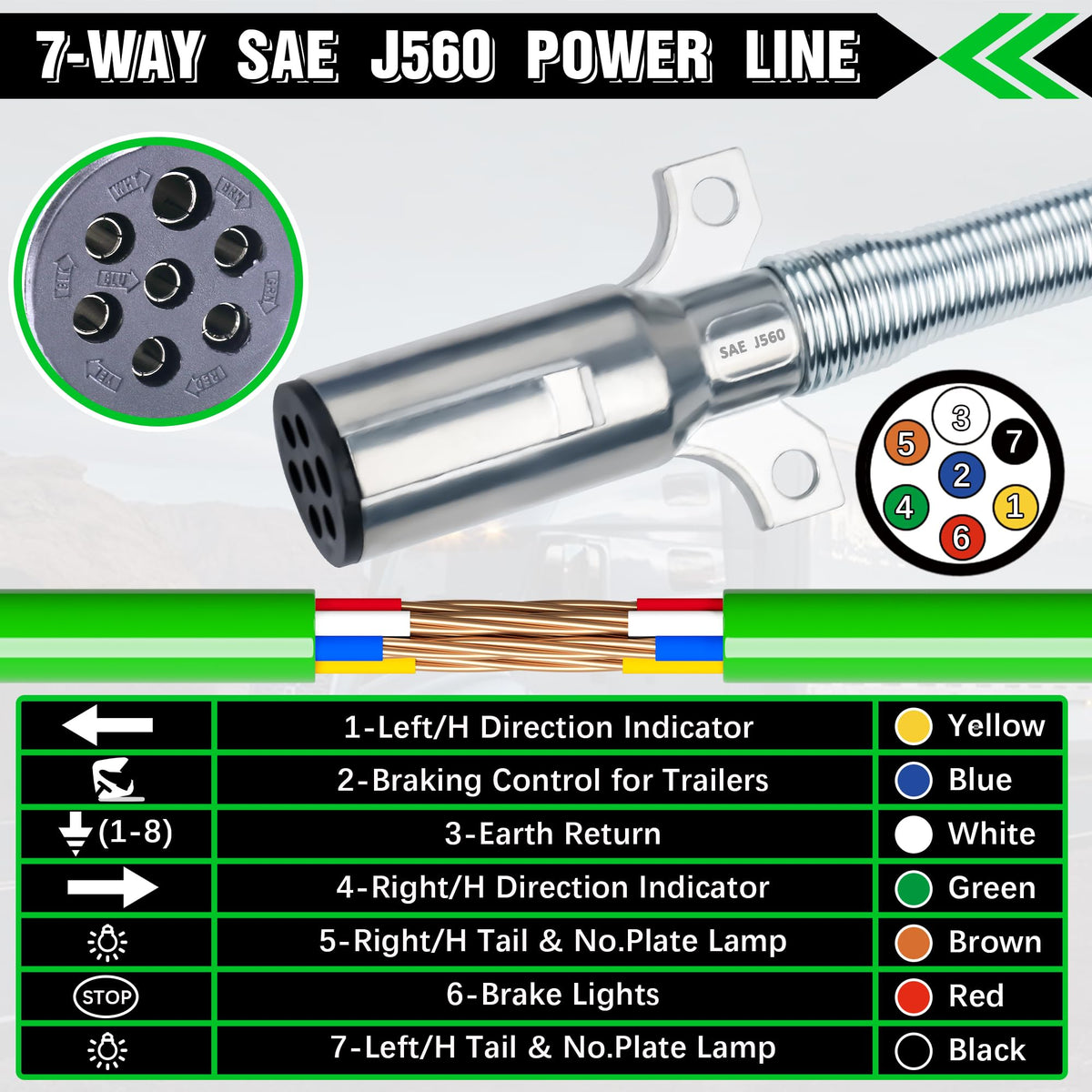

Yes — the plug follows SAE J560 form and function, making it compatible with industry-standard 7-way sockets on trucks, trailers, RVs and caravans. It transmits the seven typical circuits: ground, tail/marker, left/right turn, brake, reverse, and auxiliary power.

• Direct replacement for many OEM part numbers listed in the product description.
• Seven-wire configuration supports all commonplace trailer lighting and brake needs.

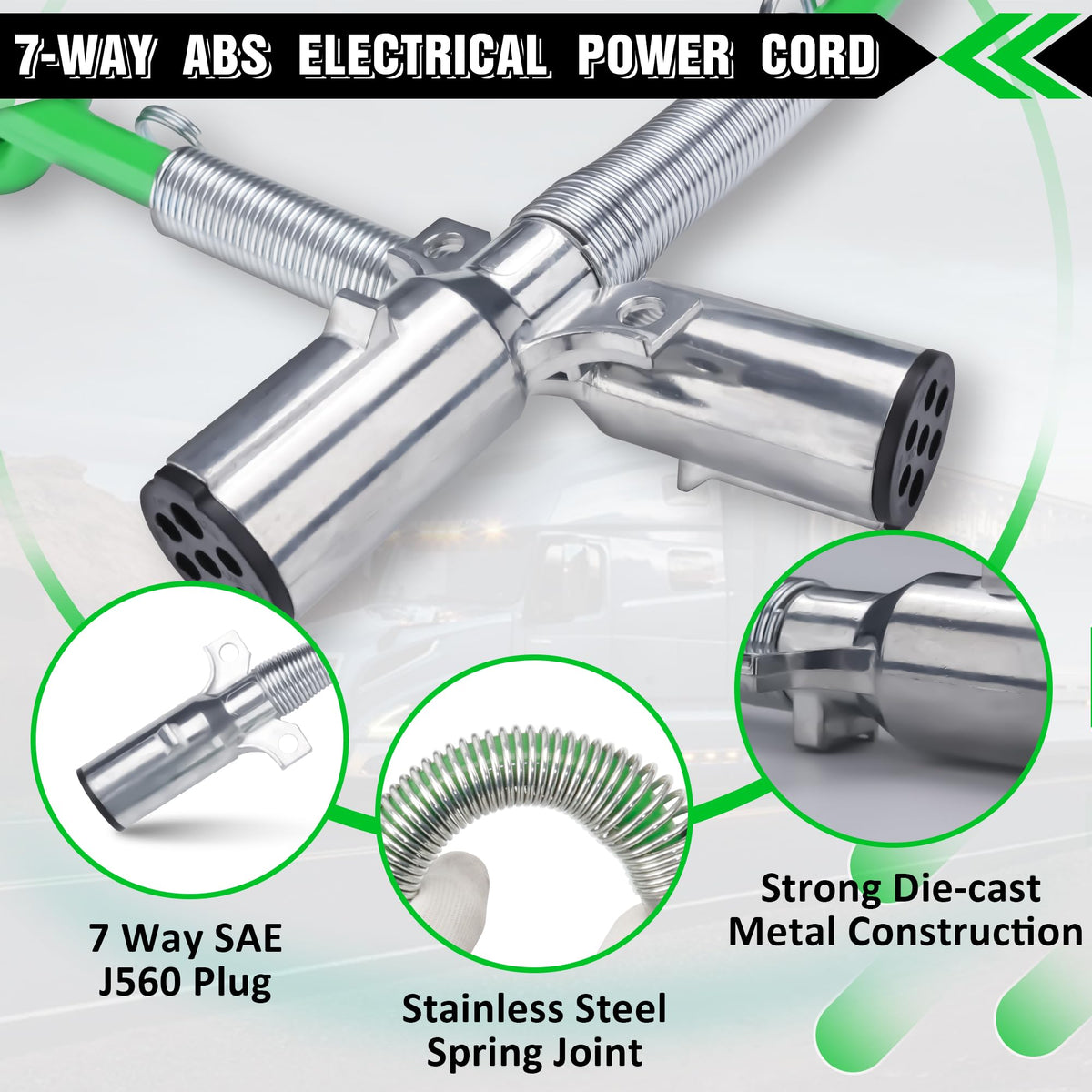

• Zinc die-cast plug ensures solid mating and corrosion resistance.

How long is the cord in practical towing situations and why coiled?

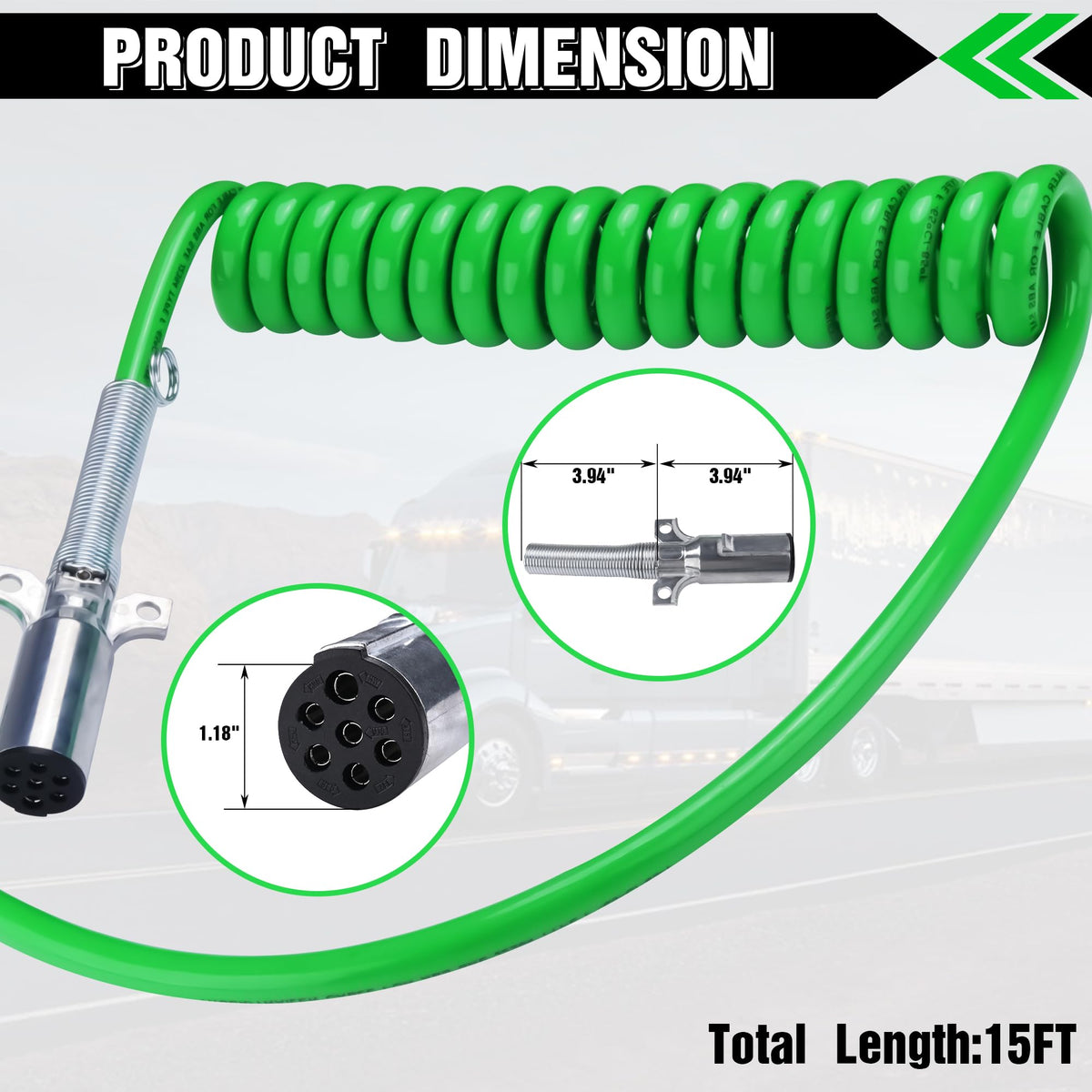

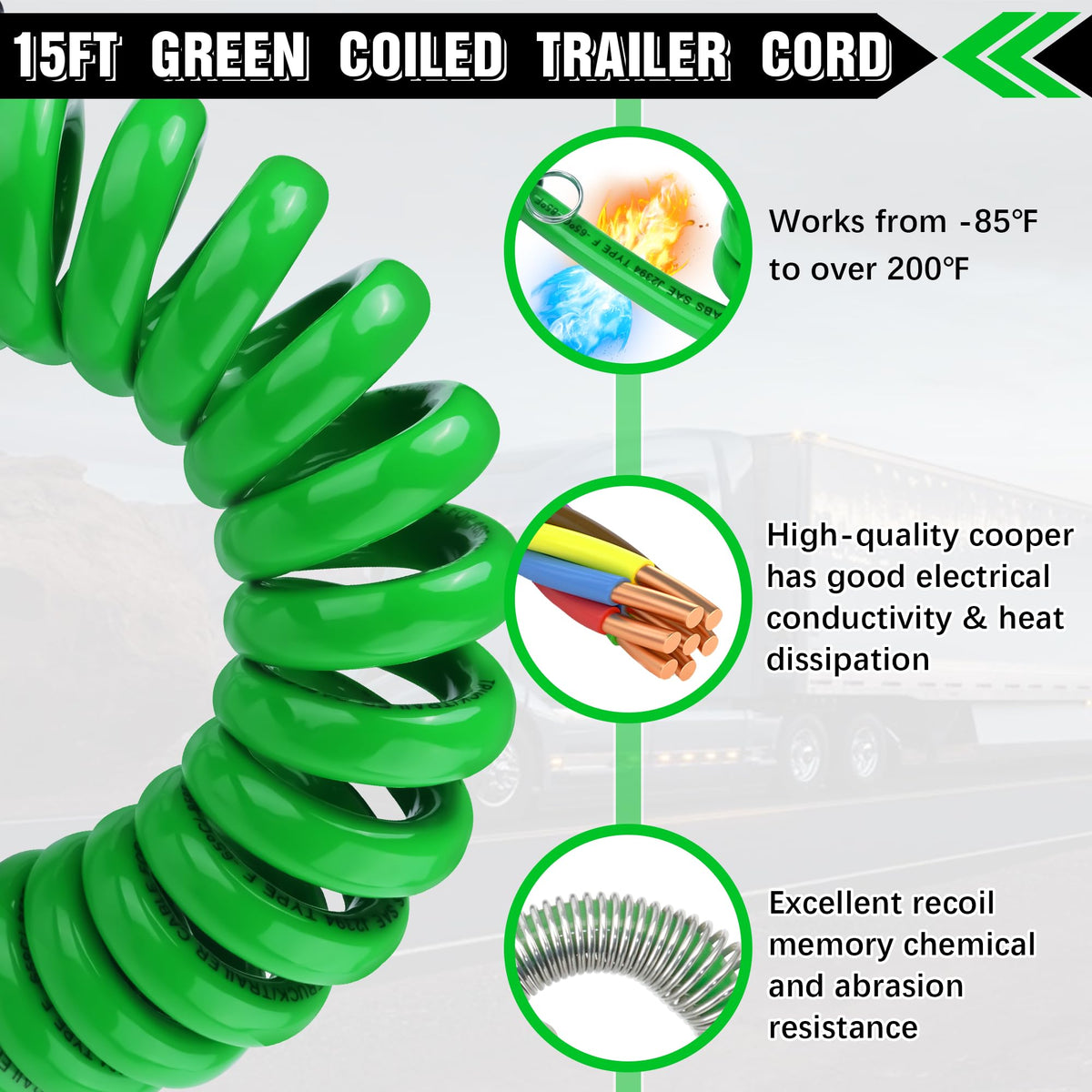

The cable measures 15 feet in its extended length but remains compact when relaxed thanks to the coil. The coiled shape prevents dragging on the road and reduces slack between vehicle and trailer for neater installation and safer operation.

• Coiled form stretches when needed and retracts to avoid road contact.
• 15-foot reach covers common hitch distances without excessive slack.
• Compact storage reduces snagging on cargo or chassis components.

What material and build features improve longevity?

Premium materials are used throughout: real copper conductors for conductivity, an ABS outer jacket for impact and weather resistance, and a zinc die-cast plug for durable electrical connections. Those choices combine to resist corrosion, heat, and mechanical wear in towing environments.

• Pure copper wires for efficient power and signal transfer.
• Green ABS housing stands up to abrasion and UV exposure.
• Corrosion-resistant plug and spring guards for long-term reliability.

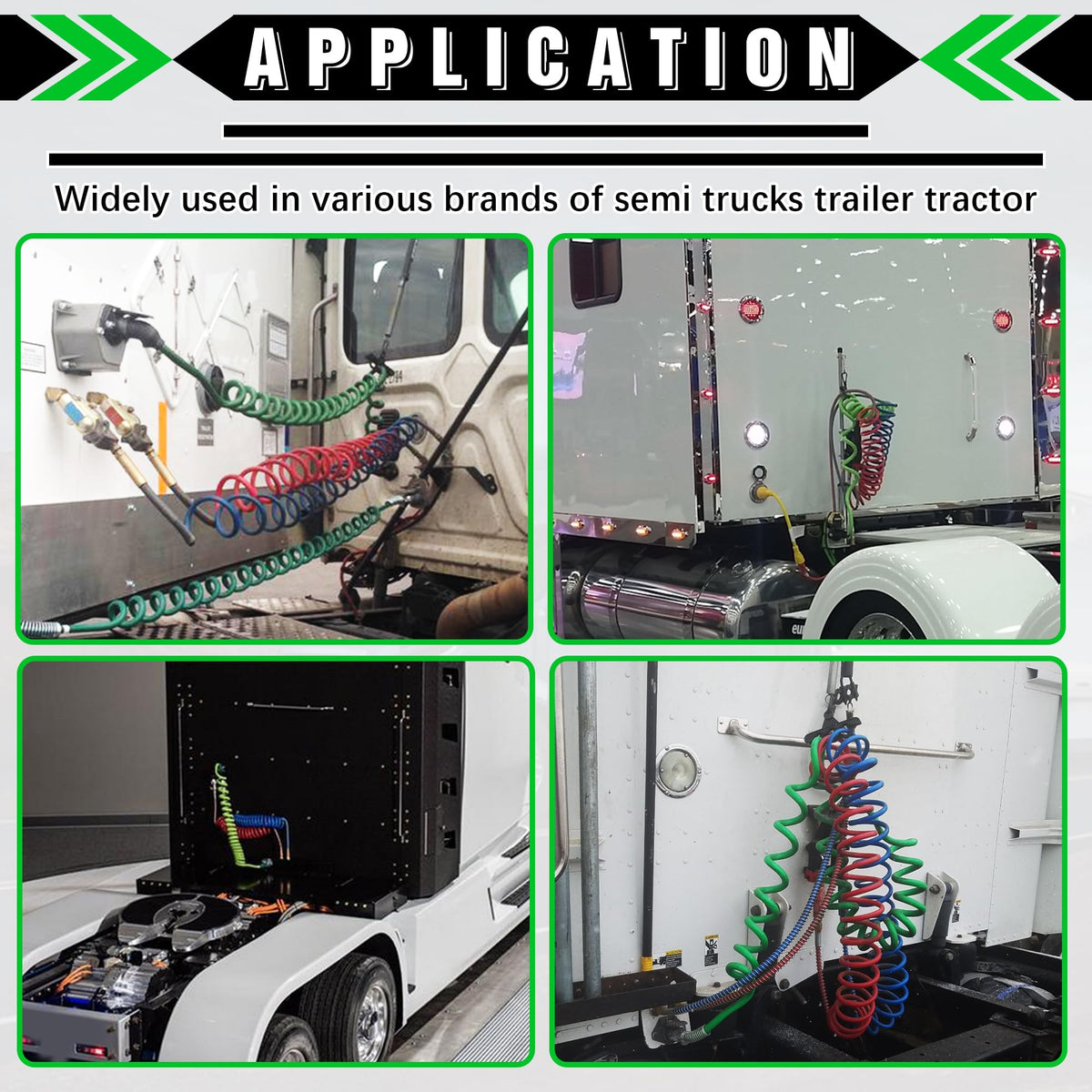

Who is this for: The Ailbiuko 15FT 7-way coiled pigtail suits fleet operators, RV owners, commercial drivers and DIY trailer maintainers who need a rugged, OEM-replacement cable. If you want a compact, reliable 7-way connection that reduces wear at stress points and keeps trailer lights, brakes and auxiliary power functioning correctly, this cord is a practical upgrade or spare for regular towing duty.
