ALIENTEK Digital Multimeter DM40C 3-in-1 Handheld Oscilloscope & Signal Generator, 60k‑count True RMS

The ALIENTEK DM40C is a compact 3-in-1 handheld lab: a 4.5-digit true-RMS multimeter, a 10MHz digital oscilloscope, and a programmable signal generator in one rechargeable tool.

Engineered to replace multiple instruments on your workbench, the DM40C combines high-resolution DC/AC readings, waveform capture, and signal creation into a single pocket-friendly device. It offers a 60,000-count, 4½-digit measurement core with a 5ppm reference, a 50MS/s oscilloscope front end with 10MHz bandwidth and 64K sample memory, plus a built-in function generator capable of delivering common waveform shapes up to practical MHz ranges. Rugged yet portable, the DM40C is designed for electronics technicians, hobbyists, educators, and engineers who need visual and numeric diagnostics without hauling separate instruments.

How accurate and stable are the DM40C’s measurements?

The DM40C provides lab-like numeric accuracy with a high-resolution ADC and a stable internal reference. True-RMS measurement ensures correct AC readings on distorted waveforms, while the 60k-count resolution reveals small voltage differences and subtle changes in circuits.

• 4.5-digit resolution, up to 59,999 counts for fine detail
• Built-in 5 ppm reference for improved long-term stability

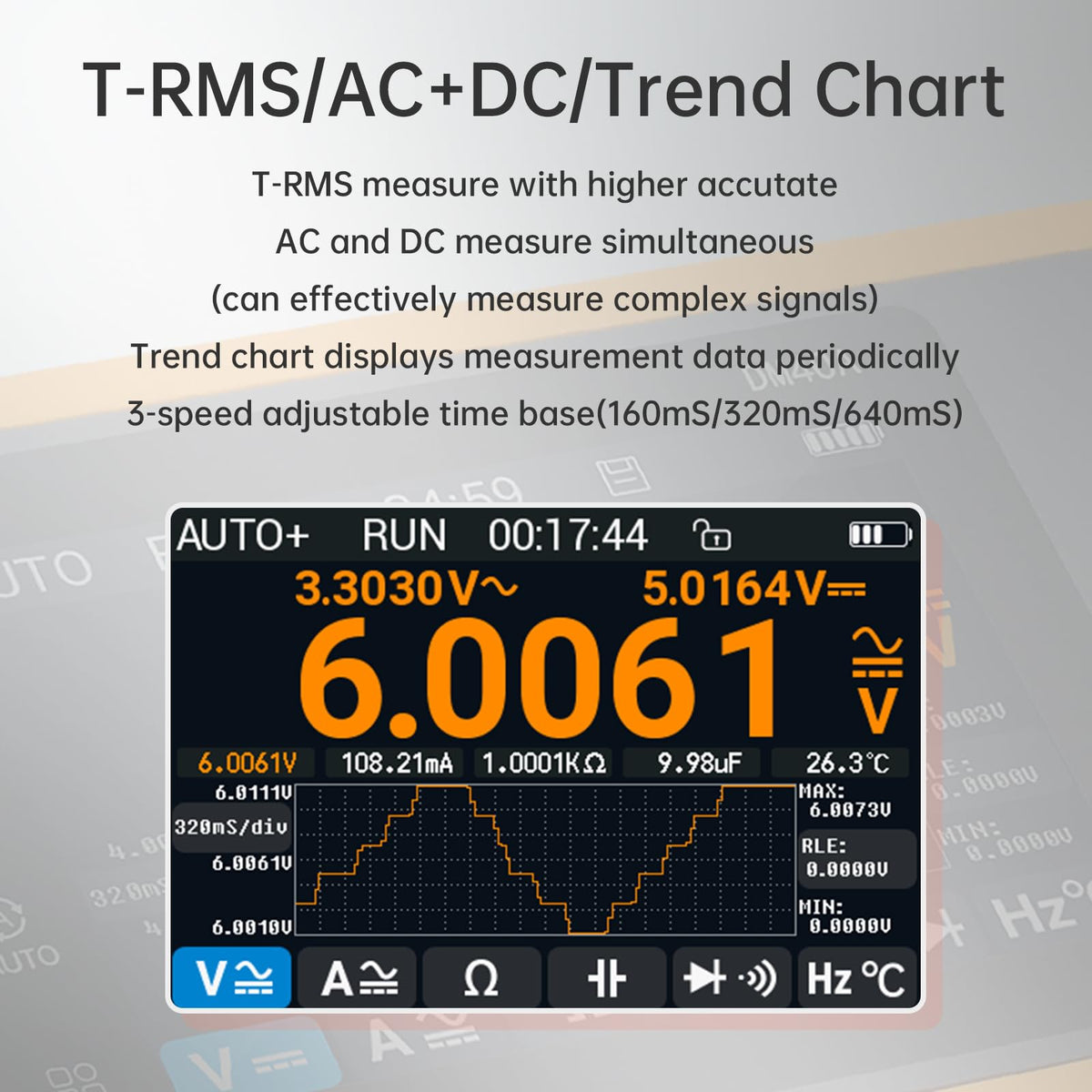

• True RMS for accurate AC and combined AC/DC signals
• Auto-range and One-Key controls reduce operator error

What can the oscilloscope feature detect that a multimeter can’t?

The oscilloscope function visualizes time-domain behavior—things a multimeter only reports as numbers. Use it to inspect signal shape, timing, noise, and transient events so you can diagnose oscillations, spikes, or timing faults quickly.

• 50MS/s sampling with 10MHz bandwidth captures common analog and digital signals
• 10-bit ADC and 64K sample memory for clearer waveform detail
• FFT capability for frequency-domain troubleshooting
• Real-time waveform capture helps isolate intermittent faults

How does the built-in signal generator speed up testing?

The integrated function generator supplies sine, square, triangle, and sawtooth outputs so you can stimulate circuits without a separate unit. Paired with the onboard scope, it lets you inject signals and observe responses instantly, shortening test cycles.

• Programmable waveforms for functional and frequency response tests
• Up to multi-MHz outputs (depending on waveform) and ~3.0 Vpp amplitude
• Closed-loop testing: generate stimulus and view results on the same device
• Useful for amplifier checks, filter tuning, and sensor validation

What makes the DM40C convenient for field and bench use?

The DM40C packs advanced features into a handheld, rechargeable tool so you can move between bench work and on-site repairs without compromise. Its touchscreen UI and long battery life cut setup time and let you focus on the job, not menu navigation.

• Compact dimensions (142×83×28 mm) and 260 g weight for portability

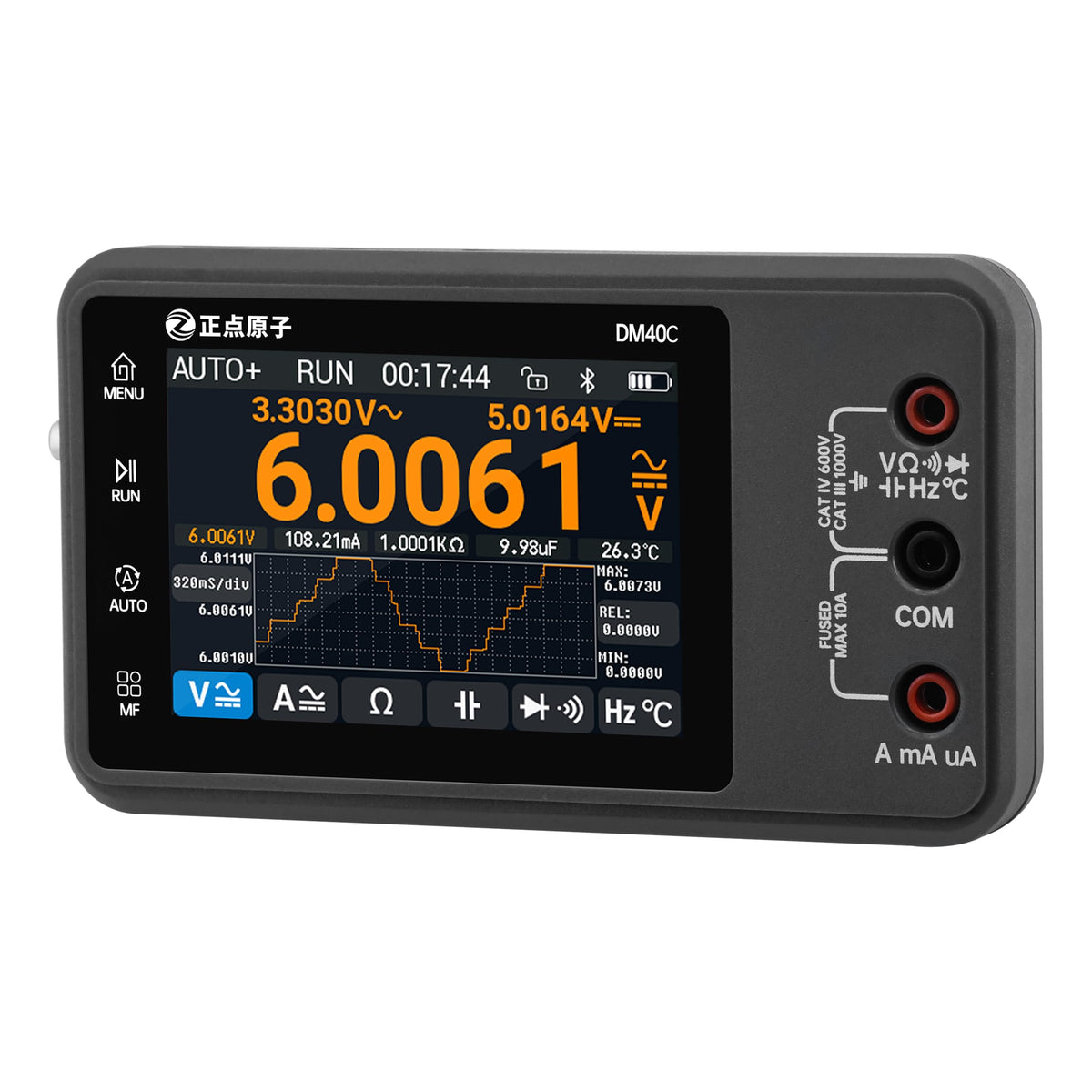

• 3.5-inch IPS capacitive touchscreen for fast operation

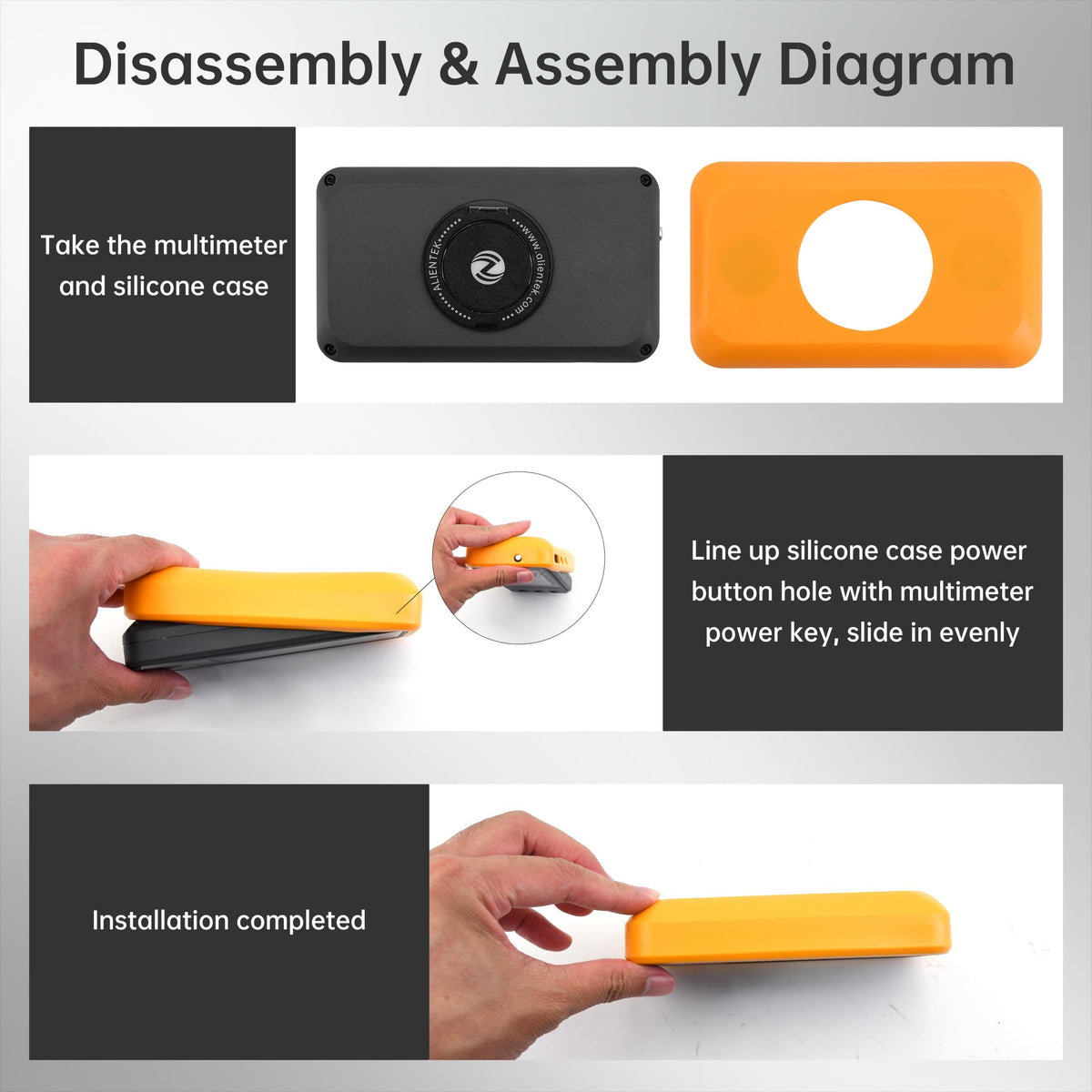

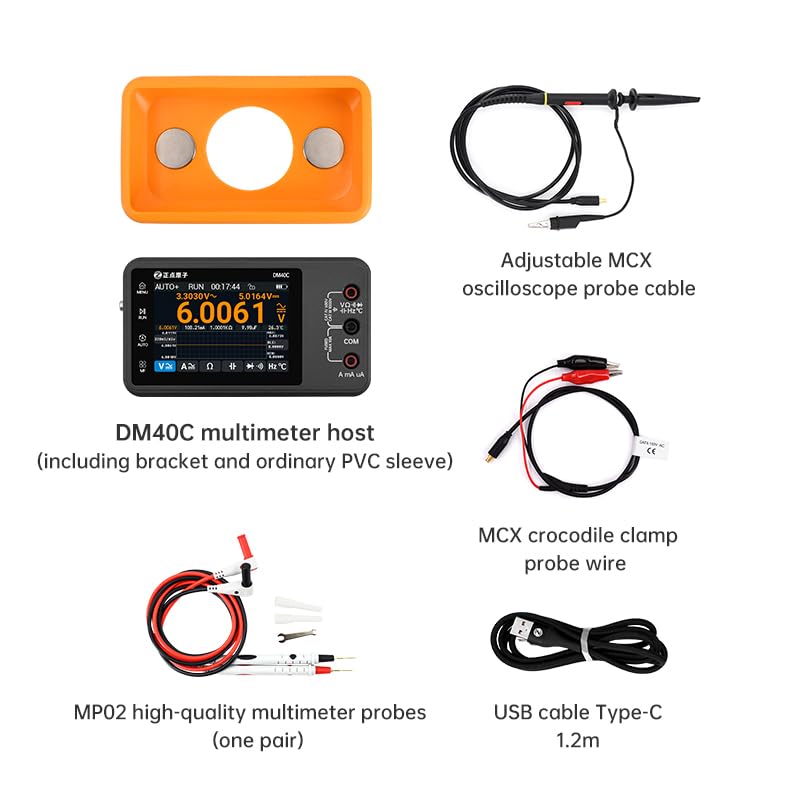

• USB-C charging, 10+ hour runtime, silicone sleeve, and kickstand included
• 3-jack design and ONE-KEY auto-range to minimize connection mistakes

Who is this for: The ALIENTEK DM40C is aimed at electronics technicians, embedded engineers, automotive electronics specialists, educators, and serious hobbyists who need a single instrument that combines precision measurement, waveform visualization, and signal generation. If you require accurate DC/AC readings, need to diagnose timing or waveform issues, or want to stimulate circuits without carrying multiple devices, the DM40C offers a compact, rechargeable alternative to a separate multimeter, oscilloscope, and function generator.
