Alltooetools Universal Carburetor Synchronization Balancer 4‑Gauge Kit — Motorcycle Vacuum Gauges, Hard Case

Alltooetools Universal Vacuum Carburetor Synchronization Balancer is a four-gauge kit that measures and helps equalize vacuum across 2–4 carburetors so you can dial in smoother idling and better throttle response.

If your multi-carb motorcycle or small engine runs rough, stalls, or hesitates, uneven intake vacuum is often the culprit. This Alltooetools kit provides four independent vacuum gauges, hoses, adaptors and fittings to compare and adjust each carburetor dynamically while the engine is running. Built for home mechanics and professional shops, the set is organized in a hard plastic case for secure storage and transport.

How does this tool measure carburetor balance?

The kit uses four precision vacuum gauges that attach to each intake port to read manifold vacuum in cmHg / inHg. Readings let you compare real-time vacuum levels across cylinders while the engine is at idle or under throttle. Each gauge has its own damping and calibration so you can stabilize needle movement for accurate comparisons.

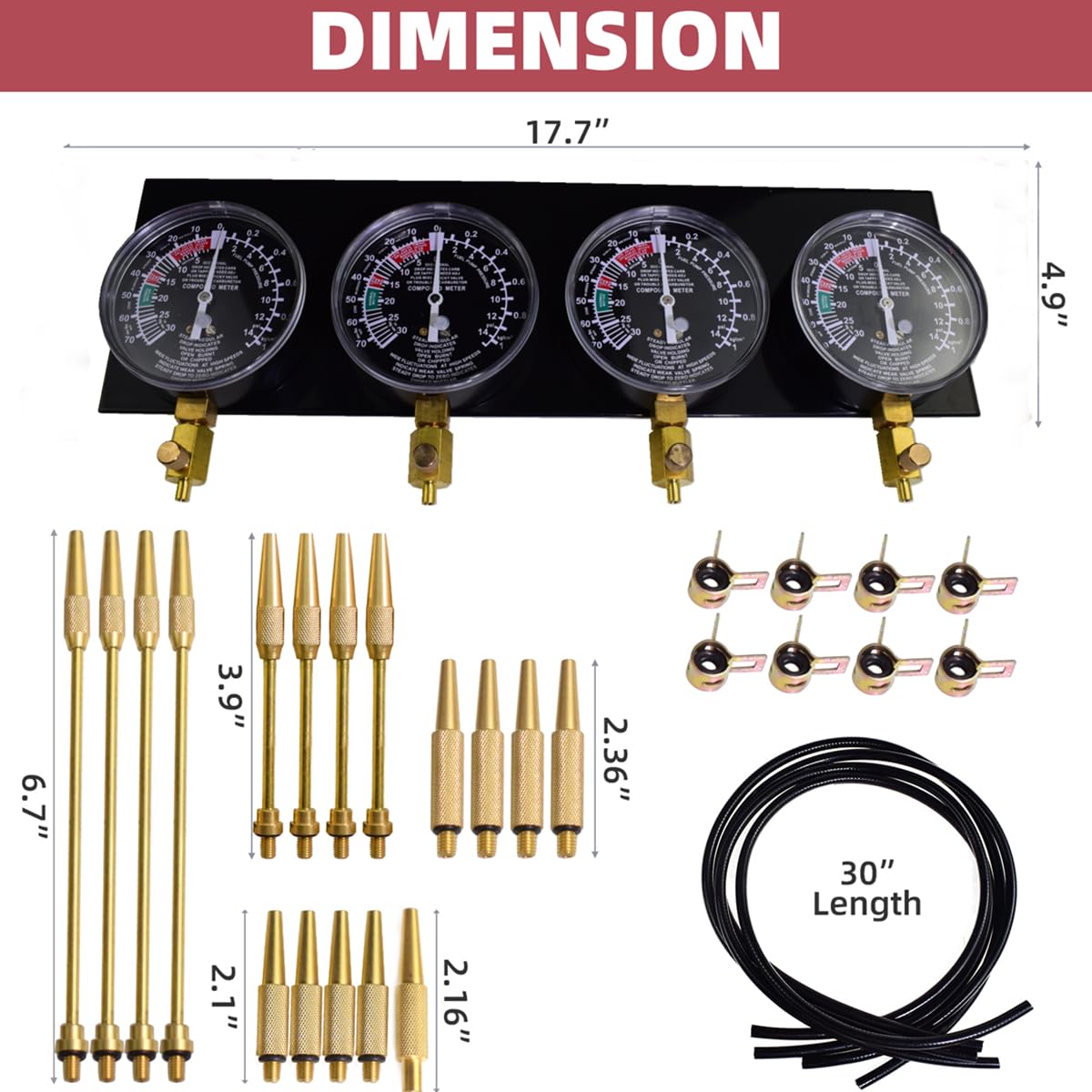

• Four Ø92 mm vacuum gauges, 0–70 cmHg (0–30 inHg)
• Individual damping and pointer calibration on each gauge
• Readings taken with the engine running for dynamic balancing

What adapters and fittings are included to fit different engines?

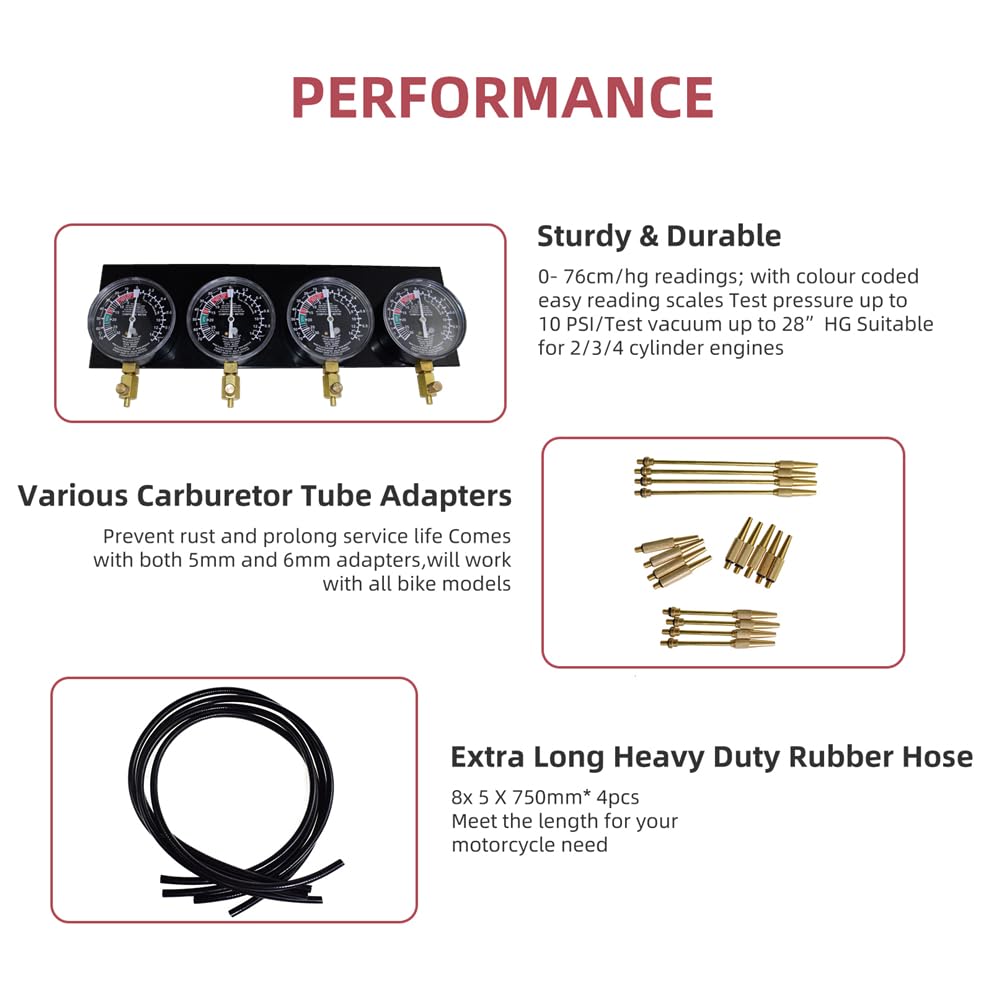

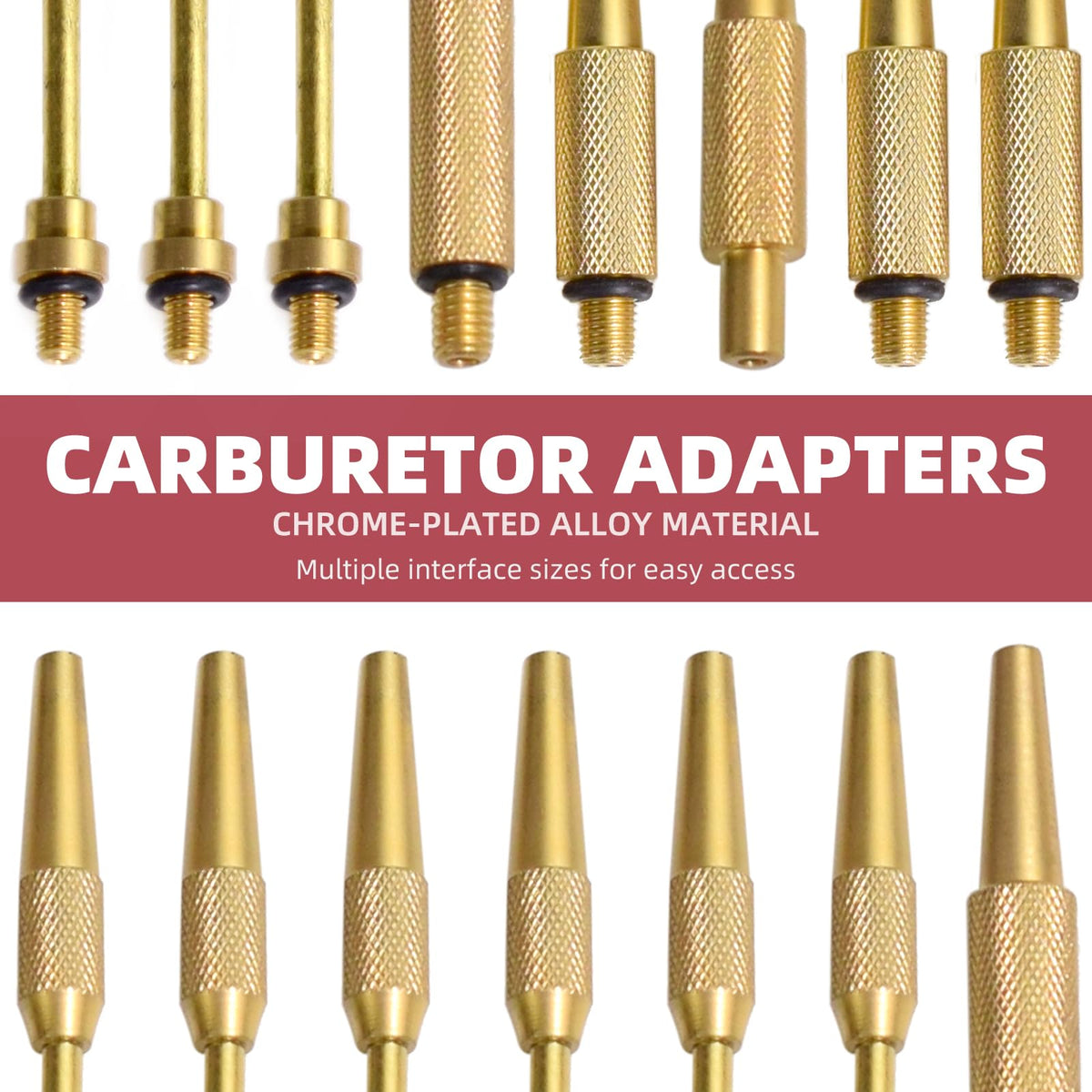

The kit ships with a comprehensive assortment of hoses, connectors and extensions to reach most standard carburetor vacuum ports. Short and long extensions plus two thread-size options cover common M6 inlet fittings and conical connectors for push-on connections. Hose clamps and replacement washers are also included to secure connections and prevent leaks during adjustment.

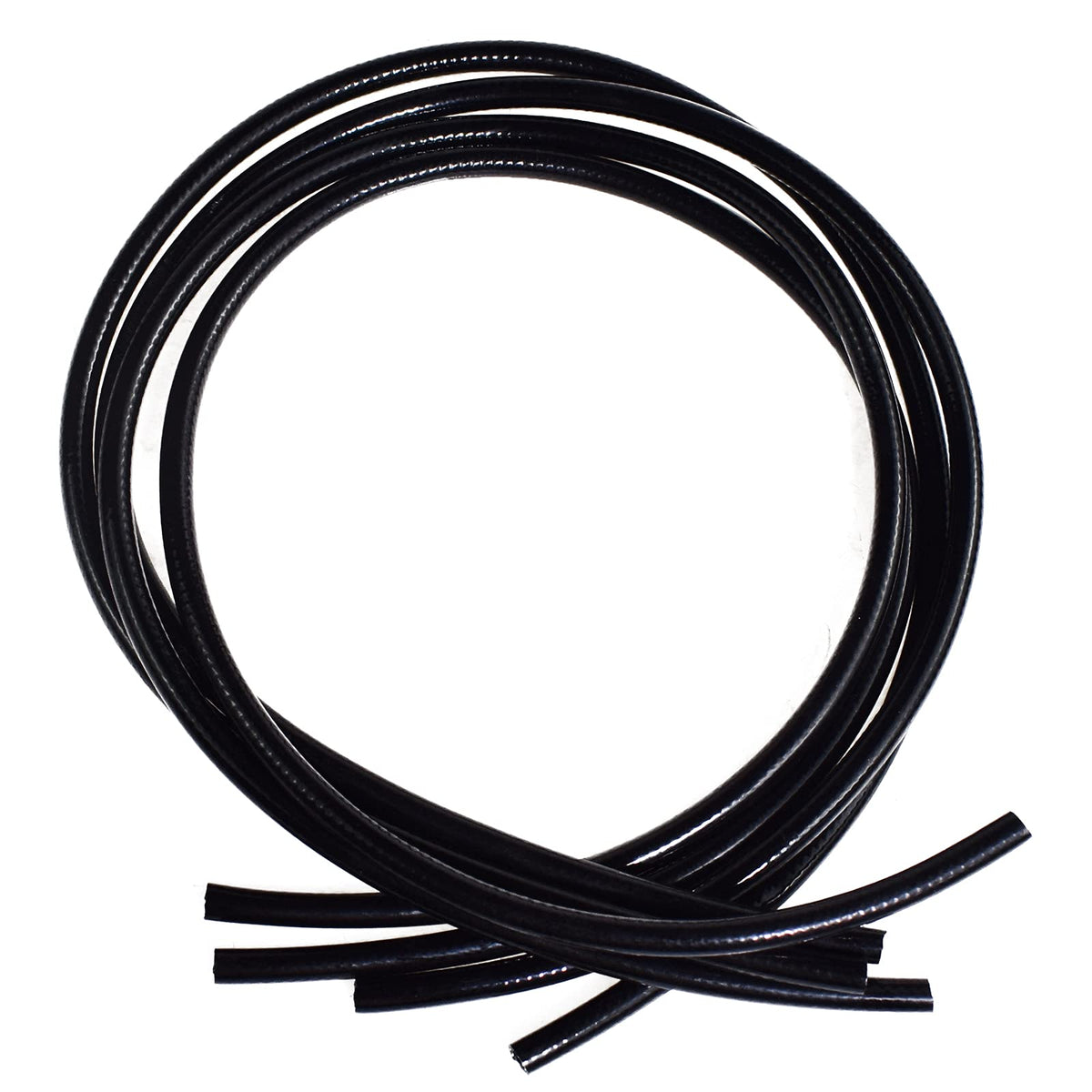

• 4 rubber hoses 8×5×750 mm for flexible routing
• 4 connection pieces 53 mm (M6×0.75) and 60 mm (M6×1.0)

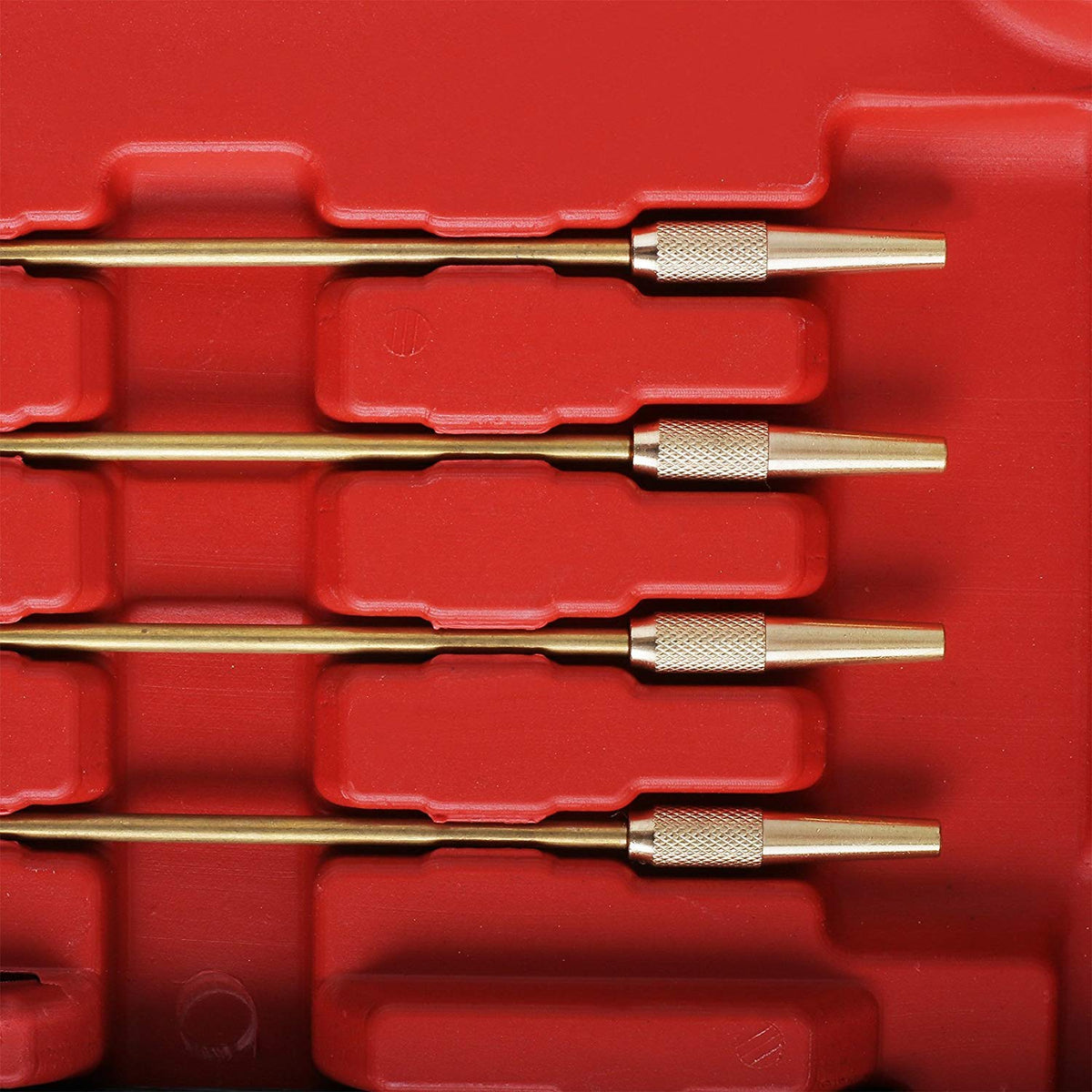

• 4 short (3.9×52 mm) and 4 long (3.9×122 mm) extensions
• Hose clamps and spare washer included

How do I use the balancer to synchronize carburetors?

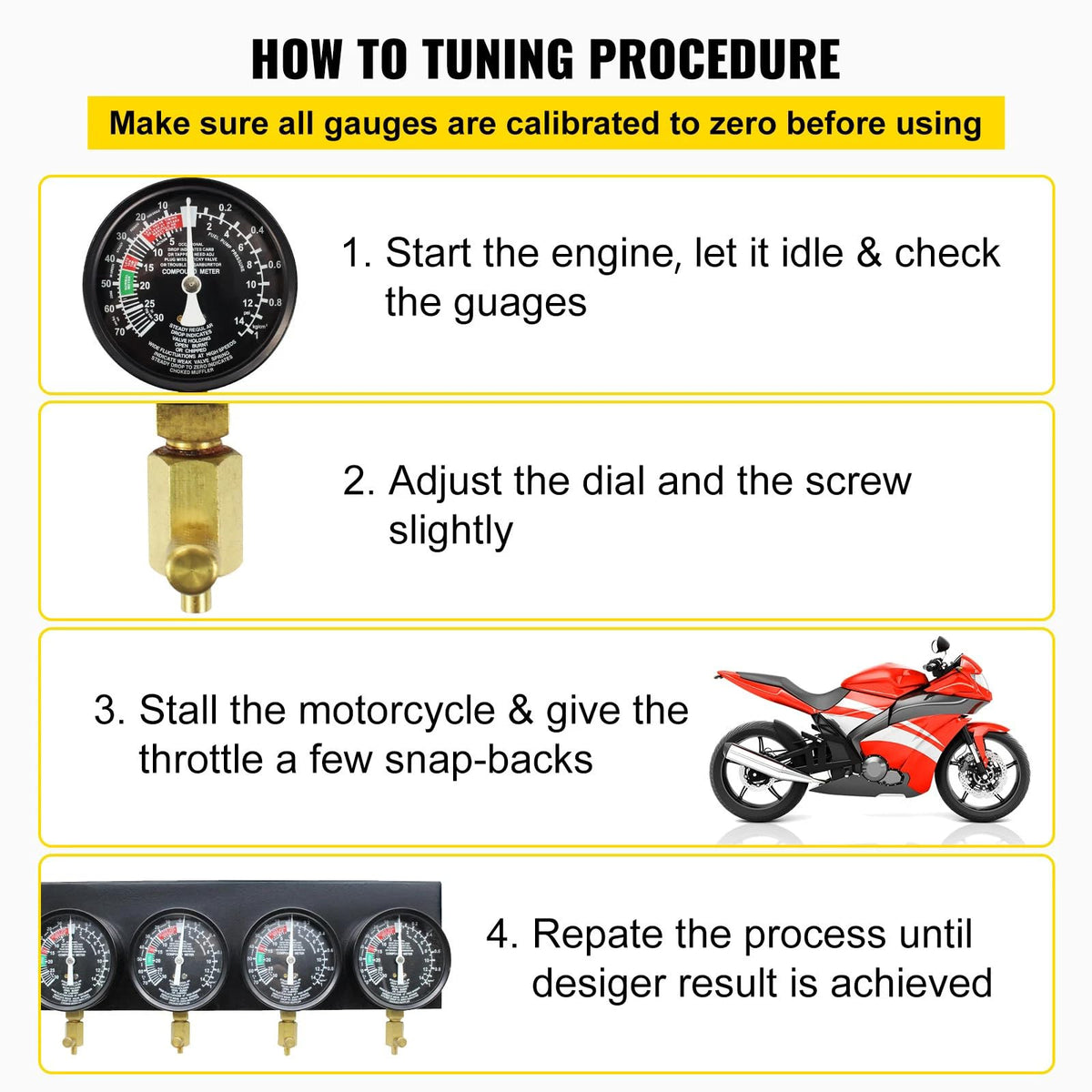

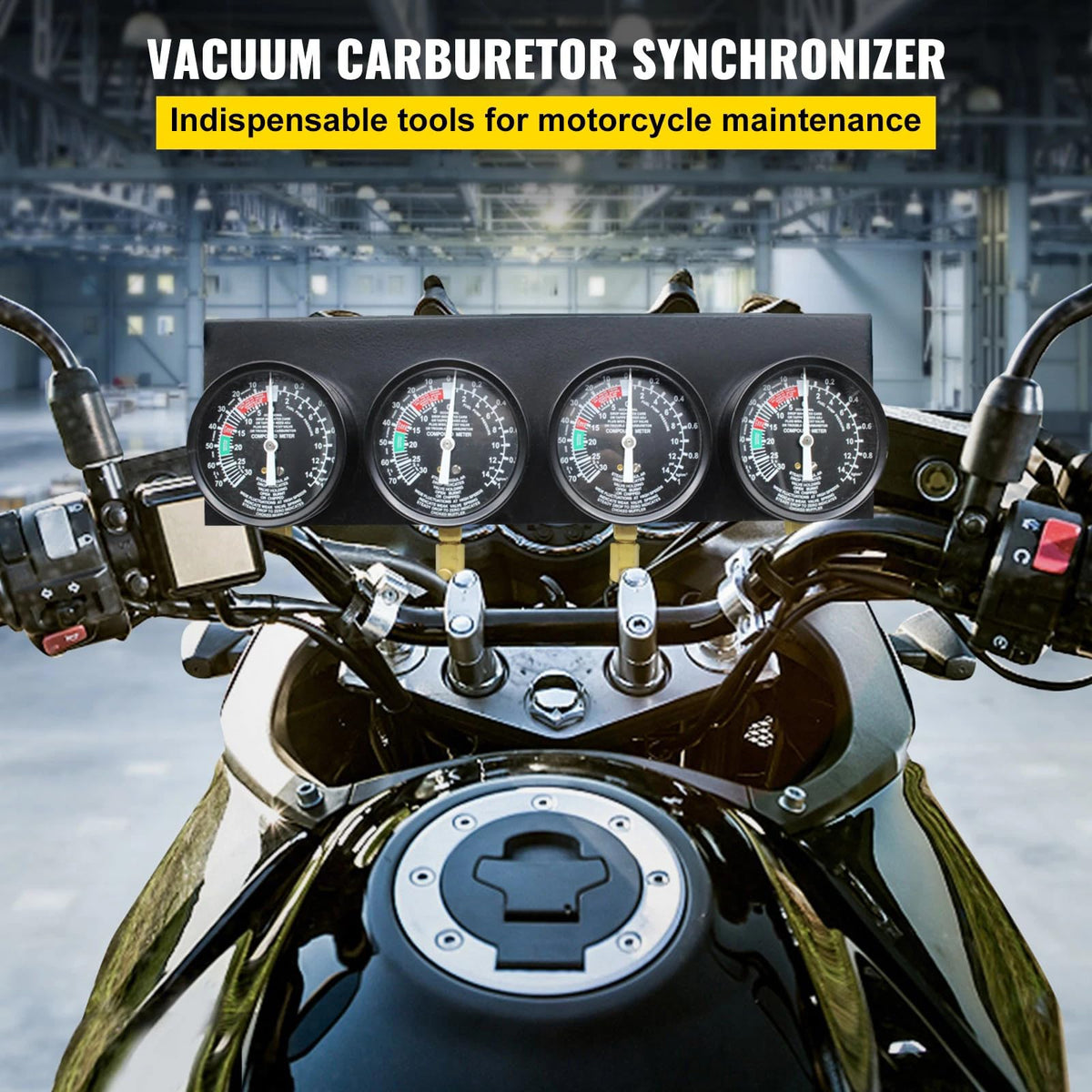

Mount the gauge plate or hold the gauges so all needles are visible, attach hoses to each carburetor vacuum port, and start the engine. Adjust each carburetor’s synchronization screw or linkage until all gauge needles show the same vacuum reading. Recheck across different engine speeds to confirm stable balance.

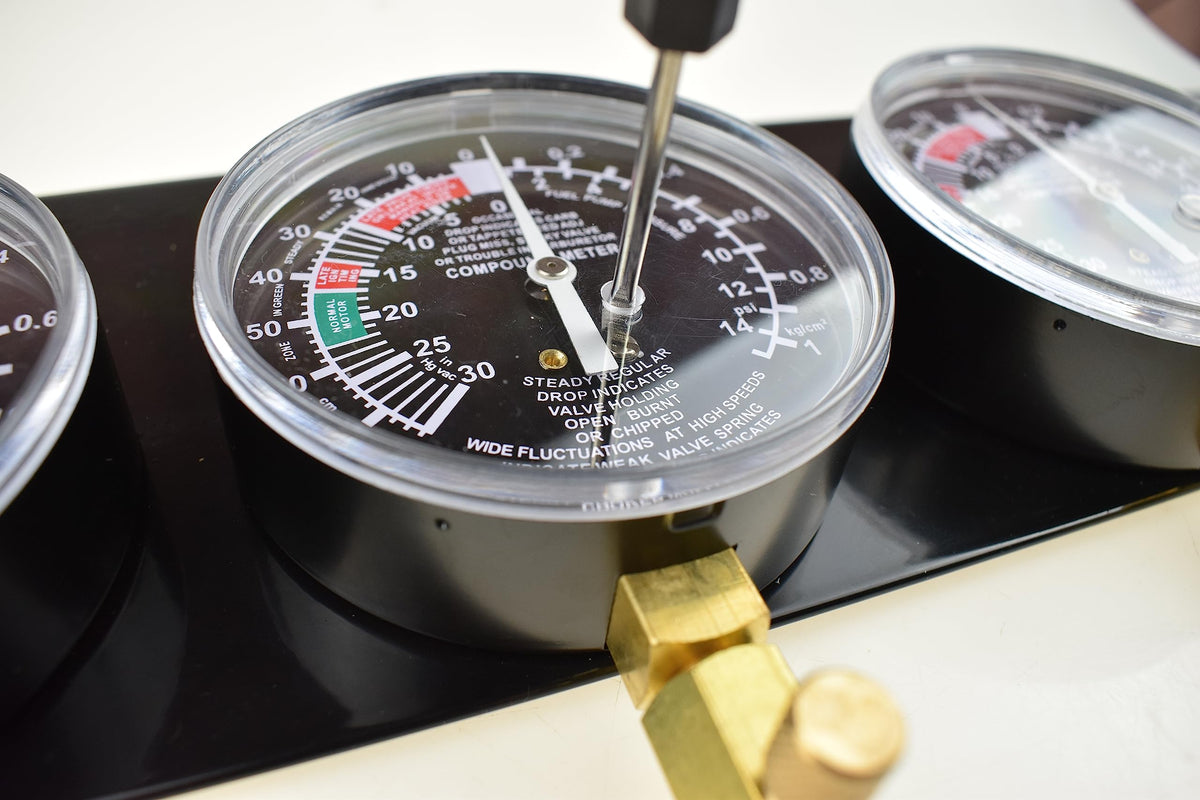

• Calibrate each gauge to zero before use by adjusting the small screw under the metal cap
• Synchronize while engine is running; adjust throttle stop and synchronization screws as needed
• Verify balance at idle and light throttle for consistent performance

What build quality and storage features does the kit offer?

The gauges are mounted on a metal plate with glass-covered faces for clear visibility and durability in a workshop environment. All components store neatly in a tough plastic case that protects glass faces and small fittings during transport. The construction is designed for repeated use on motorcycles, small engines and performance tuning tasks.

• Heavy metal base plate for stable mounting or hanging in the shop
• Glass lens gauges and robust metal fittings for longevity

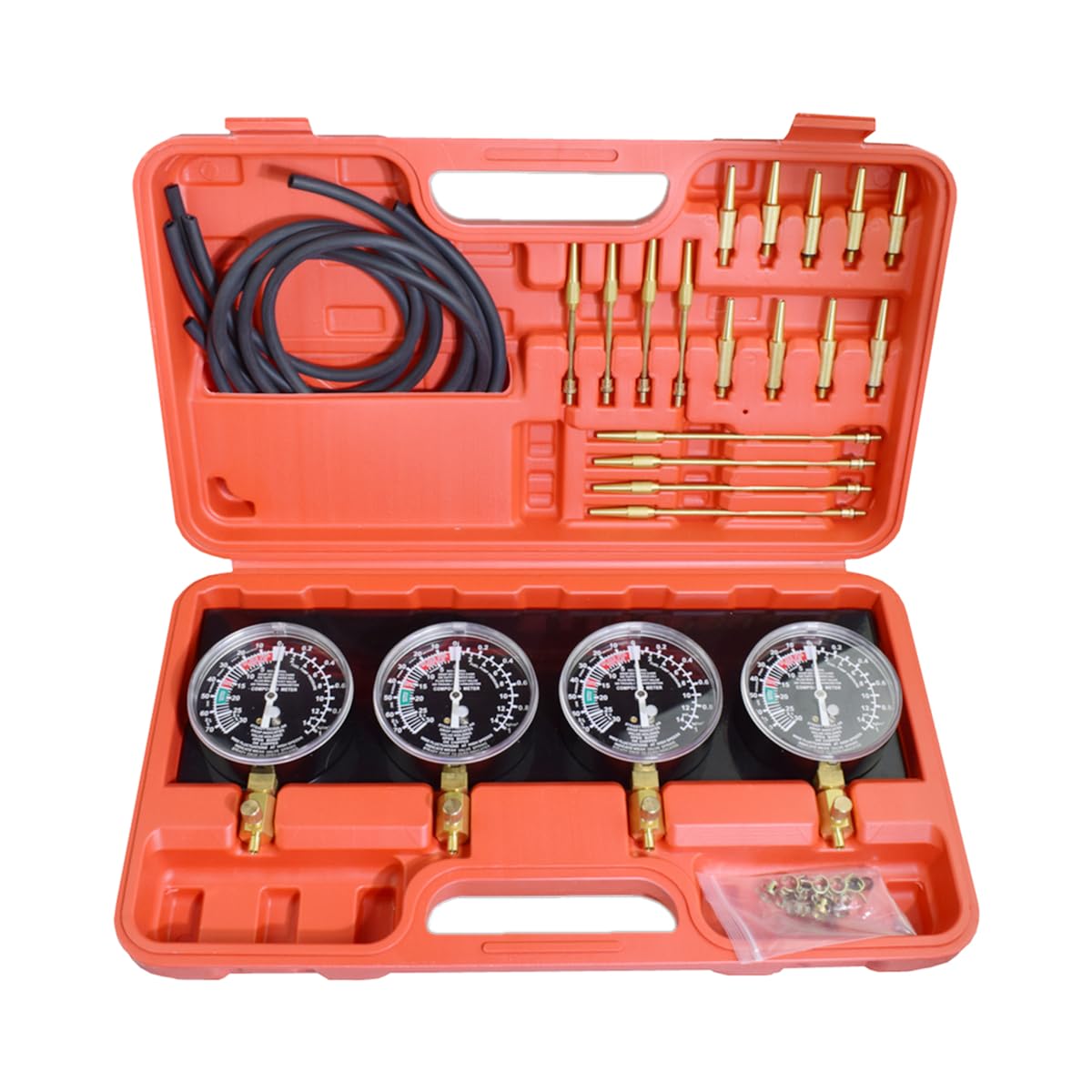

• Custom-molded durable plastic carry case for organized storage

Who is this for: The Alltooetools 4-gauge synchronizer is made for motorcycle enthusiasts, backyard mechanics, and professional tuners working with 2–4 carburetor engines — including classic bikes (GS, KZ, XS, CB series) and many other multi-carb machines. If you perform regular tune-ups, restore vintage bikes, or need precise vacuum comparison for smoother running, this kit gives the gauges, hoses and adaptors to complete a thorough synchronization job without guesswork.
