Alvktora Weld-On Tabs Shock Mount Brackets 1/2" Hole Flat-Bottom 8 pc — Heavy-duty Acid-Washed Steel

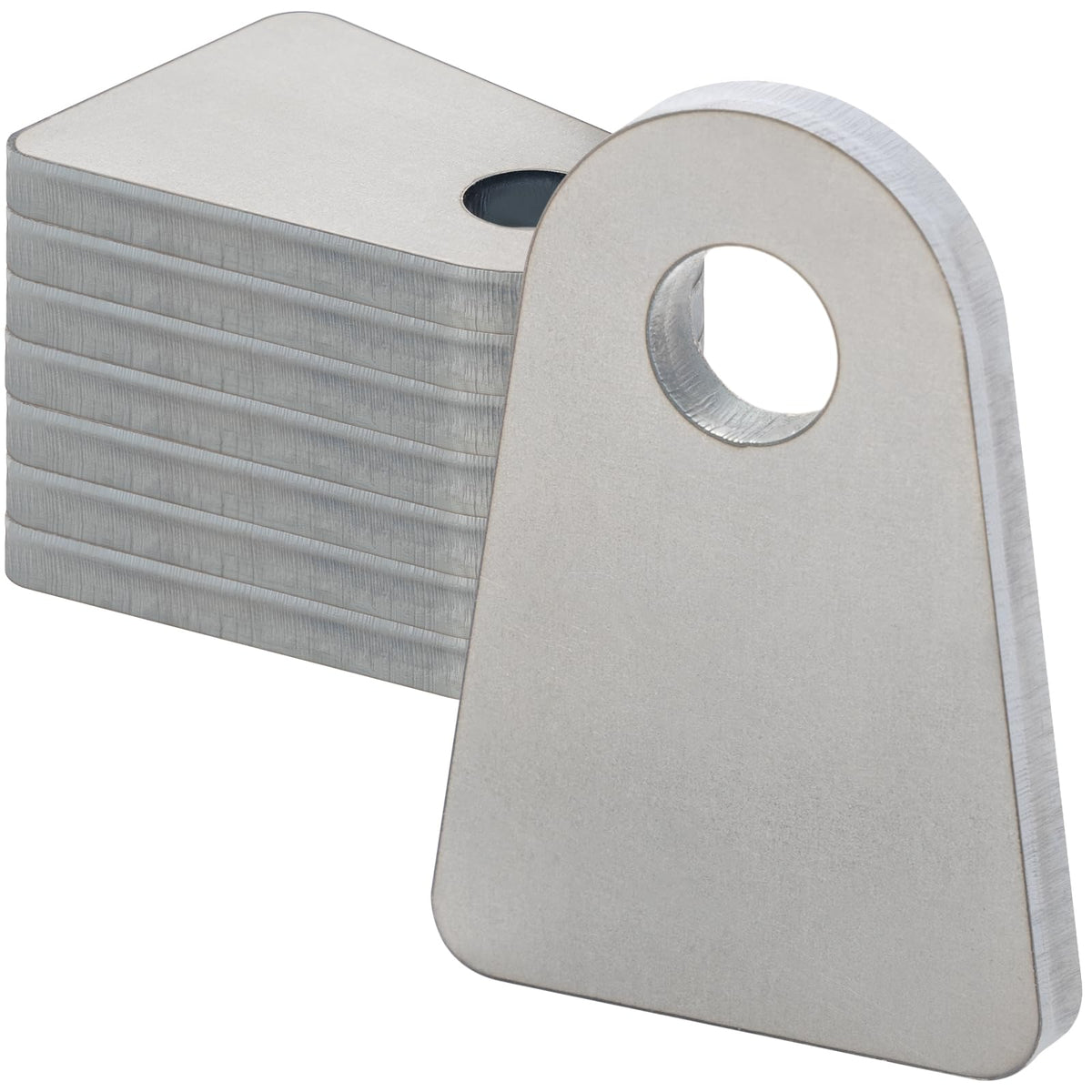

Alvktora Weld On Tabs are heavy-duty flat-bottom shock mount brackets with a 1/2" center hole, delivered as an 8-piece set engineered for secure, low-profile welding to suspension and structural components.

These weld-on tabs are built for applications that need repeatable alignment, high shear strength and consistent weldability. Manufactured from acid-washed, stress-relieved steel and finished with laser-cleaned surfaces, the brackets reduce welding defects and resist hydrogen-induced cracking. Their dimensions, chamfered base and anti-sway center-hole geometry make them well suited for vehicle suspension, trailer attachments, industrial frames and other high-vibration joints.

How are these tabs sized and why does that matter?

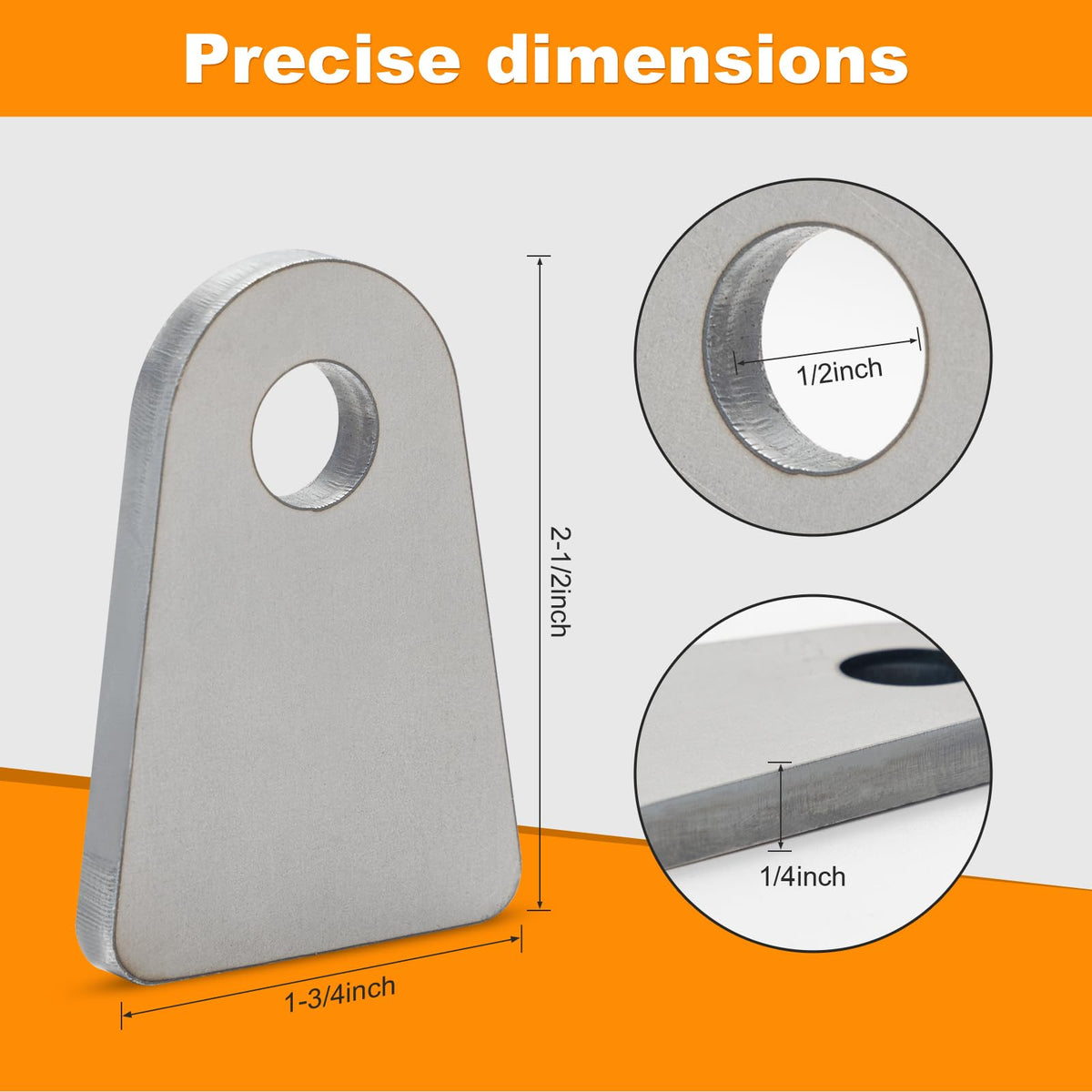

The brackets measure 2-1/2" tall, 1-3/4" wide and 1/4" thick, with a precisely cut 1/2" center hole. Those dimensions balance low profile with enough material to resist tear-out under load. A 15° chamfer on the bottom fills gaps for cleaner fillet welds, improving joint consistency.

• Center hole: 1/2" diameter for standard shock bolts and fasteners.
• Overall: 2-1/2" height × 1-3/4" width × 1/4" thickness.
• Chamfer: 15° bottom bevel to reduce welding gaps and improve penetration.
• Anti-sway: 0.1mm gap control prevents fastener tilting in high-vibration use.

What makes the material and surface treatment special?

Alvktora uses acid-washed, tension-leveled steel that undergoes vacuum degassing and stress-relief annealing at 650°C. These processes reduce residual stress, lower hydrogen content and improve flatness for predictable welding performance. Laser cleaning removes oils and oxides, producing near-zero porosity when welded.

• Acid cleaning and leveling for plate flatness under 0.1mm/m warpage.
• Vacuum degassing keeps hydrogen below 2ppm to limit cracking risk.
• Stress-relief anneal reduces residual stress by about 40% for better joint stability.
• Laser-cleaned surface reduces porosity to under 0.5% for cleaner welds.

How does mechanical performance compare to other tabs?

These tabs are engineered to Mil-Spec-like mechanical metrics: controlled hardness in the HV130–150 range and an 18 kN shear capacity. Edge thickness and FEA-informed geometry improve tear-out resistance versus many aftermarket options, giving a stronger welded connection under dynamic loads.

• Hardness: HV130–150 for balanced strength and toughness.
• Shear capacity: withstanding roughly 18 kN load per bracket.
• Edge thickness: 9.7mm optimized to resist tear-out better than typical 7.5mm edges.
• Weld retention: welded joints preserve about 95% of base metal strength.

Which welding methods and environments suit these tabs?

The brackets are compatible with MIG and TIG processes using ER70S-6 filler wire and are formulated to minimize spatter and toxic fumes by avoiding zinc and limiting silicone content. Pickling and surface treatments slow corrosion in wet conditions; with primer and paint, the lifespan of mounted assemblies is extended significantly.

• Compatible processes: MIG and TIG using standard ER70S-6 filler.
• Cleaner welding: zinc-free and low-silicone mix reduces fumes and spatter by ~30%.
• Corrosion resistance: pickled surfaces resist rust up to 3× longer than untreated steel.
• Porosity control allows strong, repeatable welds with low defect rates.

Who is this for: These Alvktora weld-on shock mount brackets are aimed at fabricators, off-road builders, trailer and suspension shops, and hobbyists who need dependable, weld-ready tabs for high-vibration or load-bearing mounts. If you require consistent fit, predictable welding behavior and higher tear-out resistance than typical aftermarket tabs, this 8-piece set is designed to make installation faster and joints more reliable.
