AlyoNed 7" LED Motorcycle Headlight Kit with 4.5" Fog Lights — Black, 6000K DOT-Approved High/Low Beam

The AlyoNed kit is a complete 7-inch LED headlight plus two 4.5-inch fog/passing lights package engineered to replace stock halogen units on many Harley-Davidson touring and softail models for stronger, whiter, DOT-approved illumination.

This all-in-one conversion kit swaps into 1989–2019 Touring and many Softail bikes with parts and adapters included for a straightforward upgrade. The headlight uses a double-lens design to boost visible output while reducing glare to oncoming riders. Built to work in a wide temperature range, the kit brings a crisp 6000K white beam, IP67 water resistance, and DOT/SAE automotive approvals so it meets street-legal requirements.

Which motorcycles will this AlyoNed kit fit?

The kit is tailored for a broad list of Harley models across Touring and Softail families from 1989 to 2019. Some models require the provided brackets or adapters for secure mounting, and a few special versions need minor wiring changes noted below.

• Compatible models: Road King, Street Glide, Electra Glide, Ultra Classic, Heritage Softail, Softail Deluxe, Softail Slim, Fat Boy, Switchback, Ultra Limited, Tri, CVO (1989–2019).
• Included H4-to-H9 adapter addresses 2014–2019 Street Glide Special and Road King Special fitment.
• Switchback, Road King, Street Glide, Electra Glide, and Ultra Limited may use the supplied ring for a secure mount.
• Note: 2013 Touring CVO Ultra Classic FLHTCUSE8 may require harness modification for fog lights.

How bright and what color is the light output?

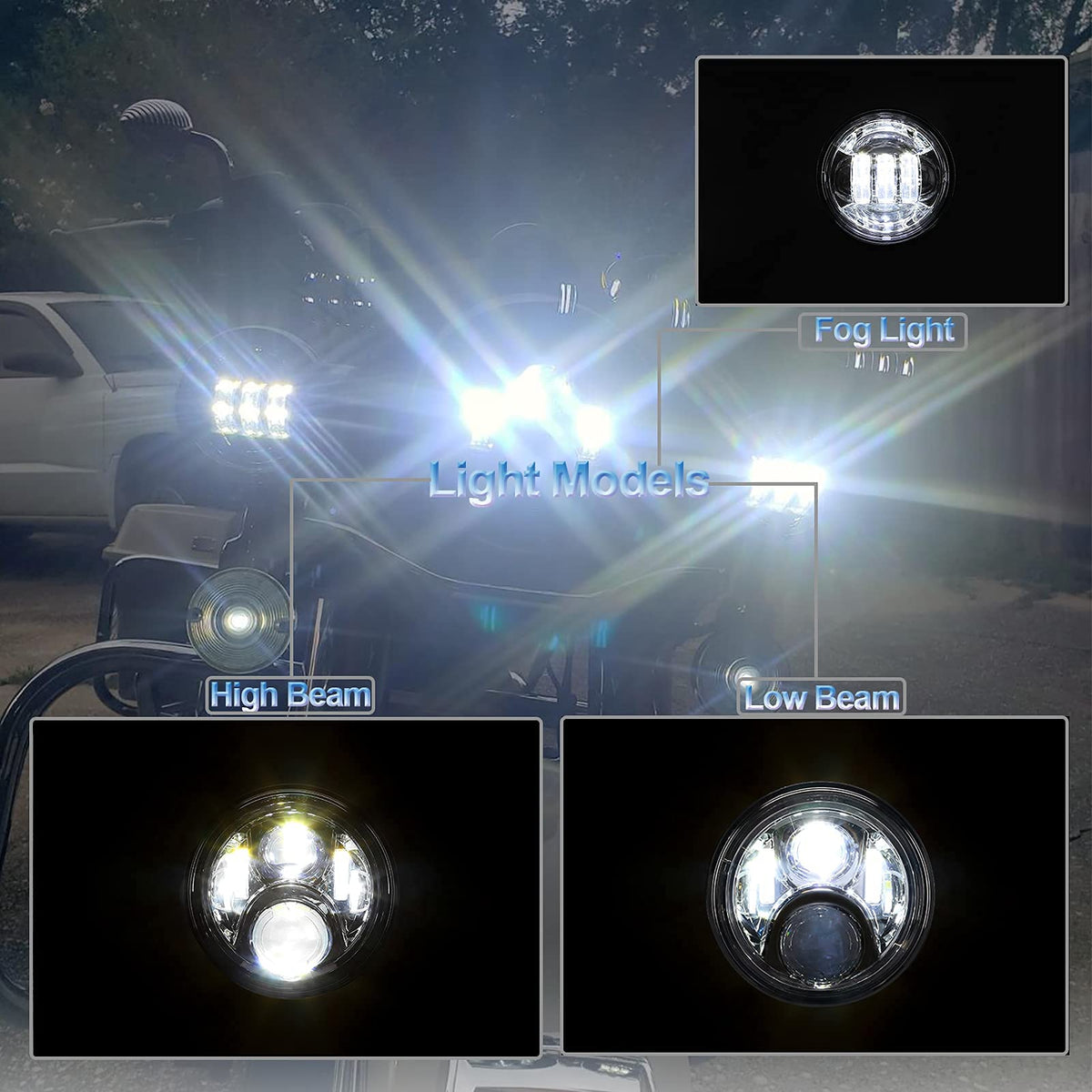

The AlyoNed headlight produces a high-beam output of about 4000 lumens and a low-beam output near 2600 lumens, paired with fog/passing lights that harmonize with the main beam. The color temperature is a crisp 6000K pure white for clearer contrast at night and improved visibility in most conditions.

• Headlight: ~4000 lm high, ~2600 lm low for clear long- and short-range visibility.
• Fog/passing lights: designed to complement the headlamp pattern and widen side illumination.
• 6000K color temperature for neutral, high-contrast illumination without yellow tint.

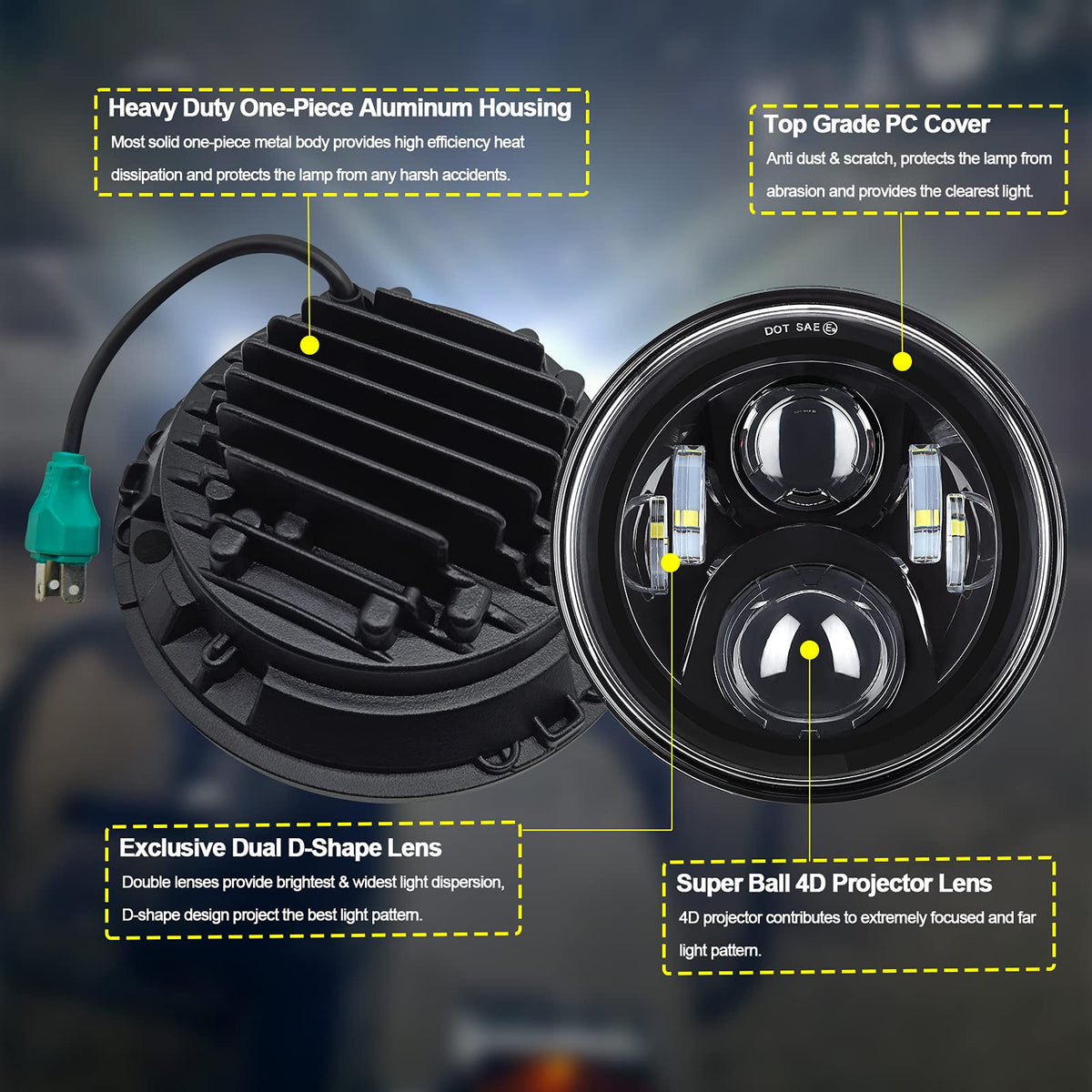

• Double-lens design concentrates output while minimizing glare to oncoming traffic.

What durability and safety features should I expect?

This kit is engineered for road conditions with an IP67 waterproof rating and an operating range from -40°C to 80°C. It carries DOT and SAE approvals plus an E-Mark rating, reflecting compliance with many vehicle lighting standards.

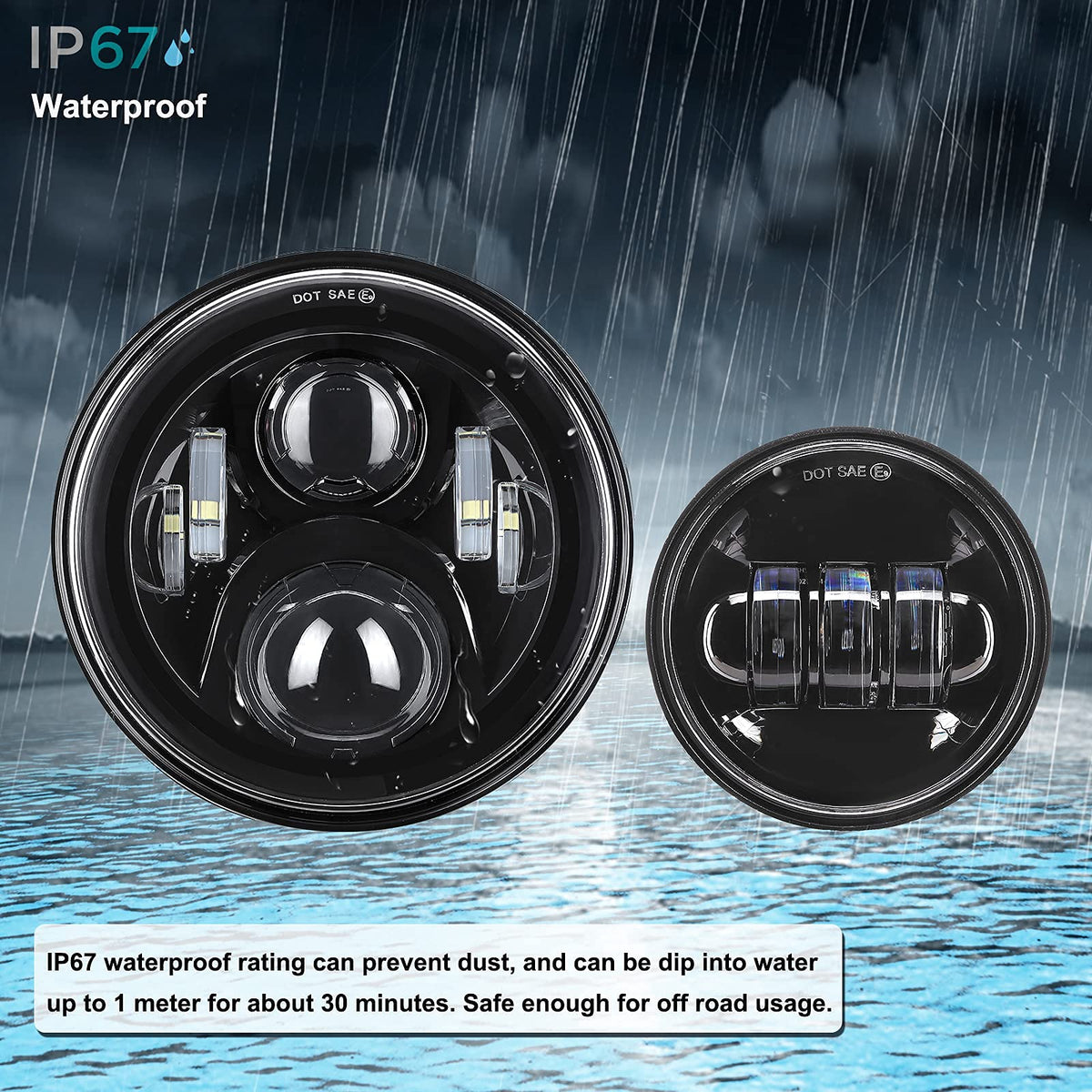

• IP67 protection: sealed against dust and temporary water immersion.
• Operating temperature: -40°C to 80°C for hot summers and cold winters.
• Rated lifespan: over 50,000 hours for long-term reliability.
• DOT & SAE approved and E-Mark rated for road legality in applicable regions.

What comes in the package and what will I need to install?

The kit ships with everything needed for most installs: the main 7-inch LED headlight, two 4.5-inch fog/passing lights, a mounting ring bracket, wiring harness, and connectors. Specific Harley variants may require the included adapter or light ring, and a handful of bikes may need small harness changes or alternate mounting hardware.

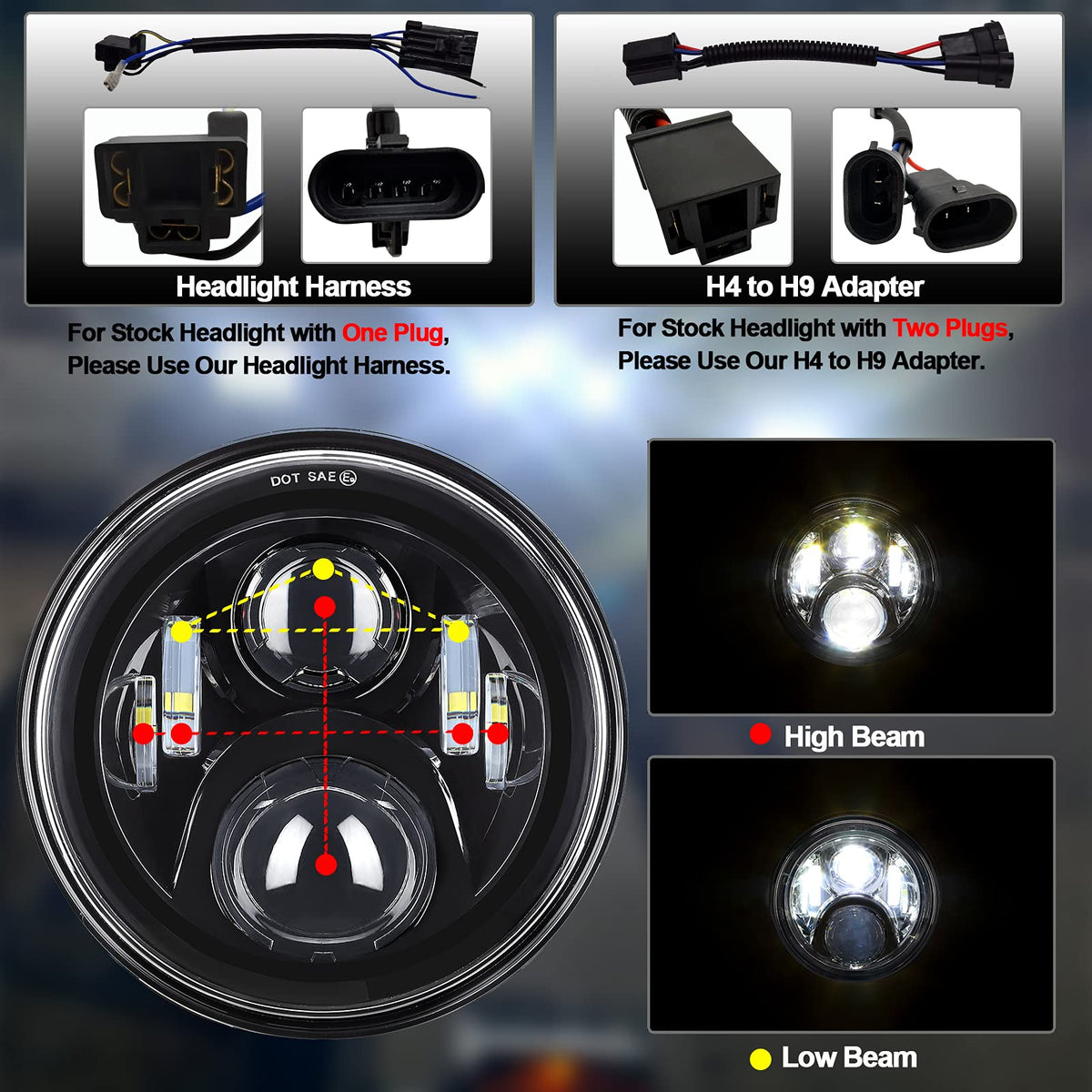

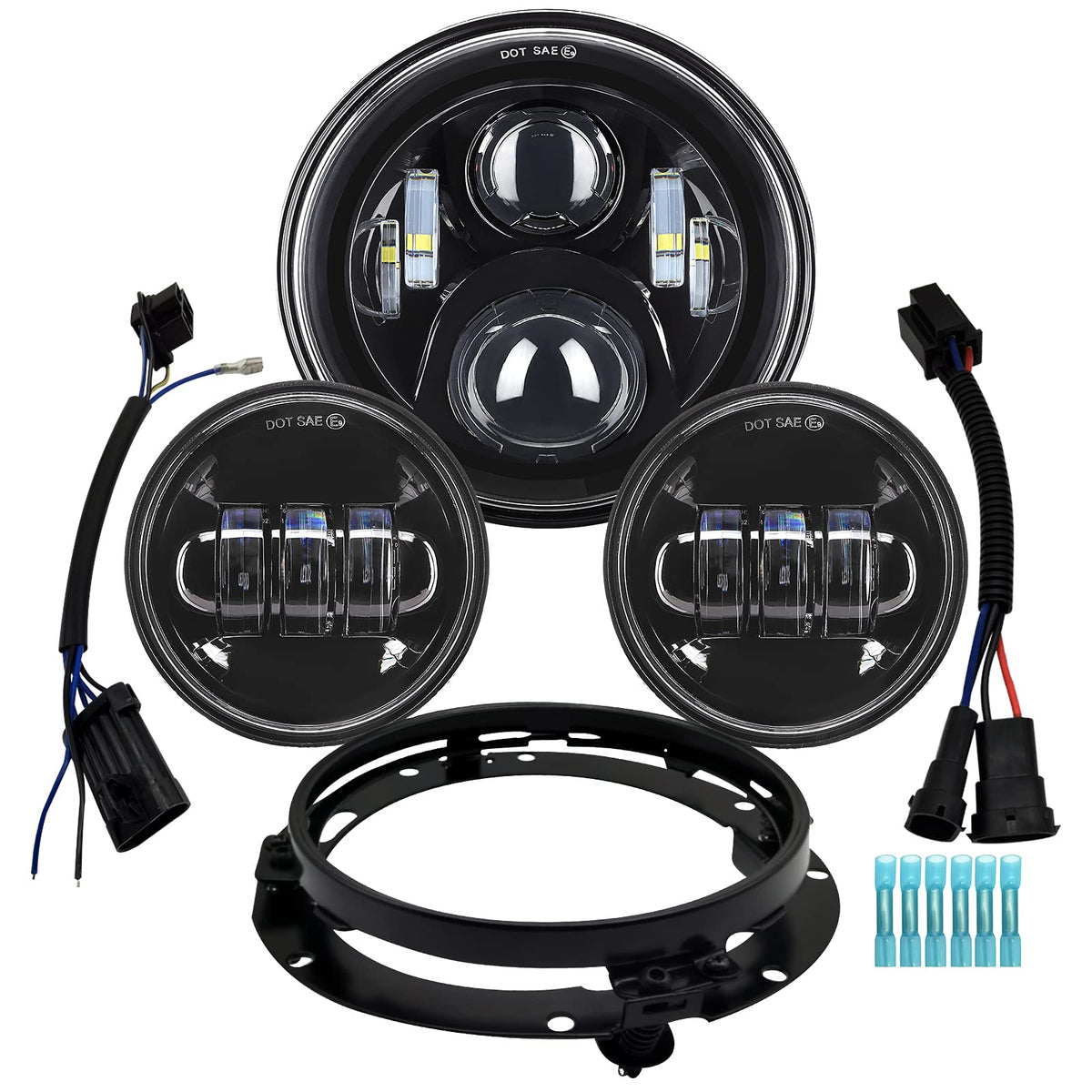

• Included: 1x 7" LED headlight, 2x 4.5" fog lights, headlight ring bracket, wiring harness, H4-to-H9 adapter, 6 connectors.
• Plug-and-play for many models; check fit notes for special-case bikes.
• Minor wiring or bracket tweaks may be needed for certain 2013–2019 models.
• Basic hand tools and a multimeter recommended for safe installation.

Who is this for: Riders who want a practical, street-legal lighting upgrade for Harley-Davidson touring and many Softail models. Choose this kit if you need a brighter, whiter beam with weatherproof construction and included hardware to simplify installation. It’s aimed at owners who prefer a plug-and-play upgrade with DOT compliance rather than aftermarket lamps that require heavy modification.
