Anayguto 7-Way Trailer Cable 30 FT — Heavy-Duty CCA Multi-Gauge, Weather-Resistant 7-Wire

Anayguto 30 FT 7-way trailer cable is a heavy-duty, weather-resistant roll of multi-gauge copper-clad aluminum wire designed for RVs, campers, trucks and trailers.

This 30-foot roll bundles seven individually insulated conductors inside a flexible black PVC jacket, offering color-coded, multi-gauge wiring (10/12/14/14 AWG combination) for common trailer circuits such as brakes, lights, turn signals, reverse and auxiliary power. Built for outdoor use, the cable balances conductivity and lighter weight with copper-clad aluminum (CCA) cores and a temperature-rated PVC sheath suitable for routine towing and seasonal storage.

How does this cable support multiple trailer functions?

The Anayguto 7-way cable contains seven distinct conductors sized for their typical loads: two 10 AWG conductors for heavier circuits and several 12/14 AWG conductors for lighting and accessories. Each wire is color-coded to speed installation and reduce wiring mistakes.

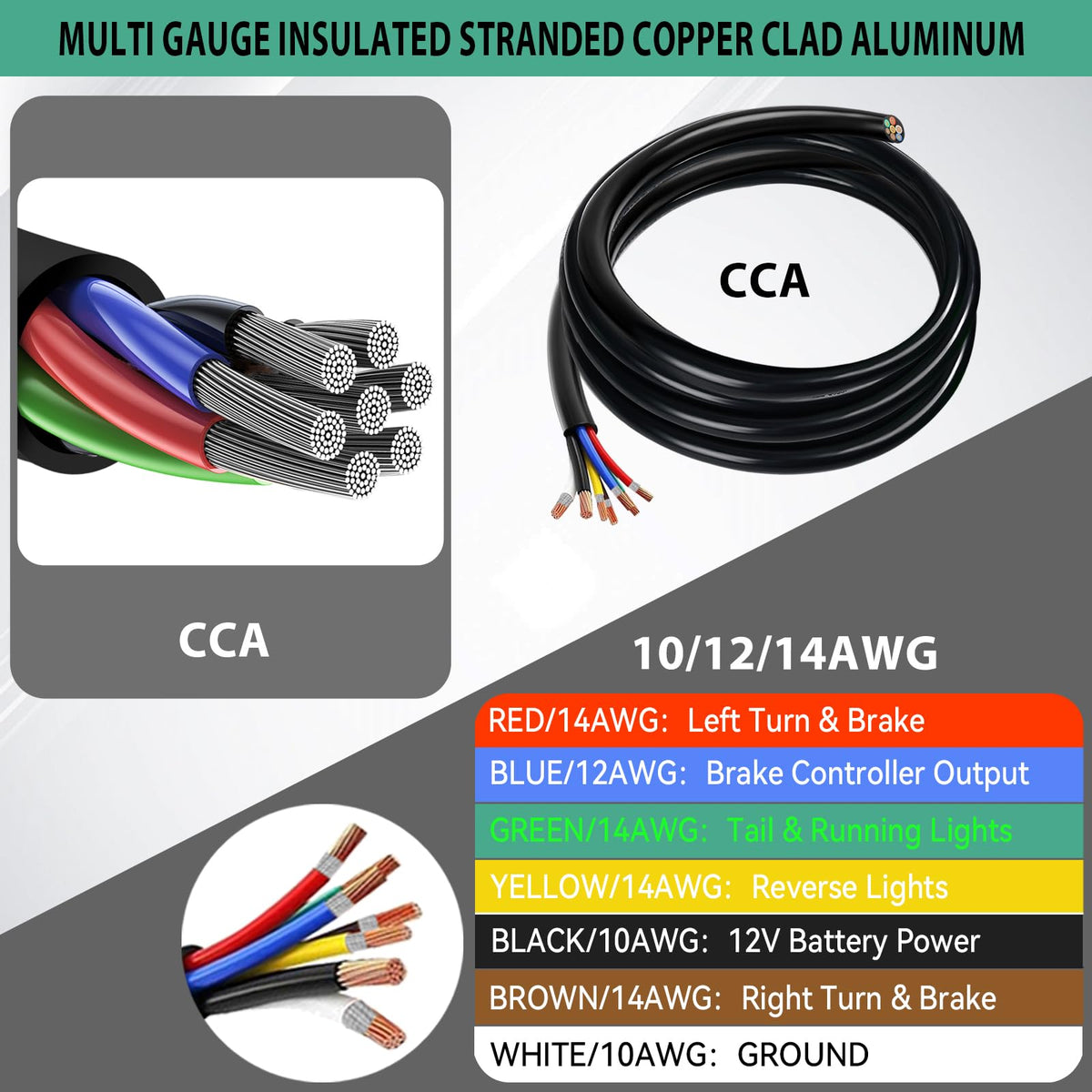

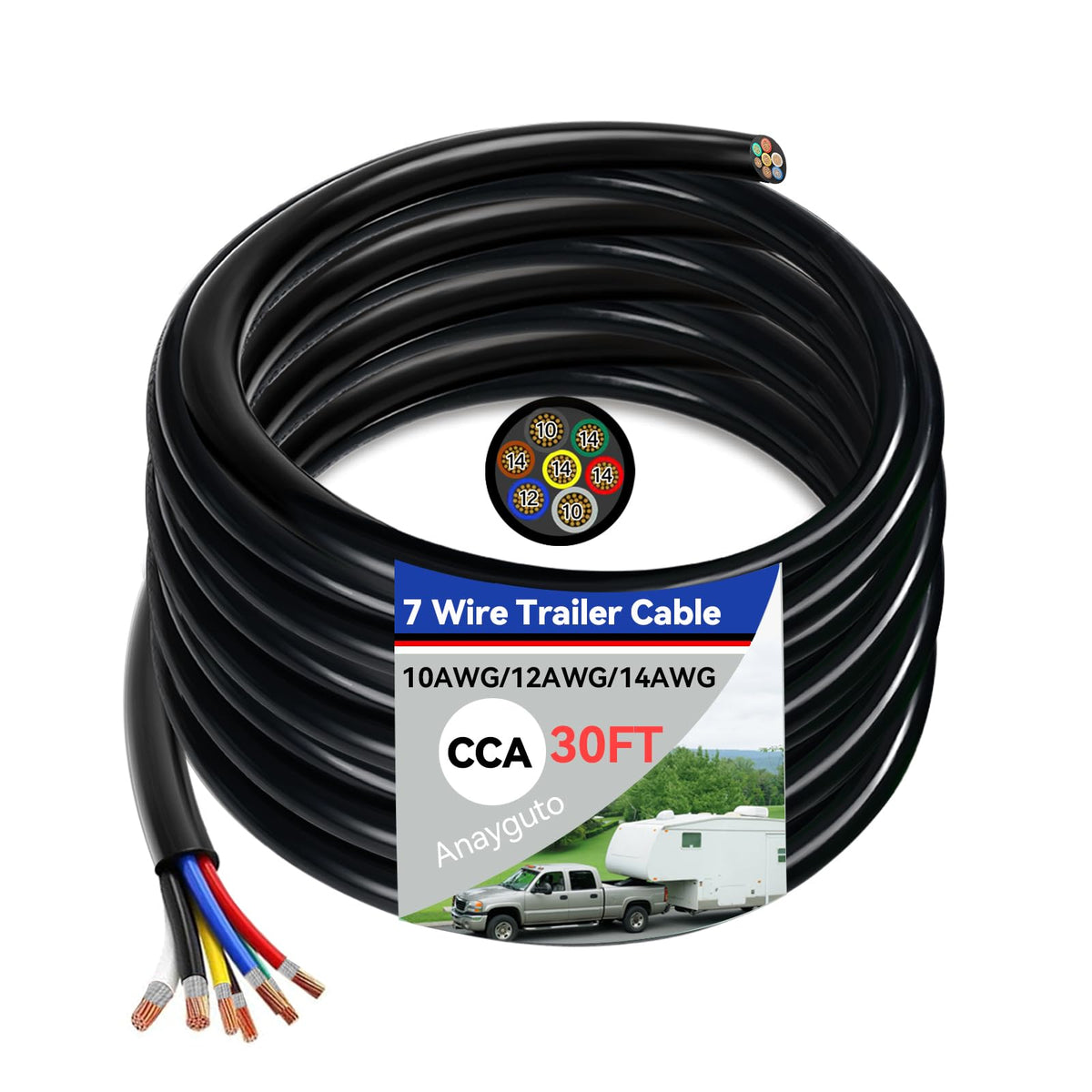

• Included colors: white #10, black #10, blue #12, red #14, green #14, brown #14, yellow #14.
• Seven conductors accommodate brake, tail, turn, reverse and auxiliary power functions simultaneously.
• Stranded CCA cores keep the cable lighter than pure copper while retaining good conductivity for typical trailer loads.

Is this cable durable enough for outdoor towing and seasonal use?

The outer jacket is a flexible, weather- and corrosion-resistant PVC sheath that protects the internal conductors from moisture and abrasion. Voltage-carrying conductors are stranded for flexibility, which reduces fatigue from bending and vibrations under towing conditions.

• PVC jacket rated for temperature ranges commonly encountered in towing and storage.
• Stranded conductors resist breakage from repeated flexing and movement.
• Black outer sheath helps mask road grime and UV exposure from sunlit use.

What sizes and lengths are available for different trailer setups?

This product is offered in a 30-foot roll, and the same 7-core CCA construction is commonly available in longer rolls for larger setups. Choose the length that runs cleanly from tow vehicle to trailer without excess slack or splices for best reliability.

• Standard length in this listing: 30 feet — suitable for many RVs, small trailers and campers.
• Other common lengths: 50-foot and 100-foot options for extended runs or spare inventory.
• Multi-gauge layout fits both high-current and light-signal circuits without additional converters.

How should I install and verify compatibility with my trailer?

Before installation, confirm pin function and wire gauge match your vehicle and trailer requirements. Use proper connectors and strain reliefs; avoid compressing or nicking conductors and test each circuit with a multimeter or lamp before finalizing the run.

• Match color codes to your trailer wiring diagram or pinout to prevent miswiring.
• Use weatherproof connectors, heat-shrink, and dielectric grease for outdoor terminals.
• Inspect and test brake, turn, tail and auxiliary circuits after installation.

Who is this for? The Anayguto 30 FT 7-way CCA trailer cable is aimed at DIYers, fleet operators and RV owners who need a reliable, lightweight, multi-function wiring harness for trailers, campers, food trucks and other tow applications. It’s a practical choice when you want a color-coded, multi-gauge cable in a manageable 30-foot length for routine towing, repairs or retrofits. If you require higher continuous current capacity or pure copper conductors for specialized applications, consider a full-copper alternative or a larger-gauge solution.
