ANCEL Marine Diagnostic Scanner MR500 for Yamaha WaveRunner & Outboards (2003–2024) — 5.0" Touchscreen, Bi‑Directional Tests

The ANCEL MR500 is a handheld marine diagnostic scanner designed to read/clear codes, run live-data and active tests, and perform 15+ service and relearn procedures on compatible Yamaha WaveRunners and outboards. The MR500 streamlines troubleshooting for owners and technicians who work on Yamaha personal watercraft and outboard engines from 2003 through select 2024 models. With a 5.0-inch touchscreen, ECU/EMM-level access, and bidirectional controls, this tool moves beyond basic code reading to help verify component operation, complete post-repair setups, and document live sensor behavior.

How does the MR500 help diagnose problems faster?

Instead of just returning a fault code, the MR500 lets you inspect live sensor data, view waveform and gauge formats, and run active tests that command components directly. That combination helps you confirm whether the named component actually responds or if the issue lies elsewhere in the system.

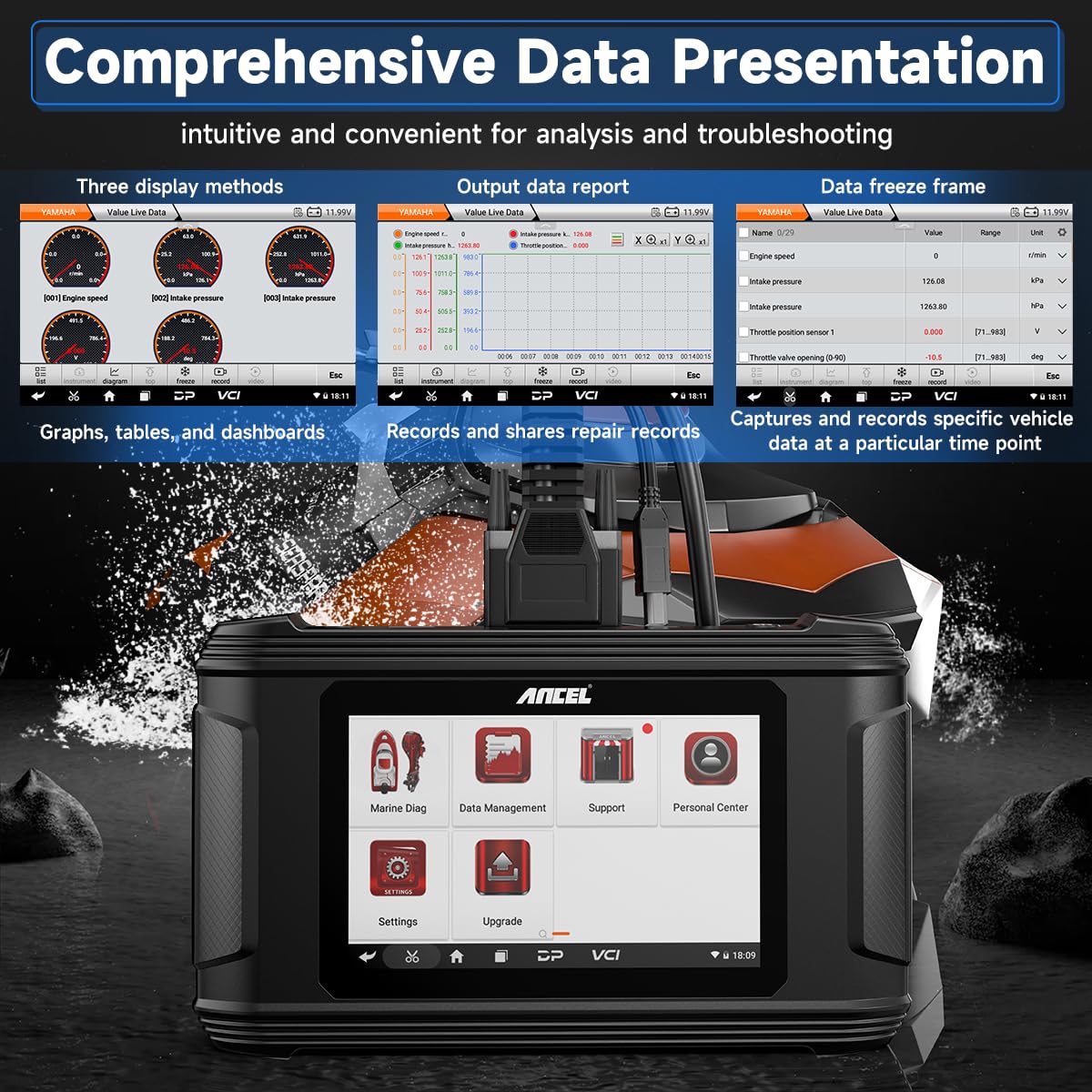

• Live parameters in text, gauge, and waveform views for clear trend analysis
• Bi-directional tests to actuate injectors, coils, pumps, throttles, and more
• ECU/EMM identification and context-aware repair guidance for supported faults

What service, setup, and relearn tasks can it perform after repairs?

The MR500 supports over 15 maintenance and relearn functions commonly required after component replacement or system work. Available procedures depend on the Yamaha model, year, and installed ECU/EMM, but most routine post-service tasks are covered to ensure systems return to proper operation.

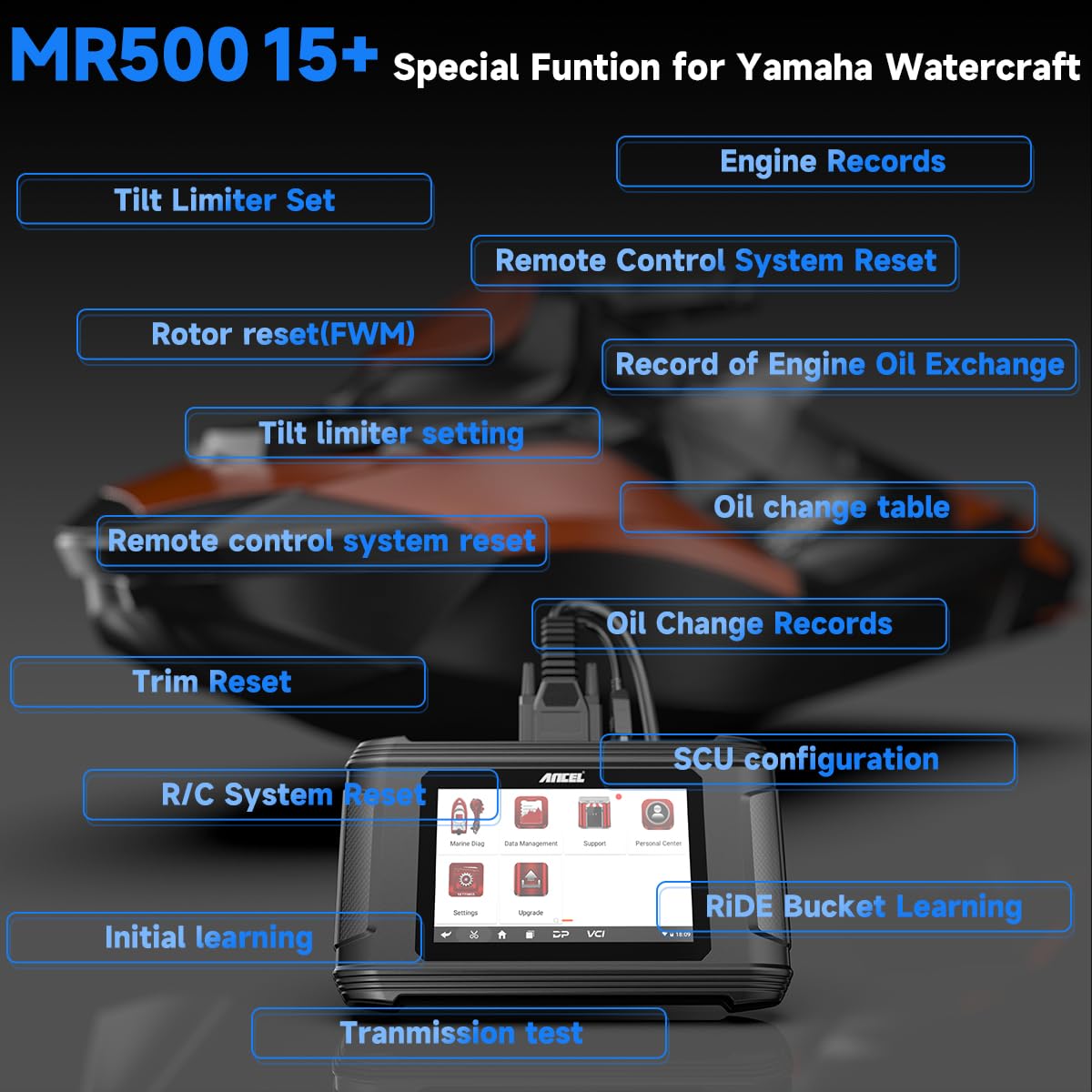

• Initial Learning, RiDE Bucket Learning, and Trim Reset where applicable
• Remote Control System Reset, Tilt Limiter Setting, and Rotor Reset
• SCU Configuration, oil change table updates, engine records, and transmission tests

Can the MR500 reduce unnecessary parts replacement?

Yes. Using active tests to command actuators and observe their responses helps you determine whether a component has failed or if the fault is caused by wiring, sensors, or control inputs. That targeted verification reduces guesswork and lowers the risk of buying the wrong replacement part.

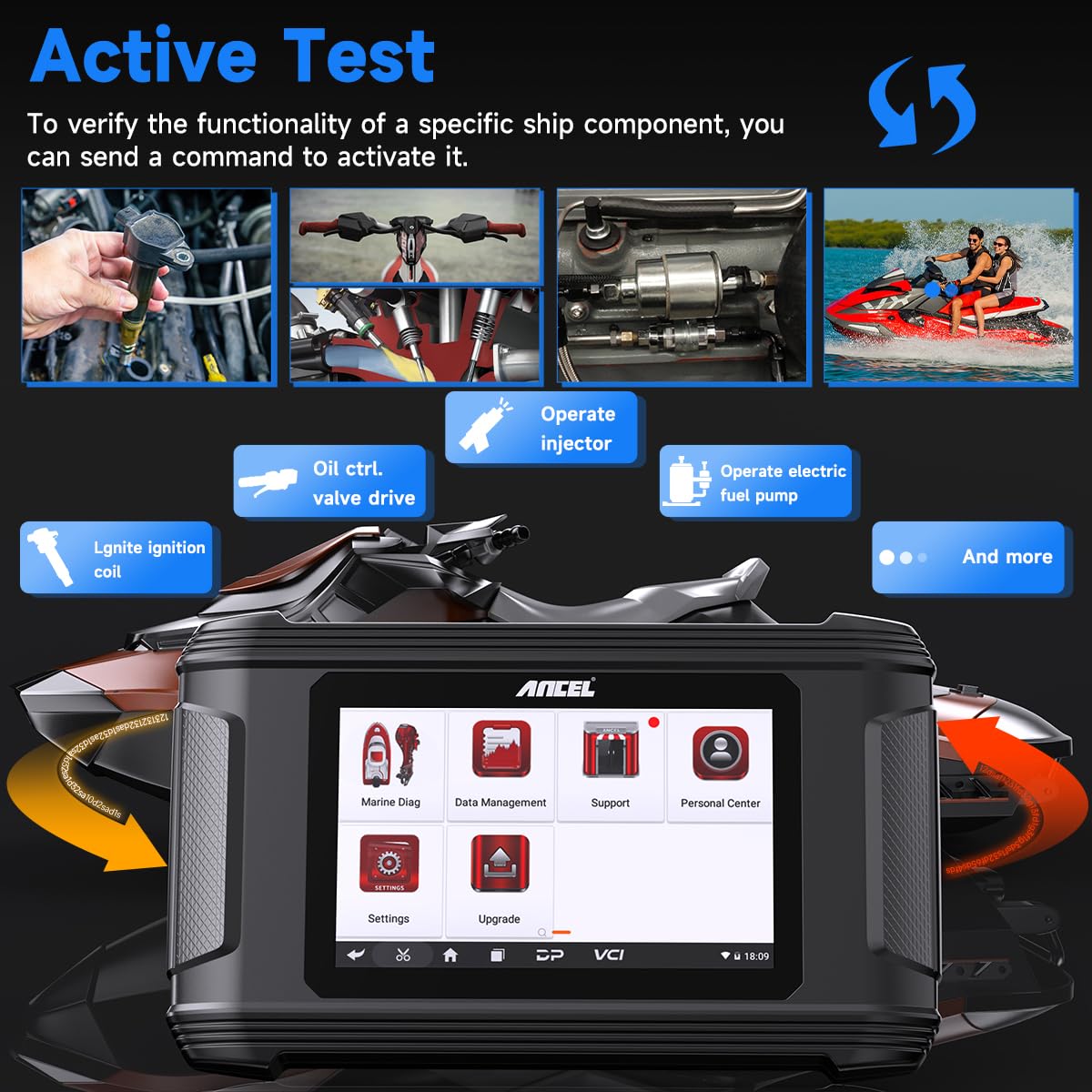

• Command injectors, ignition coils, fuel pumps, and VVT components for response checks
• Verify start/stop systems, throttle and shift controls, and other actuators

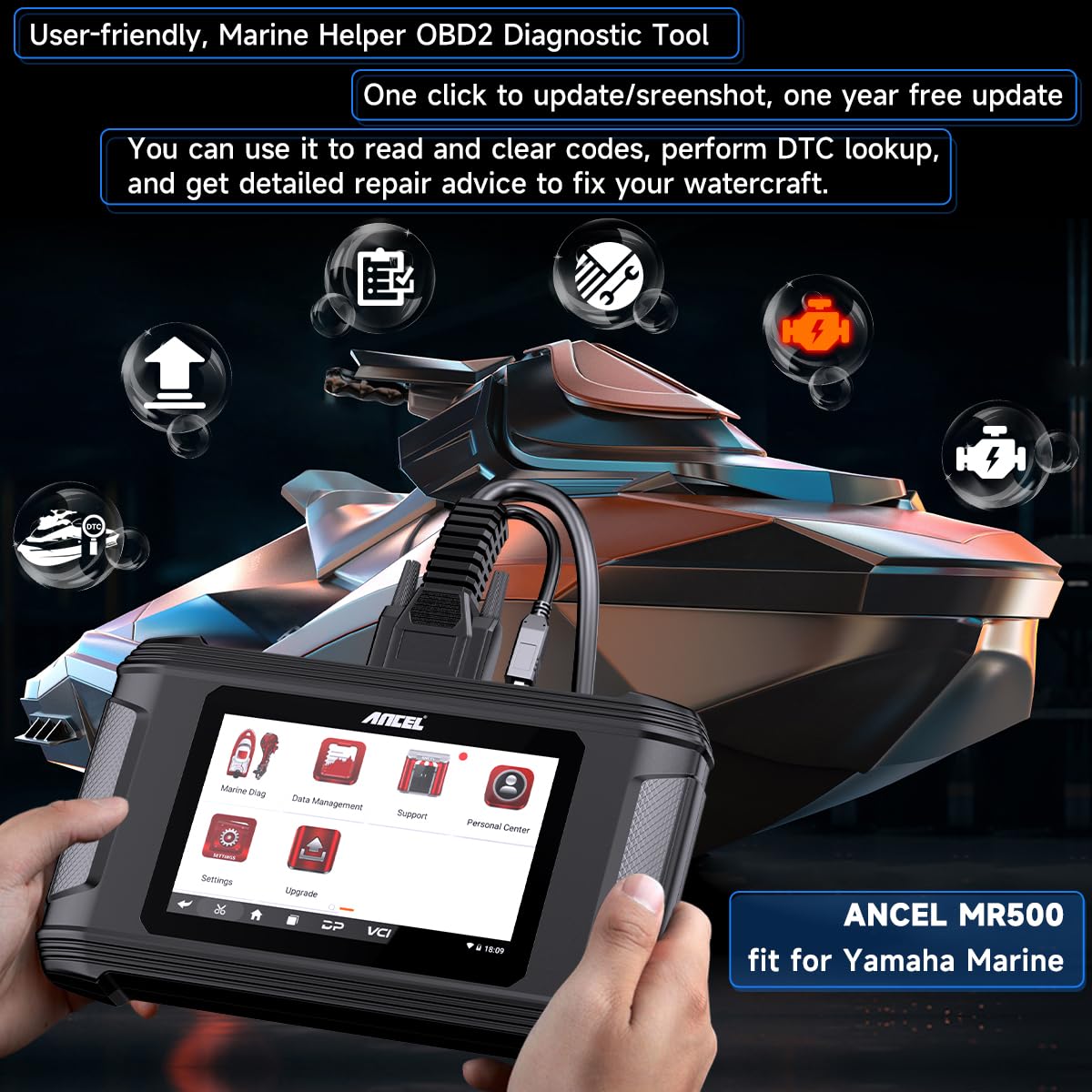

• Read/clear stored codes and confirm post-repair behavior with live monitoring

Which Yamaha models and years are supported by this scanner?

The MR500 covers all Yamaha WaveRunner models from 2003–2022 and Yamaha outboard engines through 2022, with selected 2023–2024 applications included. Coverage varies by model, ECU/EMM, and installed systems; ANCEL provides one year of free software updates to expand compatibility.

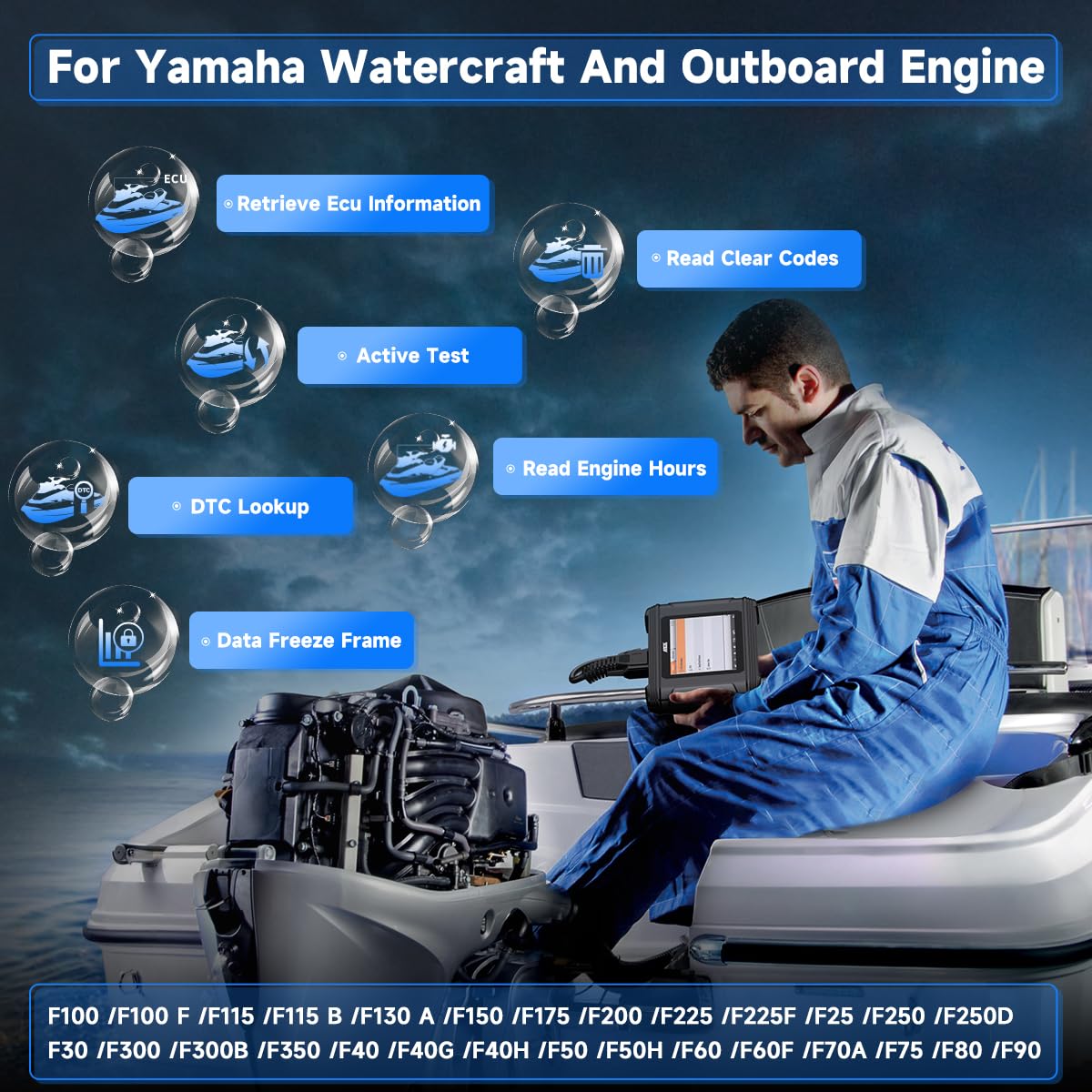

• Includes EX, FX, GP, VX families and EFI 4-stroke, HPDI, V MAX SHO, XF375, XF425, and more
• Function availability depends on year, engine, and control modules
• Compatibility confirmation available via toptool-services@outlook.com

Who is this for The ANCEL MR500 is aimed at Yamaha owners, marina technicians, small repair shops, and DIY enthusiasts who demand ECU-level access without the cost of factory tools. If you regularly service WaveRunners or Yamaha outboards and want faster fault isolation, the ability to perform relearns, and the confidence to verify repairs before parts replacement, the MR500 is designed to save time and reduce diagnostic uncertainty.

FAQ

Q: Does the MR500 work with all Yamaha models?

A: It supports all WaveRunner models 2003–2022 and many Yamaha outboards through 2022, plus selected 2023–2024 models. Confirm compatibility by sending model/year to toptool-services@outlook.com.

Q: Can the MR500 run active tests and relearns?

A: Yes. It performs bi-directional active tests and over 15 service/relearn functions where supported by the vehicle ECU/EMM.
