ANGCOSY 10-Ton Pintle Hook Trailer Hitch with 2-5/16" Ball — 15-1/2" Forged Steel, Black-e Finish

ANGCOSY's 10-ton pintle hook and 2-5/16" hitch ball combo is a heavy-duty, forged-steel trailer hitch assembly rated for up to 20,000 pounds with a 15-1/2" overall length.

This hitch assembly combines a pintle hook and a chrome-plated hitch ball into a single receiver-mounted unit designed to handle demanding towing tasks. Constructed from forged steel with anti-rust surface treatment and a durable black-e finish on the pintle, the combo gives a practical solution for operators who need both pintle-ring and ball-coupler compatibility on one mount. Its dimensions and rated capacities make it suitable for commercial, agricultural, and heavy-duty recreational towing where a robust connection is required.

How much weight can this pintle hook and hitch ball safely handle?

The assembly is engineered for heavy loads: the pintle hook component carries a maximum towing capacity of 20,000 pounds (10 tons), while the 2-5/16" hitch ball is rated at 12,000 pounds. Use the pintle for ring-style couplers and the ball for conventional coupler setups, ensuring you do not exceed each part's individual rating. Always match the hitch's ratings with your trailer's tongue weight and towing vehicle capacity.

• Pintle hook towing capacity: 20,000 lbs (10 tons)
• Hitch ball rated capacity: 12,000 lbs for 2-5/16" ball
• Compatible ring diameter: fits a 2-1/2" towing ring
• Verify vehicle and trailer ratings before towing

What materials and finishes protect this hitch from corrosion and wear?

The main structure is forged steel for strength and impact resistance, while the pintle receives a high abrasion-resistant black-e surface treatment to reduce wear. The hitch ball is steel with a chrome-plated layer to resist rust and maintain a smooth mating surface for couplers. These treatments extend service life and reduce maintenance in outdoor and heavy-use environments.

• Forged steel construction for high structural integrity
• Black-e abrasion-resistant finish on the pintle hook
• Chrome-plated hitch ball to prevent corrosion
• Designed to withstand heavy-duty, repeated use

What are the physical dimensions and mounting measurements?

The full assembly measures 15-1/2 inches in overall length, with 12-1/2 inches from the center of the hitch pin hole to the center of the pintle hook. The hitch ball diameter is 2-5/16 inches to fit standard large couplers, and the pintle accommodates a 2-1/2 inch towing ring. These dimensions make it compatible with standard 2" receiver hitches using the proper shank and pin arrangements.

• Total length: 15-1/2 inches
• Center-to-center (pin hole to pintle): 12-1/2 inches
• Hitch ball diameter: 2-5/16 inches
• Fits towing ring diameter: 2-1/2 inches

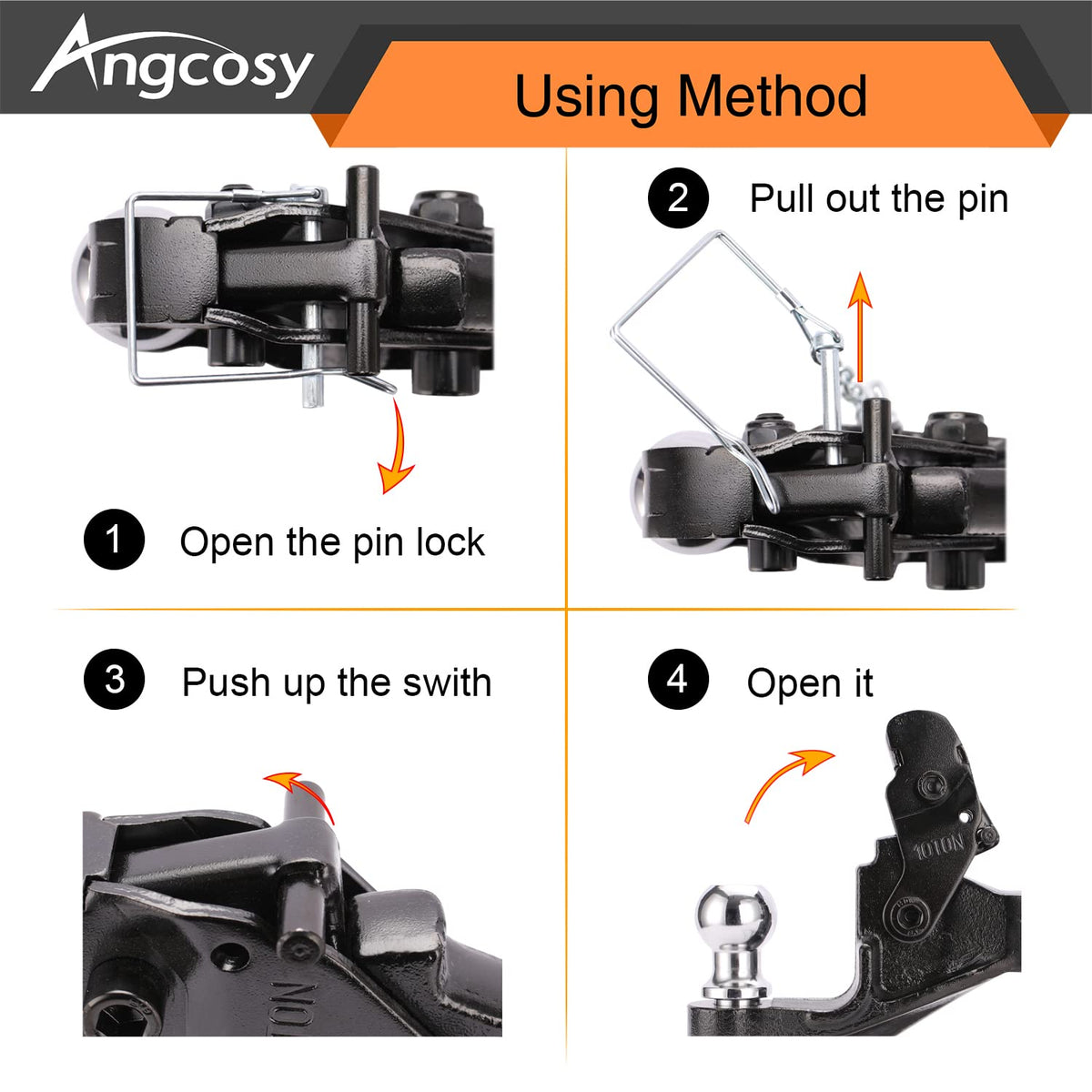

How does the latch and locking feature improve safety and convenience?

The top-mounted hitch latch pin is designed to be lockable, preventing accidental unclipping and reducing the chance of misplacement during travel. This provides an added layer of security for both the pintle and ball configurations and simplifies swapping between coupler styles. Lockability also helps deter theft of small removable hitch parts when parked.

• Top-mounted latch pin that can be secured with a padlock
• Reduces risk of unintended uncoupling in transit
• Prevents loss of the latch pin when not in use
• Supports quick transitions between hitch styles

Who is this for: The ANGCOSY 10-ton pintle hook and 2-5/16" hitch ball combo is intended for fleet operators, farmers, construction contractors, and heavy-duty recreational users who need a dual-purpose hitch that handles high loads. Choose this assembly if you require a robust, low-maintenance solution that accommodates both pintle-ring trailers and ball-coupler trailers without swapping separate hitches.
