Anki HappiGo Motorcycle Chopped Rear Fender LED Tail Light — Sportster 2004–2014, Low-Profile Red

The Anki HappiGo ANKIA Motorcycle Chopped Rear Fender Edge LED Tail Light is a compact LED assembly designed to replace the stock rear light on chopped Harley Sportster fenders, combining brake, running, turn-signal and license plate illumination in a low-profile unit.

This chopped rear fender edge LED tail light fits Harley-Davidson Sportster 883 and 1200 models made between 2004 and 2014 and mounts directly to the fender edge for a sleeker, custom look. Built with an ABS housing and polycarbonate lens, the unit integrates eight red LEDs for visible running and brake light functions and uses a five-wire connection harness to support brake, running, turn signals and ground. It’s available in red, smoked black or transparent lens finishes to match different builds.

How does this tail light mount to a chopped rear fender?

The ANKIA tail light is shaped to sit flush with a cut or chopped fender edge, replacing the standard rear lamp assembly. It fastens to the fender edge with the included hardware and wires into the motorcycle’s electrical system via the five-wire harness. The compact profile keeps the light tucked to the fender for a cleaner rear silhouette.

• Direct-fit contour for chopped Sportster fenders (2004–2014).
• Mounting hardware and gasket for a sealed fit.
• ABS housing resists vibration; PC lens resists impact.
• Available lens finishes: red, smoked black, transparent.

What electrical connections are required to use it?

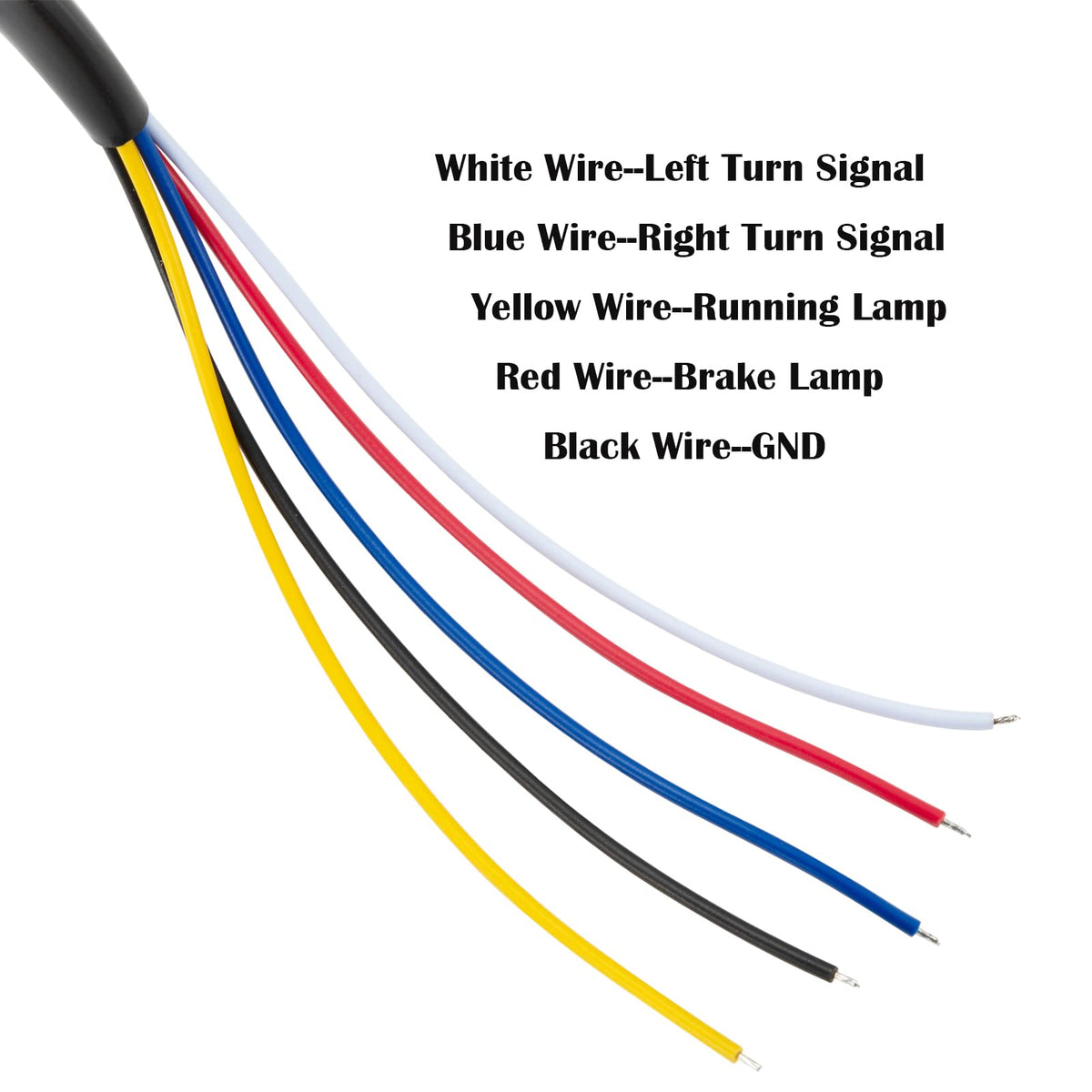

The tail light uses a five-wire connection scheme: ground, brake, running light and separate wires for the left and right turn signals. This wiring lets the single lens assembly serve multiple functions without extra external lamps. Basic splicing or a connector adapter to your bike’s harness is typically required during installation.

• GND — black wire for chassis ground.
• Brake — red wire for stop lamp activation.
• Running — yellow wire for tail / running light.
• Turn signals — blue and white wires for separate left/right signals.

What are the light’s specifications and durability features?

This LED assembly runs on 12V DC and draws approximately 1.44W total (8 LEDs at 0.18W each), producing red light for brake and running functions. The lamp combines an ABS plastic outer housing with a polycarbonate lens to balance lightweight construction and impact resistance. LEDs provide long operating life compared with incandescent bulbs and keep current draw low.

• Operating voltage: DC 12V.
• Total wattage: 1.44W (8 × 0.18W LEDs).
• Materials: ABS housing, PC (polycarbonate) lens.
• Lamp color: red LEDs; lens options: red, smoked black, transparent.

Will this tail light work with my Harley’s signals and plate light?

Yes — the ANKIA tail light is designed to handle running light, brake light, turn signals and license plate lighting when wired correctly. The separate turn-signal wires make it compatible with bikes that use combined or separate signal outputs. Verify your model year’s wiring colors and, if necessary, use resistors or an electronic flasher when integrating LED loads to avoid hyper-flash.

• Integrates brake, tail, turn signals, and plate light functions.
• May require LED-compatible flasher or resistors to prevent hyper-flash.
• Designed for Sportster 883 and 1200 (2004–2014) fitment.
• Simple splicing or harness adapter recommended for clean install.

Who is this for: Riders restoring or customizing Harley Sportster models with chopped rear fenders who want a low-profile, multi-function LED replacement that cleanly mounts to the fender edge. It’s aimed at DIY mechanics and custom shops seeking a compact, durable light assembly that reduces rear clutter while maintaining required signaling functions. Confirm vehicle year and wiring before purchase and consider professional wiring assistance if you’re not comfortable with splicing or installing electrical components.
