Aokus LS Alternator Wire Adapter 6" — 2-pin Hi-Amp to 4-Flat Harness, Sealed 18 AWG

The Aokus 6" LS alternator wire adapter converts a 2-pin high-amperage GM alternator connection into a standard 4-flat plug, giving you a drop-in wiring solution for LS1, LM7, LQ4 and similar swaps.

If you're swapping alternators on an LS-series engine or changing between high-output and standard GM alternators, this short harness saves time and prevents cutting factory wiring. Built with quality connectors, sealed terminals, and 18 AWG conductors, the adapter bridges incompatible plug styles so the alternator and vehicle harness communicate correctly without splicing or custom fabrication.

How does this adapter simplify an alternator swap?

Instead of modifying the vehicle harness or the alternator connector, the adapter provides a direct mating interface that preserves factory wiring integrity. It eliminates guesswork about pin assignments and reduces the chance of wiring damage during installation.

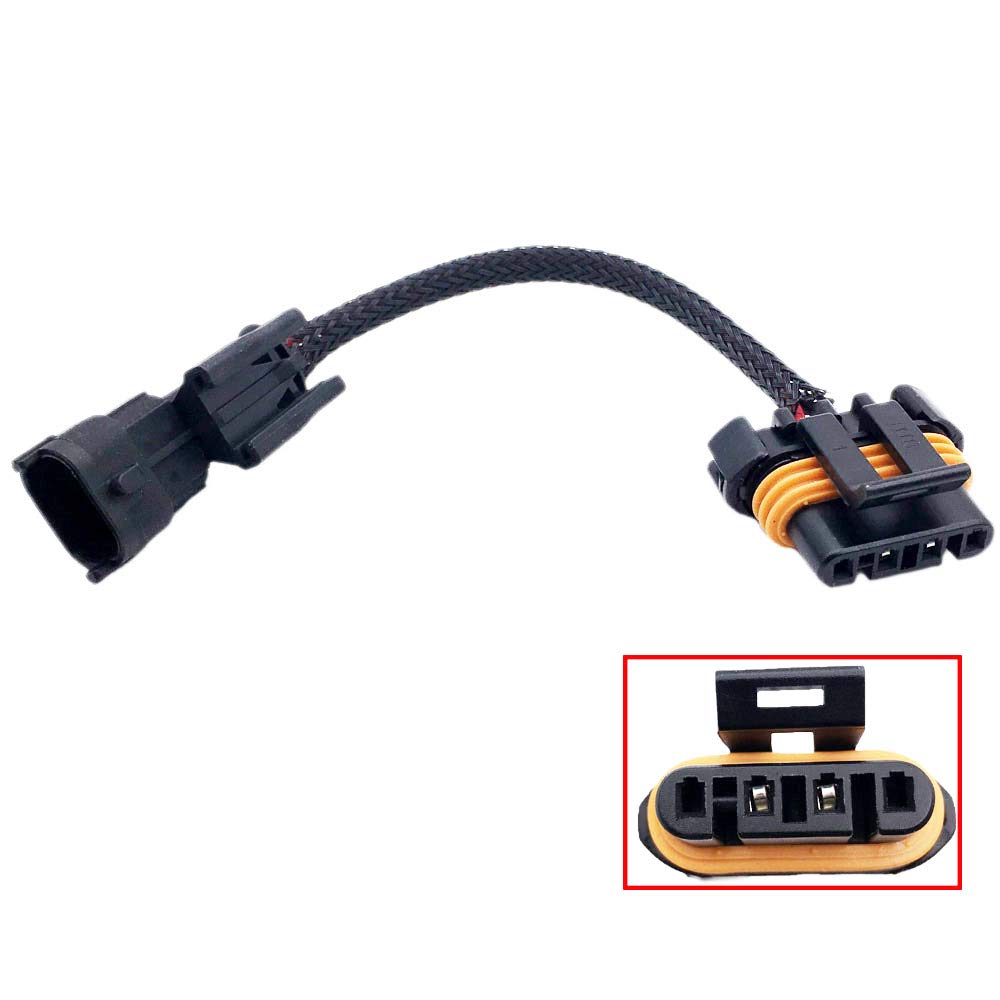

• Direct conversion from 2-pin high-amp alternator plugs to 4-flat GM style connectors

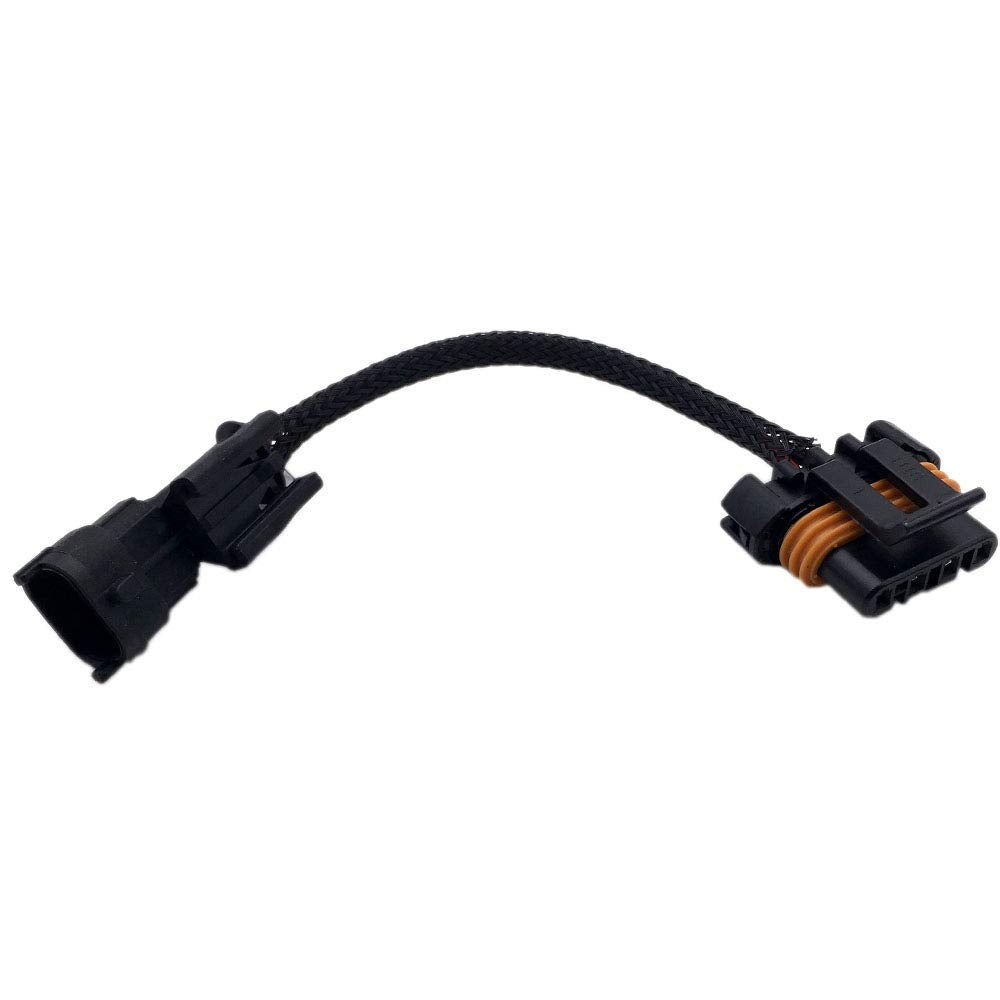

• 6-inch length keeps the connection tidy and within engine-bay reach
• Pre-assembled terminals and locks reduce installation time

Will this work with my LS1, LM7, or LQ4 alternator?

The adapter is designed for conversions involving GM 2-pin high-amp alternators (examples include 145A or 160A units) when you need to interface with the standard 4-flat 105A connector pattern. Confirm your alternator's plug style and pin count before ordering.

• Compatible with many LS-series alternator conversions that change plug formats
• Not for altering alternator output—used only for wiring compatibility
• Verify alternator and vehicle connector types to ensure fitment

What are the quality and electrical specs?

Each harness is manufactured with tooling-grade connectors, sealed locks, and terminals to maintain reliable contact under engine-bay conditions. The assembly uses 18-gauge wire suitable for signal and low-current control circuits associated with alternator regulation and lamp circuits, while heavy current paths remain on the alternator's main stud.

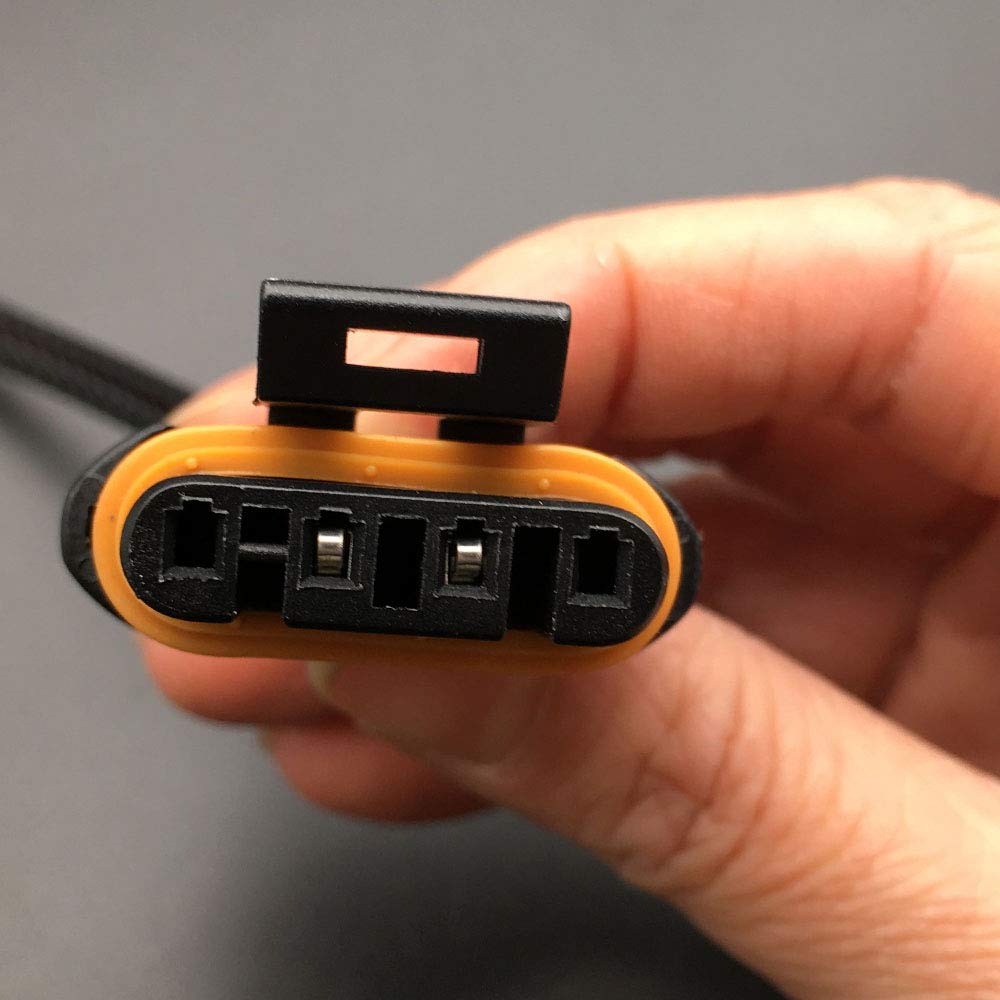

• High-quality sealed connectors and locking tangs for vibration resistance
• 18 AWG wire for control and sense wiring in alternator systems
• 100% new and bench-tested before shipment to ensure consistent function

How do I install this harness safely?

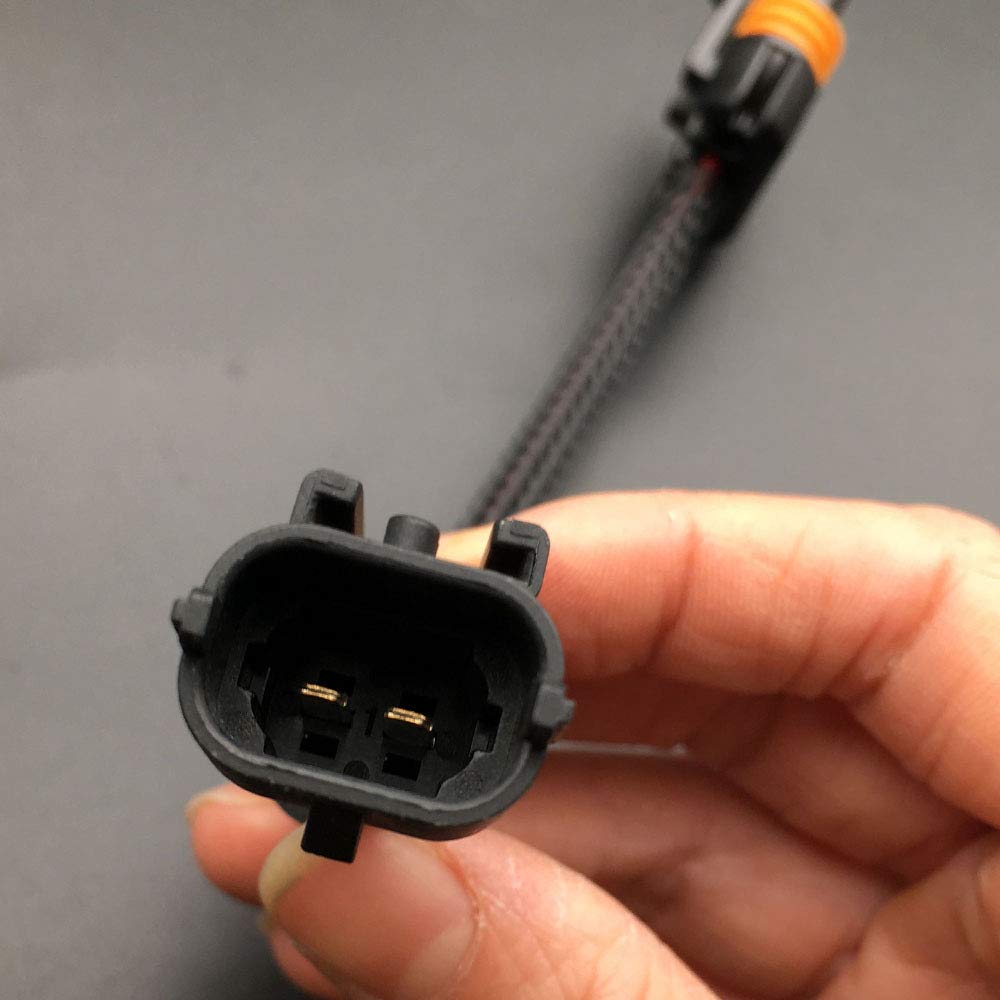

Installation is straightforward: match the adapter's plugs to the alternator and vehicle harness, route the cable away from heat and moving parts, and secure it with a zip tie or clamp. Always disconnect the battery before working on the charging system and double-check connector seating after installation.

• Disconnect vehicle battery before connecting or disconnecting alternator plugs
• Slide connector fully until the locking tab engages for a secure connection
• Use zip ties to fasten the 6" harness clear of belts, pulleys, and exhaust heat

Who is this for? This adapter is aimed at DIY mechanics, professional shops, and engine-swappers who need a clean, plug-and-play wiring bridge when converting between GM alternator connector types on LS-series engines. It's ideal when you want to avoid cutting factory wiring, preserve original harnesses for future reversions, or speed up a swap with a purpose-built electrical solution.
