AP APPLI PARTS Liquid Line Filter Drier 032 — 1/4 in SAE Flare, 3 cu in Molecular Sieve, 650 psig

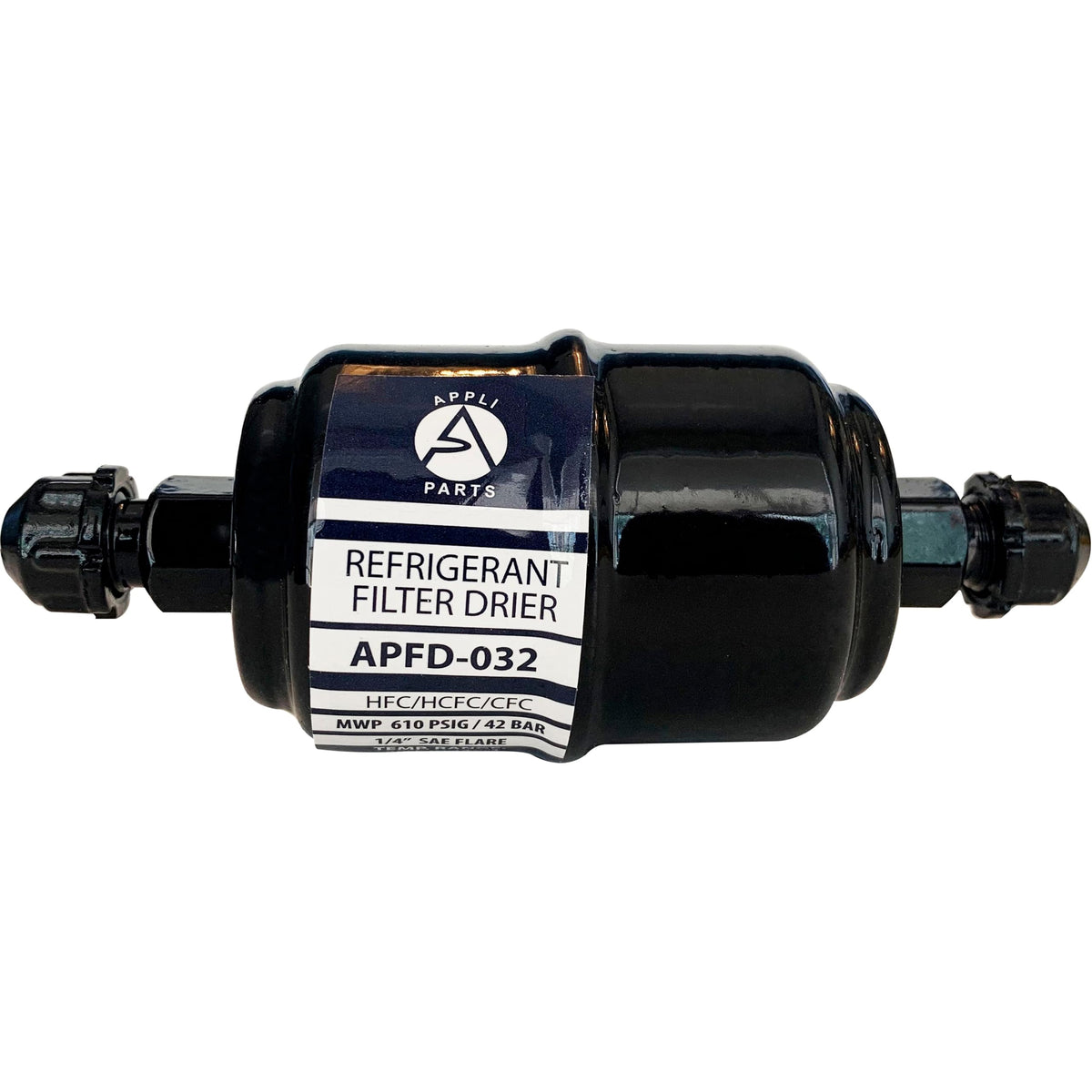

AP APPLI PARTS Liquid Line Filter Drier 032 is a compact, 3-cubic-inch molecular-sieve drier with a 1/4" SAE flare connection designed to remove moisture and contaminants from refrigeration and A/C liquid lines.

This filter drier is built for technicians and system builders who need reliable moisture and acid control in refrigeration and air conditioning liquid lines. Encased in a powder-coated shell and constructed with a solid 100% molecular sieve core, the APFD-032 is rated for a maximum working pressure of 650 psig and is compatible with common refrigerants including R-134a, R-404A, R-22, R-410A and approved substitutes. The compact 4-1/2 inch length and 1-3/4 inch diameter make it suitable for tight system layouts while offering service life comparable to larger driers because of its high-efficiency desiccant.

How does this drier protect refrigeration systems?

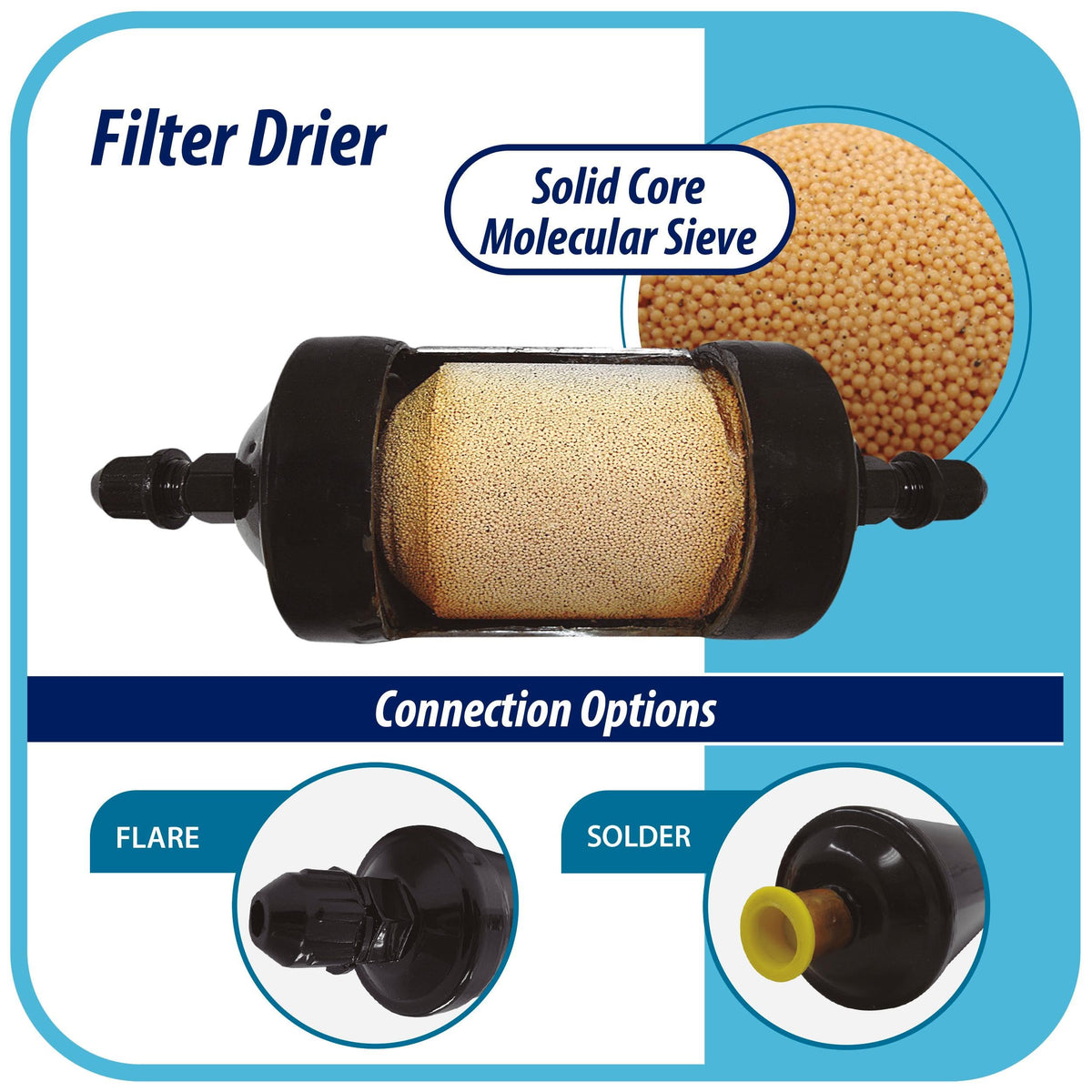

The molecular sieve inside adsorbs water and traps solid particulates that can cause valve corrosion, ice formation and oil degradation. By removing moisture and contaminants in the liquid line, it helps preserve system components and maintain efficient heat transfer.

• Solid 100% molecular sieve element for high moisture capacity
• Powder-coated shell resists corrosion and handling damage
• Removes acids and particulates that harm expansion devices
• Rated to 650 psig for wide application compatibility

Which refrigerants and systems is the APFD-032 compatible with?

This filter drier works with commonly used refrigerants and blends, making it suitable for many residential and commercial refrigeration and air conditioning systems. It is intended for liquid-line service rather than suction-line or system recovery use.

• Compatible with R-134a, R-404A, R-22, R-410A and approved substitutes
• Designed for liquid line placement ahead of the expansion device
• Not intended as a retrofit replacement for suction-line specific driers
• Replaces many OEM part numbers for easy cross-referencing

What are the installation and sizing details to consider?

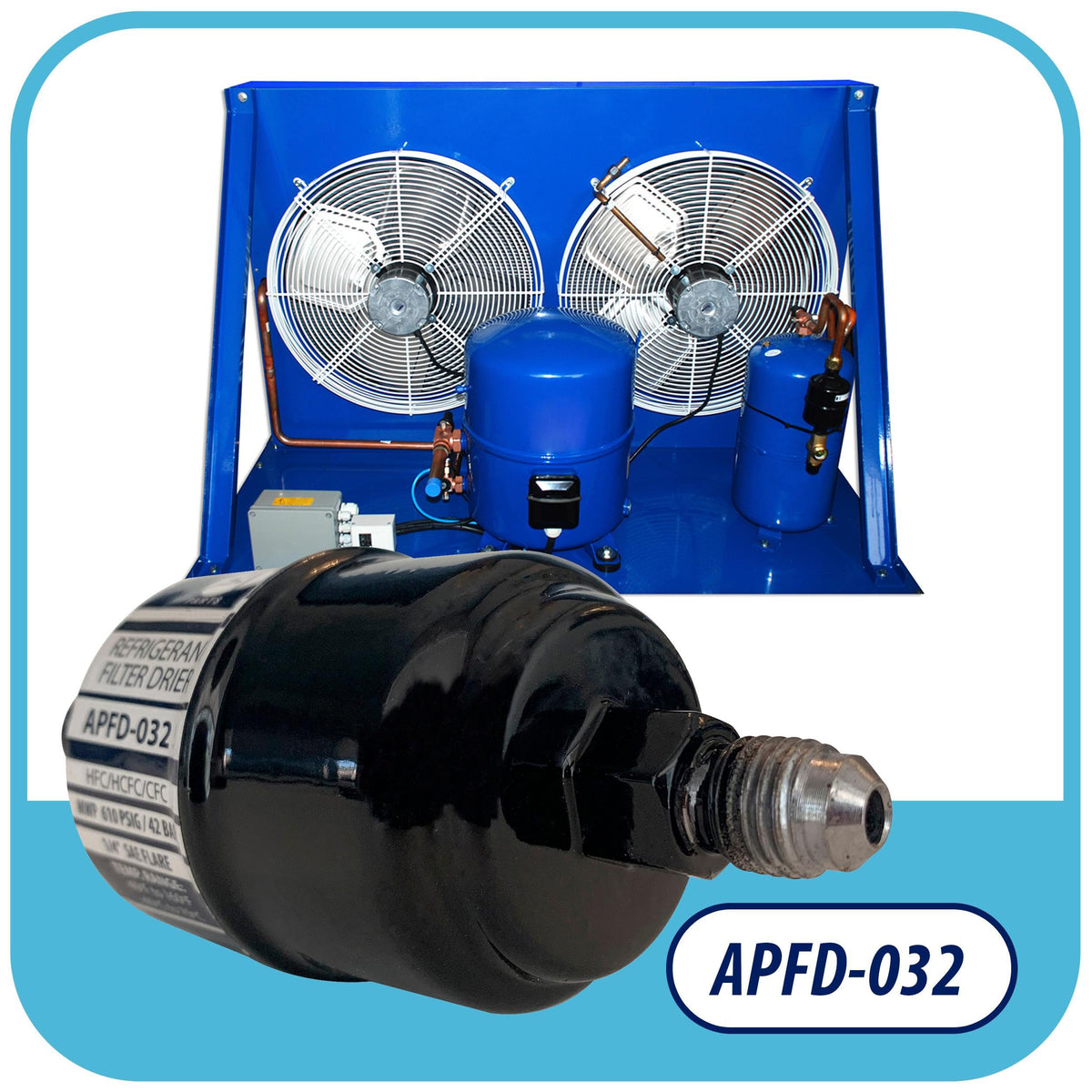

The APFD-032 features a 1/4" SAE flare inlet/outlet and compact dimensions to fit restricted spaces. Confirm flare sizing, flow direction, and system charge before installation; always follow industry best practices and safety procedures when brazing or connecting.

• 1/4" SAE flare connections for common liquid-line fittings
• Overall length: 4-1/2 inches; diameter: 1-3/4 inches
• 3 cubic inch desiccant volume suited for smaller circuits
• Max working pressure: 650 psig — check system pressure compatibility

How does this model compare to alternatives?

Compared with larger driers, the APFD-032 is smaller and easier to integrate into tight layouts while still offering robust moisture removal thanks to its 100% molecular sieve construction. It replaces several legacy part numbers, allowing for straightforward swaps where space and refrigerant compatibility match.

• More compact than full-size liquid-line driers, ideal for confined spaces
• Molecular sieve offers better low-temperature moisture control than some clay-based options
• Cross-references common OEM and aftermarket part numbers for compatibility
• Powder-coated shell for improved durability versus bare-metal housings

Who this is for: HVAC/R technicians, service contractors, and equipment installers who need a dependable, compact liquid-line filter drier for residential and light commercial refrigeration or A/C units. Choose the AP APPLI PARTS APFD-032 when you require a small-footprint drier with strong moisture adsorption, broad refrigerant compatibility, and simple 1/4" SAE flare installation.
