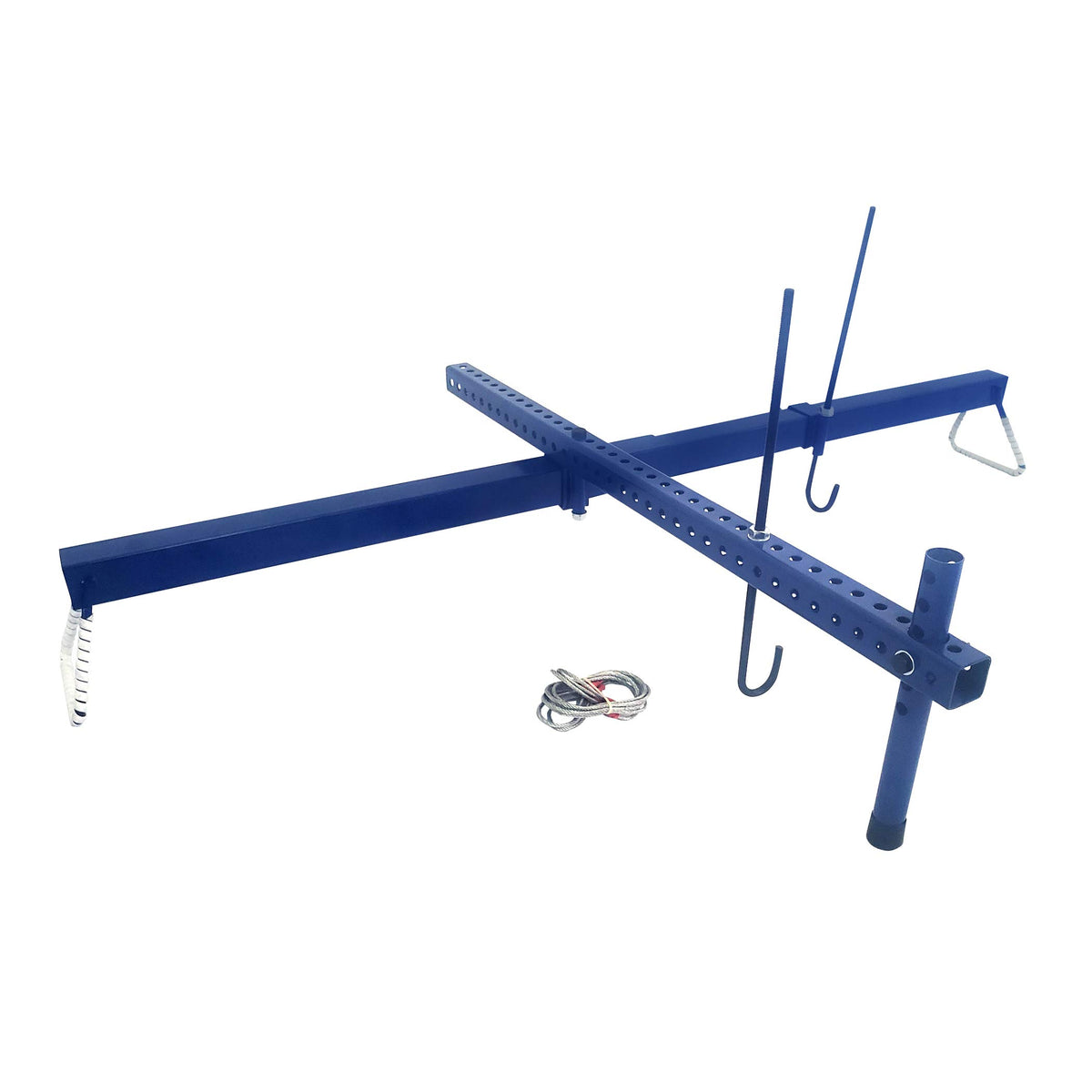

AP Astro Pneumatic Tool Company Engine Support Arm Stand for FWD — 31–64" Telescoping Bar, 700 lb Capacity

The Astro Pneumatic 5820 Engine Transverse Bar with Support Arm is a telescoping support that secures and stabilizes front-wheel-drive engines up to 700 lb for safe transaxle removal.

When removing a transaxle from a front-wheel-drive vehicle, the engine needs reliable support to prevent shifting or bearing undue stress on mounts. The Astro Pneumatic 5820 pairs a length-adjustable transverse bar with a three-point support arm, braided steel cables and adjustable hooks so you can hold the engine steady while you work. Built to span engine bays from compact cars to midsize vehicles, this stand provides a practical, workshop-ready solution without lifting the entire powertrain.

How does this support arm hold an engine during transaxle removal?

The 5820 uses a transverse bar that braces across the engine compartment while the support arm creates three-point contact to resist off-center loads. Braided steel cables attach to adjustable hooks and the arm to suspend and stabilize the engine. The combination prevents unwanted tilt or shift when the transaxle is detached.

• Three-point support arm to resist lateral forces
• 1/8-inch braided steel cables for secure suspension
• 14-inch adjustable hooks to fit a variety of attachment points

What vehicle sizes and weight can the 5820 accommodate?

The tool covers a wide span and supports engines up to its rated 700-pound capacity. The telescoping bar extends from a compact 31 inches up to 64 inches to fit most front-engine, front-wheel-drive engine bays. Its 21-pound weight makes it manageable for a single mechanic to position.

• Capacity: 700 pounds suitable for many 4- and 6-cylinder engines
• Length range: 31" minimum to 64" maximum for different engine bays
• Tool weight: 21 pounds for easy handling and setup

What components are included and how do they improve setup?

The 5820 ships as a system with a transverse bar, a support arm, braided cables and adjustable hooks so you have everything needed to mount and balance an engine. These parts are designed to work together for fast installation and reliable holding while you remove the transaxle or perform related repairs.

• Transverse bar for spanning the engine compartment
• Support arm delivering three-point stabilization for off-center loads
• 1/8" braided steel cables and 14" adjustable hooks for versatile attachment

How do I use the 5820 safely in my shop?

Set the bar across the fender openings, position the support arm to contact the engine at three secure points, and attach the braided cables and hooks to recommended lifting points. Adjust the bar length and cable tension so the engine is held without bearing full vehicle weight on the mounts. Always follow manufacturer vehicle lift and support recommendations and inspect the tool before each use.

• Position bar on stable fender or frame supports
• Attach hooks to factory-approved engine lifting points
• Verify cable integrity and correct length/angle before work

Who is this for: The Astro Pneumatic 5820 is aimed at professional mechanics, independent repair shops and experienced DIYers who regularly service front-wheel-drive vehicles and need a dependable, adjustable transverse support for engine stabilization. It’s practical for anyone removing transaxles or performing engine/transmission service where controlled suspension of the engine is required.
