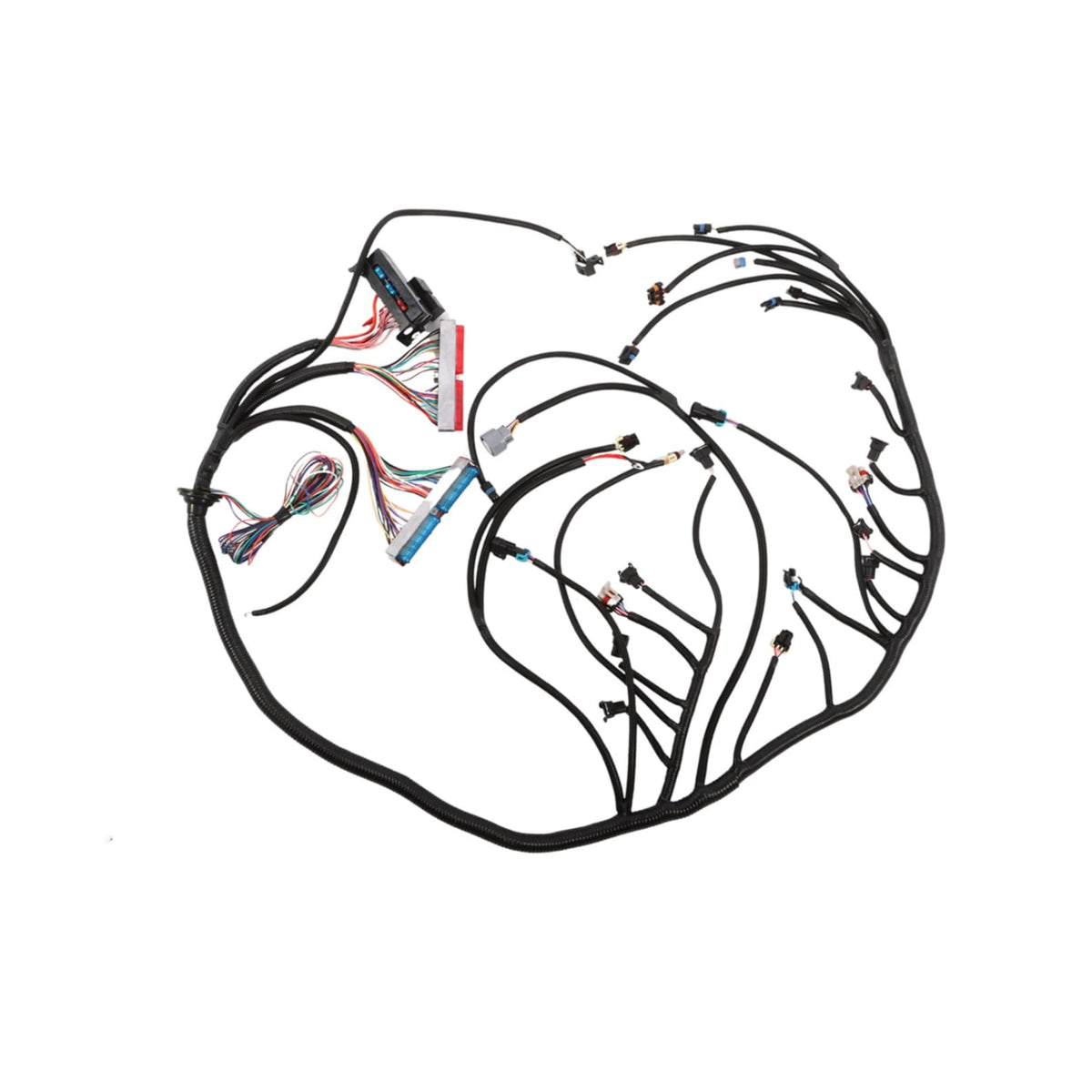

Aspaton LS1 Wiring Harness - 4L80E DBC Strap Compatible, Pre-terminated Nylon-Braided

Built for hot-rodders and mechanics performing LS swaps, this Aspaton harness removes the guesswork when mating 4.8L, 5.3L, or 6.0L Vortec LS1 engines to a 4L80E transmission. The harness is designed to plug into DBC-spec LS1 connectors without an adapter, using high-strength copper conductors wrapped in a durable nylon braid for improved wear resistance and signal integrity.

How does this harness simplify an LS swap installation?

The Aspaton standalone harness consolidates engine and transmission wiring into a pre-configured loom built to DBC LS1 pinouts, reducing custom splicing and adapter needs. That makes routing, grounding, and ECU connections faster and less error-prone for professional installers and experienced DIYers alike.

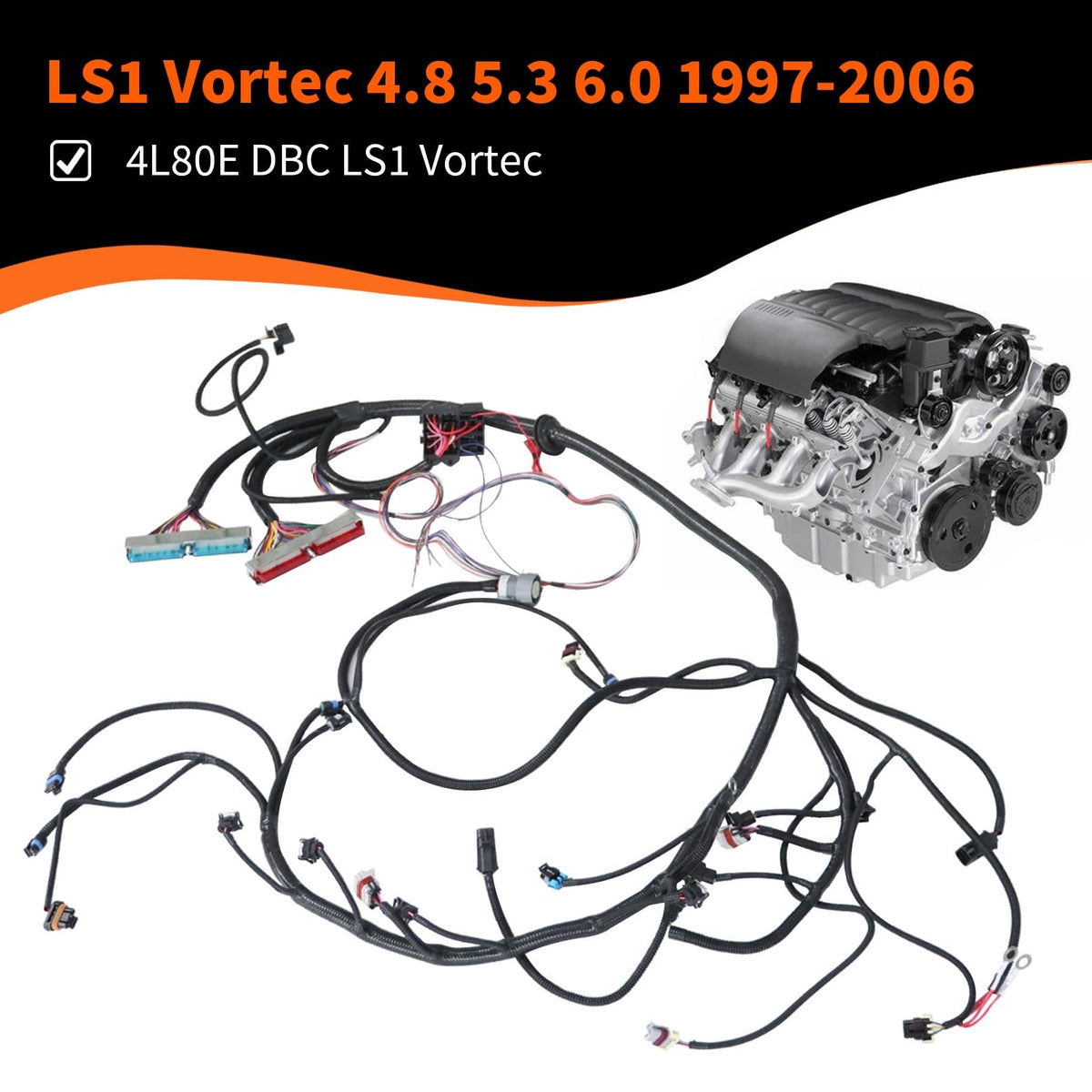

• Direct fit for 1997–2006 DBC LS1 engines (4.8L, 5.3L, 6.0L) with no adapter required

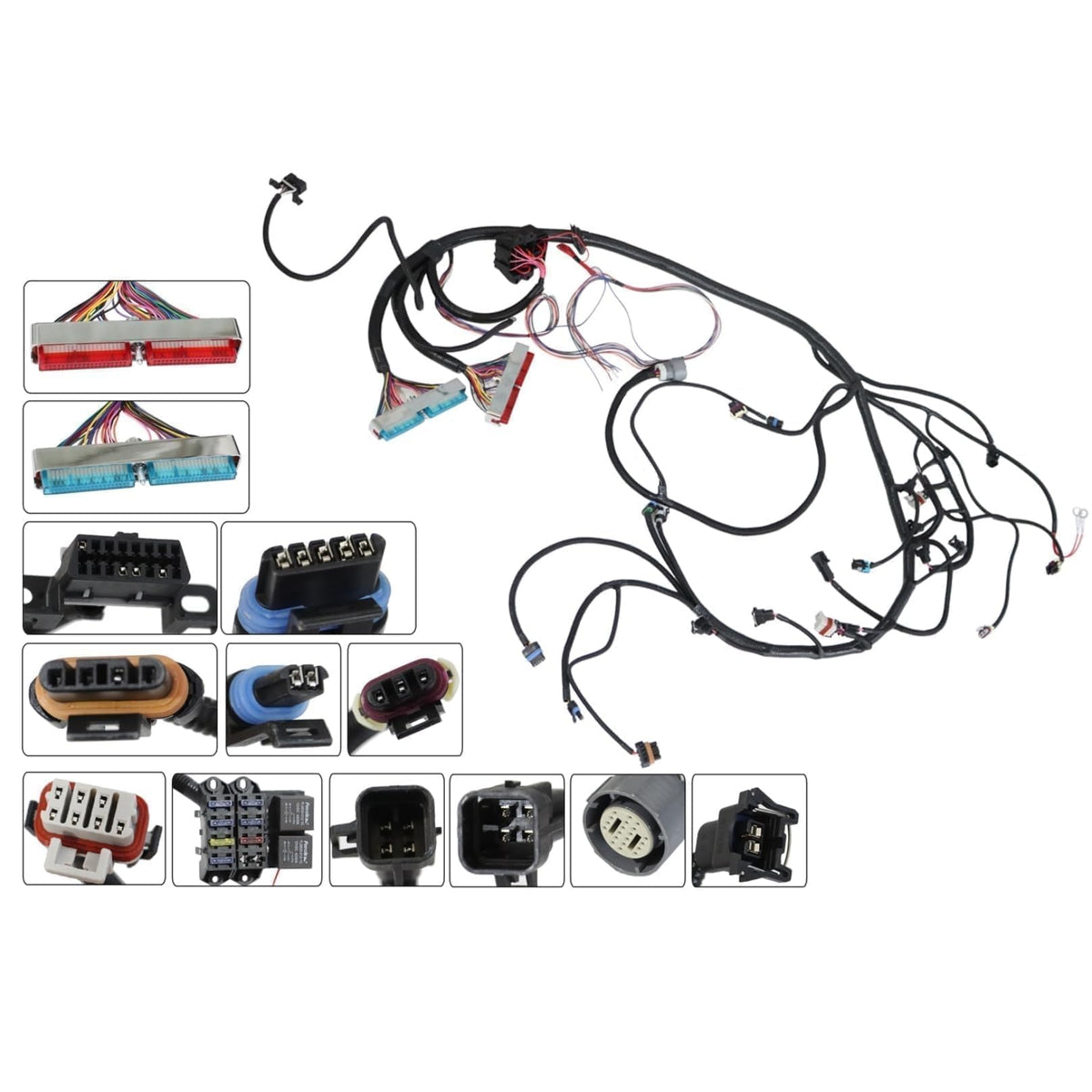

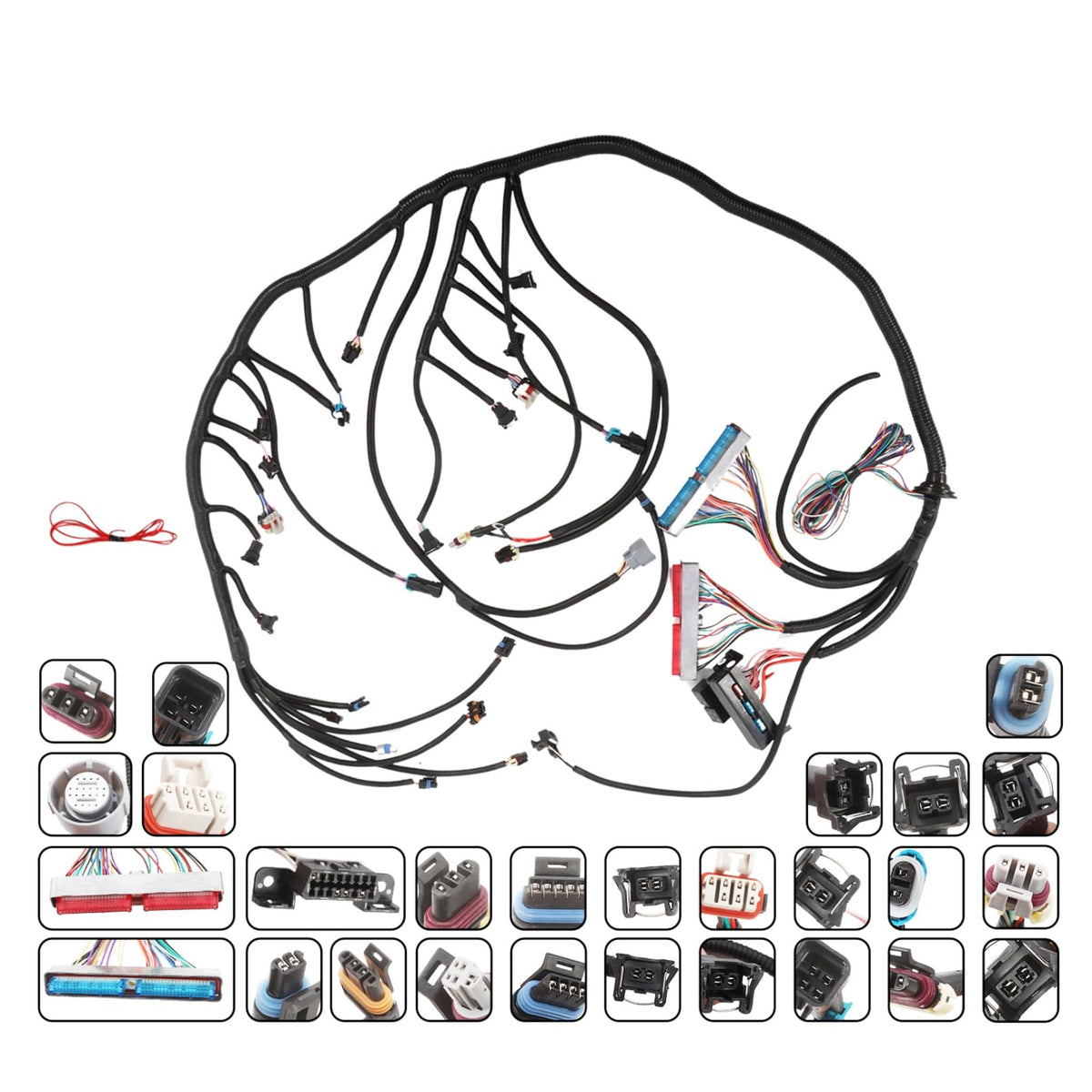

• Pre-terminated connectors for engine sensors and the 4L80E transmission
• Color-coded leads and labeled branches for quicker identification

What materials and build features improve durability and performance?

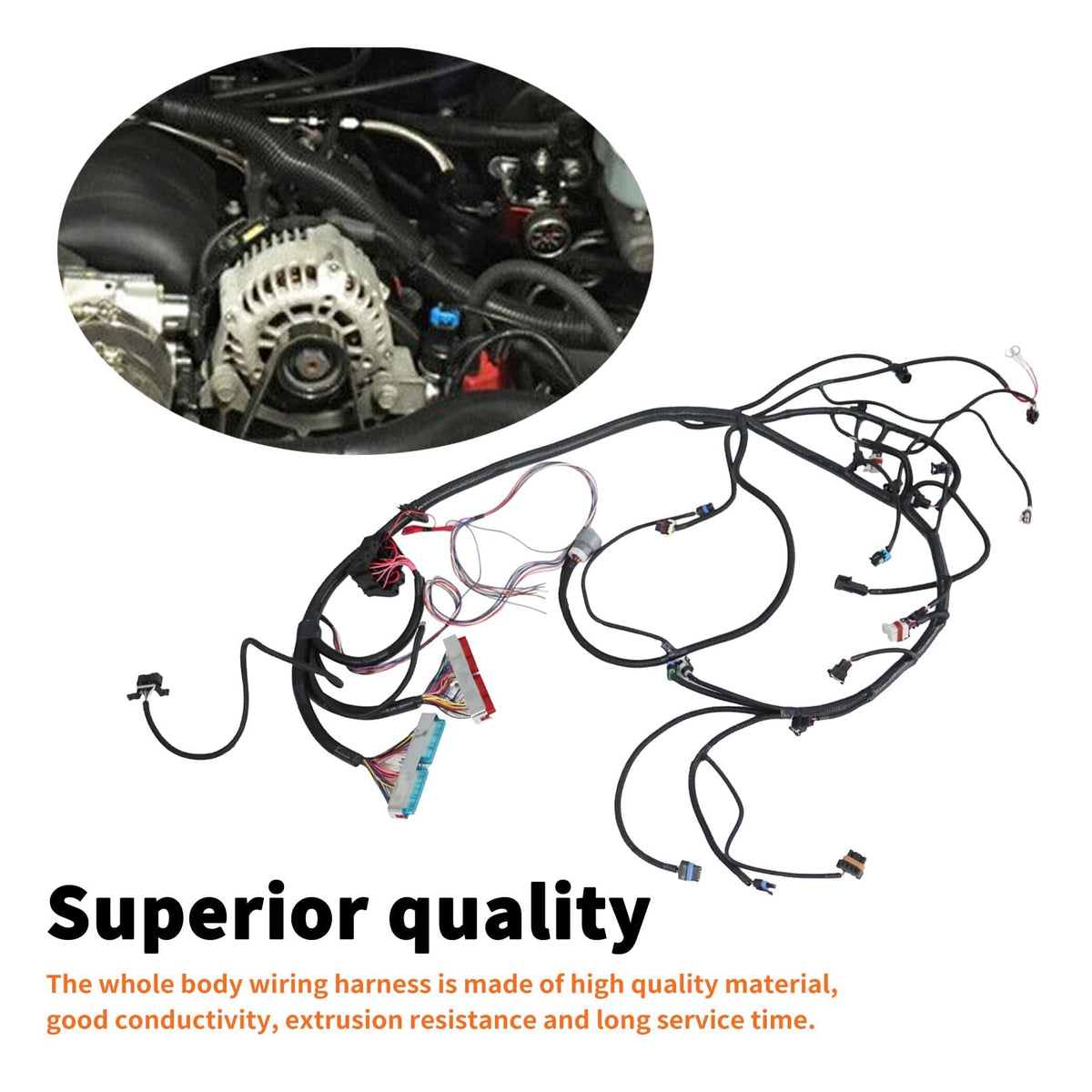

Aspaton uses high-strength copper core wire for lower resistance and consistent conductivity, then covers the loom with nylon braided fiber that resists abrasion and heat. The construction prioritizes long-term reliability in engine bays where vibration and high temperatures are common.

• High-strength copper conductors for reliable signal and power delivery

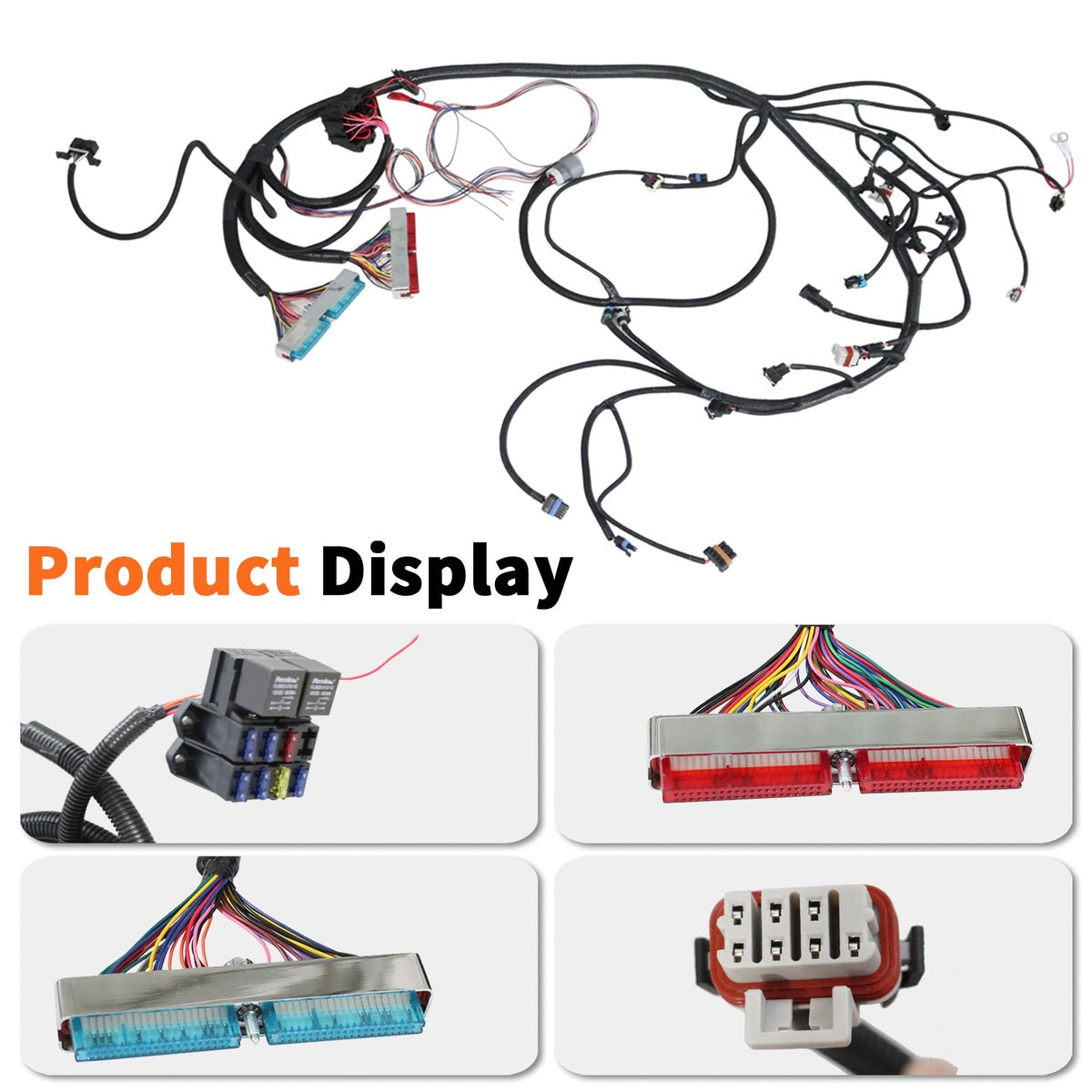

• Nylon braided outer jacket to reduce chafing and deformation

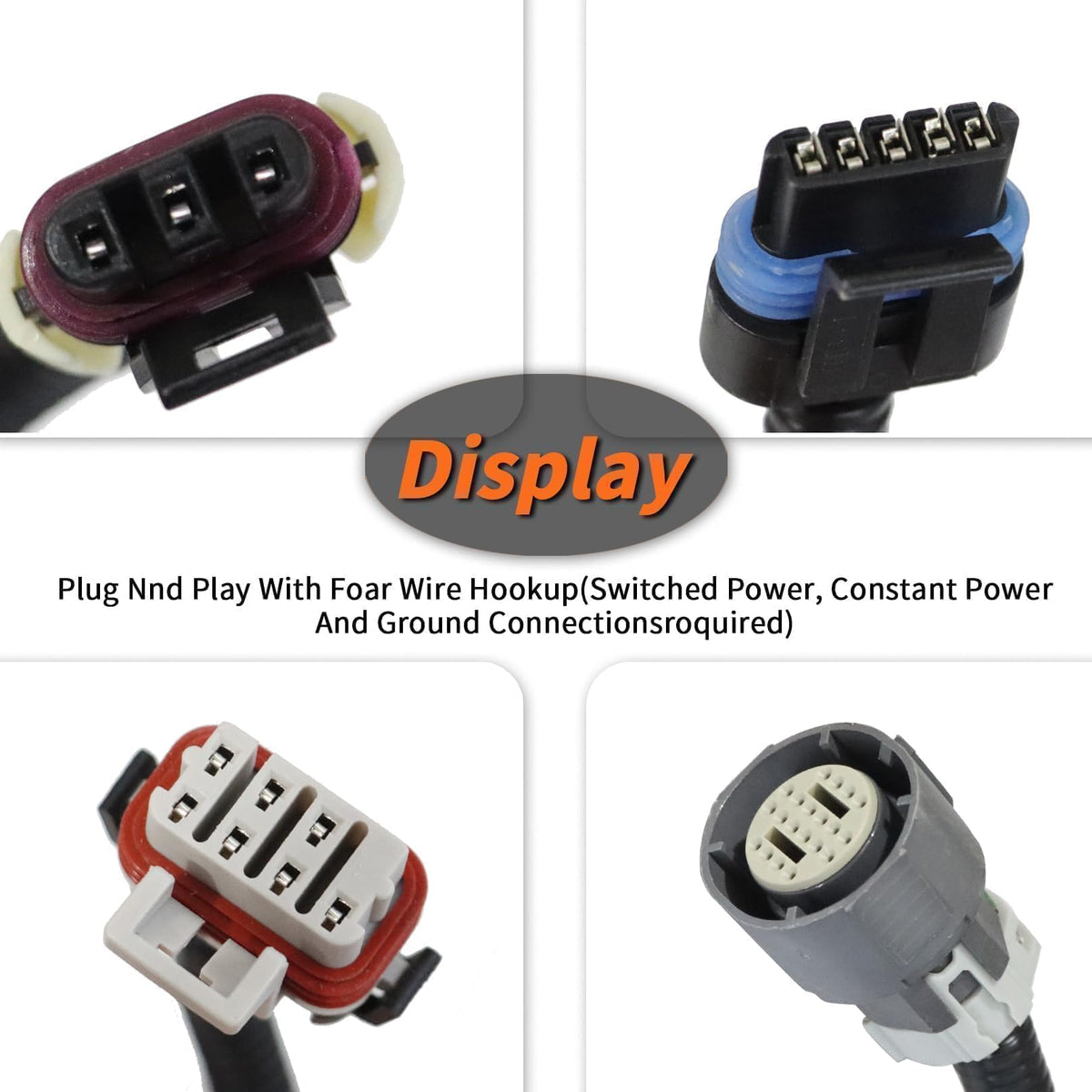

• Factory-style connectors and proper shielding on critical circuits

Are there special installation tips or common pitfalls to avoid?

Because the harness contains multiple distinct connectors and varied gauge wire, careful routing and verification are essential—misrouting can cause poor sensor readings or transmission issues. If you’re unsure about pin assignments or routing near exhaust components, consult a professional installer to ensure correct and safe hookup.

• Double-check connector orientation before locking terminals
• Keep the harness clear of exhaust, headers, and turbo hot spots
• Verify grounds and secure the loom with OEM-style clamps to prevent movement

How will I know when it’s time to replace the harness?

Inspect the outer jacket periodically; visible cracking, exposed conductors, or heat-damaged insulation—especially near high-temperature components—mean you should replace the loom. Proactive replacement prevents intermittent faults and protects sensors and the ECU from voltage irregularities.

• Replace if outer skin shows cracks, burns, or severe abrasions
• Check connectors for corrosion or bent pins during routine service
• Address any recurring sensor or transmission communication errors promptly

Who is this for: The Aspaton standalone wiring harness with 4L80E DBC strap is aimed at automotive enthusiasts, shop technicians, and custom-build fabricators performing LS swaps into classic and modern vehicles. It suits builders who want a near plug-and-play wiring solution for 1997–2006 DBC LS1 Vortec engines (4.8L, 5.3L, 6.0L) paired with a 4L80E transmission and who value durable materials and simplified installation over piecing together adapters and custom looms.
