ASPL 8pc Ultra-Slim 12-LED Surface Mount Strobe Lights (Red/White) — Syncable, IP67 Weatherproof, 17 Flash Patterns

Compact sync-capable strobe kit with eight ultra-thin surface-mount lights, each housing 12 high-intensity LEDs for clear red or white warning signals visible from hundreds of feet.

This ASPL 8-piece strobe light set is built for vehicles that need low-profile, high-visibility warning lights without bulky housings. Each lamp uses an aluminum alloy body and ABS magnifying lens to focus brightness, and the upgraded synchronization wiring lets multiple lights flash in unison. Designed for 12–24V systems, the kit offers weatherproof reliability and a selection of 17 flash patterns for mounting on grilles, bumpers, or other flat surfaces.

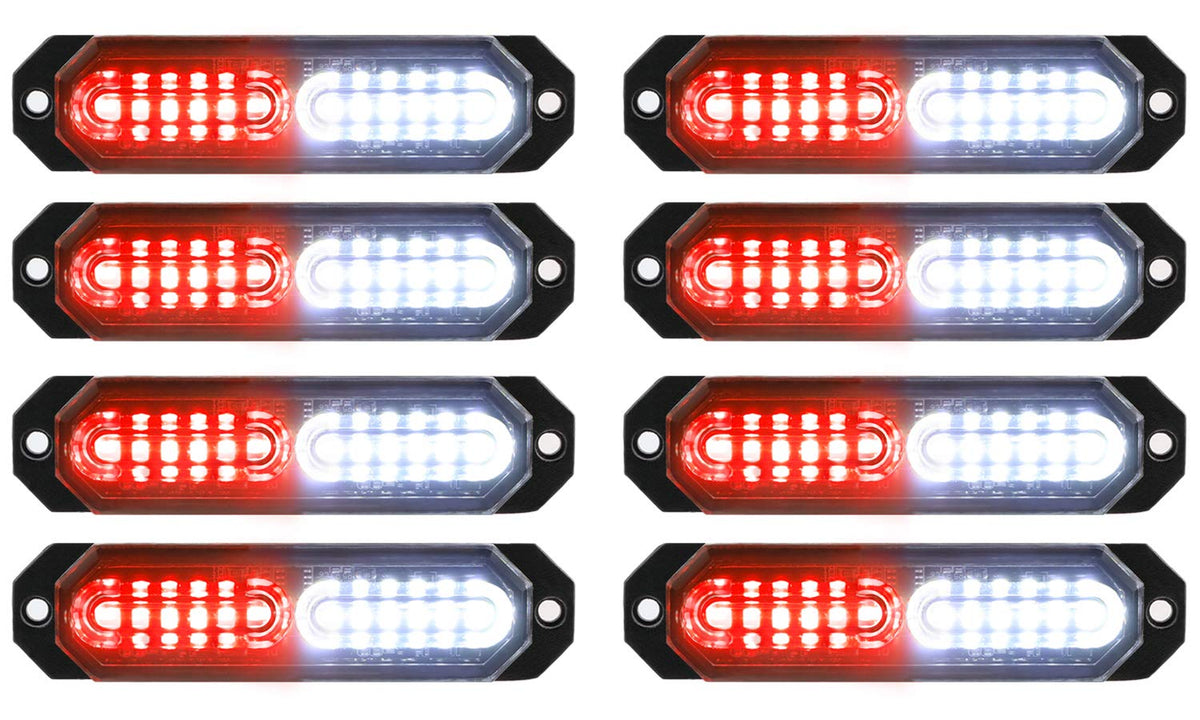

How bright and durable are these ASPL mini strobe lights?

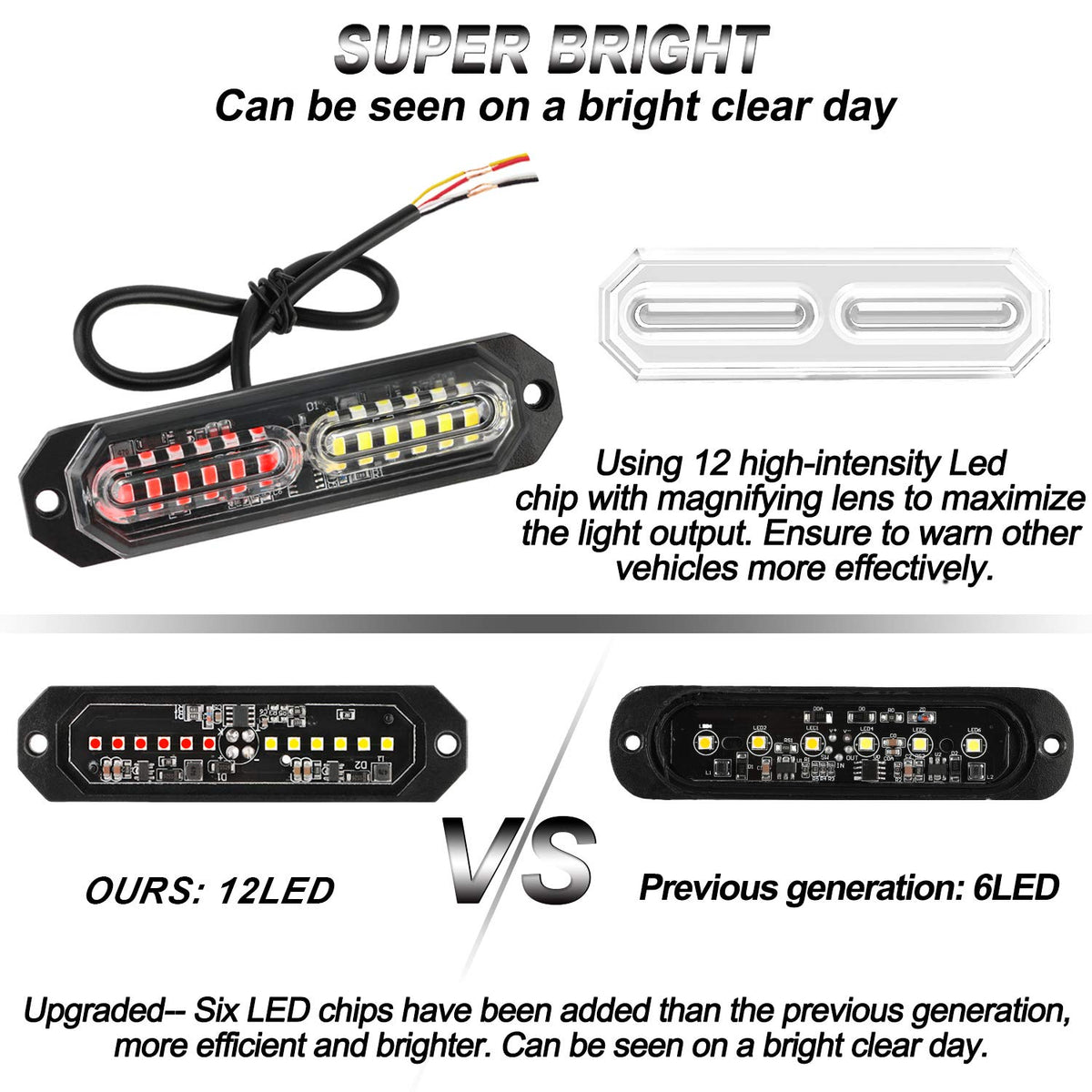

Each light contains twelve high-output LED chips arranged to maximize visibility and beam focus through an ABS lens. The aluminum alloy housing and IP67 rating protect internal components from moisture and dust, while the LEDs are rated for long life.

• 12 LEDs per lamp for concentrated output
• Aluminum alloy housing for heat dissipation and strength
• ABS magnifying lens to boost perceived brightness
• IP67 waterproofing and vibration resistance
• Rated life over 50,000 hours under normal use

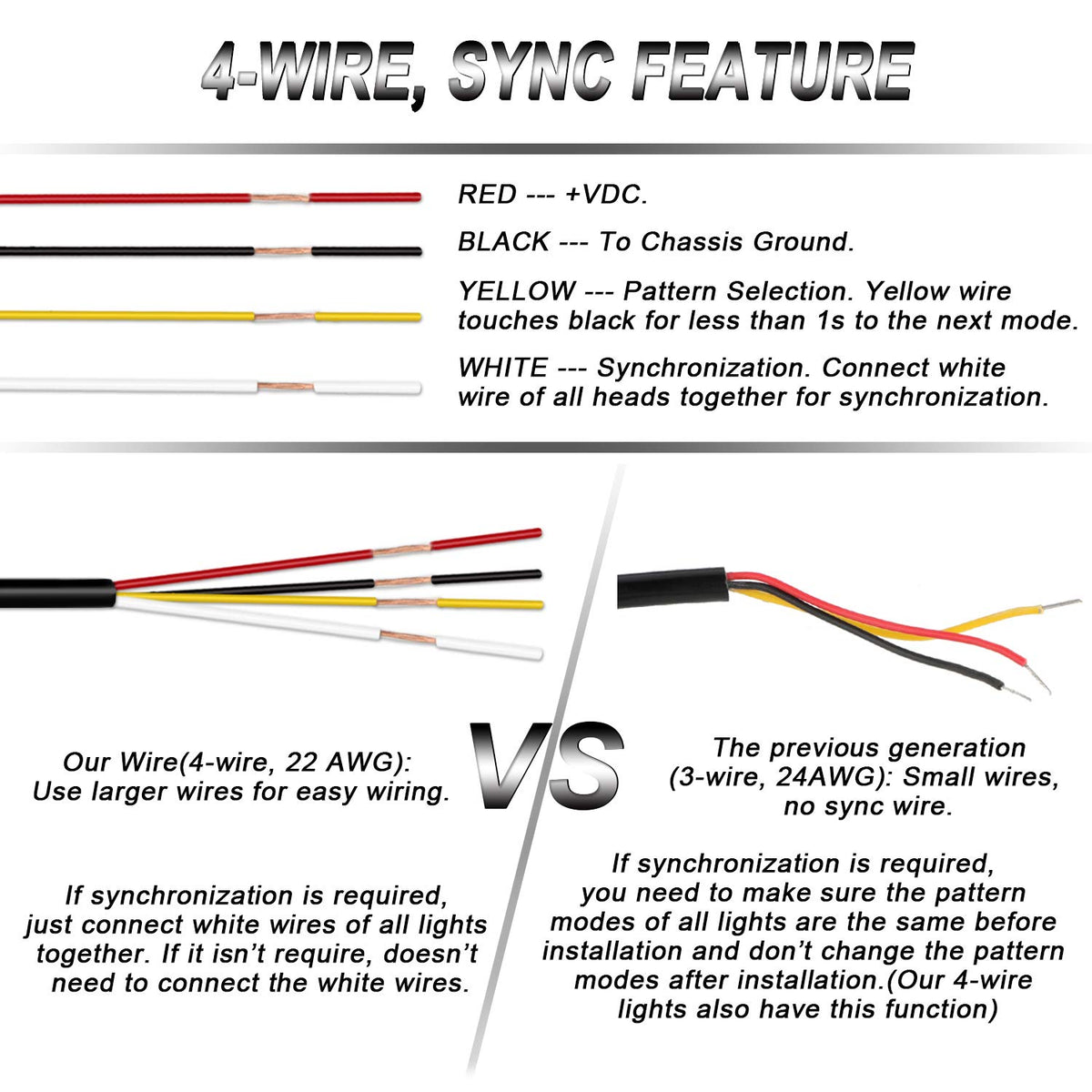

How do I install and wire the sync function?

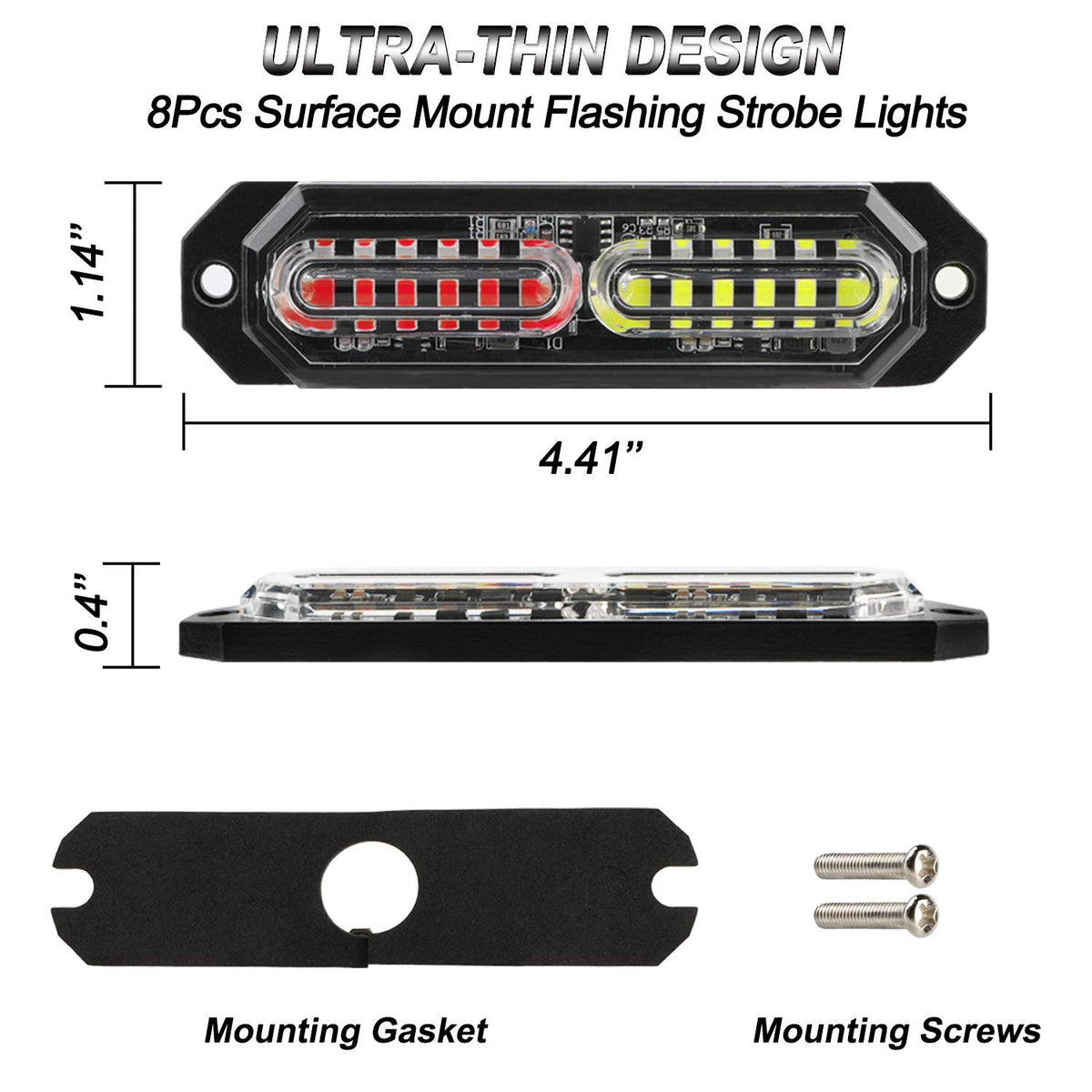

Installation is straightforward thanks to the ultra-slim, surface-mount profile and included gaskets and screws—ideal for grille or bumper mounting. Wiring uses a simple color-coded system so multiple lights can synchronize patterns by tying specific wires together.

• Mount with included screws and rubber gaskets on flat surfaces
• Red wire to +VDC, black to chassis ground (0V)
• White wires of all lamps tied together for synchronization
• Yellow wire cycles pattern; touch to black under 1s to step modes
• Compatible with 12–24V vehicle electrical systems

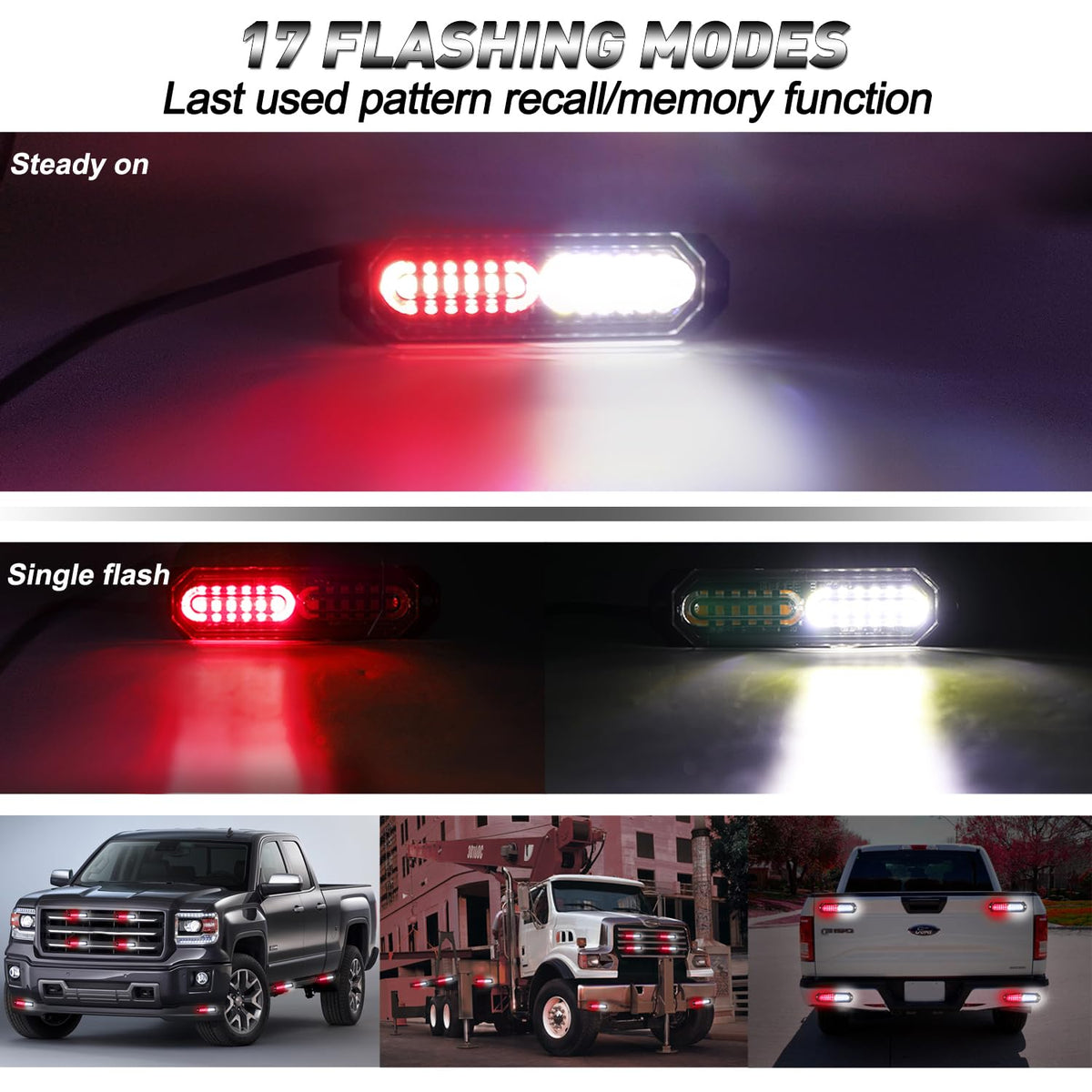

What flash patterns and memory features are available?

The integrated flasher offers 17 selectable modes to fit different signaling needs, from steady-on to various flash sequences. The module remembers the last-used pattern so you don’t have to reselect it after power cycles.

• 17 built-in flashing modes including steady, single and double flash
• Pattern recall saves the last selected mode after power off
• Quick pattern change via yellow-wire tap control
• Works in single color or mixed red/white setups depending on model

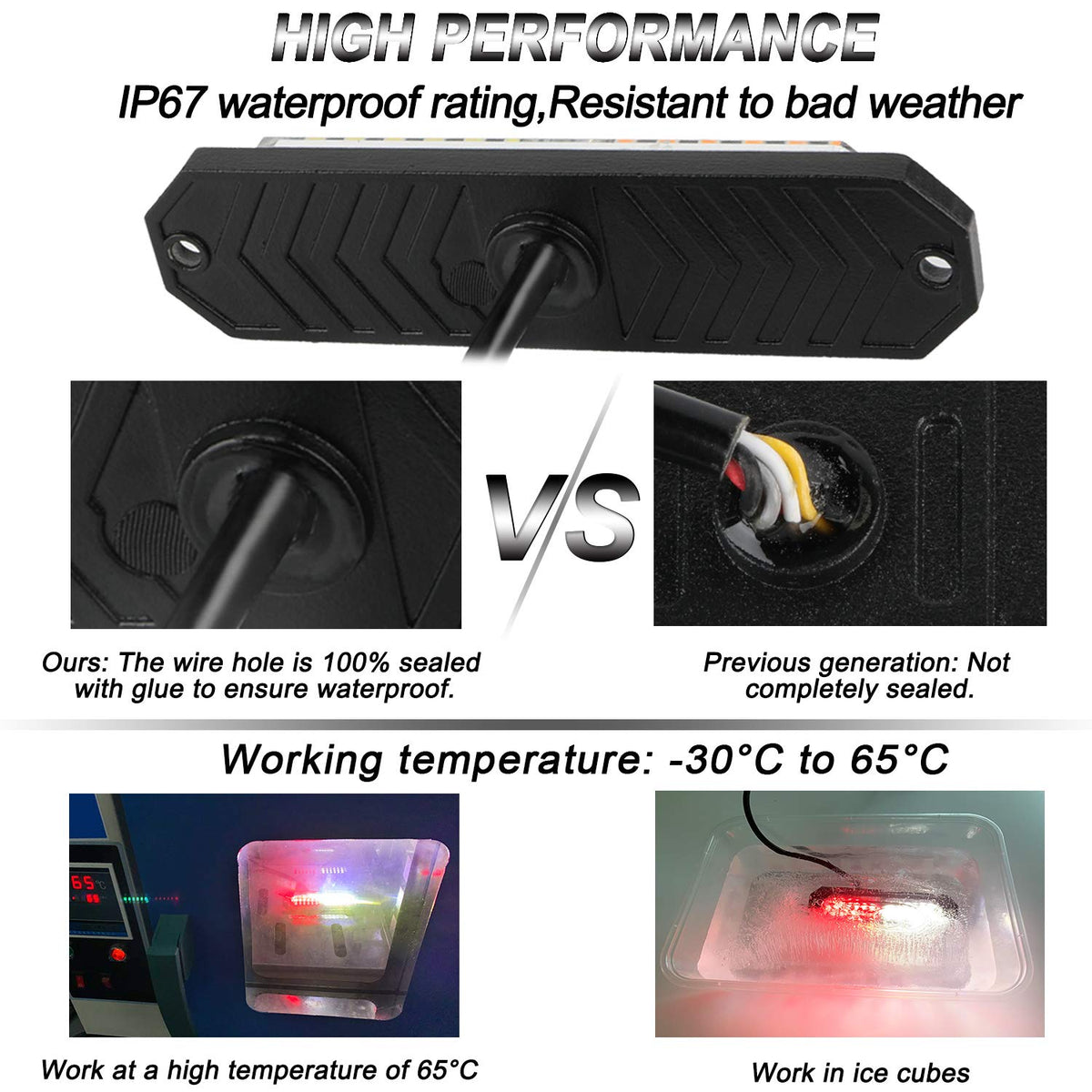

Are these strobe lights weatherproof and suited for daily vehicle use?

Yes—the ASPL lights are engineered to endure common road and environmental stresses. They resist water ingress and dust and are vibration-tolerant for long-term performance on trucks, service vehicles, or off-road rigs.

• IP67-rated waterproof and dustproof construction
• Vibration-resistant design for rough-road durability
• Temperature-tolerant LEDs and corrosion-resistant housing
• Suitable for rain, fog, snow, and dusty conditions

Who this is for: The ASPL 8pcs 12-LED sync strobe kit is designed for fleet managers, first responders, contractors, and vehicle owners who need a compact, professional-grade warning light solution. It suits trucks, vans, utility vehicles, tow rigs, and off-road machines where low-profile mounting and synchronized, high-visibility signaling are required. If you want a weatherproof, easy-to-wire LED warning system with multiple flash patterns and durable construction, this kit offers a practical, plug-and-play option.
