Atesilor 3.780" Piston Ring Compressor for GM LS/LT 4.8L & 5.3L Engines — 6061-T6 Billet Aluminum, Tapered

If you're rebuilding or assembling GM V8 engines in the 4.8L and 5.3L family, a dependable ring compressor reduces installation time and prevents costly ring damage. This model is CNC-machined from 6061-T6 billet aluminum with a black hard-anodized finish and a precision-honed inner taper tailored specifically for 3.780-inch bores common to LM7, L33, LC9, L83, L20, LR4, LY5, LMG and similar blocks.

How does this compressor protect fragile oil rings during installation?

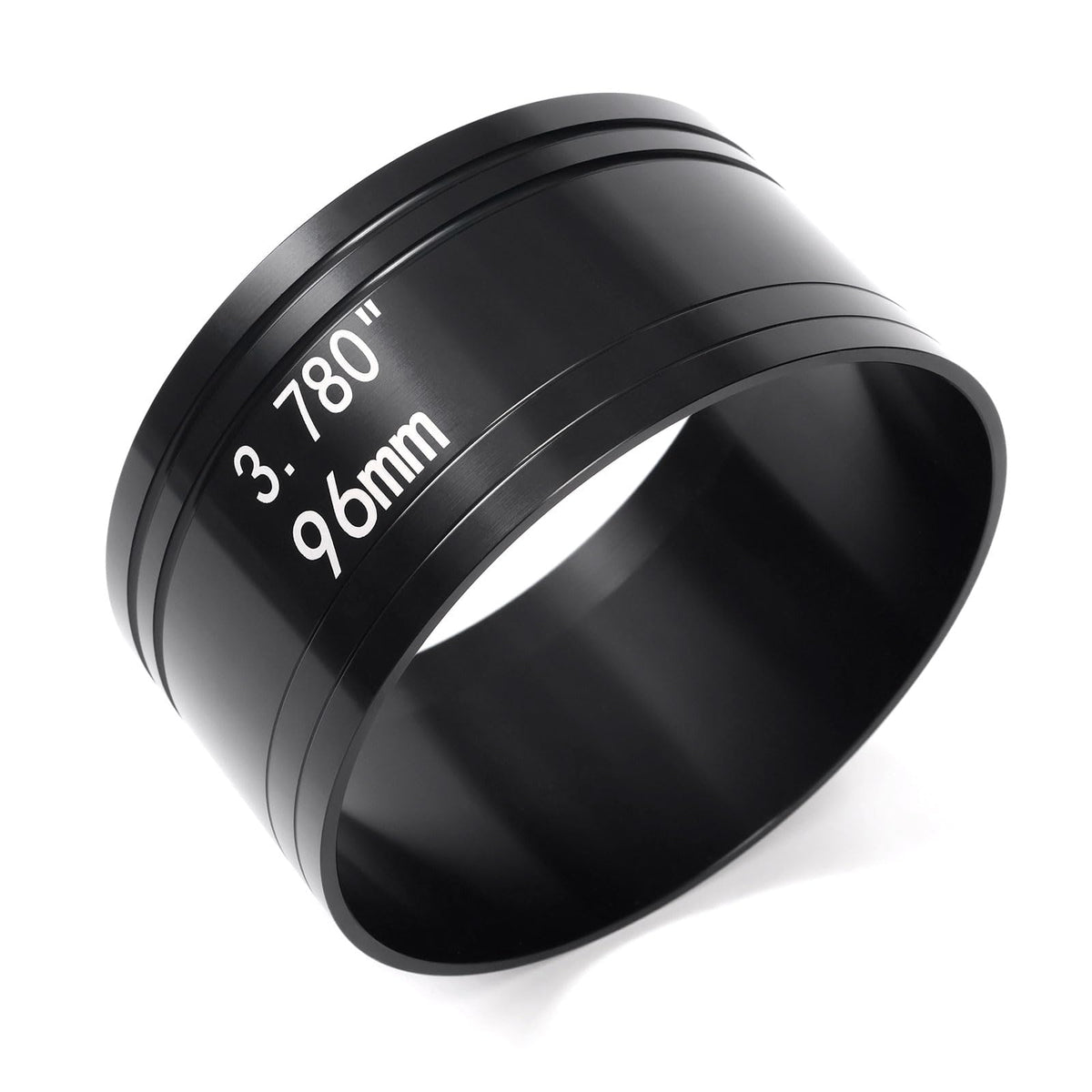

The compressor's smooth, continuously tapered inside surface compresses rings evenly from one end to the other, removing sharp edges and pinch points present in band-style compressors. That progressive taper lowers the chance of snagging or breaking thin oil rings and helps the piston pass cleanly through the cylinder mouth.

• Uniform 360° pressure prevents ring deformation
• Precision-honed interior minimizes friction and tool marks
• Tapered entry guides rings onto the piston without catching
• One fixed diameter tuned to 3.780" bore tolerances

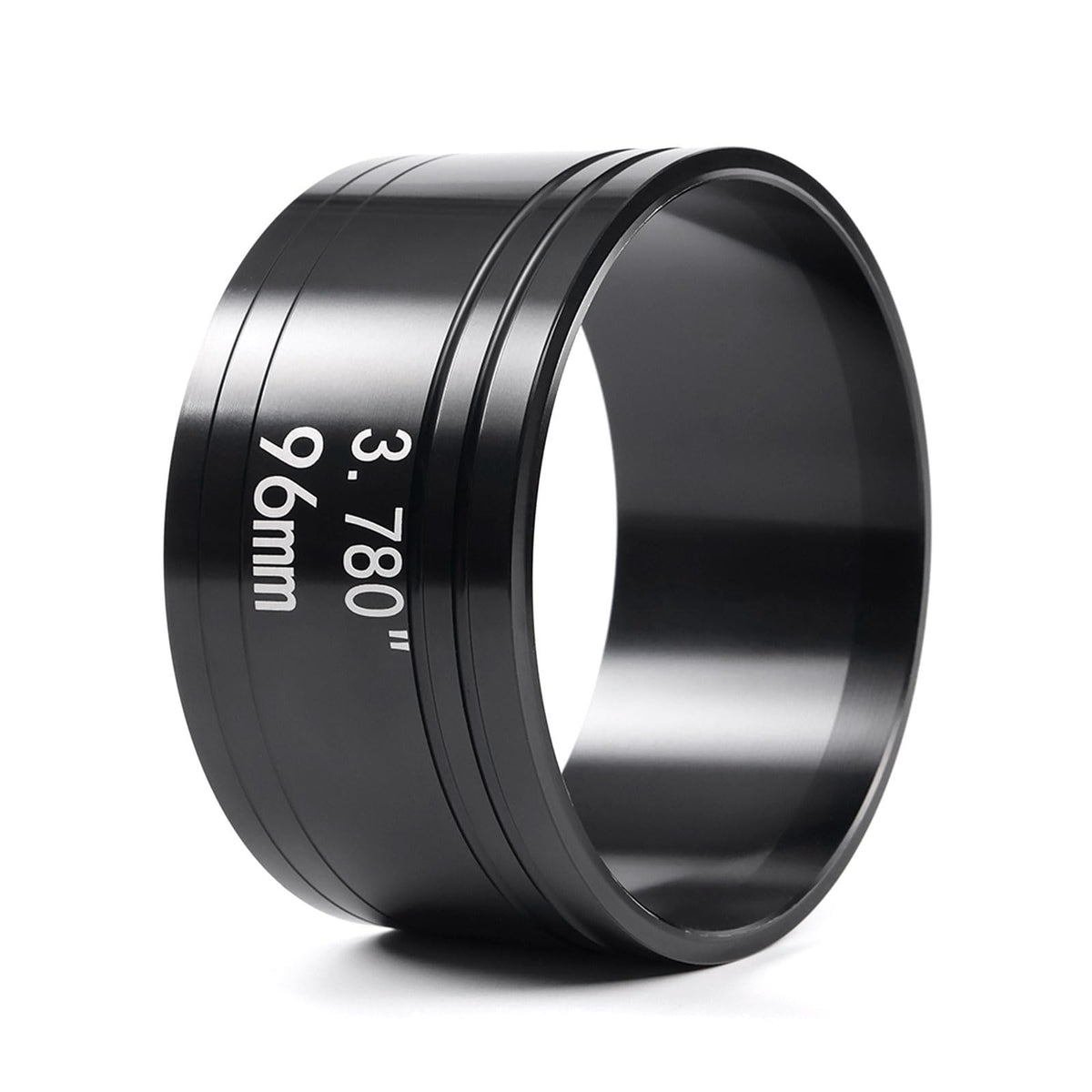

Will this fit my LS/LT engine and common GM V8 blocks?

Yes — the tool is purpose-made for 3.780-inch bores used across many Gen III, IV and V GM small-block variants. It fits a wide range of LS and LT platforms, offering a single reliable compressor for engines like the LM7, L33, LC9, L83, L20, LR4, LY5, LMG and LH6.

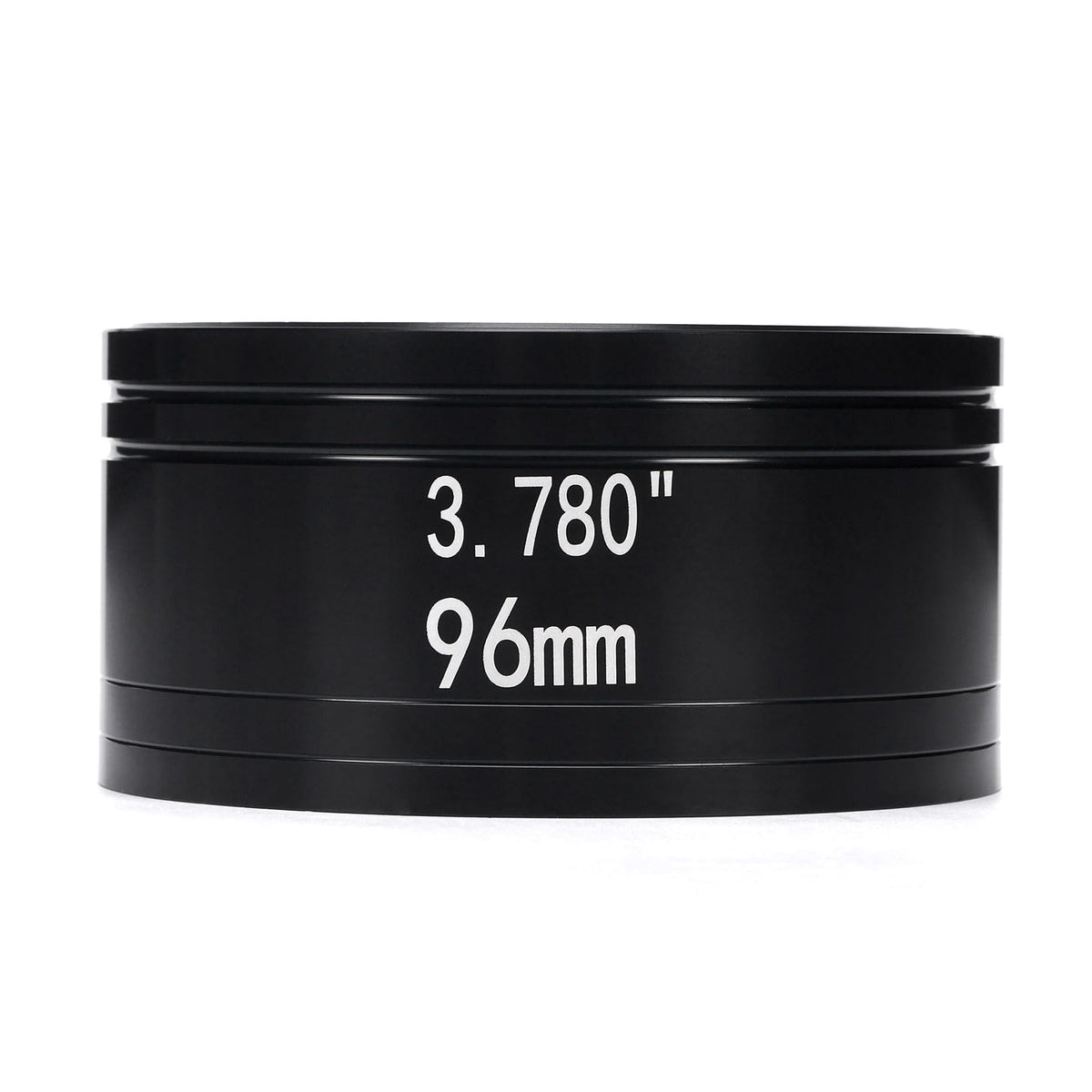

• Fixed size: engineered specifically for 3.780" bores
• Compatible with numerous GM 4.8L and 5.3L V8 builds
• Ideal for both production and aftermarket pistons sized for that bore
• Eliminates trial-and-error of adjustable compressors

What materials and finish improve durability in a busy shop?

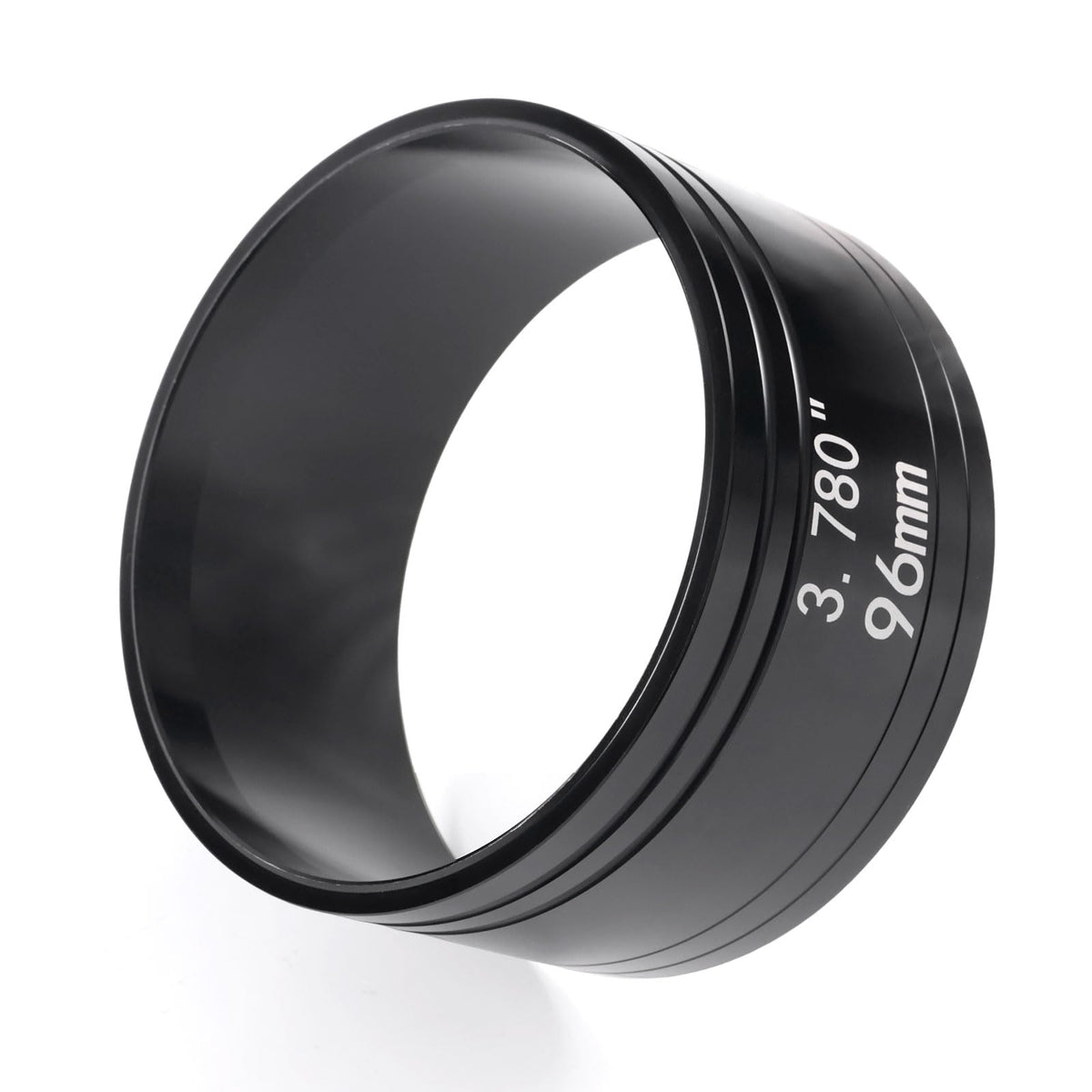

The compressor is CNC-machined from 6061-T6 billet aluminum for strength and light weight. A hard-anodized black finish resists solvents, fuels, and workshop wear while laser-etched size markings remain readable after heavy use.

• 6061-T6 billet construction for rigidity and longevity
• Hard-anodized surface stands up to chemicals and abrasion

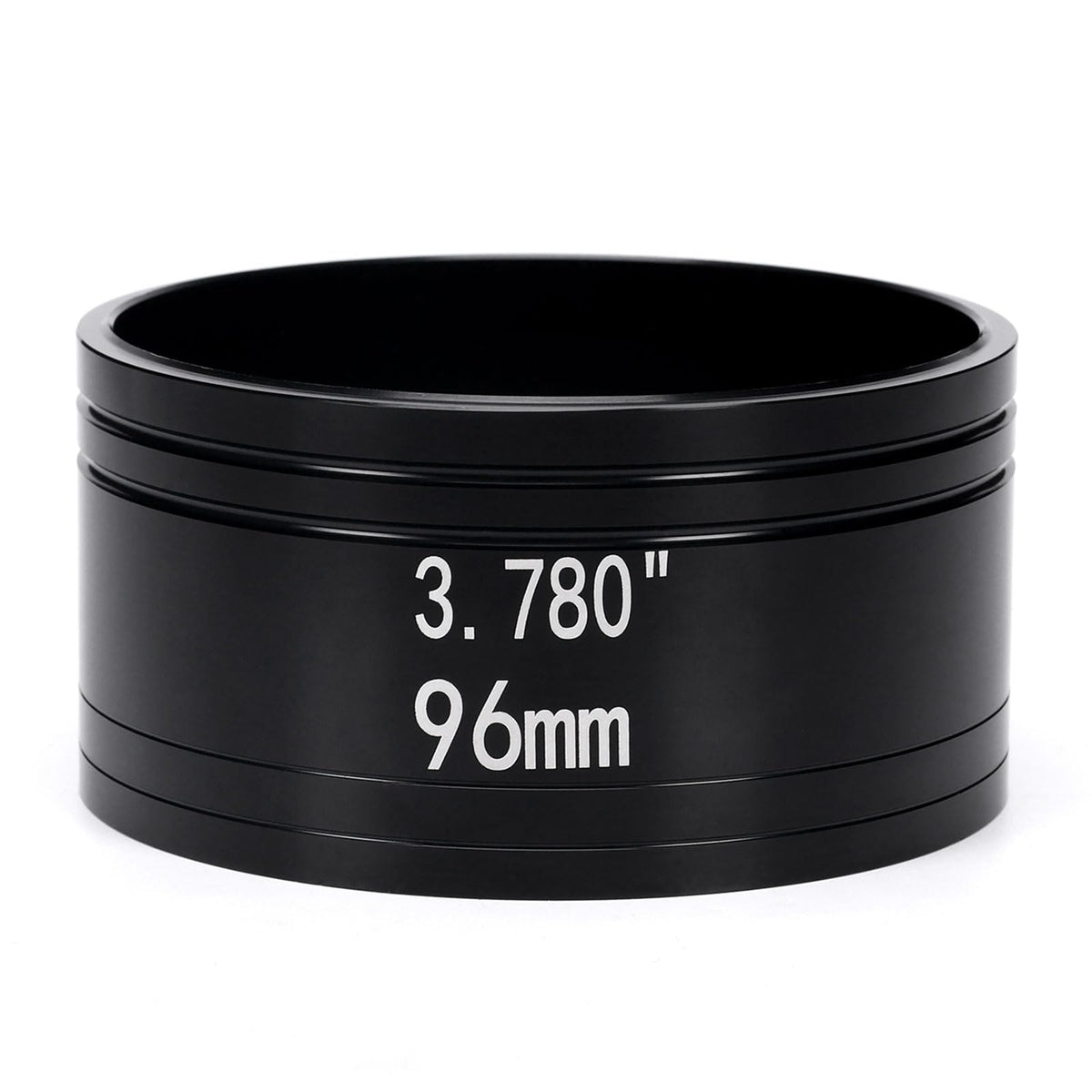

• Laser-etched markings keep size information visible
• Lightweight—easy to handle without sacrificing strength

How does this tool speed up engine assembly for pros and DIYers?

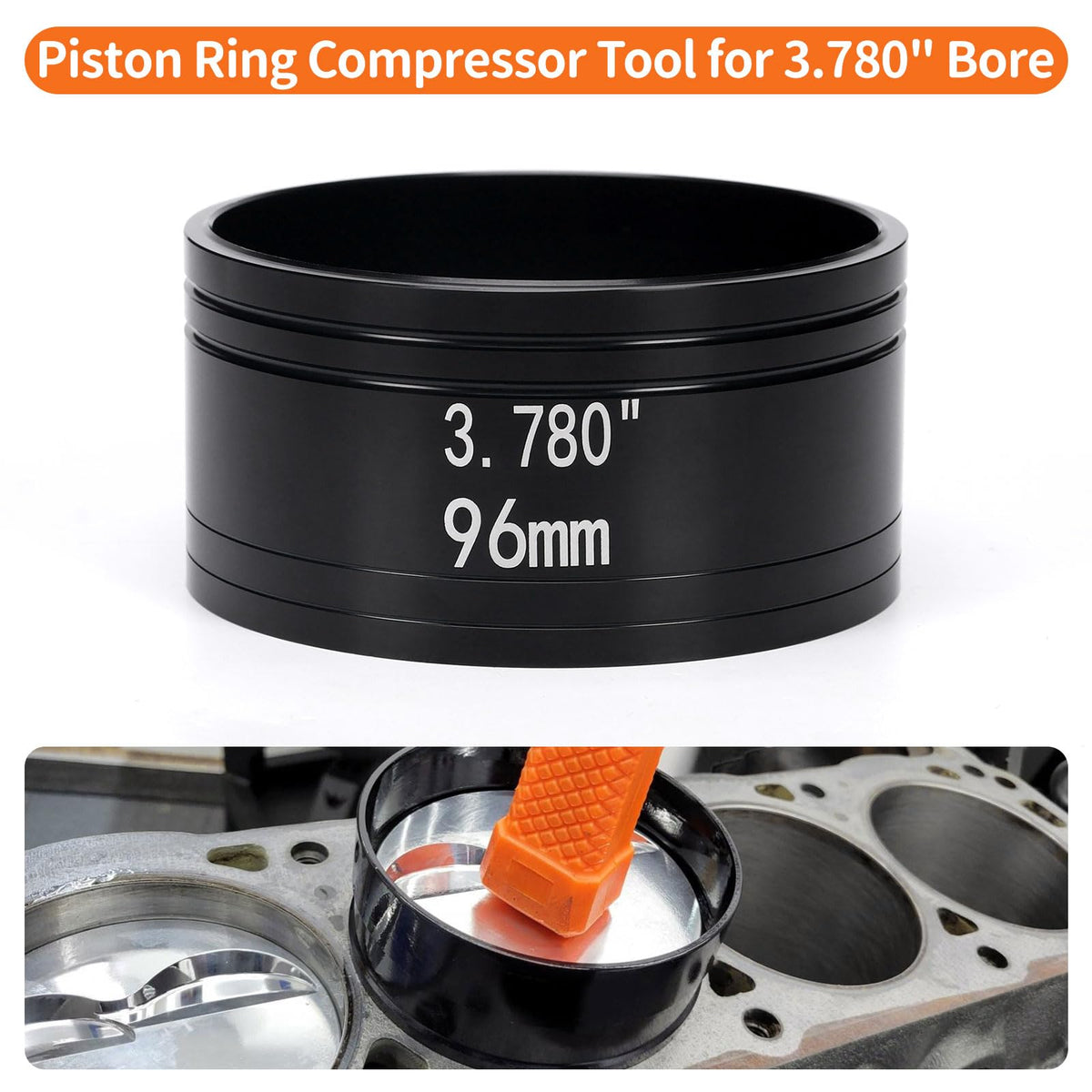

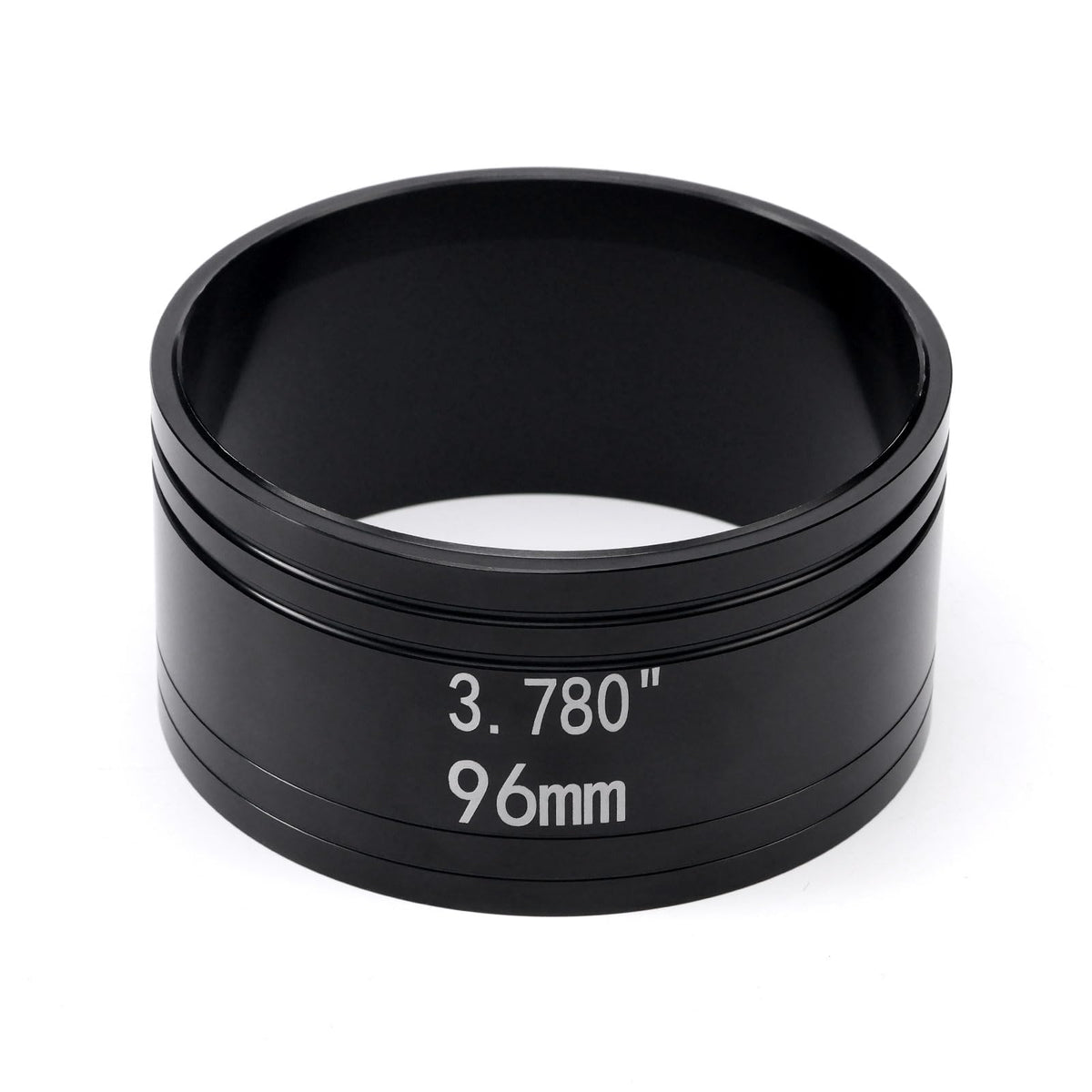

By using a fixed, precision-fit compressor you skip constant adjustments and reduce the chance of ring damage that slows rebuilds. The tool lets pistons drop in with a gentle tap, enabling faster, repeatable builds with fewer ruined rings and less rework.

• Single-size design reduces setup time between cylinders
• Smoother piston entry lowers the need for rework
• Consistent results across multiple bores improve assembly flow
• Hands-on friendly for experienced mechanics and home builders

Who this is for: Mechanics, gasket-and-ring specialists, performance tuners and competent DIYers rebuilding GM 4.8L and 5.3L V8 engines who want a rugged, purpose-built tool that reduces ring breakage and speeds piston installation. If you frequently work on LS/LT-series engines and value accuracy and durability, this compressor delivers a repeatable, shop-ready solution.
