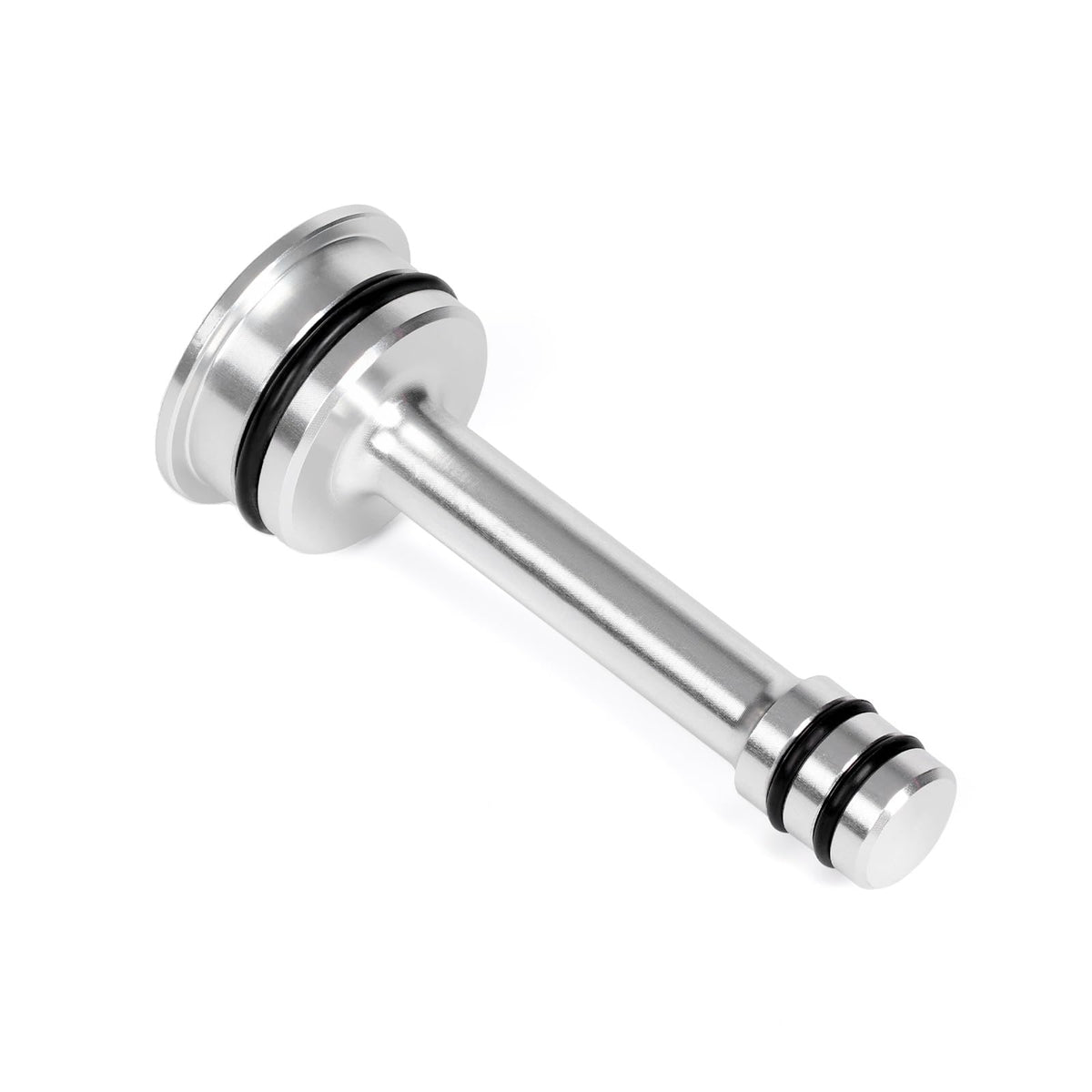

Atesilor Transmission Cooler Thermostat Bypass Plug (Barbell) for GM 6L80/6L90/8L90 — Aluminum, Dual O‑Ring

The Atesilor transmission cooler thermostat bypass plug (barbell style) lets you lock the cooler bypass in the open position to improve fluid flow and reduce transmission temperatures for GM 6L80, 6L90 and 8L90 gearboxes.

If your GM-equipped vehicle runs hot under towing, spirited driving, or heavy city traffic, the transmission cooler thermostat bypass plug provides a simple mechanical way to increase cooler circulation. Manufactured to OEM tolerances from aluminum with upgraded sealing, this barbell plug installs directly into the cooler bypass valve. It removes the thermostat restriction that can delay cooler flow, helping maintain lower fluid temperatures during demanding use without altering factory plumbing.

How does this bypass plug improve transmission cooling?

By holding the bypass valve open, the plug routes fluid through the external cooler sooner and more consistently, shortening heat soak and improving overall heat rejection. That reduces repeated high-temperature cycles that contribute to wear.

• Opens bypass valve for continuous cooler flow
• Reduces fluid temperature spikes under load
• Helps preserve transmission life by lowering operating heat

Is the Atesilor barbell plug easy to install on my GM vehicle?

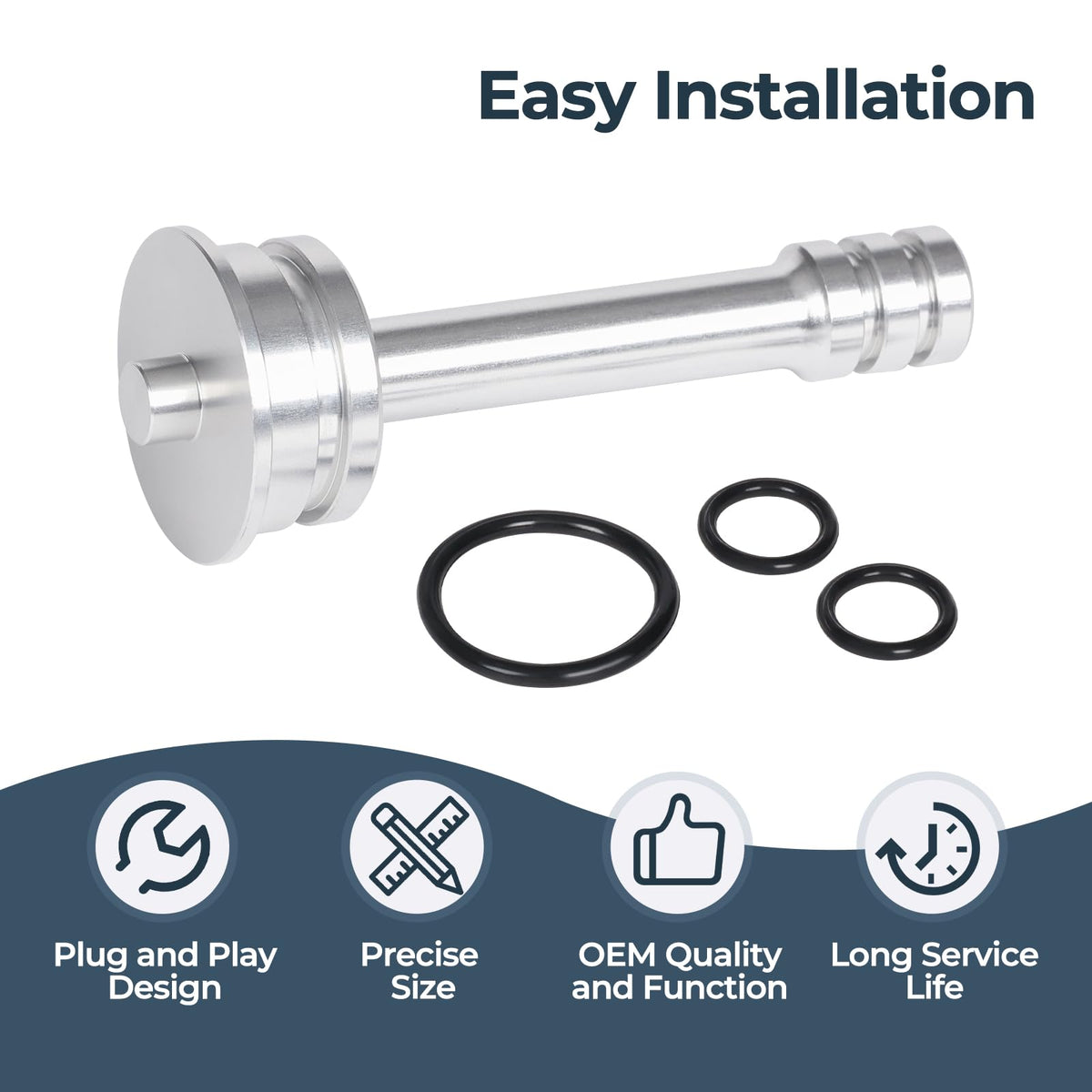

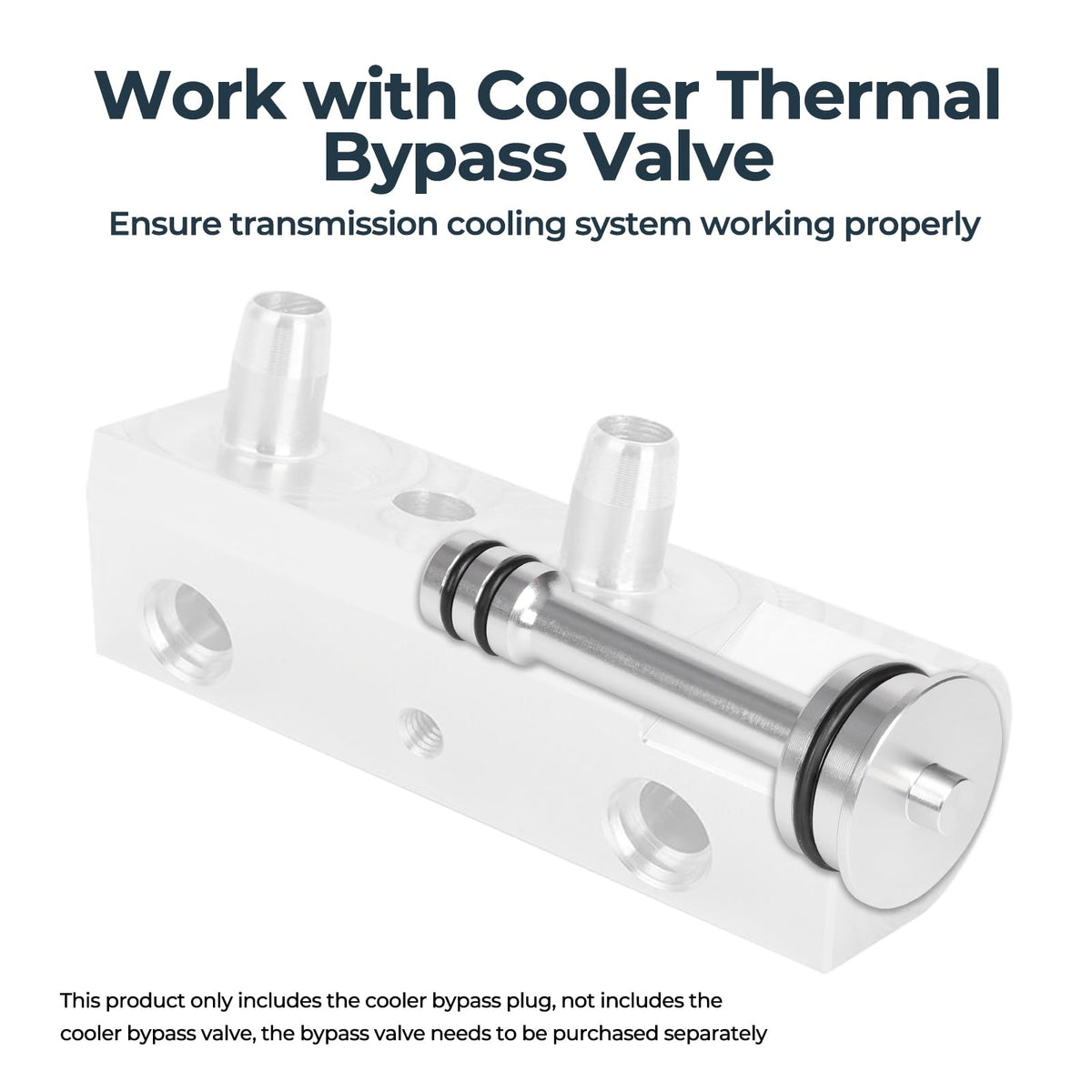

Yes — the plug is designed for plug-and-play installation into the transmission cooler bypass valve with no special tools required. Light lubrication of the O-rings with transmission fluid helps seat the plug quickly and ensures a good seal.

• Direct fit for 6L80, 6L90 and 8L90 transmissions
• No cutting, welding, or plumbing changes needed
• Hand-tighten installation; use slight fluid film on O-rings

What materials and sealing does the product use for durability?

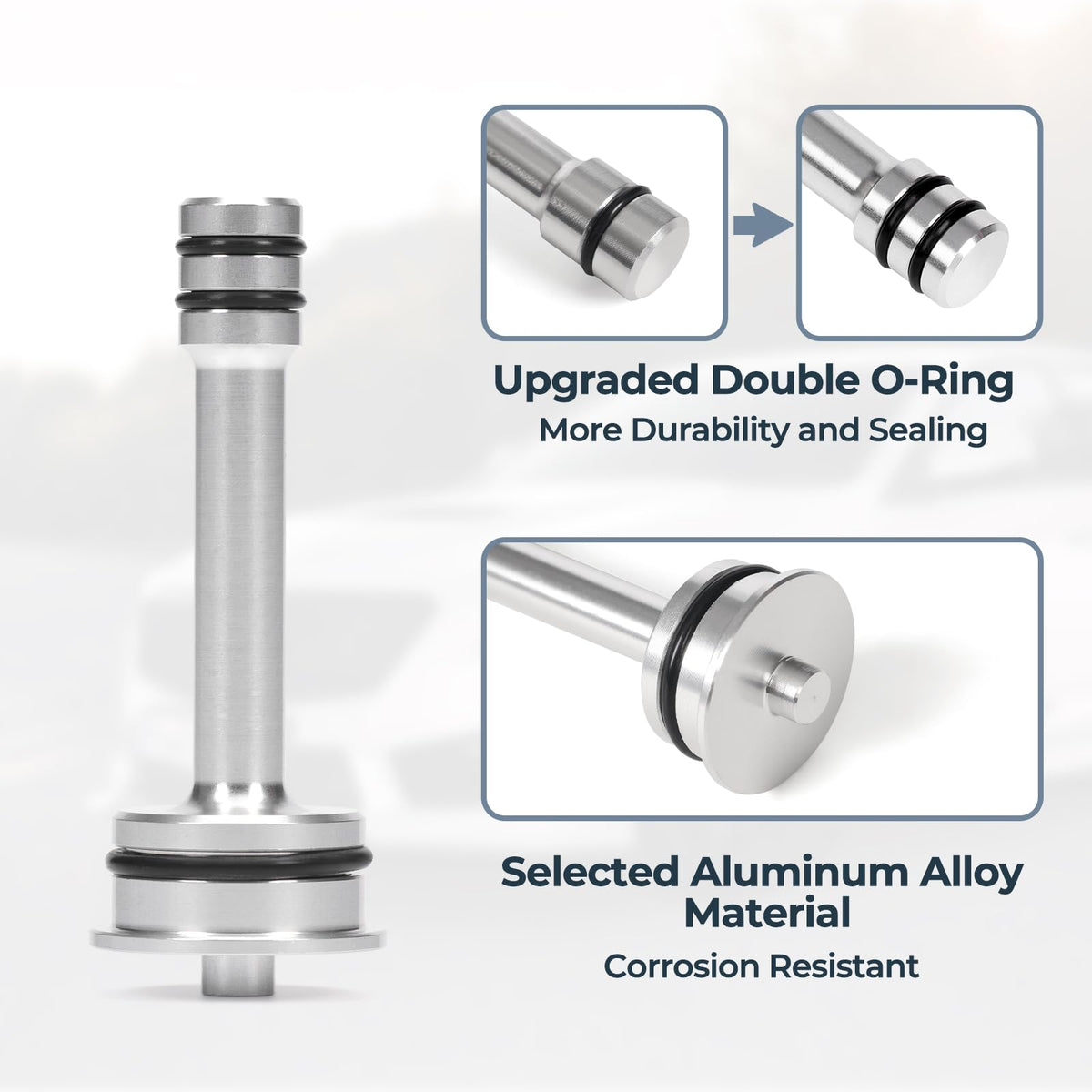

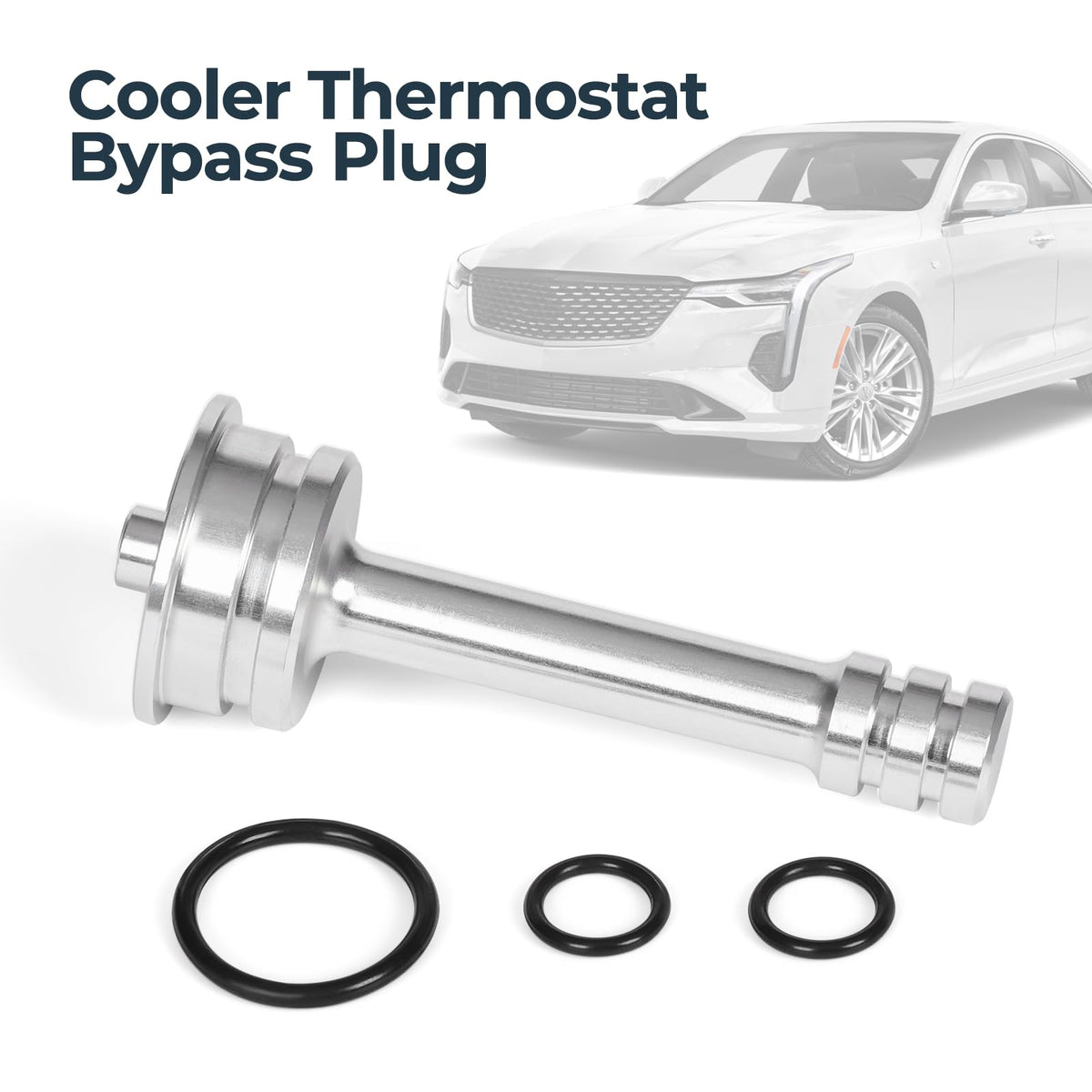

The plug body is CNC-machined from high-grade aluminum alloy for corrosion resistance and dimensional stability. An upgraded double-seal design improves leak resistance at the bypass valve under vibration and heat cycles.

• Aluminum alloy construction for strength and light weight
• Dual O-ring sealing for enhanced leak protection
• OEM-level machining for an accurate fit

Which vehicles and transmission models are compatible?

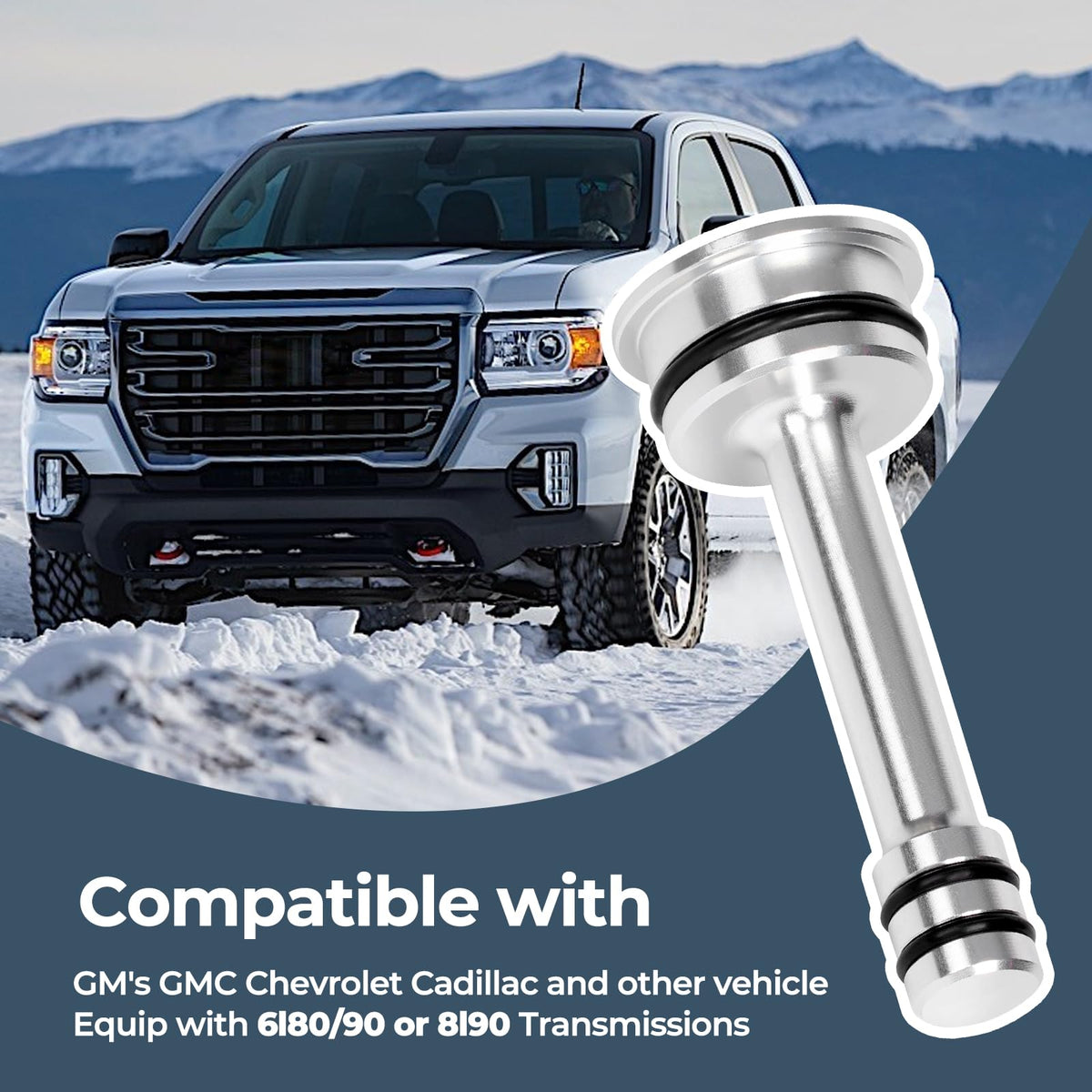

This thermostat bypass barbell is built to suit GM transmissions commonly found in Chevrolet, GMC, Cadillac and other brands that use the 6L80, 6L90 or 8L90 family. Verify your transmission code before purchase to ensure proper fitment.

• Compatible with vehicles equipped with 6L80/6L90/8L90 transmissions
• Ideal for trucks, SUVs, and performance cars that tow or haul
• Check transmission model stamp or VIN-based options guide

Who is this for: This Atesilor bypass plug is aimed at owners of GM vehicles with 6L80/6L90/8L90 transmissions who want a low-cost, reversible modification to enhance transmission cooling. It’s especially useful for drivers who tow, carry heavy loads, tow trailers, or run their vehicle in hot climates where cooler throughput and lower fluid temperatures matter. If you prefer a mechanical, non-electrical fix that installs in minutes and preserves original lines, this plug is a practical choice.
