ATRACYPART AVR 0F97190SRV Automatic Voltage Regulator — Fits Generac 83049 Series, Durable Replacement

The ATRACYPART 0F97190SRV is an automatic voltage regulator designed to stabilize generator output, replacing older 83049-series AVRs with a durable, lower-cost unit.

This compact AVR controls excitation to keep your generator’s voltage steady across varying loads and operating conditions. Built to fit many Generac and RV standby models that used the discontinued 83049 family, the 0F97190SRV provides the same electrical behavior while adding improved component durability. It’s intended for users comfortable with basic generator servicing and requires calibration after installation to achieve correct voltage and frequency readings.

How does this AVR keep generator voltage stable?

The unit measures generator output and automatically adjusts the excitation current to correct deviations. Quick response to load shifts prevents large voltage swings that can harm sensitive equipment. It also includes over- and under-voltage protection to limit harmful excursions.

• Automatic excitation adjustment for fast voltage correction
• Overvoltage and undervoltage safeguards
• Designed to maintain output within typical ±1% regulation under proper setup
• Frequency monitoring to coordinate voltage control with engine speed

Which models and part numbers will this replace?

This ATRACYPART regulator is intended as a drop-in substitute for multiple discontinued and legacy parts used on RV and home standby generators. Mechanically it matches most 83049-series units, though some versions differ slightly in cooling-fin thickness.

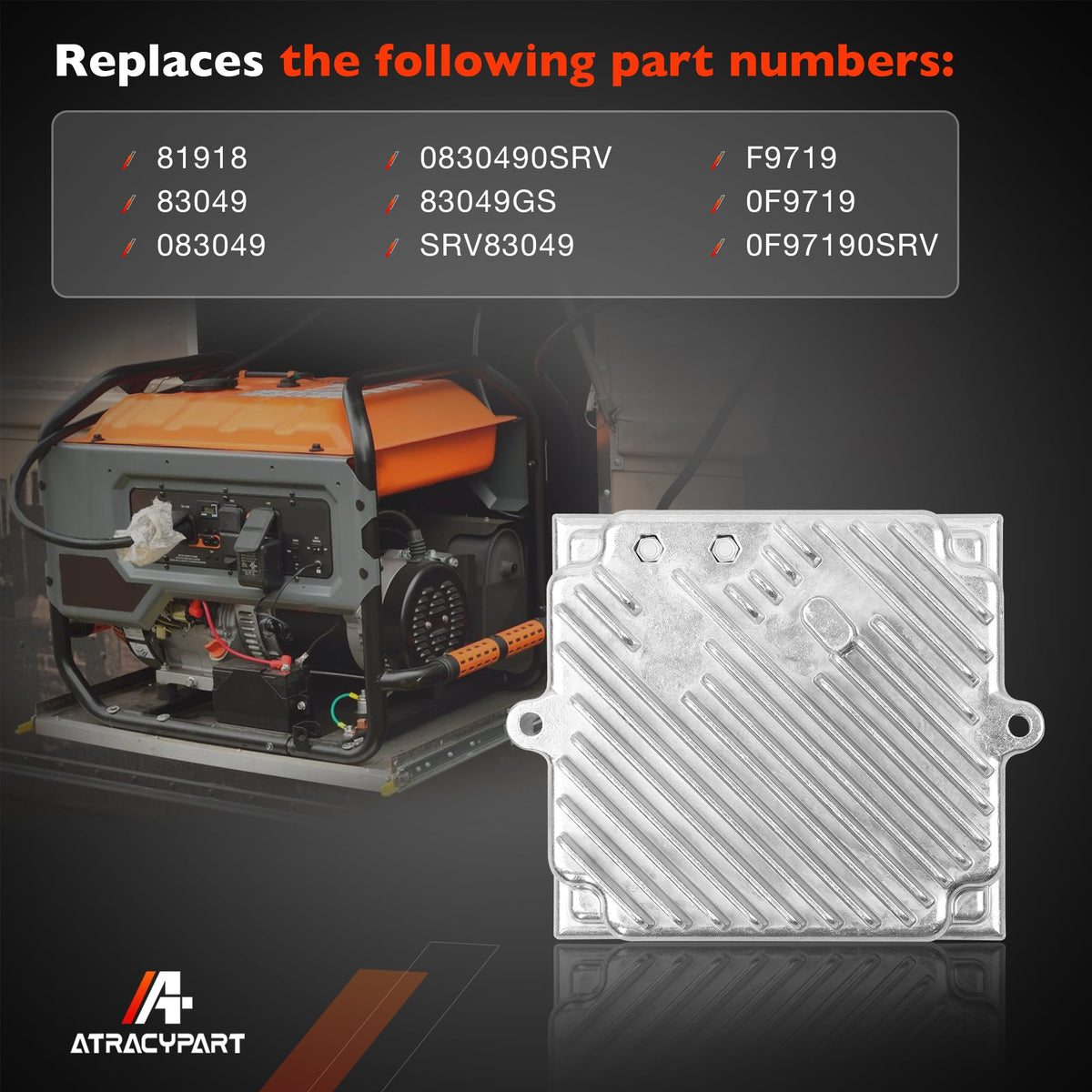

• Compatible replacements: 81918, 83049, 083049, 0830490SRV, 83049GS, SRV83049, F9719, 0F9719, 0F97190SRV
• Note: 083048 differs by lacking rear cooling fins—thicker versions need longer mounting bolts

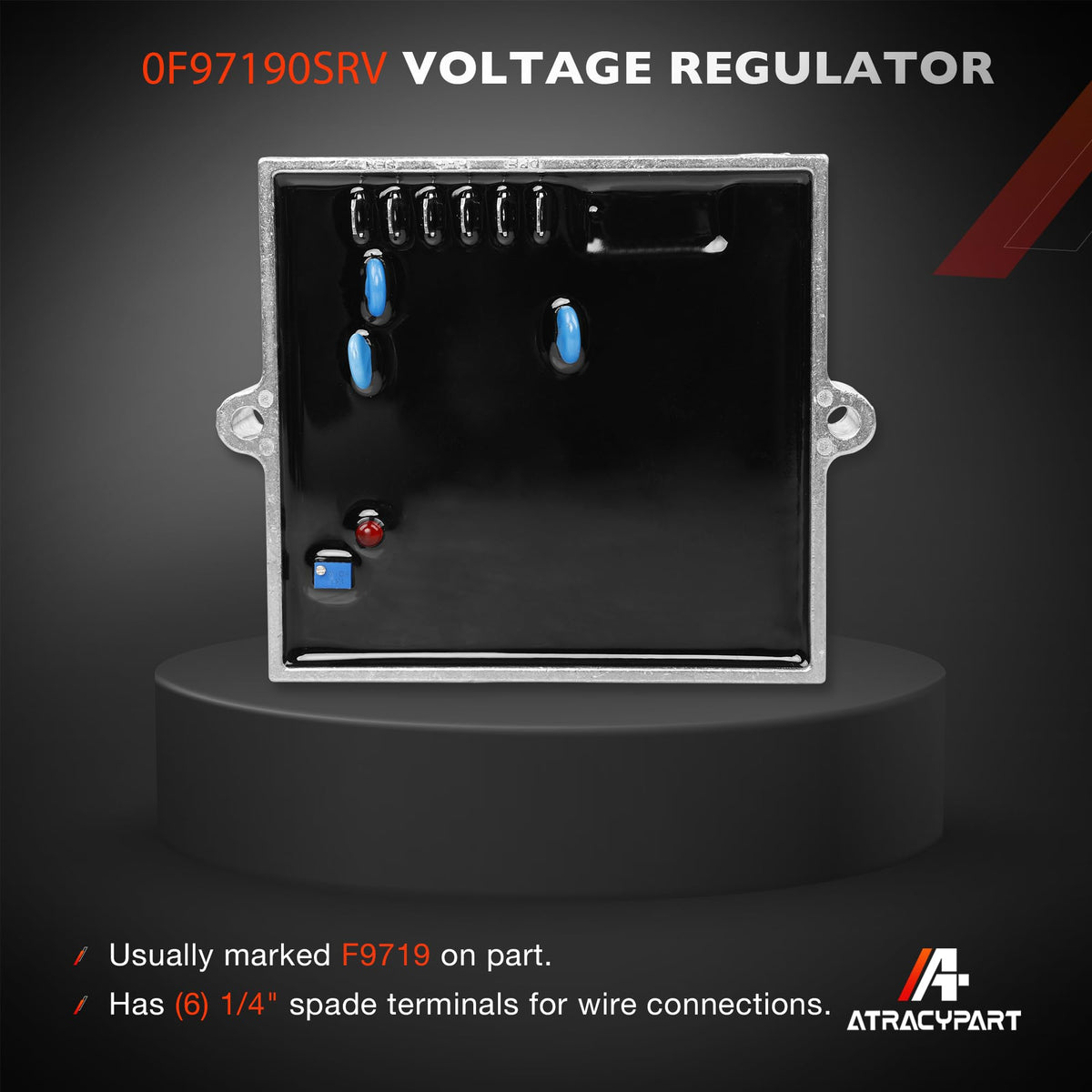

• Electrical function and pinouts follow the original 83049 design for easy interchange

What setup and calibration steps are required after installation?

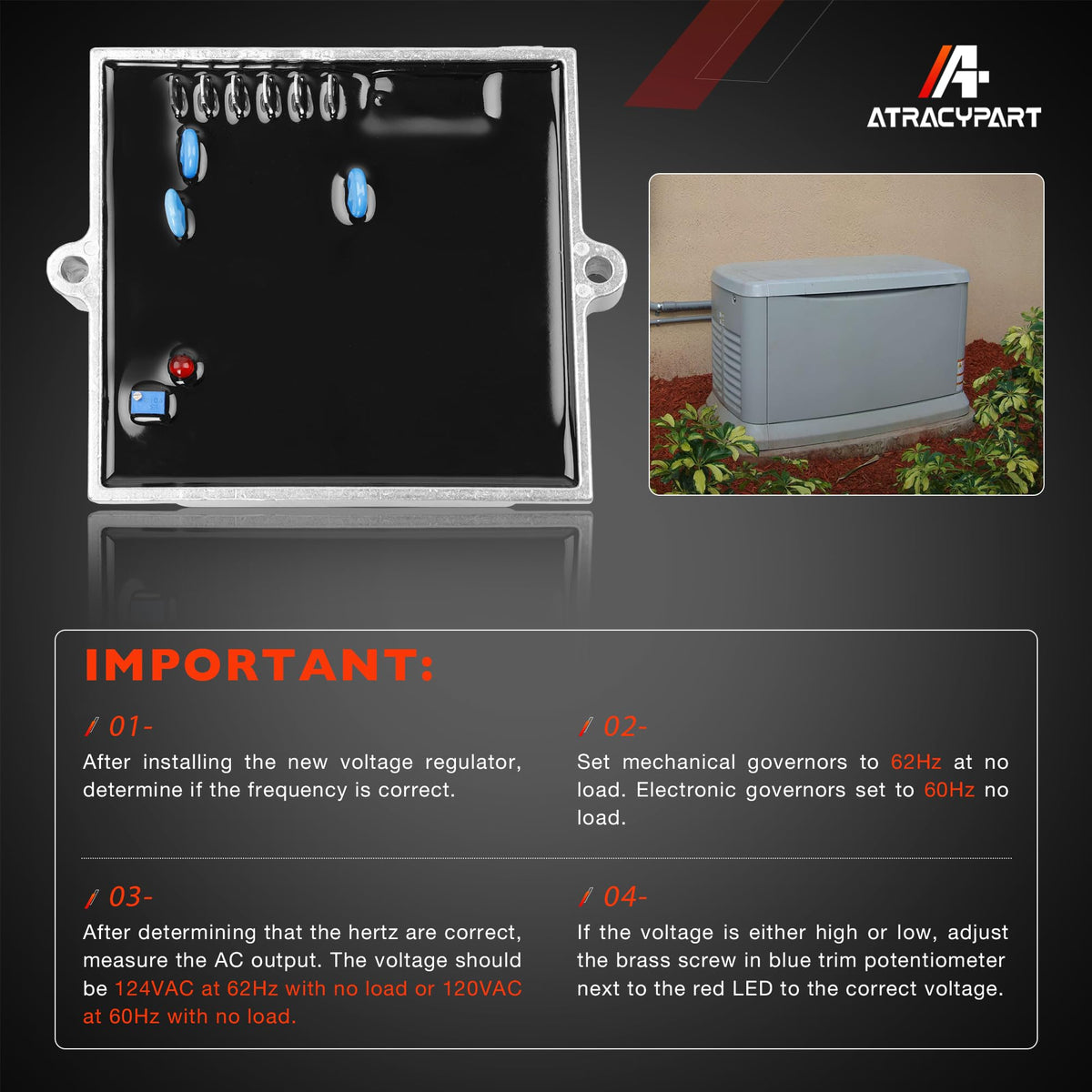

After fitting the AVR, verify the generator frequency and set governor controls before adjusting voltage. Use the blue-trim potentiometer next to the red LED to fine-tune output to the correct no-load voltage. Follow the generator manufacturer’s recommended hertz settings for mechanical or electronic governors first.

• Set mechanical governors to 62 Hz no-load, electronic governors to 60 Hz no-load
• Measure AC output: target 124 VAC at 62 Hz or 120 VAC at 60 Hz with no load
• Adjust brass screw on the potentiometer if voltage reads high or low
• Confirm frequency and voltage under light load after initial tuning

What durability and safety features does this regulator include?

The 0F97190SRV uses corrosion-resistant materials and precision manufacturing to withstand vibration and heat inside generator enclosures. Temperature compensation and robust internal components reduce the chance of high-voltage faults. The redesigned metal potentiometer improves long-term reliability compared with earlier plastic-trim designs.

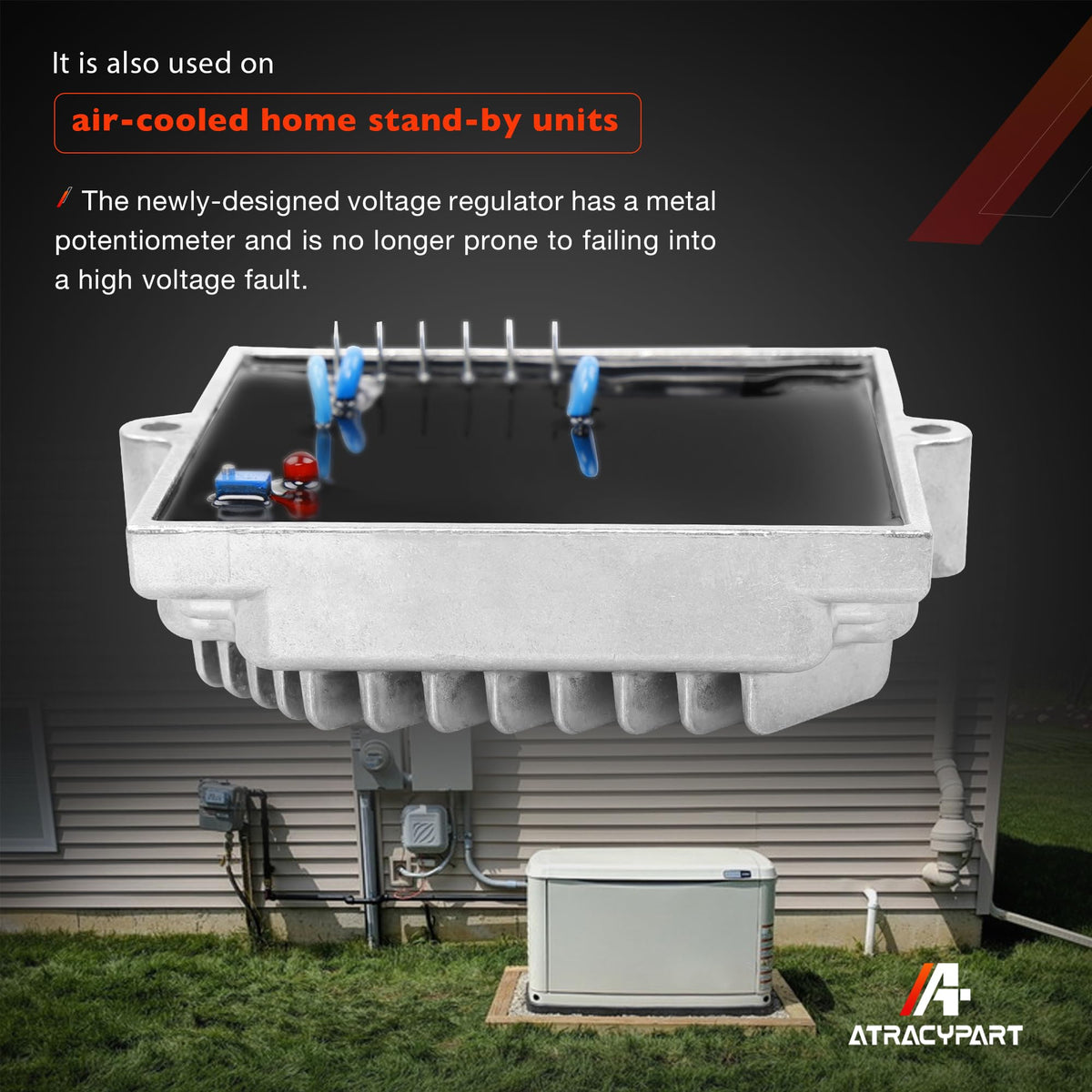

• Metal potentiometer to resist failure and high-voltage faults
• Cooling-fin variants for improved heat dissipation where needed
• Corrosion-resistant housing and secure mounting points for long service life

Who this is for: Technicians, RV owners, and homeowners with air-cooled standby generators who need a dependable replacement for discontinued 83049-series AVRs. Choose this unit if you want the same fit and performance as legacy parts, a sturdy metal adjustment control, and clear calibration guidance—ideal for routine generator maintenance or field repairs. Note: installation requires basic electrical tools and post-install calibration to ensure correct voltage and frequency.
