Autel 7-pin to 16-pin OBD1 to OBD2 Adapter Cable for Ford (1985–1991) — Reliable Contact, Moderate Length

An Autel 7-pin OBD1 to 16-pin OBD2 adapter cable lets you physically connect vintage Ford EFI (1985–1991) 7-pin diagnostic ports to modern OBD-II scanners for code reading and live data access. This adapter converts the irregular 7-pin Ford OBD1 connector used on many 1985–1991 EFI models into a standard 16-pin OBD-II plug so you can attach contemporary diagnostic tools. It provides only a physical interface conversion — successful communication depends on whether your scanner recognizes older Ford protocols (for example, Ford EEC-IV). The cable is built for dependable contact and moderate length to reach most engine-bay or under-dash ports without strain.

Will this cable let my modern scanner read codes from my 1987 Ford?

It creates the physical link between your vehicle’s 7-pin diagnostic socket and an OBD-II scanner, enabling code reads if the scanner supports legacy Ford protocols. Some scanners interpret EEC-IV and other early standards; others do not, so compatibility varies.

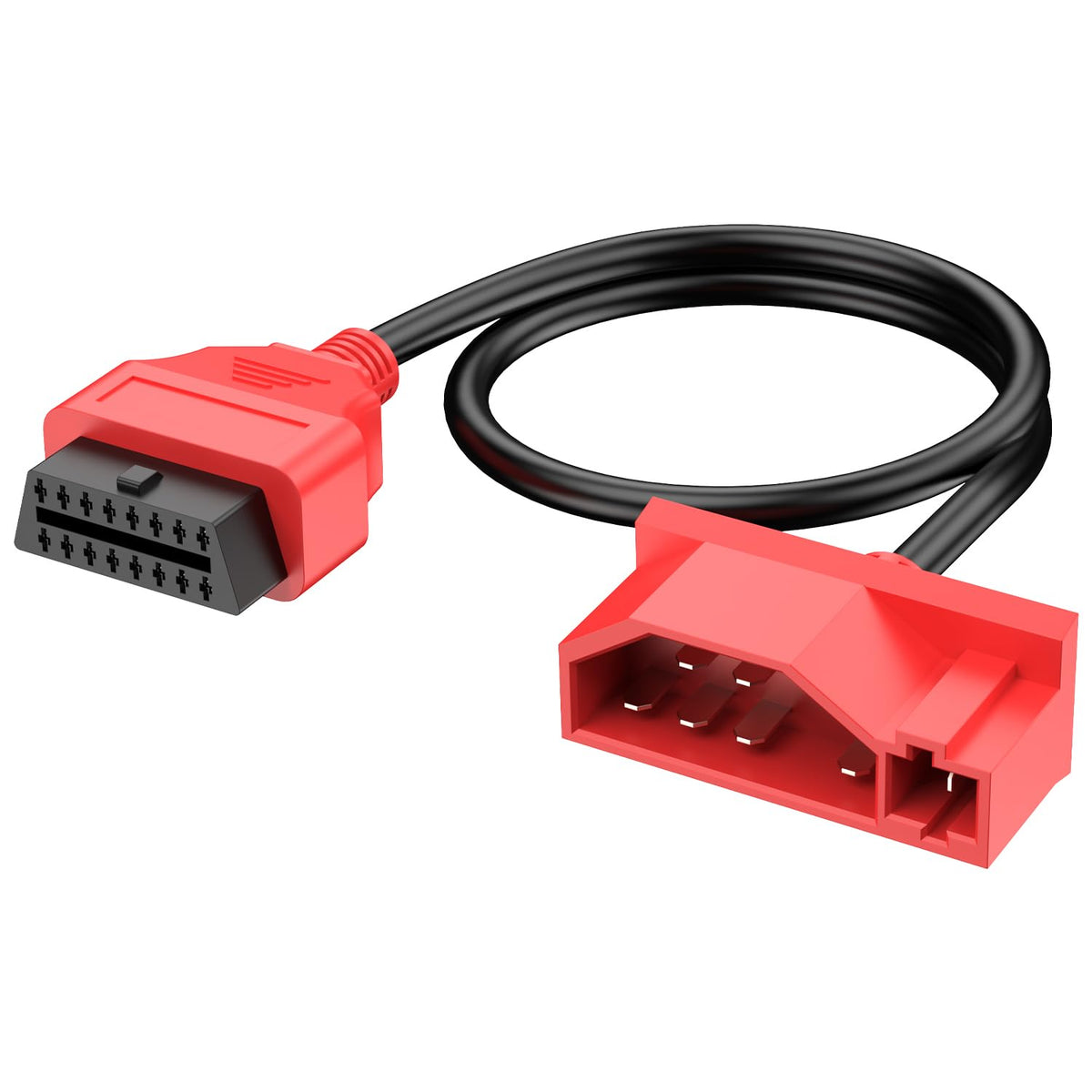

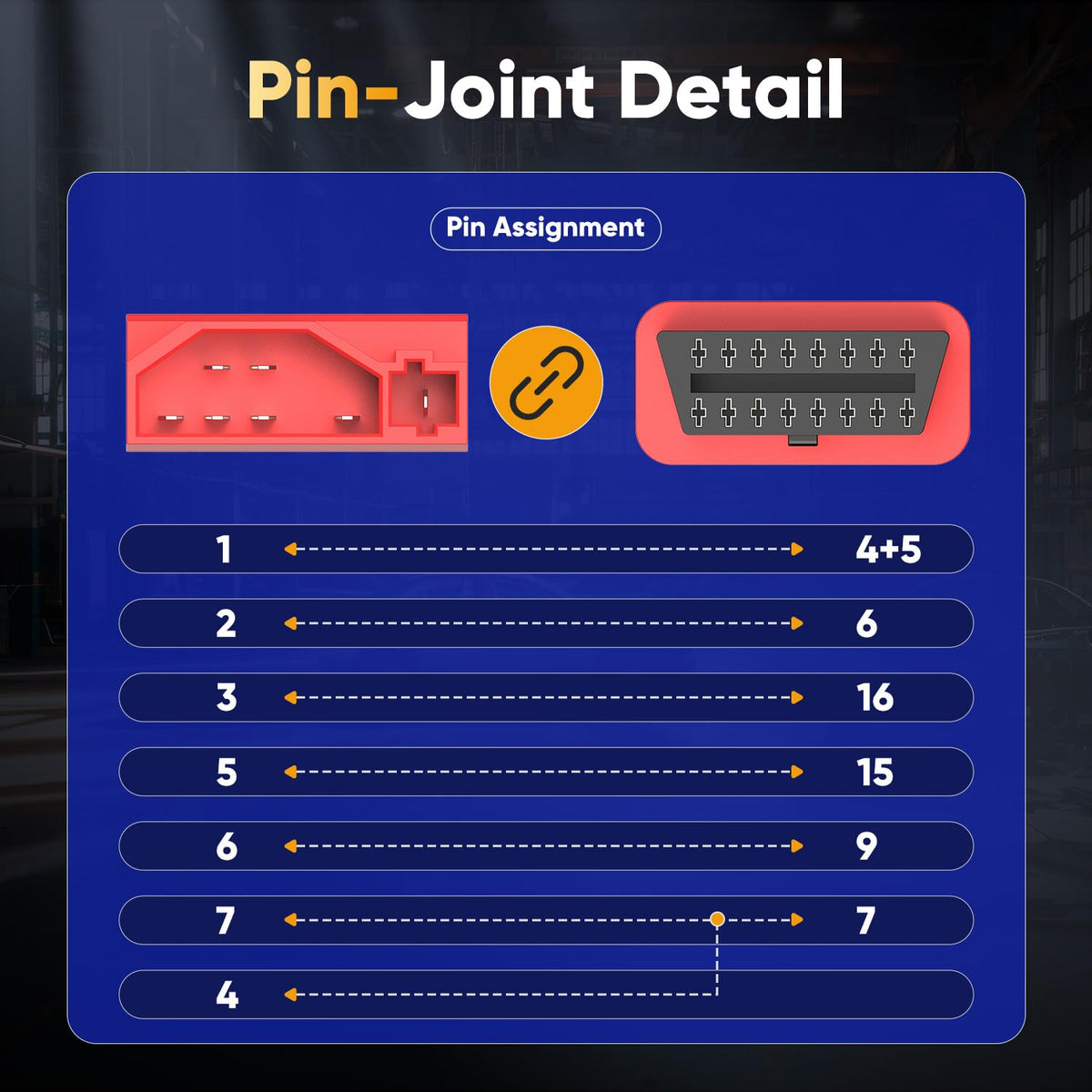

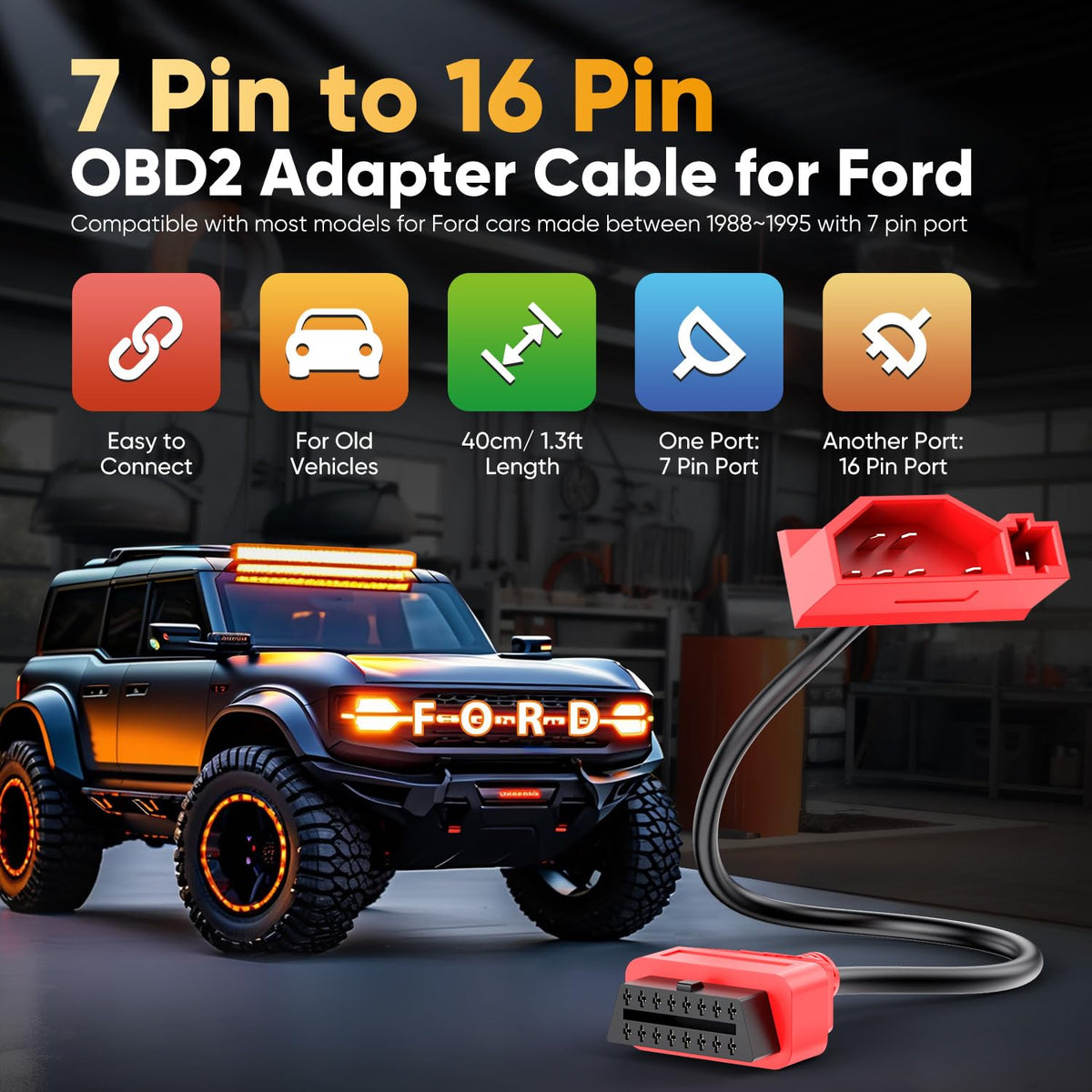

• Converts Ford 7-pin OBD1 port to standard 16-pin OBD-II connector
• Works with many scanners that support early Ford protocols
• Does not include a scanner — only a transmission cable
• Contact Autel support if communication fails for protocol advice

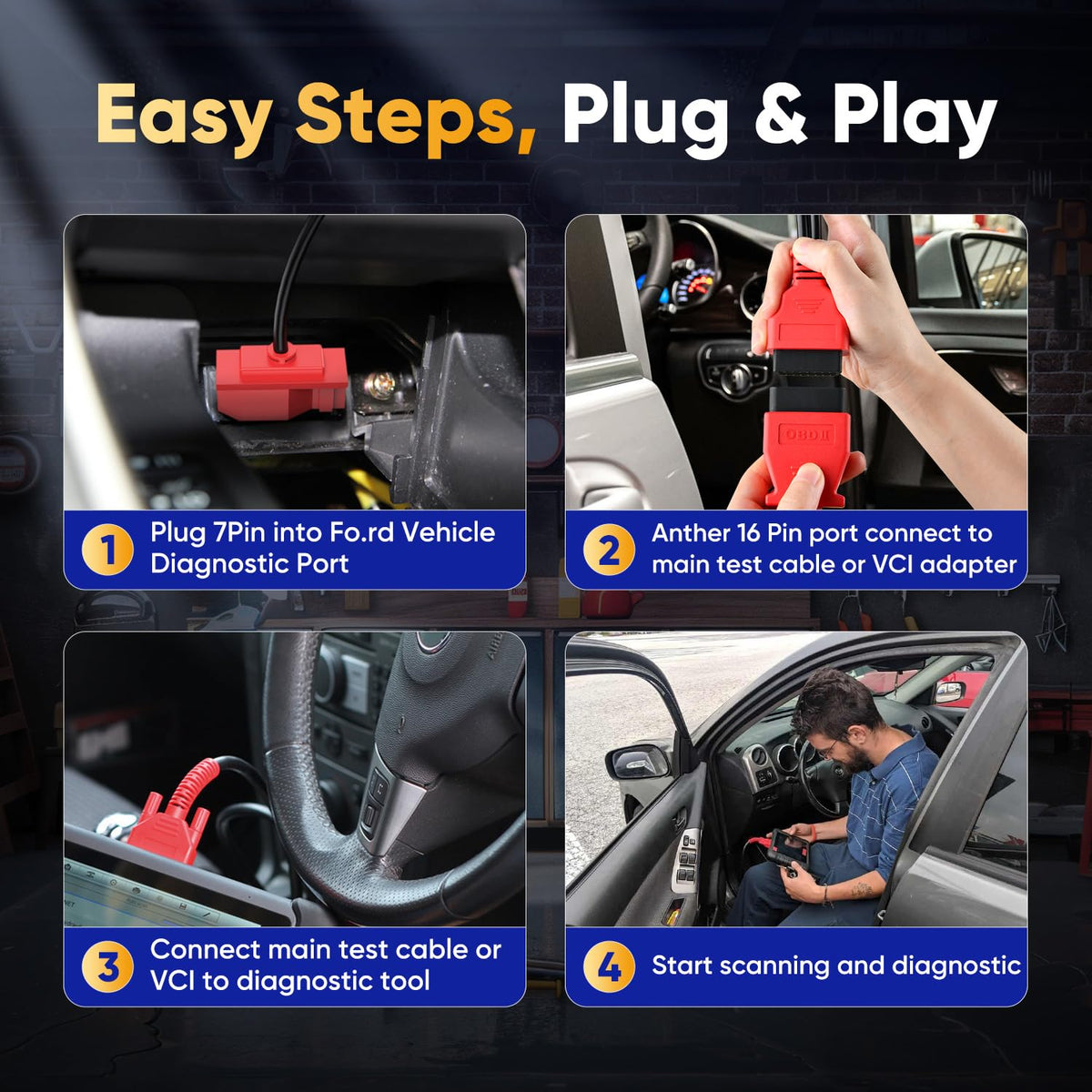

How do I connect and use the Autel 7-pin to 16-pin adapter?

Installation is straightforward: plug the 7-pin end into the vehicle’s diagnostic port, attach your OBD-II tool to the other end, then power on the scanner and start a diagnostic session. If the scanner supports the vehicle’s protocol, you’ll be able to read stored codes, clear codes, and view live sensor data.

• Locate the 7-pin port (commonly beneath the brake master cylinder on many Ford EFI vehicles)
• Firmly insert the 7-pin connector, then attach the 16-pin OBD-II plug to your scanner
• Power the scanner and follow its prompts to query the ECU
• Reach out to Autel support if the scanner does not communicate

Which Ford models and years are compatible with this adapter?

This cable is intended for Ford EFI vehicles from about 1985 through 1991 that use the irregular 7-pin diagnostic port. Compatibility hinges on the presence of that specific 7-pin connector and the vehicle’s ECU protocol rather than make or model alone.

• Designed primarily for Ford EFI vehicles manufactured between 1985 and 1991
• Verify the vehicle has a 7-pin OBD1 diagnostic connector before purchasing
• Not a universal guarantee — scanner protocol support is also required

What build quality and support come with the cable?

The Autel adapter is manufactured to provide reliable contact with polished terminals and a sturdy cable gauge for consistent data transmission. Autel offers a one-year warranty and a 30-day return/replacement window, plus customer support to help diagnose communication issues.

• Fine-polished connectors for stable electrical contact

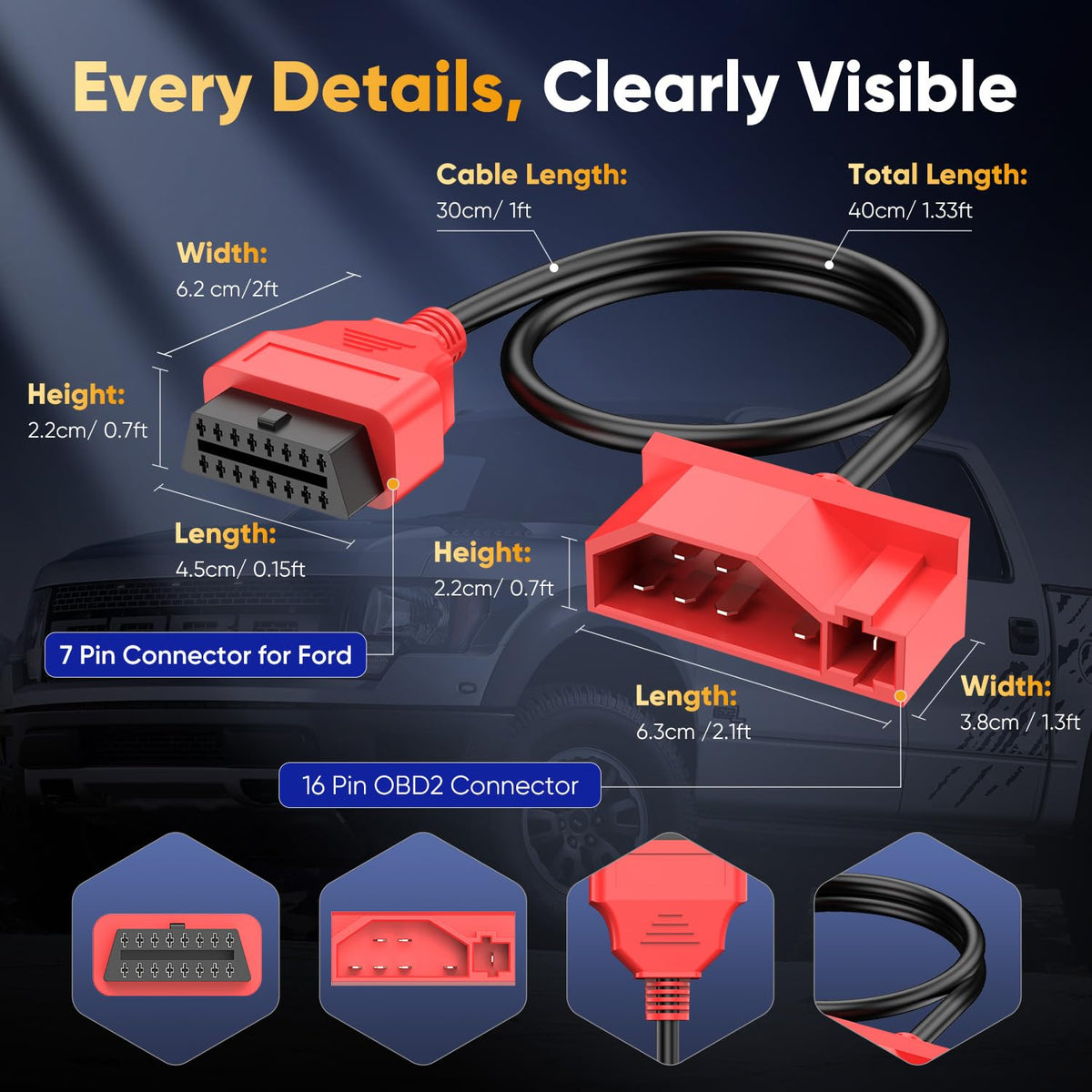

• Appropriate cable length and thickness for under-dash use
• 1-year warranty and 30-day return/replacement policy
• Dedicated support via auteldirect@outlook.com for troubleshooting

Who is this for This adapter is aimed at DIY mechanics, vintage Ford owners, and professional shops that need to link older Ford ECUs to contemporary diagnostic tools. If you own an EFI-era Ford with the 7-pin port and want to read codes or monitor real-time data using an OBD-II scanner, this cable provides the necessary physical interface — just confirm your scanner supports legacy Ford protocols for full functionality.

FAQ

Q: Does this adapter convert protocols or just the connector?

A: It only converts the physical connector; successful communication depends on whether your scanner supports older Ford protocols.

Q: Which Ford years use the 7-pin port this cable supports?

A: Mainly Ford EFI models from roughly 1985 through 1991 that have the 7-pin diagnostic connector.
