AUTO-GEKKO LED Trailer Light Kit, Full Set for 12V Trailers up to 80" Wide — IP68 Waterproof, DOT/SAE Compliant

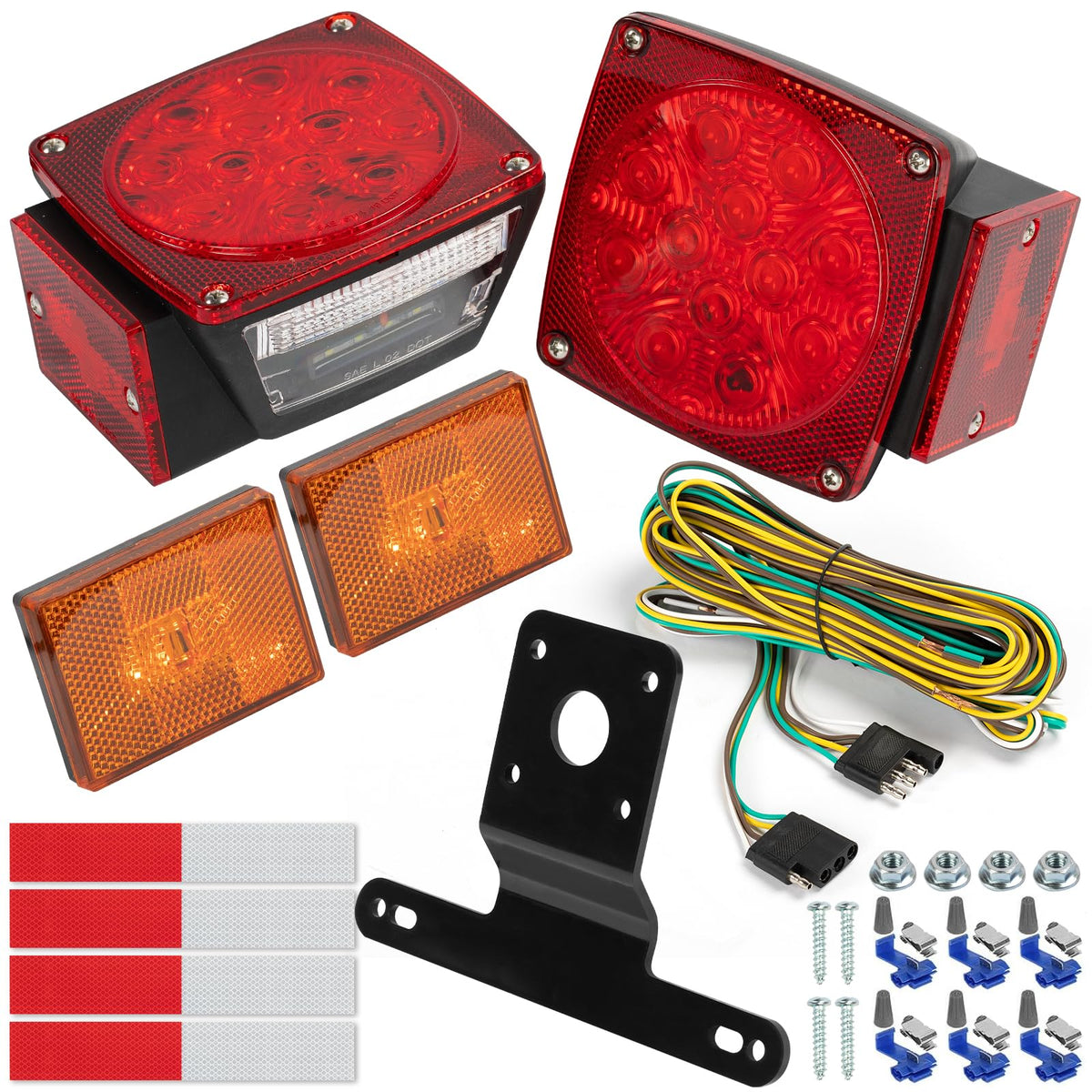

This AUTO-GEKKO Full Set LED Trailer Light Kit is designed to replace or upgrade trailer lighting with a ready-to-install package that fits most 12V trailers up to 80 inches wide. The kit combines sealed IP68-rated LEDs, a 25-foot wiring harness, amber clearance lights, a license plate bracket, and all necessary mounting hardware so you can finish wiring and mounting in one project. The wiring layout is intentional and clearly labeled for straightforward connections and selectable brightness modes.

How easy is installation and wiring?

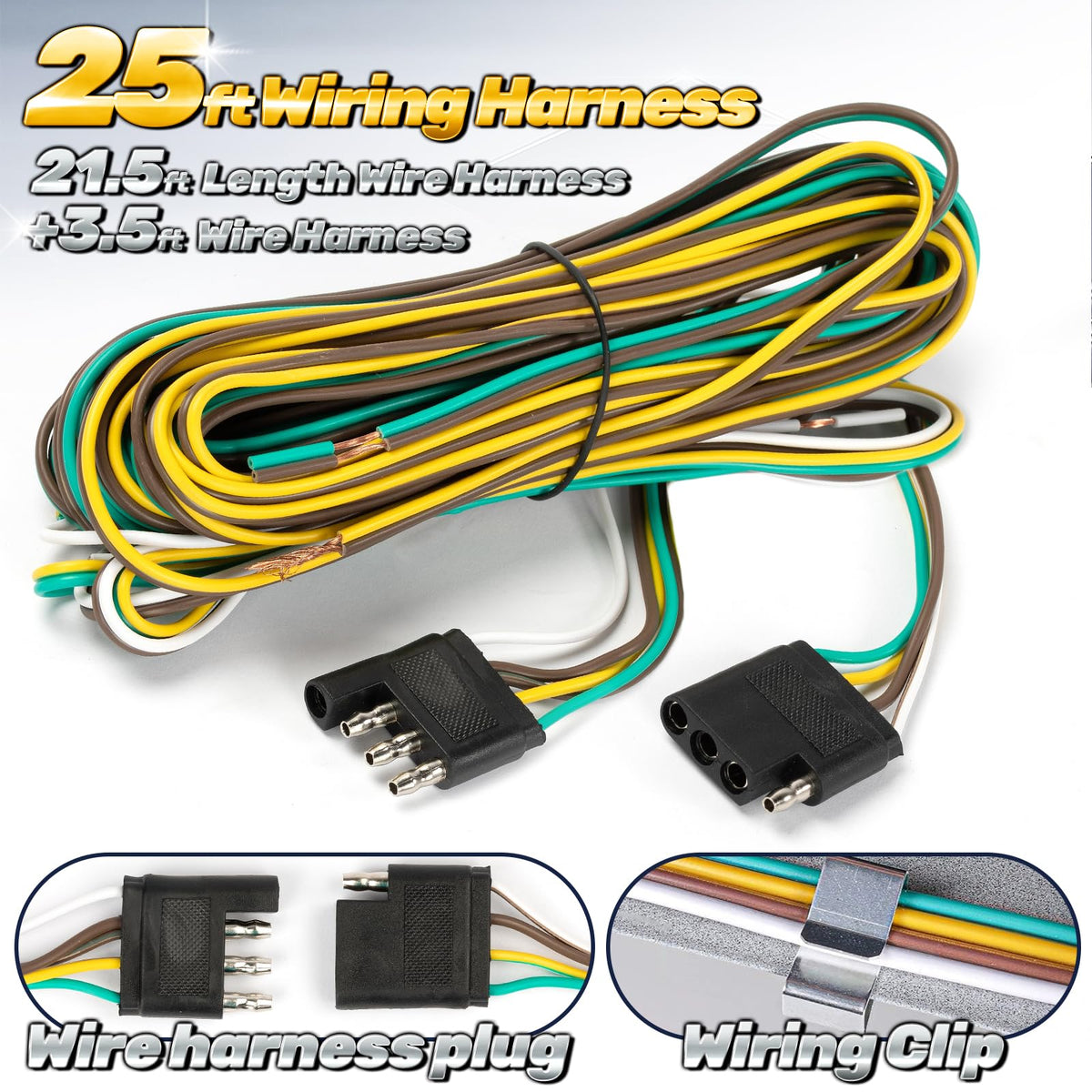

Installation is simplified by the included 25-foot harness and color-coded leads for each side of the trailer. The harness gives you room to route wires cleanly, while the plug-and-play connectors and mounting accessories reduce time spent drilling and splicing. The left and right assemblies mirror each other so both sides follow the same wiring logic.

• Includes 25ft wiring harness for flexible routing
• Color-coded wires: white ground, white+green (high), white+brown (low)
• All mounting screws, gaskets, and license bracket included
• Plug-ready connectors minimize soldering or crimping

Will these lights survive wet or rough conditions?

The LED housings are sealed to IP68 standards, meaning they resist water and dust ingress even when exposed to heavy spray or immersion during brief periods. The robust construction and corrosion-resistant hardware are chosen for trailer, marine, and agricultural use where exposure to the elements is common. DOT/SAE compliance also ensures lens materials and light output meet road-safety expectations.

• IP68-rated sealing for water and dust resistance
• Durable lens and housing for road and off-road use
• Corrosion-resistant mounting hardware included
• Manufactured to meet applicable DOT/SAE standards

What vehicles and trailers are compatible with this kit?

The kit is engineered for standard 12V systems and fits trailers up to 80 inches wide, covering most utility trailers, small boats, campers, and farm equipment. It works well as a replacement light set or an upgrade from incandescent systems when you want brighter, lower-draw lighting. Check your trailer’s wiring harness and connector type to confirm plug compatibility before purchase.

• Designed for 12V DC electrical systems
• Recommended for trailers up to 80 inches wide
• Suitable for utility trailers, boats, RVs, campers, tractors
• Can replace incandescent lights for improved visibility and efficiency

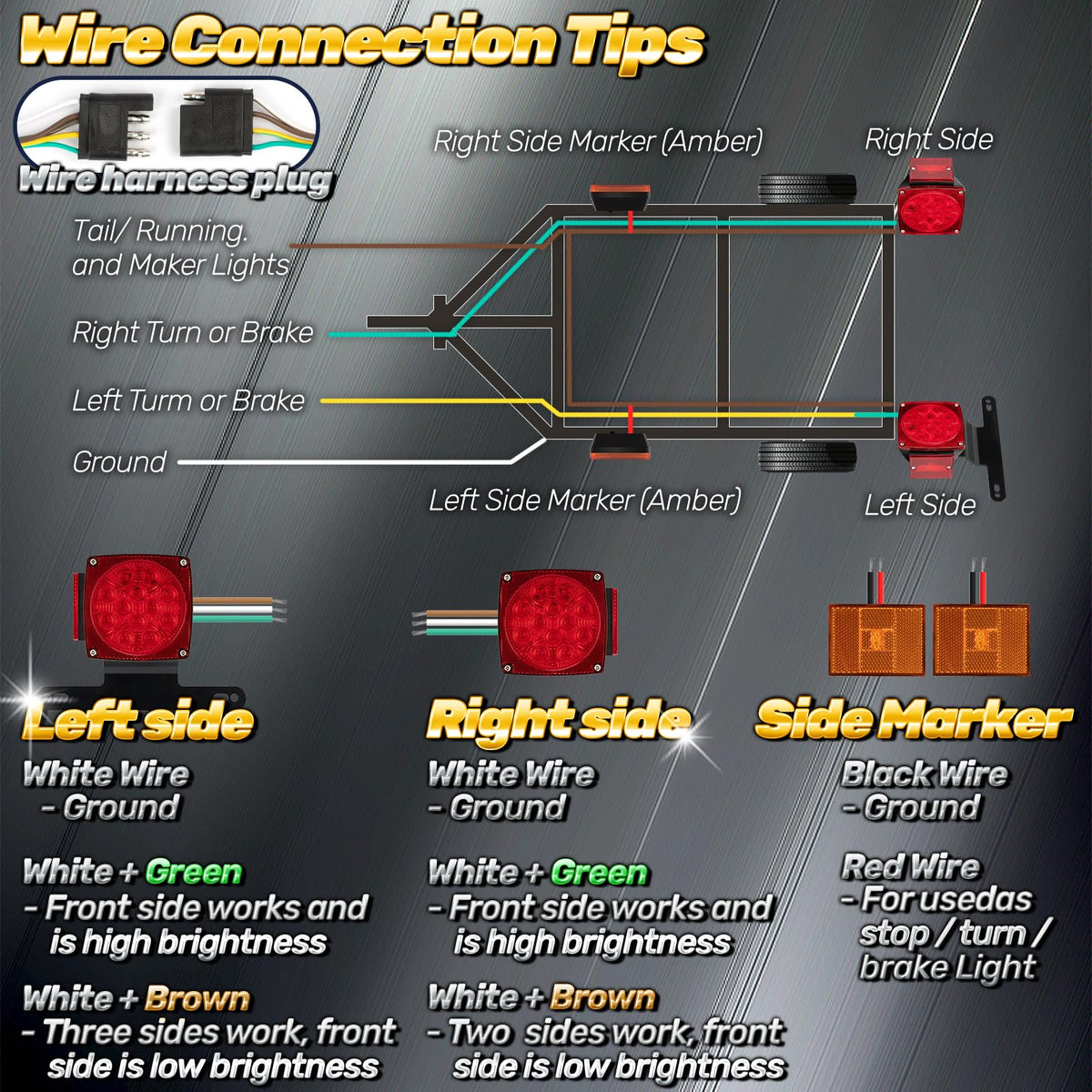

How does the brightness control work and what options do I get?

The wiring scheme provides two brightness selections via paired conductors (white+green for high, white+brown for low), allowing you to choose a stronger output for daytime visibility or a lower intensity for reduced glare at night. This flexible setup is useful when matching brightness across mixed lighting systems or when you have local lighting regulations. The white ground lead completes the circuit cleanly for both modes.

• High brightness: white + green lead combination
• Low brightness: white + brown lead combination
• Single white lead used as ground on each side
• Selectable output suited to varied towing situations

Who this kit is for: installers, trailer owners, and fleet managers who want a single, reliable LED lighting kit that combines easy installation, weatherproof durability, and regulatory compliance. If you maintain trailers, boats, or small utility vehicles and prefer lower-maintenance, brighter lighting with a clear wiring layout, this AUTO-GEKKO set is tailored to those needs.
