Autoround Front Wheel Hub & Bearing Assembly for Ford F-150 2000-2004 (5-Lug, ABS) — Pre-assembled OEM Fit

Autoround 515029 is a direct-fit front wheel hub and bearing assembly engineered for 4WD Ford F-150 (2000–2003) and F-150 Heritage (2004) with 5-lug wheels and ABS compatibility.

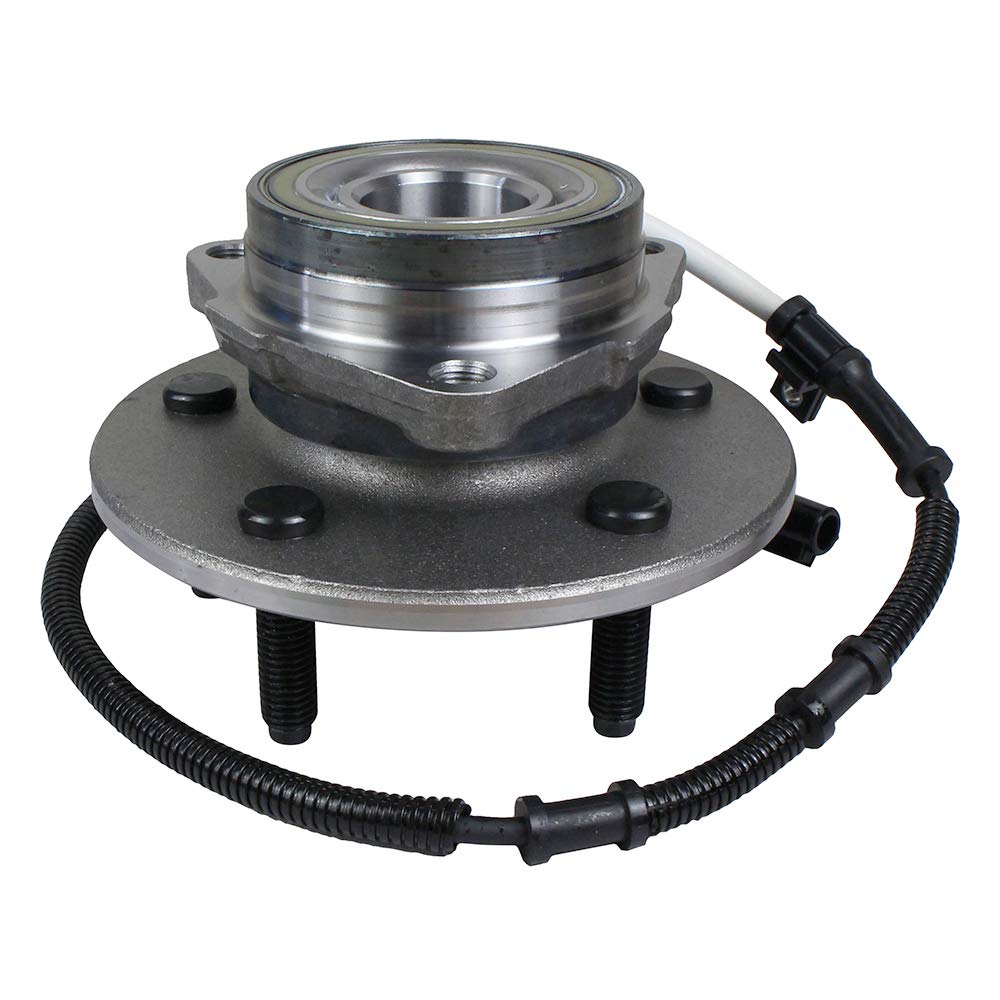

This wheel hub assembly replaces worn or noisy front hubs with a pre-assembled unit that combines the hub flange and sealed bearing. It restores wheel mounting accuracy and ABS tone ring functionality for trucks that use M14 wheel bolts and a five-stud configuration. The unit is built to match OEM dimensions so it integrates with the original knuckle, driveshaft and braking components.

How does this hub assembly restore wheel performance?

The Autoround 515029 contains a precision-sealed bearing and a machined flange that re-establish correct wheel runout and load distribution. That reduces vibration, uneven tire wear and the play that develops when bearings fail. You regain a solid wheel-to-knuckle interface and preserved ABS sensor signals.

• Factory-style sealed bearing to keep contaminants out and grease in

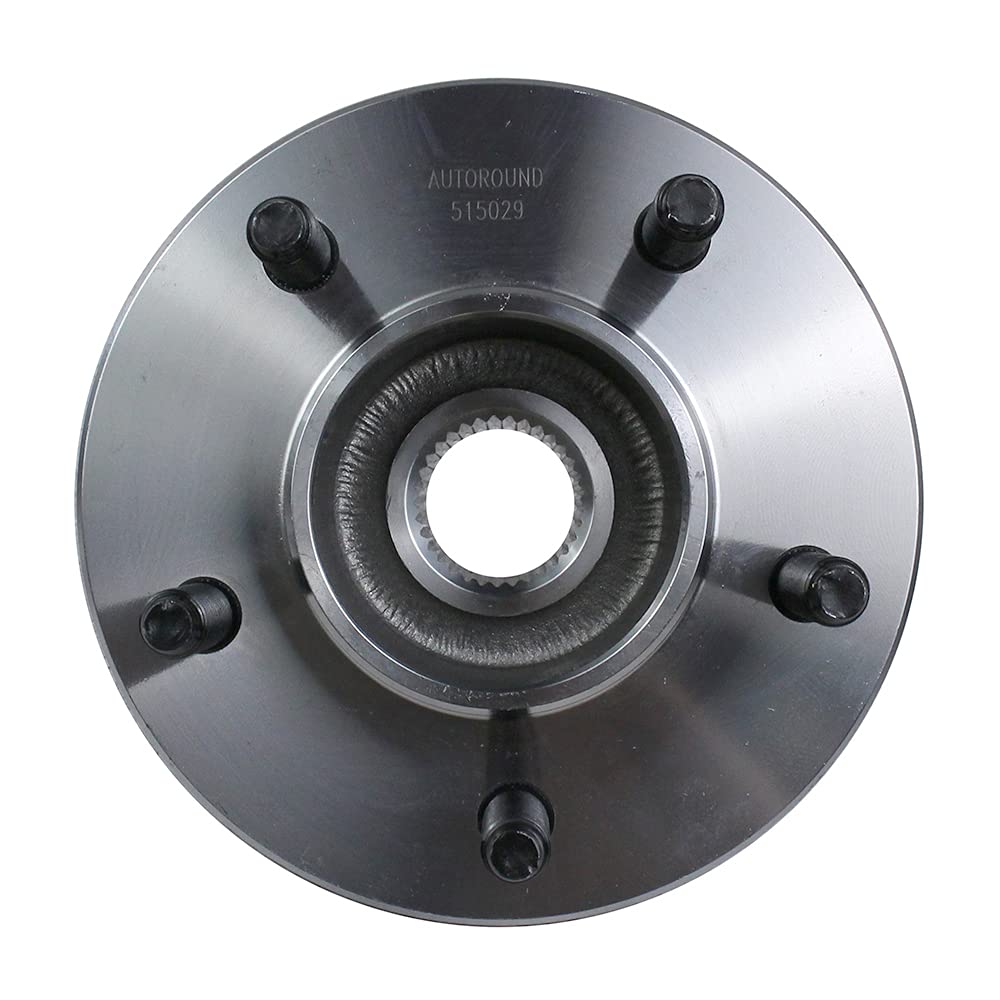

• Machined flange with exact bolt circle and offset for proper wheel alignment
• Integrated ABS tone ring to maintain sensor readings

Will this unit fit my Ford F-150 and what are the key specs?

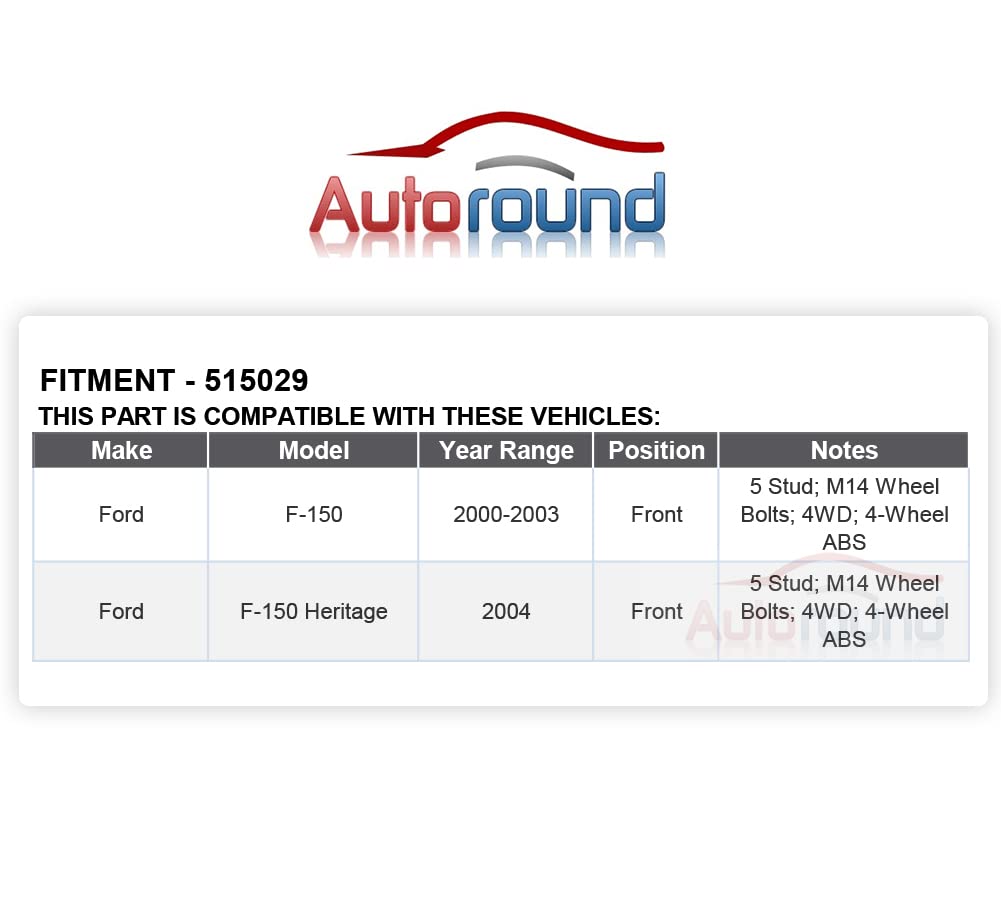

This assembly is made for front, 4WD Ford F-150 models from 2000–2003 and the 2004 F-150 Heritage that use M14 wheel bolts and a five-stud hub. Important dimensions match OEM: flange diameter, bolt circle, and offset so it bolts up without modification. It is intended for vehicles equipped with four-wheel ABS systems.

• Fits: 2000–2003 Ford F-150 (4WD) and 2004 F-150 Heritage (4WD)

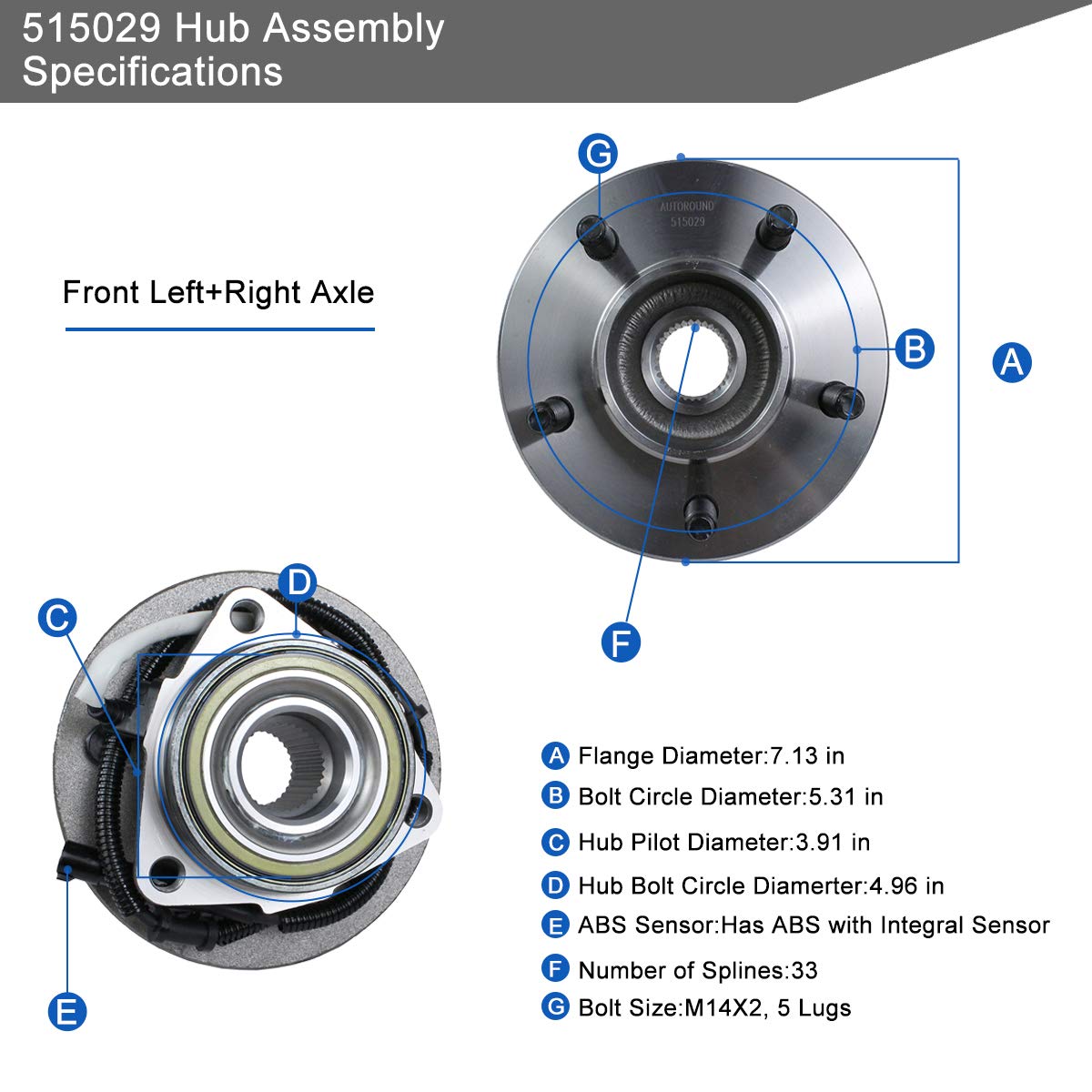

• Flange diameter: 7.13 in; flange offset: 1.95 in; bolt circle: 5.31 in
• Five-stud hub pattern, M14 wheel bolt compatibility, built-in ABS ring

How difficult is installation and what should I expect?

Installation is straightforward for anyone comfortable with front-hub service and basic suspension work. The replacement comes as a single pre-assembled unit, so you remove the old hub and press the new assembly onto the spindle or knuckle without separate bearing packing. Use proper torque and inspect seals and spindle surfaces before assembly for a long service life.

• Pre-assembled hub and bearing — no separate bearing or packing required
• Requires press or appropriate hub puller for removal of old unit
• Torque wheel and axle fasteners to factory specifications during reassembly

What quality assurances and support does Autoround provide?

Autoround tests its wheel hub assemblies to meet or exceed common OEM performance targets for fit and durability. The product is designed to replace several OEM part numbers and reduce the need for additional machining or modification. Autoround also offers a three-year after-sales support period to address installation questions or warranty needs.

• Manufactured to meet or exceed OEM fit and function standards
• Cross-references common replacement part numbers for easier identification
• Three-year after-sales service through Autoround customer support

Who is this for: The Autoround 515029 hub and bearing assembly is aimed at owners and technicians replacing worn front hubs on 4WD Ford F-150 trucks (2000–2003) and 2004 F-150 Heritage models. Choose this assembly if you want a direct-fit, pre-sealed unit with integrated ABS compatibility that simplifies installation and restores reliable wheel mounting for daily driving, towing or light-duty work.
