Autoround Wheel Hub Assembly for Ford Fusion 2013-2020 — 512498 Pre-Mounted Bearing & ABS Ring

The Autoround 512498 wheel hub assembly is a direct-fit front or rear replacement for numerous 2013–2020 Ford Fusion and select Lincoln MKZ models, integrating a pre-mounted bearing and ABS ring for ready installation.

Designed as a drop-in hub solution, this Autoround assembly replaces worn or noisy wheel hubs and restores correct wheel alignment, ABS sensor function and smooth rolling. It’s engineered to match factory mounting dimensions—bolt circle, flange diameter and offset—so technicians and experienced DIYers can swap it in without modifying suspension components.

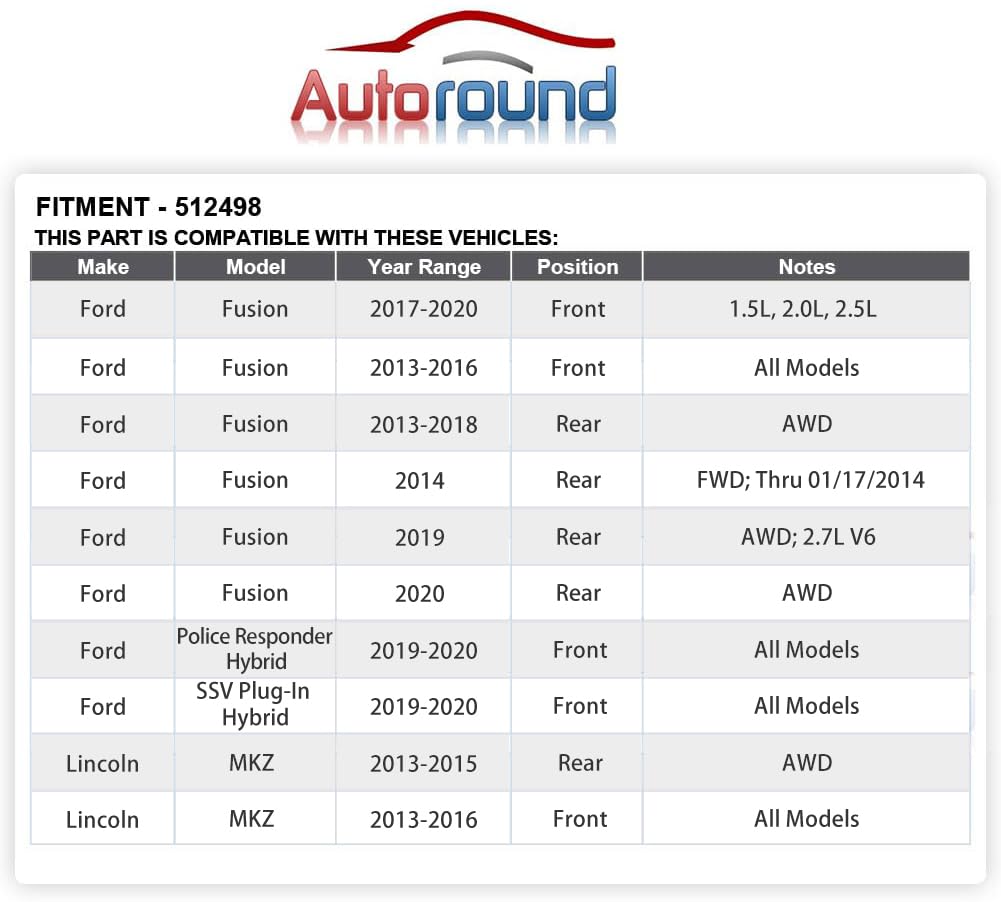

Which model years and configurations does this hub assembly fit?

This 512498 hub is specified for multiple Fusion and MKZ applications across front and rear axles. Fitment covers front hubs on Fusion 2013–2016 and 2017–2020 (including 1.5L, 2.0L, 2.5L), rear hubs for AWD and select FWD/engine variations, plus compatible Lincoln MKZ years noted below.

• Front: Ford Fusion 2013–2016; 2017–2020 (1.5L, 2.0L, 2.5L), Police Responder/SSV plug-in hybrids 2019–2020
• Rear: Ford Fusion AWD 2013–2018, 2019–2020 (specific engine/AWD configurations)
• Lincoln MKZ: front 2013–2016, rear 2013–2015 (AWD)

How does this hub assembly meet safety and durability expectations?

Autoround tests its wheel bearing and hub assemblies against OEM performance metrics to ensure long-term reliability and consistent ABS input. The unit includes a sealed bearing and integrated ABS tone ring to protect internal components from contaminants and preserve sensor signals.

• Pre-assembled bearing and hub for sealed protection
• Integrated ABS ring to maintain sensor accuracy
• Manufacturing tolerances designed to meet or exceed OEM standards

What are the key dimensions and hardware features I should verify?

Before purchasing, confirm the vehicle’s hub specifications match this assembly: 5 lug pattern, flange diameter 135.7 mm, bolt circle diameter 4.24 in and flange offset 47.9 mm. The 512498 also replaces specific OEM references, helping cross-check parts lists during ordering.

• 5-lug configuration for correct wheel fitment
• Flange diameter: 135.7 mm; bolt circle: 4.24 in; flange offset: 47.9 mm
• Replaces OEM references such as HA590481, 1801428, BR930913

Is installation straightforward and what support does Autoround provide?

The assembly ships pre-mounted and ready to install, simplifying replacement work and cutting labor time. Autoround offers a 3-year quality assurance period and customer support channels for fitment questions and post-purchase help.

• Ready-to-install pre-assembled hub and bearing
• Engineered for precise fit to factory mounting points
• 3 years QA and Autoround Customer Service available for assistance

Who this product is for: mechanics, automotive shops and knowledgeable DIY owners who need a direct-fit hub and bearing replacement for affected Ford Fusion and Lincoln MKZ vehicles. Choose the Autoround 512498 when you want a sealed, ABS-compatible assembly that matches OEM mounting dimensions and minimizes installation complexity.
