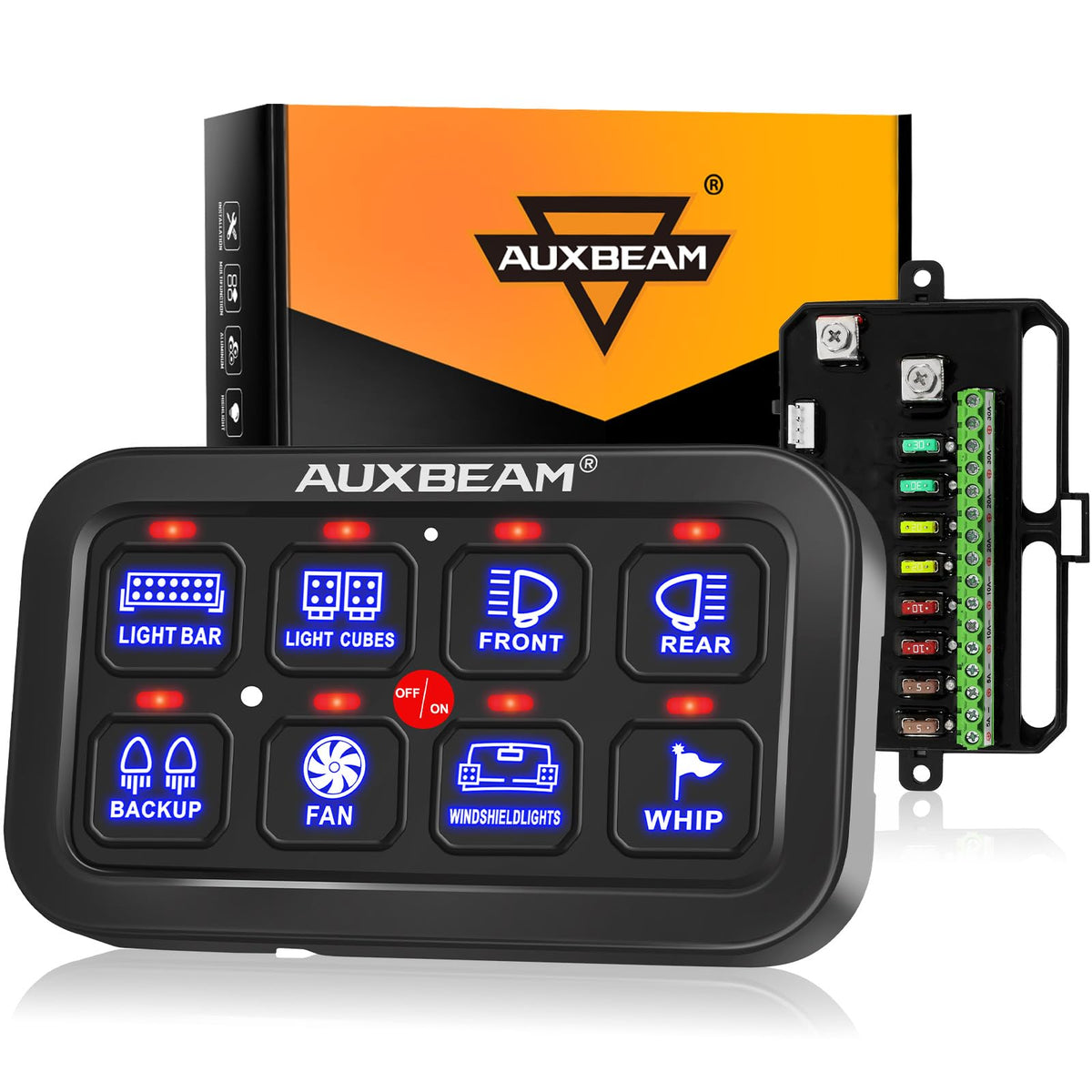

Auxbeam 8-Gang Switch Panel BA80 — 12–24V, IP65, Dimmable Backlight & Solid-State Relays

The Auxbeam 8 Gang Switch Panel (model BA80) centralizes control of lights and accessories in vehicles, boats, and off-road rigs without bulky external relays or complex wiring. Designed for 12–24V systems, it combines an IP65-rated housing, integrated protection circuits, and a dimmable backlight to simplify installation and improve in-vehicle ergonomics.

How does the BA80 protect my electrical system?

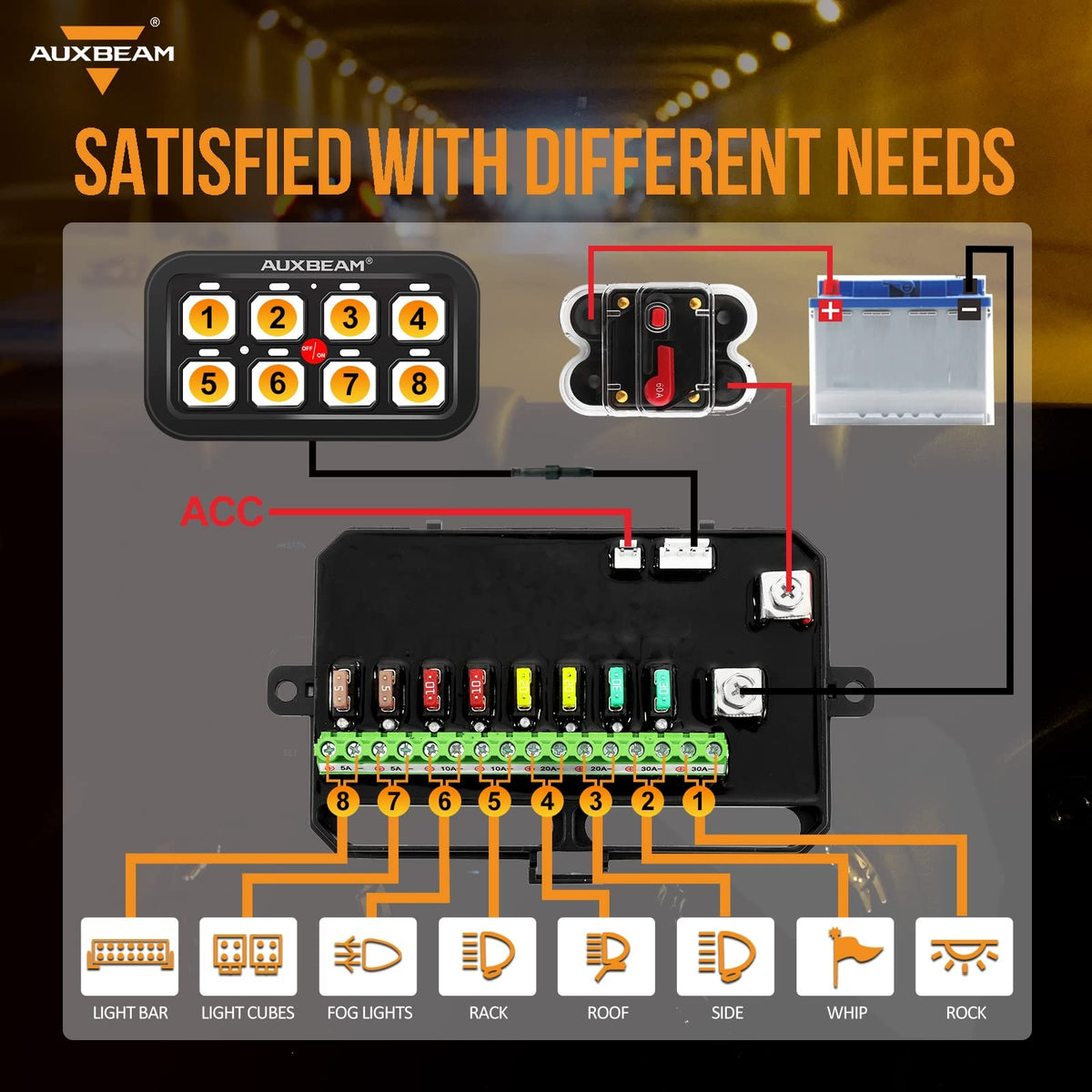

The BA80 includes built-in solid-state relays and multiple safety layers to keep connected accessories safe. Protection features reduce wiring clutter and remove the need for separate relay blocks while safeguarding devices from common faults.

• Over-voltage and reverse-polarity protection to prevent damage from incorrect wiring or spikes.

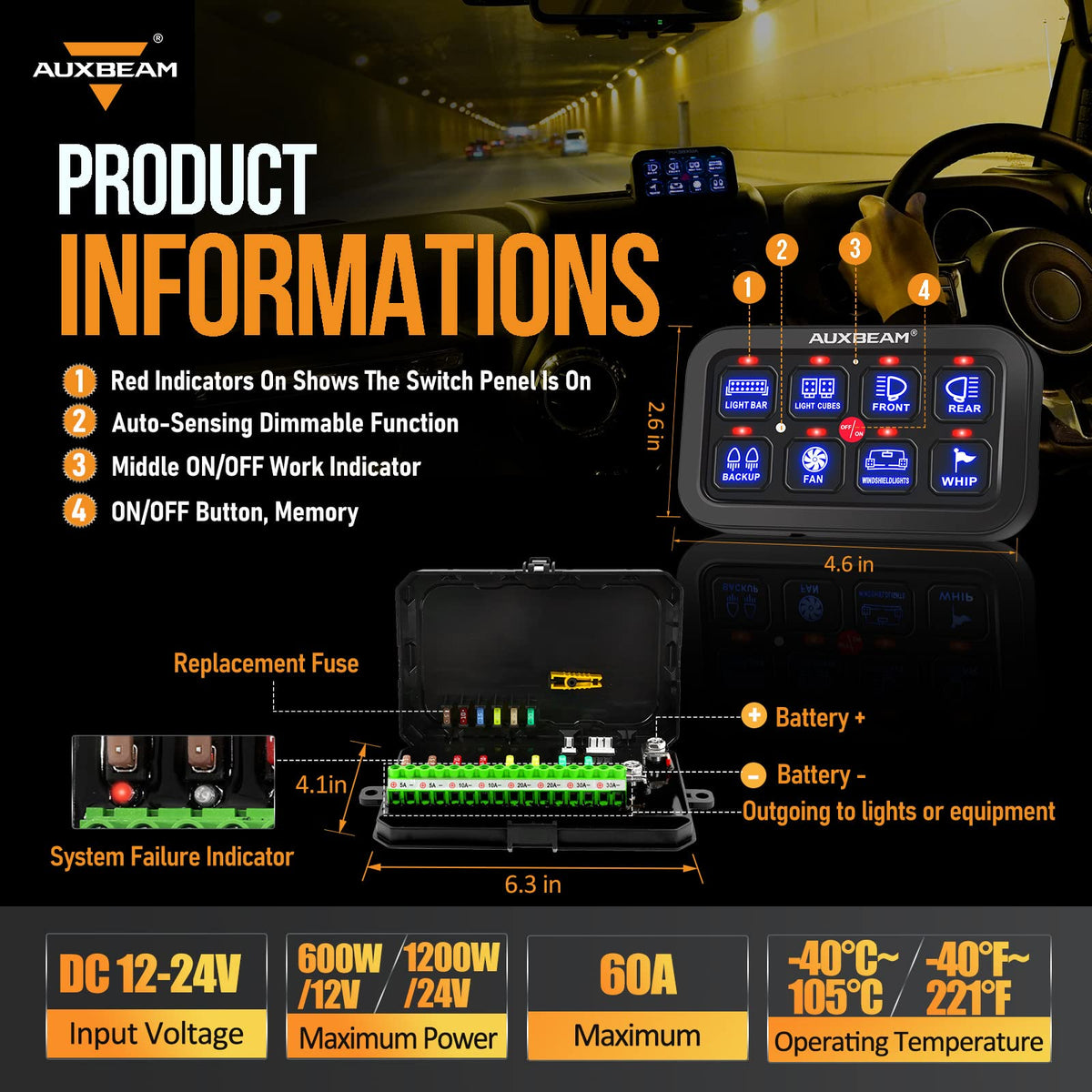

• Over-current and thermal protection with replaceable fuses for user serviceability.
• Solid-state relays reduce mechanical wear and improve response stability in harsh environments.
• IP65-rated enclosure helps resist dust and water exposure for off-road and marine use.

What electrical loads can one panel handle?

The BA80 supports both 12V and 24V systems, with per-channel and total current considerations to match a range of accessories. Check your accessory power draw and match it to the panel ratings before installation.

• Operating voltage: DC 12–24V compatible with most vehicle and marine systems.

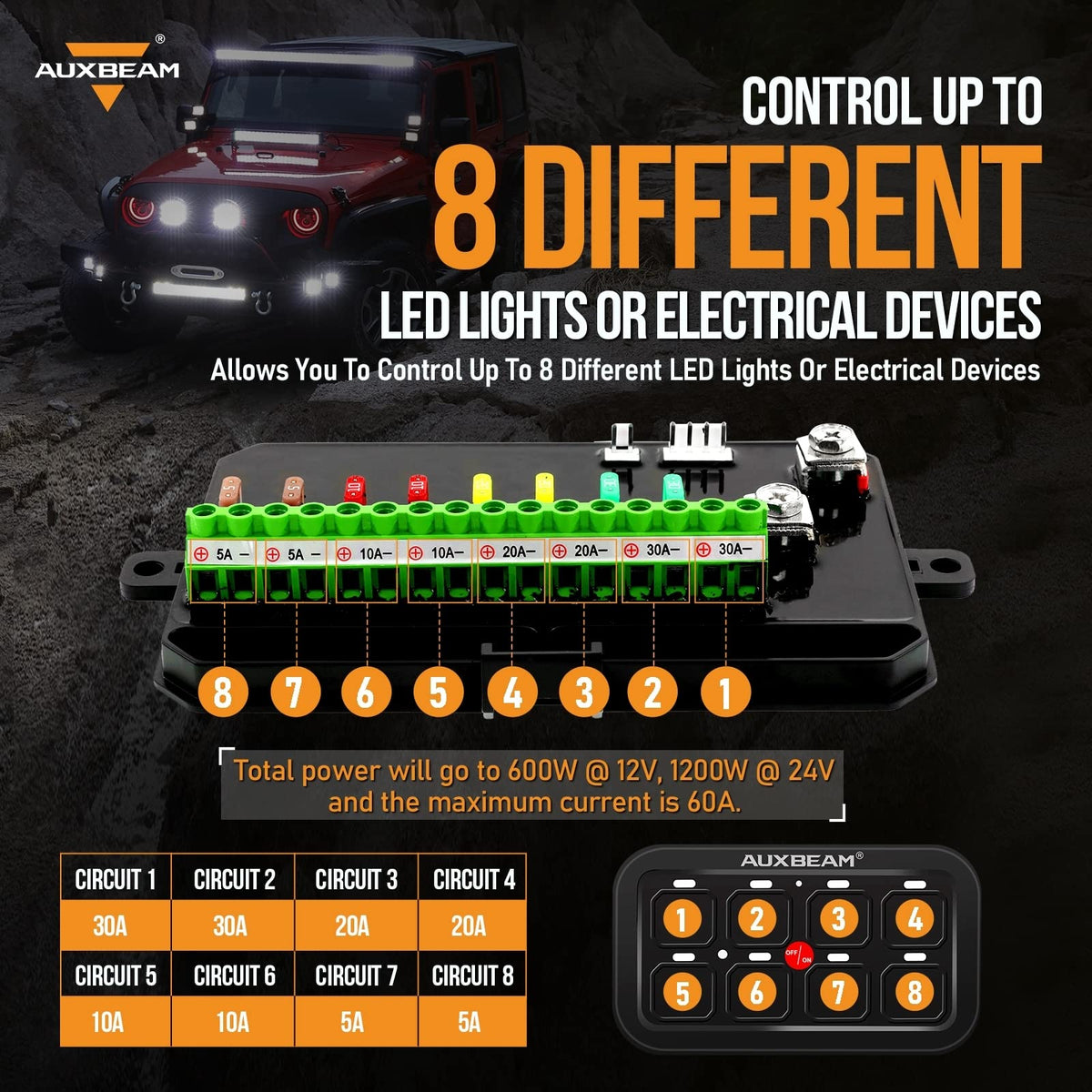

• Max current: 60A total; per-channel ratings typically 12V: 20A, 24V: 10A.
• Maximum power: at 12V up to 600W and at 24V up to 1200W across channels.
• Suitable for LED light bars, auxiliary lights, pumps, compressors, and electronics within these limits.

How easy is installation and labeling?

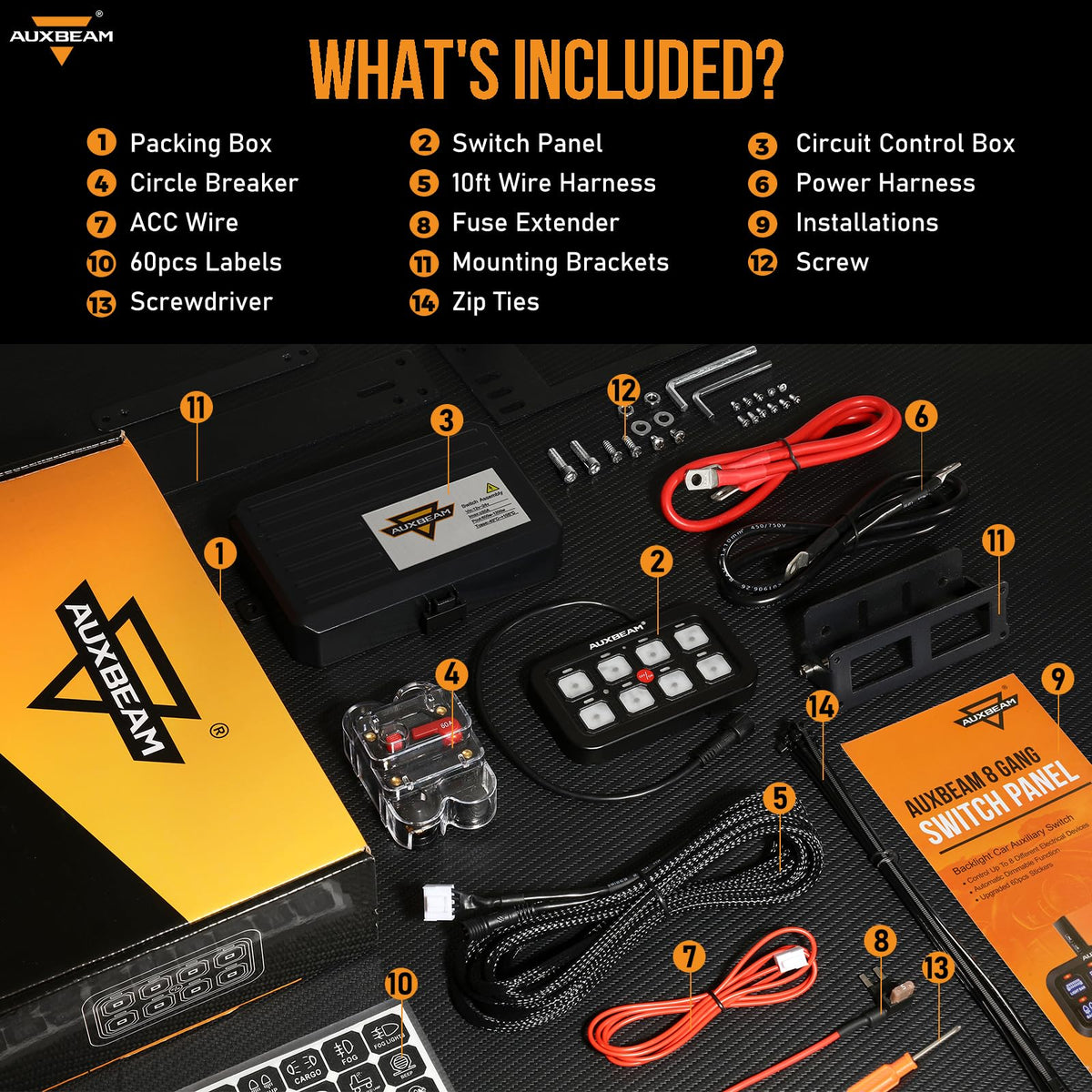

Auxbeam designed the BA80 for straightforward mounting and connection with plug-and-play harnesses and two bracket options. The panel ships with adhesive labels so you can identify each circuit quickly and keep wiring tidy.

• Plug-and-play wiring harnesses reduce time and eliminate cutting large dashboard holes.
• Two mounting brackets allow flush or angled installations in tight dashboards.
• Includes 60 self-adhesive labels to customize each switch’s function and keep controls intuitive.
• Compact footprint conserves space in vehicles, boats, and powersports machines.

What does the automatic dimmable backlight do for night driving?

The BA80’s backlight adjusts to ambient light, ensuring switches remain visible without creating glare at night. It adapts automatically so daytime brightness is higher and night lighting is softened for safer, more comfortable operation.

• Ambient light sensor changes backlight intensity based on surrounding brightness.
• Improved night visibility without distracting glare for safer cockpit control.
• Consistent labeling readability under varying light conditions for quick identification.

Who is this for: The Auxbeam BA80 is aimed at vehicle owners, boat operators, and powersports enthusiasts who want a compact, reliable, and protected way to centralize accessory control. It suits installers and DIYers who prefer a tidy, plug-and-play solution with solid-state reliability, automatic backlight adjustment, and a robust set of protections for LED lights, pumps, winches, and other 12–24V accessories.
