BACOENG R32 AC Vacuum Pump and Gauge Set — 4 CFM Sparkless HVAC Kit for R32/R134a/R410A (Includes Hoses & Adapters)

BACOENG R32 AC Vacuum Pump and Gauge Set is a complete 4 CFM HVAC evacuation kit with a sparkless motor and multi-refrigerant compatibility for fast, safe system pull-downs.

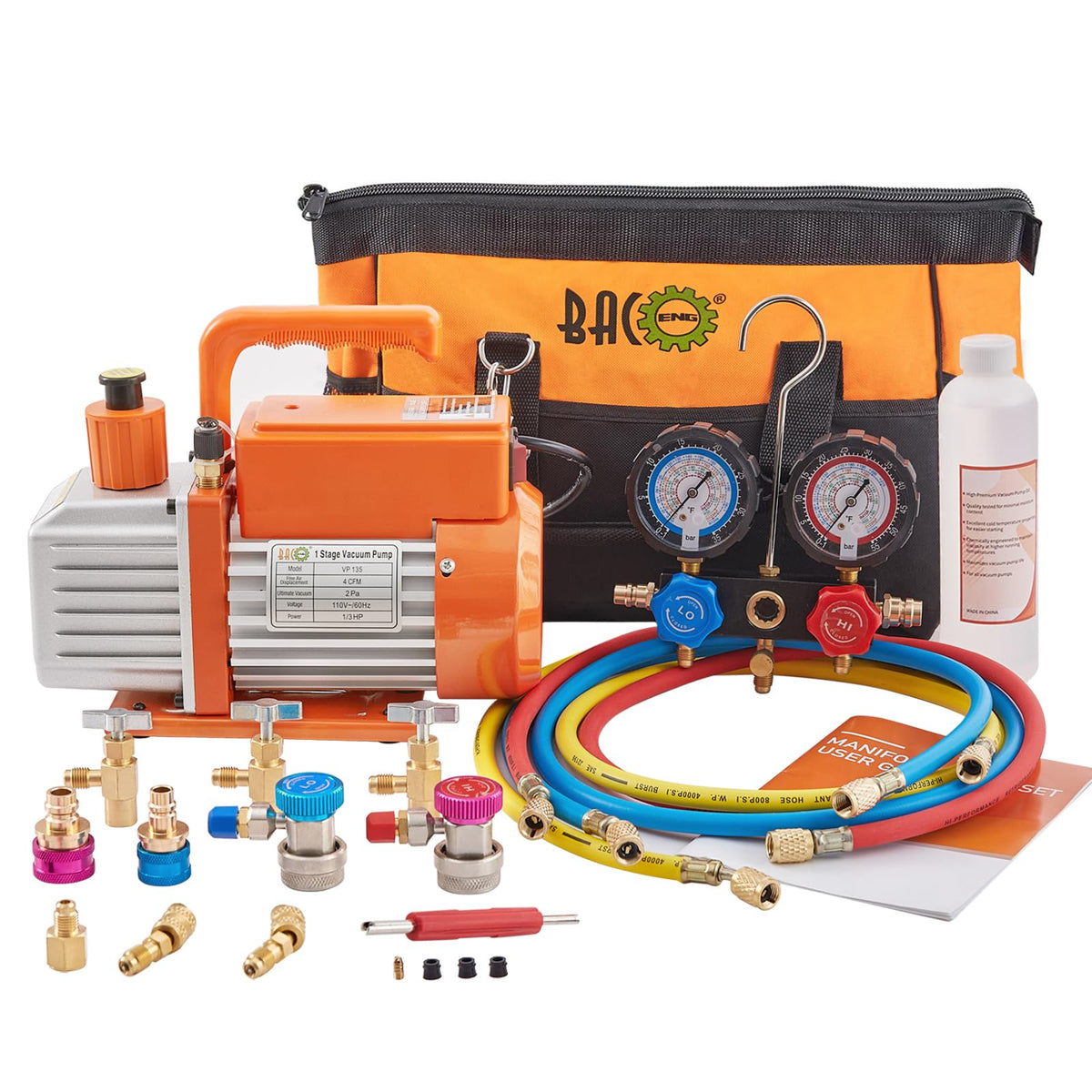

This all-in-one service kit combines a 4 CFM, 1/3 HP sparkless vacuum pump with a 3-way manifold gauge, hoses, adapters and can taps to support R32, R134a, R1234yf and R410A systems. Designed for comfort- and vehicle-AC work, mini-splits, and light commercial jobs, the set packs practical fittings and safety features so you can evacuate and charge refrigeration circuits without hunting for extra tools.

How does the BACOENG pump speed up evacuations?

The pump’s 4 CFM flow rate and high-torque copper motor move air quickly from systems, helping you reach deep vacuum levels faster. It’s rated to pull down toward 15 microns (about 2 Pa), so you spend less time waiting for an acceptable evacuation before charging.

• 4 CFM (cubic feet per minute) pumping capacity for rapid evacuation.

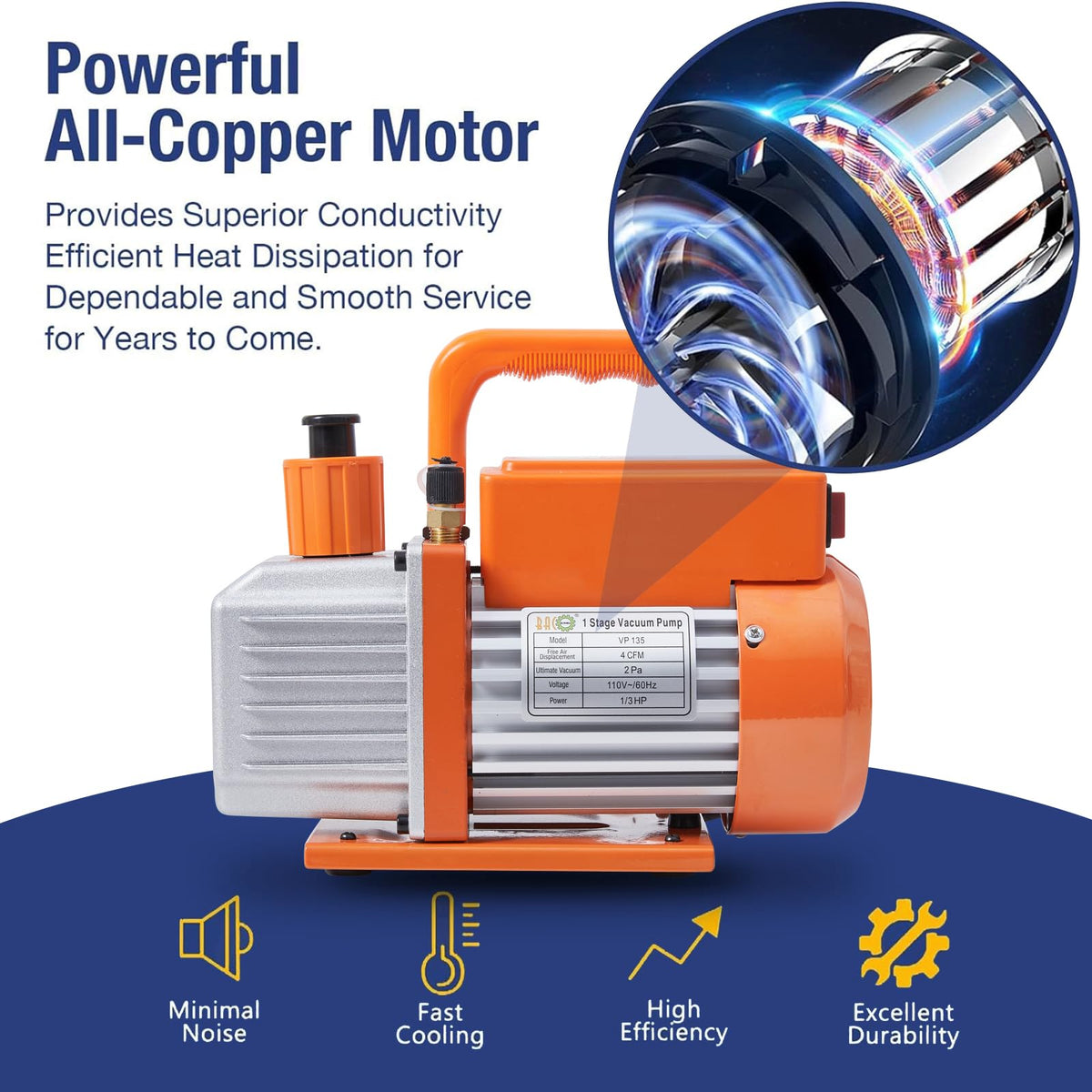

• 1/3 HP motor with copper windings for sustained power and longevity.
• Capabilities to approach 15 microns for thorough moisture and air removal.
• 110V supply compatible with standard workshop outlets.

What safety and convenience features are included?

The vacuum pump includes a sparkless design and an ignition-proof ON/OFF switch to reduce ignition risk when working around flammable refrigerants. The gauge assembly uses color-coded hoses and a durable hook for convenient setup and safer handling on ladders or equipment frames.

• Sparkless motor and ignition-proof switch for safer field operation.

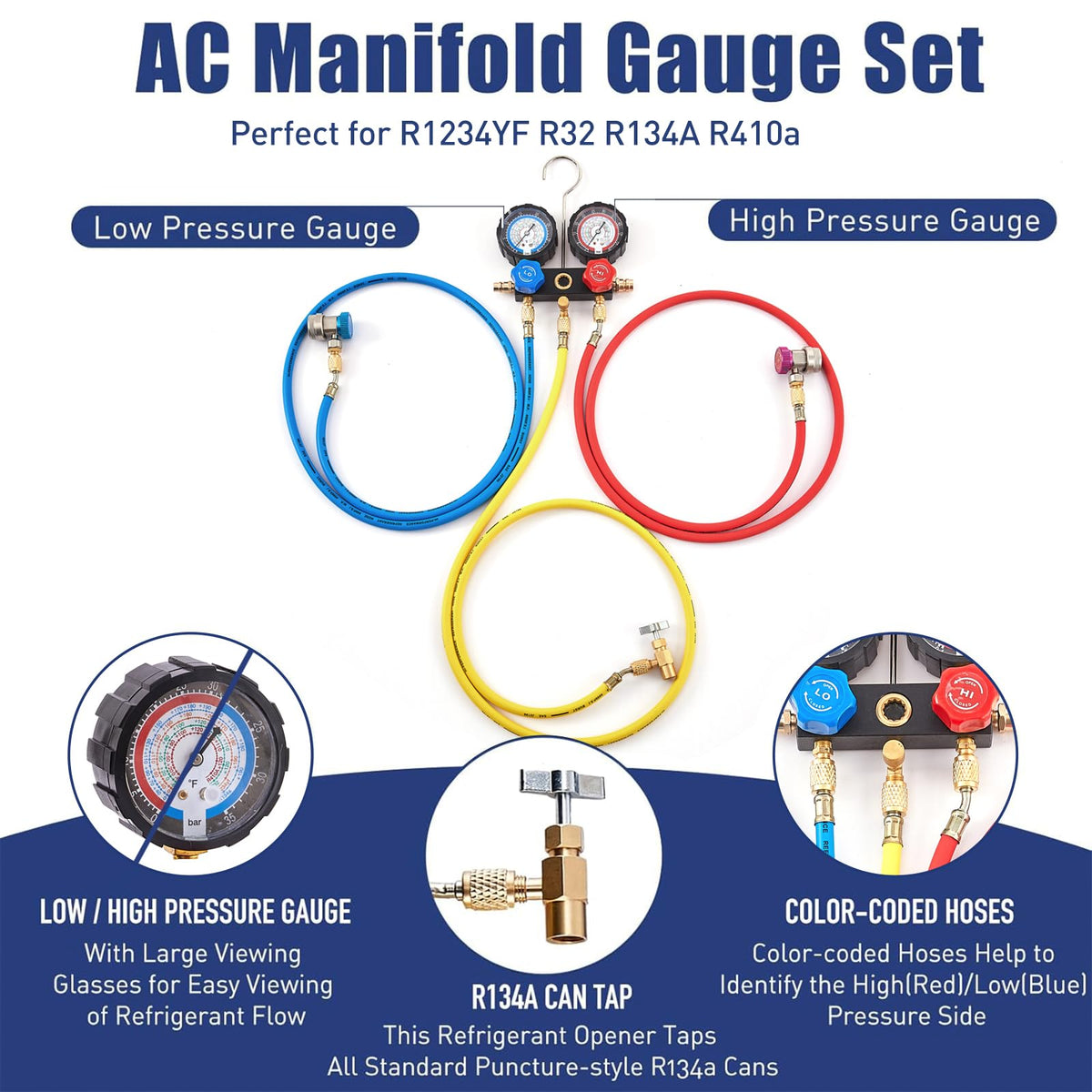

• Color-coded (red, blue, yellow) 5ft hoses for quick, accurate connections.
• Gauge working pressure to 800 psi and burst-rated to 4000 psi for reliability.
• Manifold hook for easy positioning while servicing units.

Which fittings and refrigerants does this kit support?

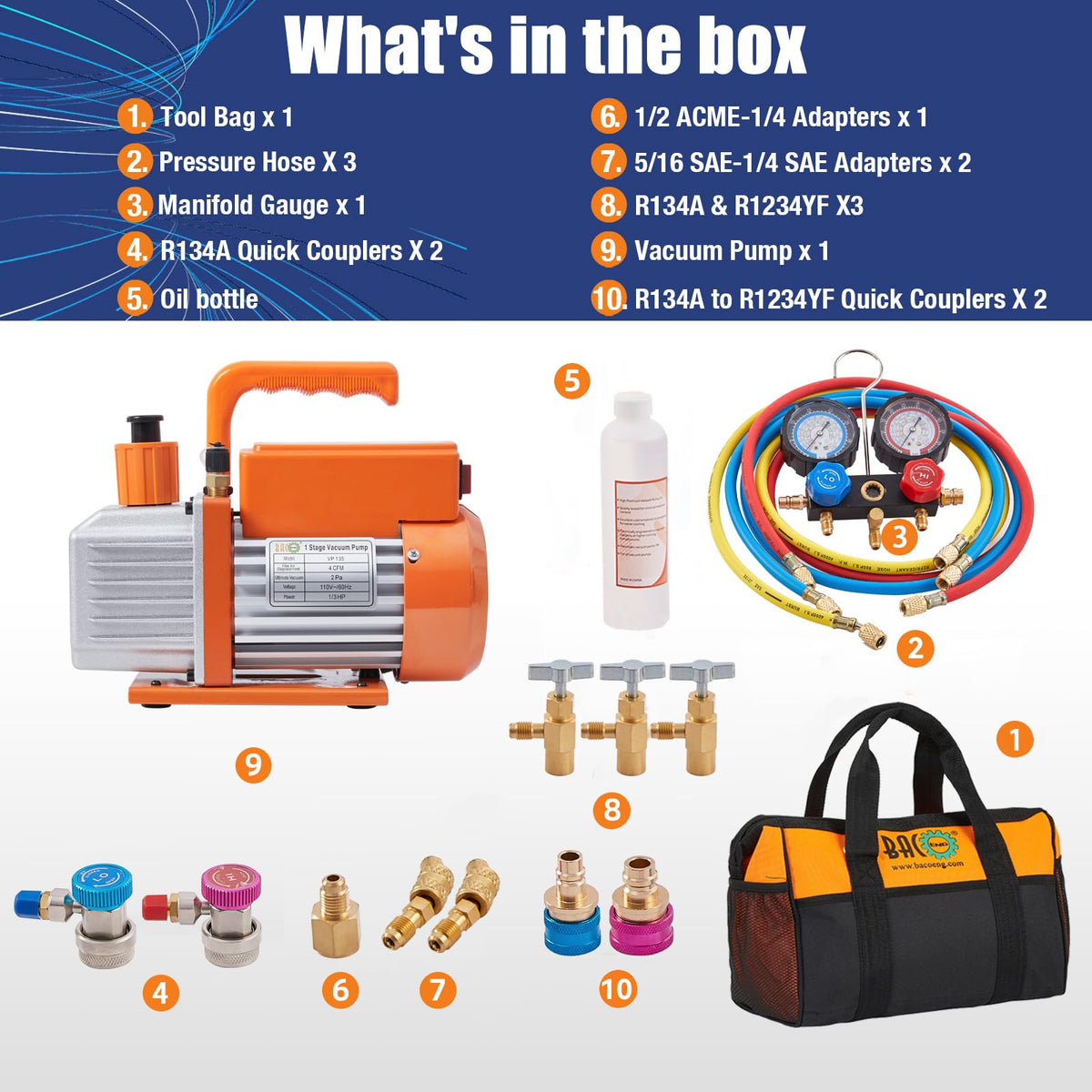

This kit ships with a broad set of adapters and taps so you can service multiple system types without extra purchases. Included fittings cover popular automotive and split-system standards and quick couplers for R134a plus adapters for R410A and R1234yf compatibility.

• R134a & R1234yf can taps and R134a quick couplers included.
• R134a-to-R1234yf adapters for cross-compatibility.
• Two 1/4" SAE male to 5/16" SAE female R410a adapters and a 1/2" ACME to 1/4" adapter.
• Three 5ft flexible rubber hoses for reach and durability.

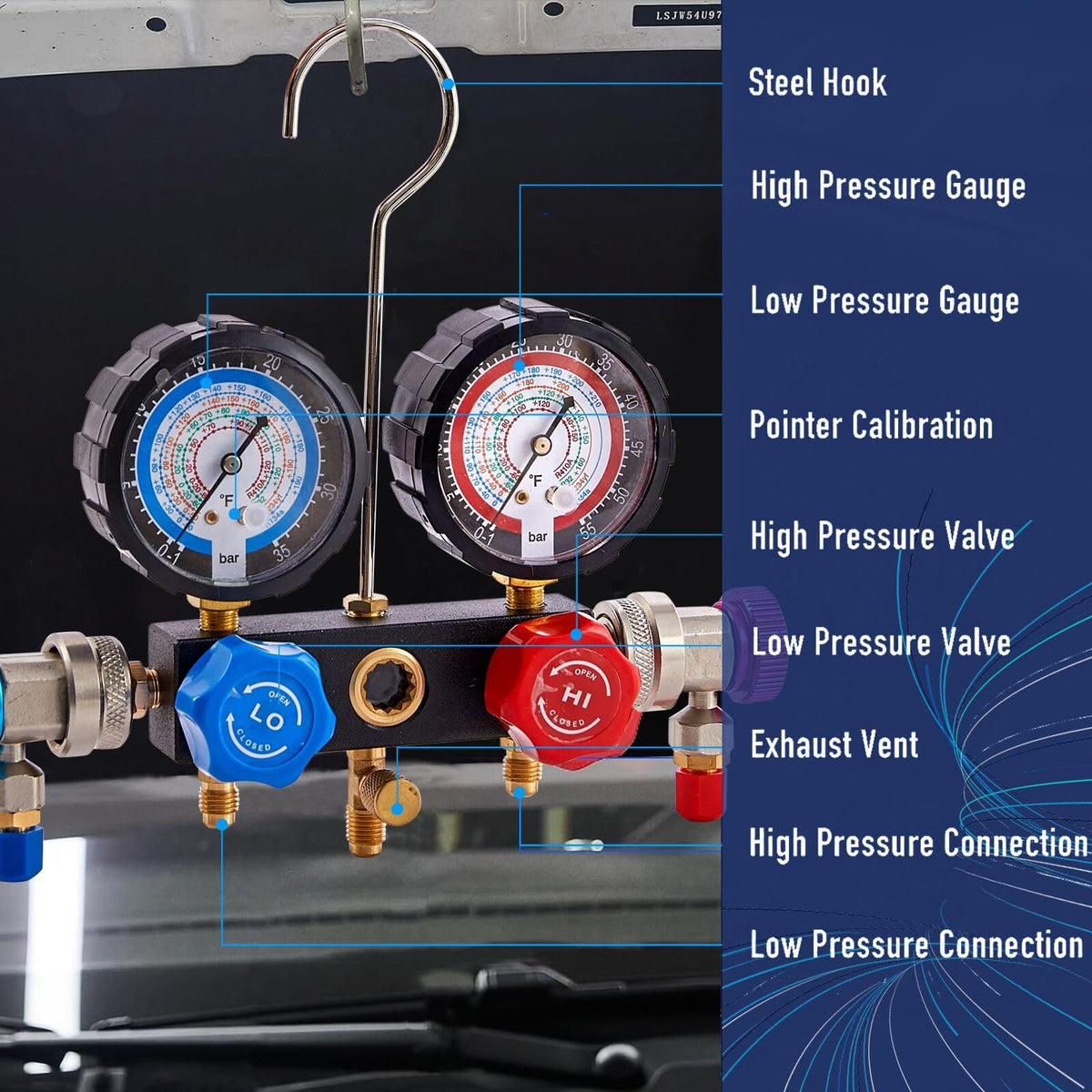

How accurate and durable is the manifold gauge?

The three-way manifold gauge provides dependable pressure readings for charging and leak checks across a range of refrigerants. Its construction combines clear color coding and heavy-duty hoses to withstand workshop use while keeping measurements straightforward.

• Three-port manifold for high, low and service connections.
• Durable rubber hoses that resist kinking and damage in daily use.
• Clear markings and color cues for fast identification during service.

Who is this for: The BACOENG R32 AC Vacuum Pump and Gauge Set is made for HVAC technicians, mobile AC mechanics, and informed DIYers who maintain mini-split units, vehicle air conditioning, or small commercial refrigeration. If you need a portable, multi-refrigerant evacuation kit with a spark-resistant motor and a broad selection of adapters and hoses, this set provides the core tools to evacuate, test and prepare systems for charging without buying multiple specialty parts.
