BELKEBIR VTEC Solenoid Spool Valve Assembly with Oil Pressure Switch & Gasket — Direct-Fit for 2.4L Honda/Acura (2002–2011)

BELKEBIR's VTEC solenoid spool valve assembly replaces worn OEM units to restore proper VTEC oil pressure control and reliable variable valve timing operation.

This replacement kit includes the spool valve, integrated oil pressure switch and a gasket engineered to match factory fitment for many 2002–2011 Honda and Acura 2.4L engines. It’s designed as a direct-fit alternative to worn or failing OEM parts (examples: 15810-RAA-A03, 15810-PNE-G01 and equivalents) so you can quickly address VTEC-related drivability issues without extensive modification.

How does this solenoid assembly affect engine behavior?

The VTEC solenoid regulates oil flow to the cam phasing mechanism so the engine can switch between cam profiles. When the solenoid and pressure switch operate correctly, the engine transitions smoothly between low- and high-lift cam profiles, improving throttle response and preserving fuel economy characteristics.

• Restores correct VTEC oil pressure modulation for consistent cam switching.
• Improves throttle responsiveness under load and acceleration.
• Helps prevent erratic VTEC engagement and related check-engine codes.

Is this BELKEBIR unit compatible with my Honda or Acura model?

This assembly is made to fit a range of 2.4L L4 applications from the early 2000s through 2011. Confirm compatibility using your vehicle year, engine code and the listed OEM part numbers to ensure the correct match before purchase.

• Compatible years and models include: 2003–2007 Accord, 2002–2004/2005 Civics (specific submodels noted), 2002–2009 CR-V, 2003–2011 Element, 2002–2006 RSX.
• Replaces OE numbers such as 15810-RAA-A03, 15810-PNE-G01, 15810-PPA-A01 and related equivalents.
• Inspect engine code and compare OEM references for a direct-fit swap.

What materials and quality controls are used in this replacement part?

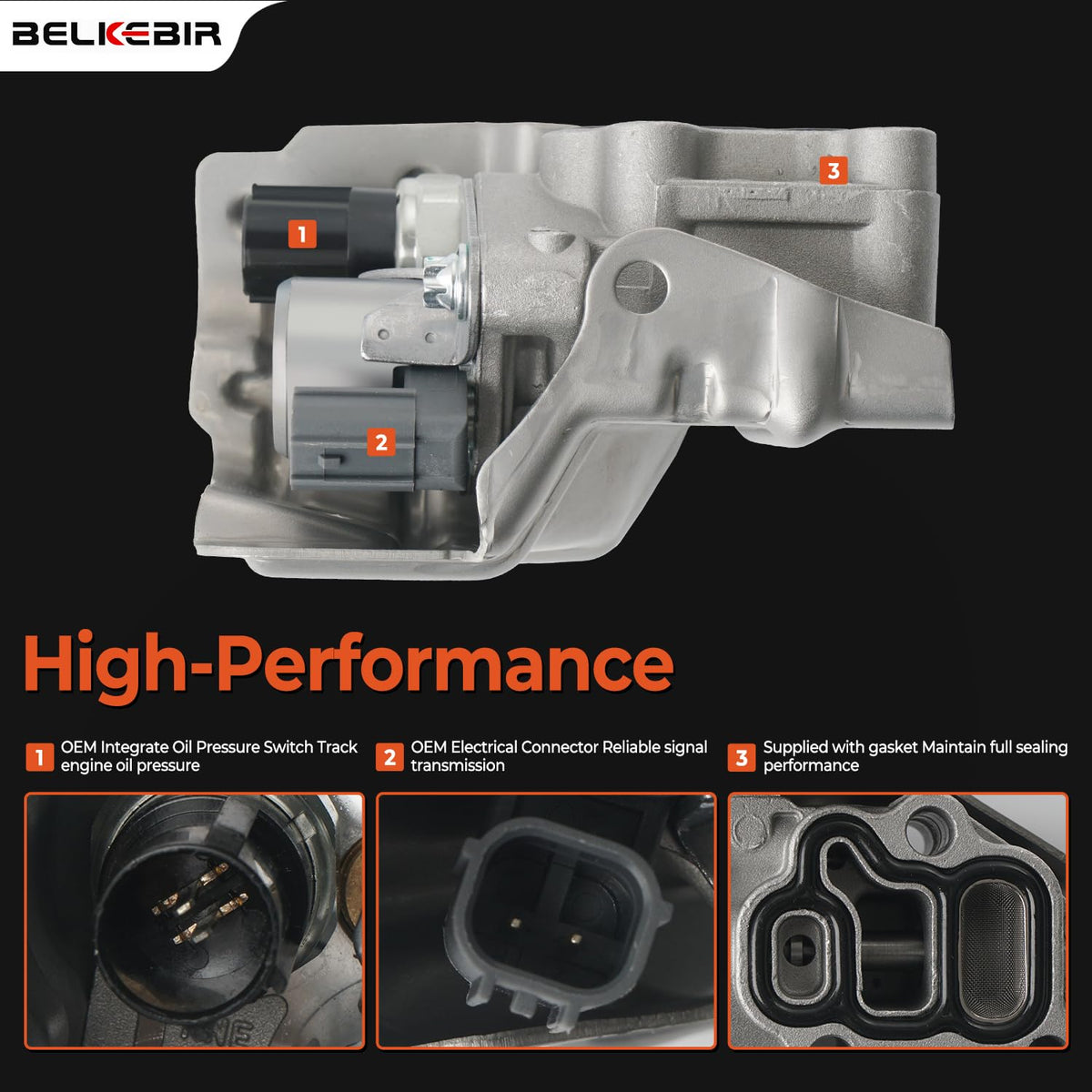

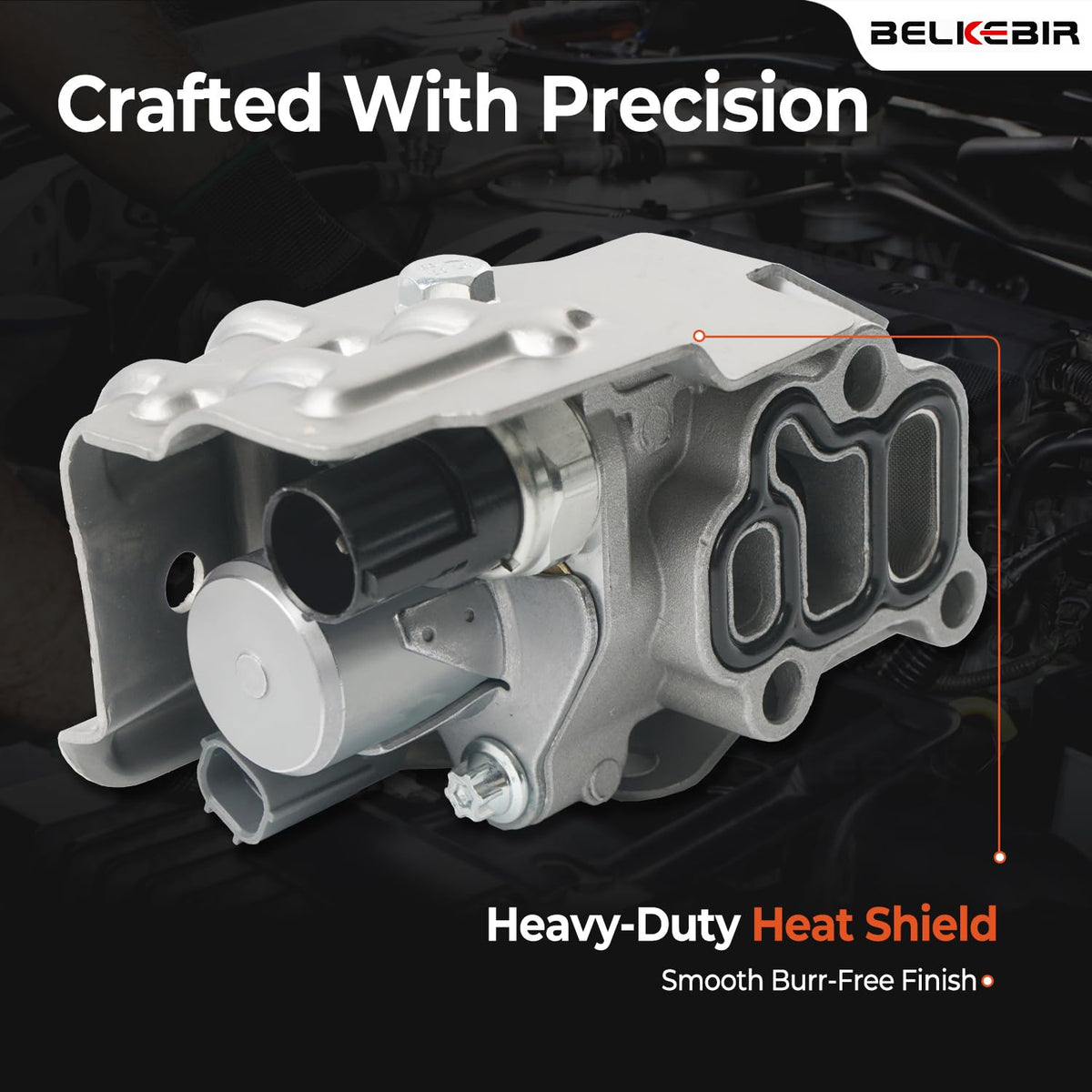

BELKEBIR manufactures the spool valve from high-strength aluminum alloy with precision CNC machining to withstand elevated temperatures and resist corrosion. The included oil pressure switch and gasket are selected for durability and sealing performance to reduce leak points after installation.

• High-strength aluminum alloy body for heat and corrosion resistance.
• Precision CNC machined spool and housing for accurate tolerances.
• Supplied gasket and pressure switch for a complete, sealed assembly.

How difficult is installation and what should I watch for?

Installation is typically straightforward for anyone comfortable with basic engine work; it usually requires removing the existing solenoid, transferring any retained hardware, and torquing to factory specifications. Clean mating surfaces and double-check electrical connections to the oil pressure switch to avoid future faults.

• Recommended tools: basic hand tools, torque wrench, and cleaner for mating surfaces.
• Ensure correct orientation and torque values per factory service manual.
• Clear any related diagnostic codes after installation and test drive for normal VTEC engagement.

Who is this for: Technicians, DIY enthusiasts and owners of compatible Honda or Acura 2.4L vehicles who are experiencing VTEC faults, rough transitions, or who need a dependable OEM-equivalent replacement. Choose this BELKEBIR assembly when you want a precision-machined, drop-in part that includes the oil pressure switch and gasket for a complete repair solution.
