BETOOLL Compression Tester Kit 13pc — 0–300 PSI Gauge with Spark Plug Tester, Triple-Scale Dial

BETOOLL 13-piece compression tester with built-in spark plug tester is a handheld diagnostic kit that measures engine cylinder compression up to 300 PSI and checks ignition spark quickly and reliably.

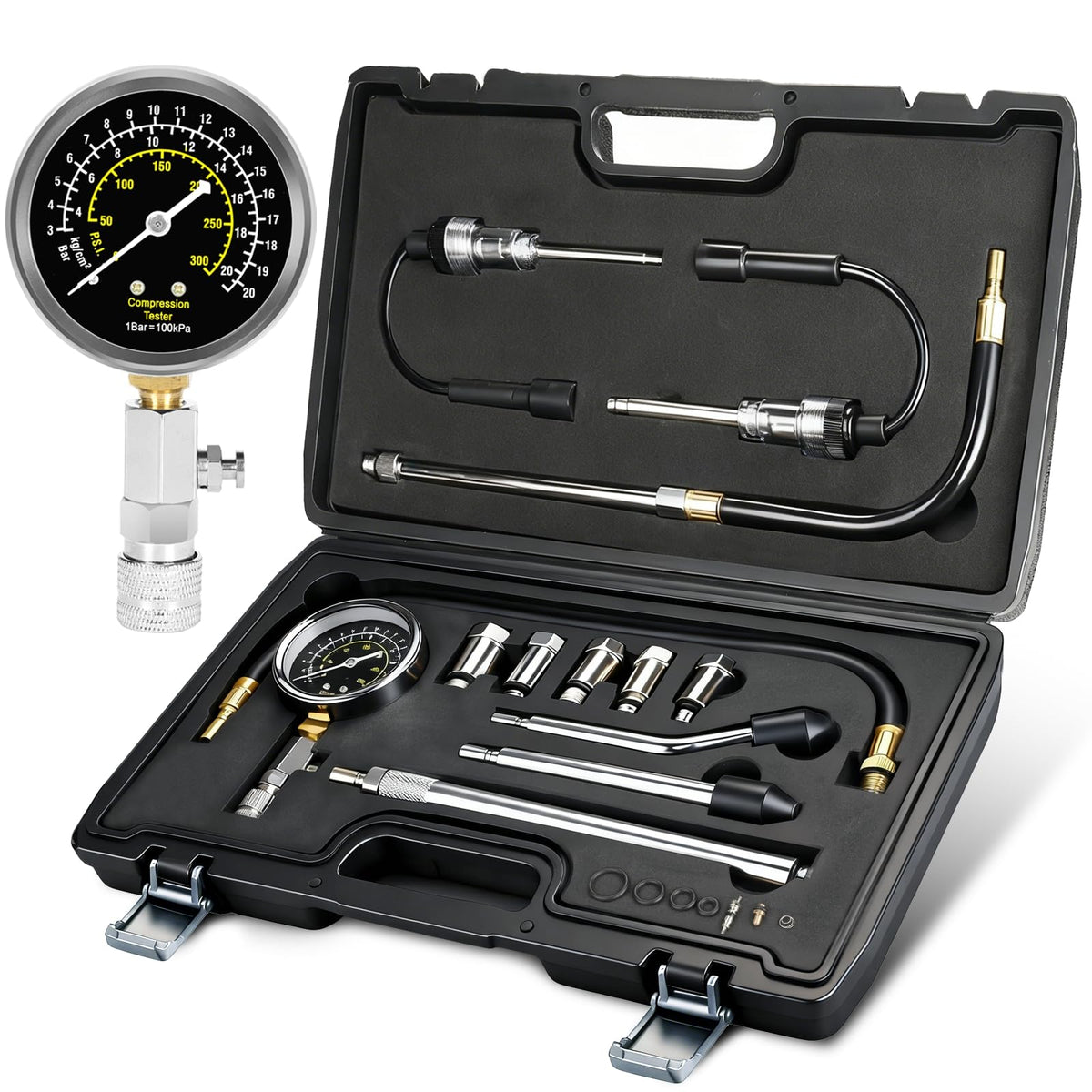

When an engine runs rough, stalls, or lacks power, measuring compression and confirming spark are two essential first steps to isolate cylinder, valve, piston ring, or ignition faults. This compact kit contains a triple-scale gauge (PSI, bar, kg/cm²), a one-handed release valve, a spark plug test circuit with indicator light, and ten adapters to fit a wide variety of petrol engines used in cars, trucks, boats, lawn equipment, and ATVs.

How does the compression gauge help diagnose engine issues?

The gauge reports peak cylinder pressure so you can compare readings between cylinders and spot leaks or weak compression. Consistent low readings or wide variances can indicate worn rings, leaking valves, or head gasket failure.

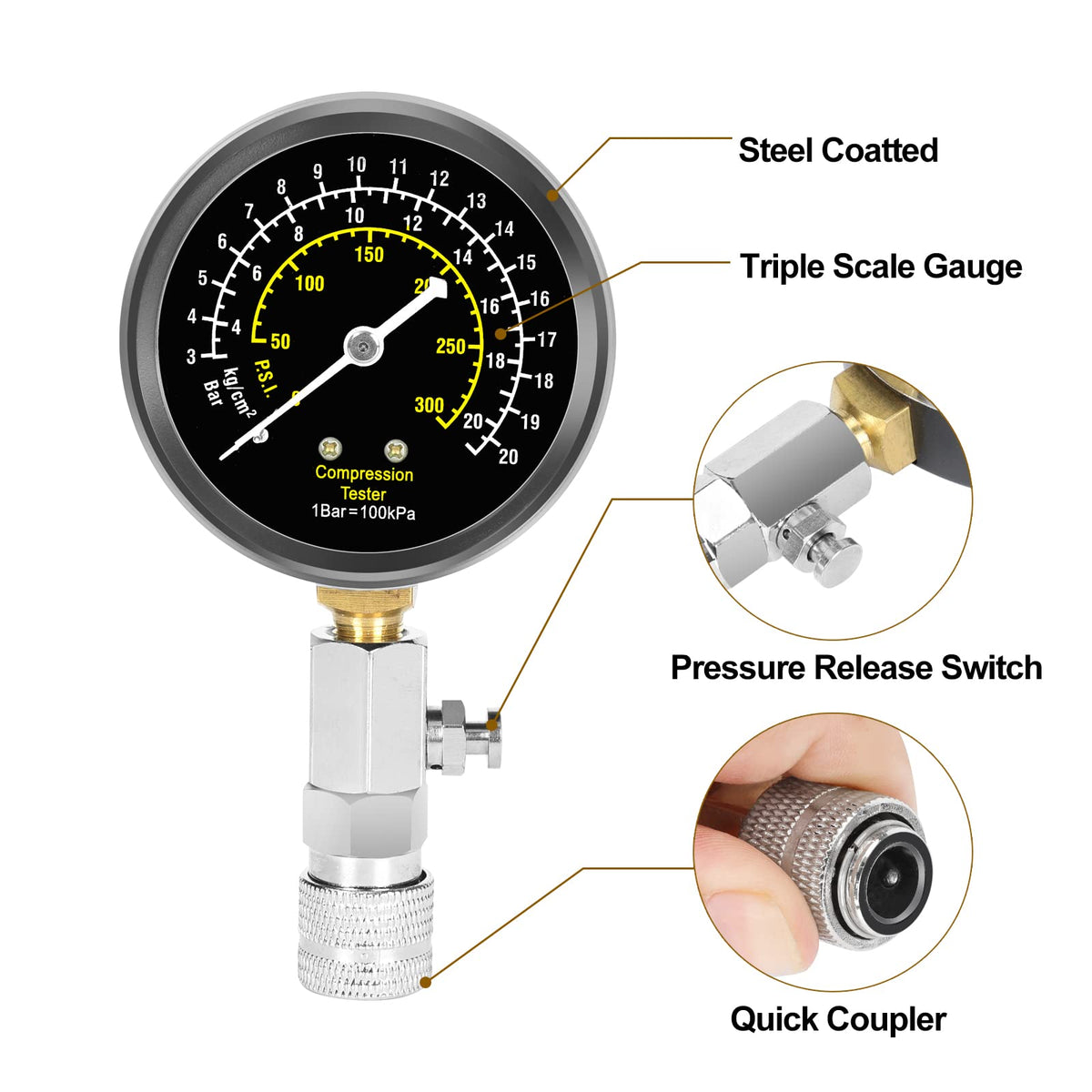

• Triple-range dial: 0–300 PSI, 0–20 bar, 0–21 kg/cm² for universal readability
• Quick-connect adapters for spark plugs and threaded ports
• Clear analog dial for immediate visual comparison across cylinders
• Relief valve enables controlled depressurization after tests

Can the kit check ignition spark and how is that useful?

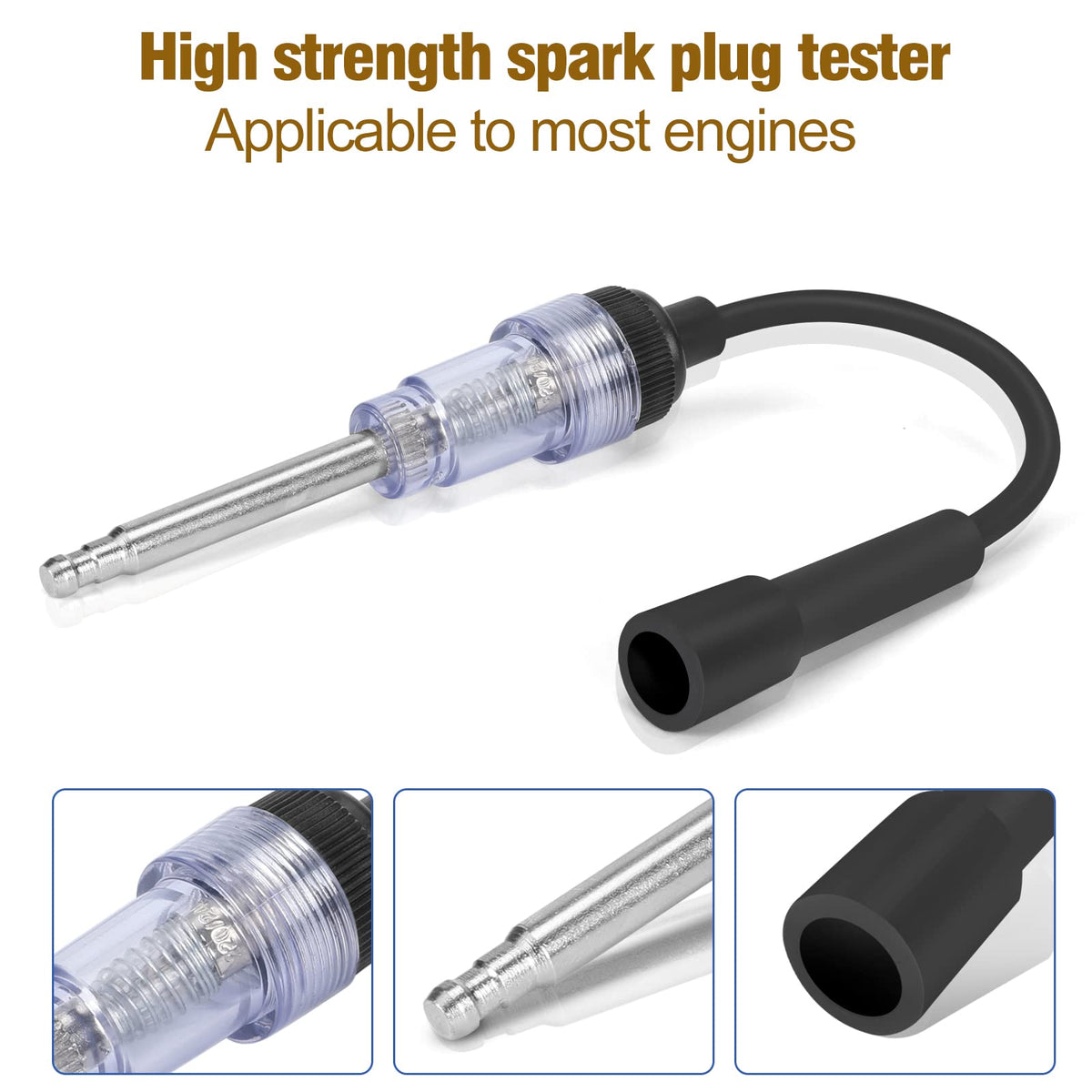

The included spark plug tester lets you confirm whether the ignition system is producing a consistent spark, which helps separate electrical faults from mechanical compression problems. The indicator light illuminates when a healthy spark is present.

• Two spark plug tester leads for quick connection
• Visible indicator light shows spark activity without removing plugs repeatedly
• Safely isolates the circuit to prevent misfires during diagnosis
• Works alongside compression testing to narrow fault sources

What engine types and sizes will these adapters fit?

This 13-piece set includes ten different adapters designed to cover most petrol engines—from compact motorcycle and lawnmower motors to larger automotive and marine cylinders. It’s meant for gasoline engines only, not crude oil or diesel engines.

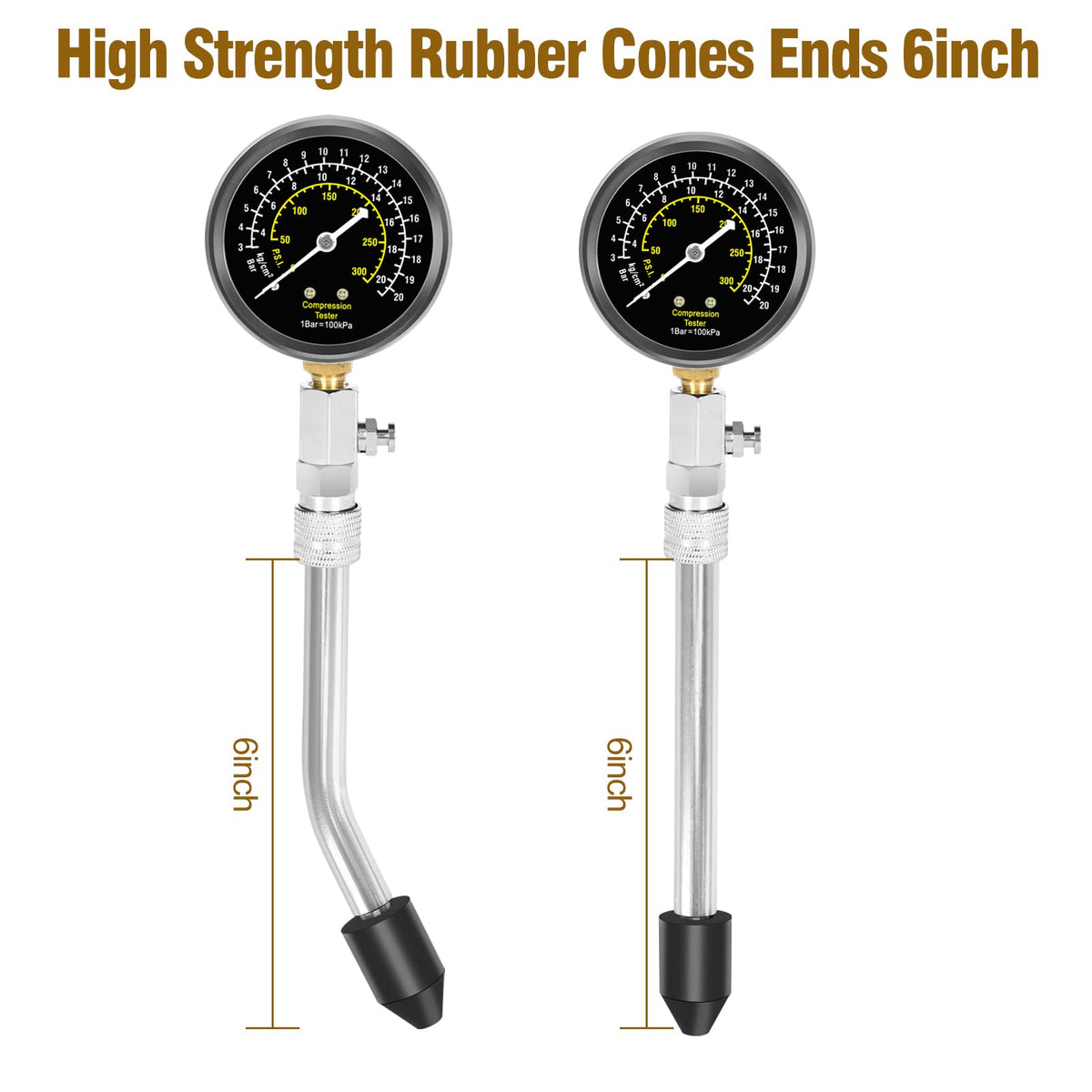

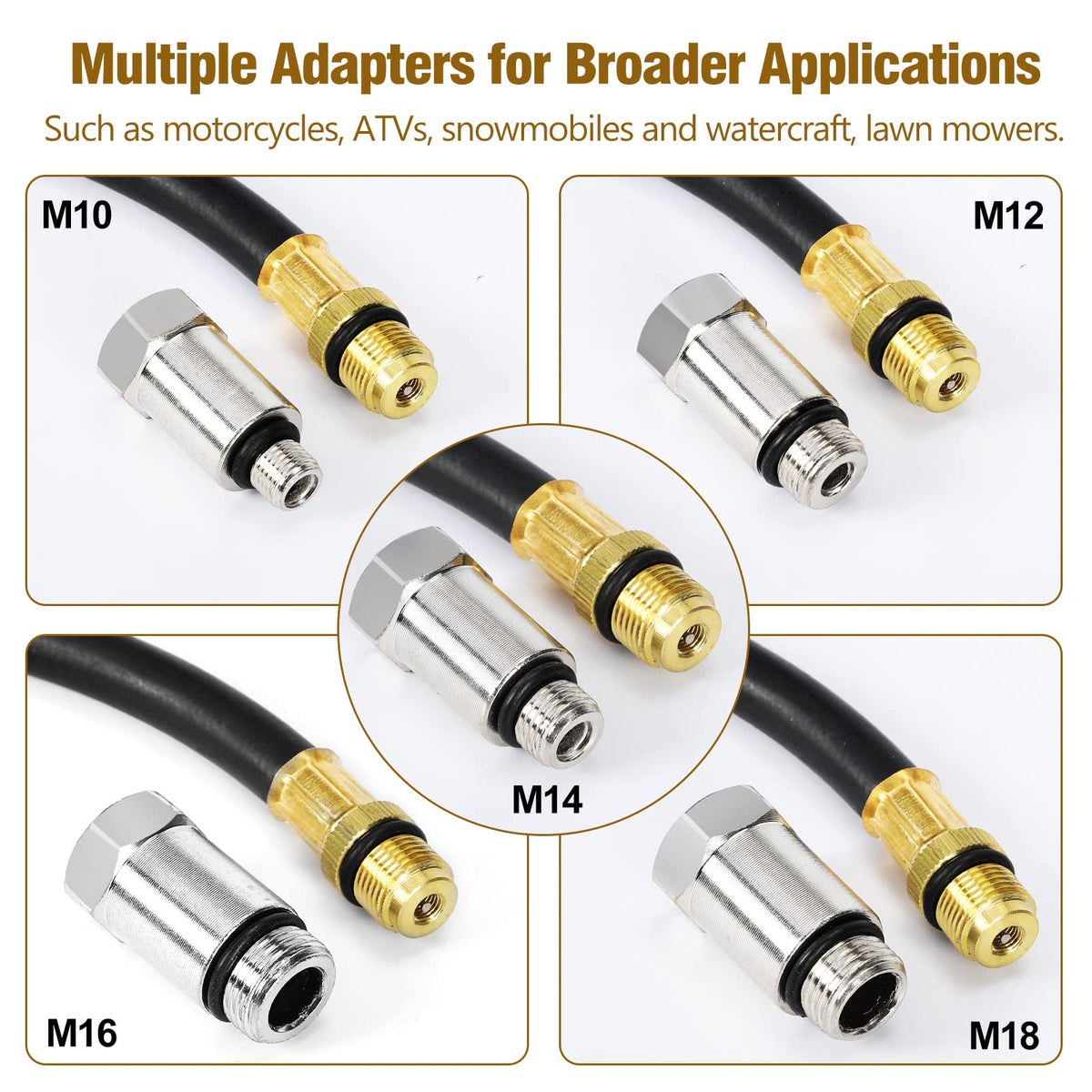

• Adapters for spark plug threads and various compression ports
• Compatible with cars, trucks, ATVs, boats, lawn tractors, and small engines
• Portable kit keeps adapters organized for field or garage use
• Standard fittings minimize need for additional hose or fittings

How do I operate the tester safely and get accurate readings?

Warm the engine to operating temperature, disable ignition and fuel systems per the manual, then crank the engine with the tester installed. Record peak pressure after several compression strokes and use the release valve to safely vent the gauge.

• Warm engine ensures valves and rings seat correctly for consistent readings
• Disable ignition/fuel to prevent engine start while testing
• Crank for 4–6 compression strokes and note the maximum dial reading
• Use release valve for one-handed decompression and safe removal

Who this is for: The BETOOLL 13pcs Compression Tester with Spark Plug Tester suits mechanics, home DIYers, fleet technicians, and marine or small-engine operators who need a reliable, portable way to evaluate cylinder health and ignition performance. It’s ideal when you need fast comparative compression data across cylinders and a quick spark check without expensive shop equipment. Note: designed for petrol engines only and should be used following standard safety practices to avoid injury or engine damage.
