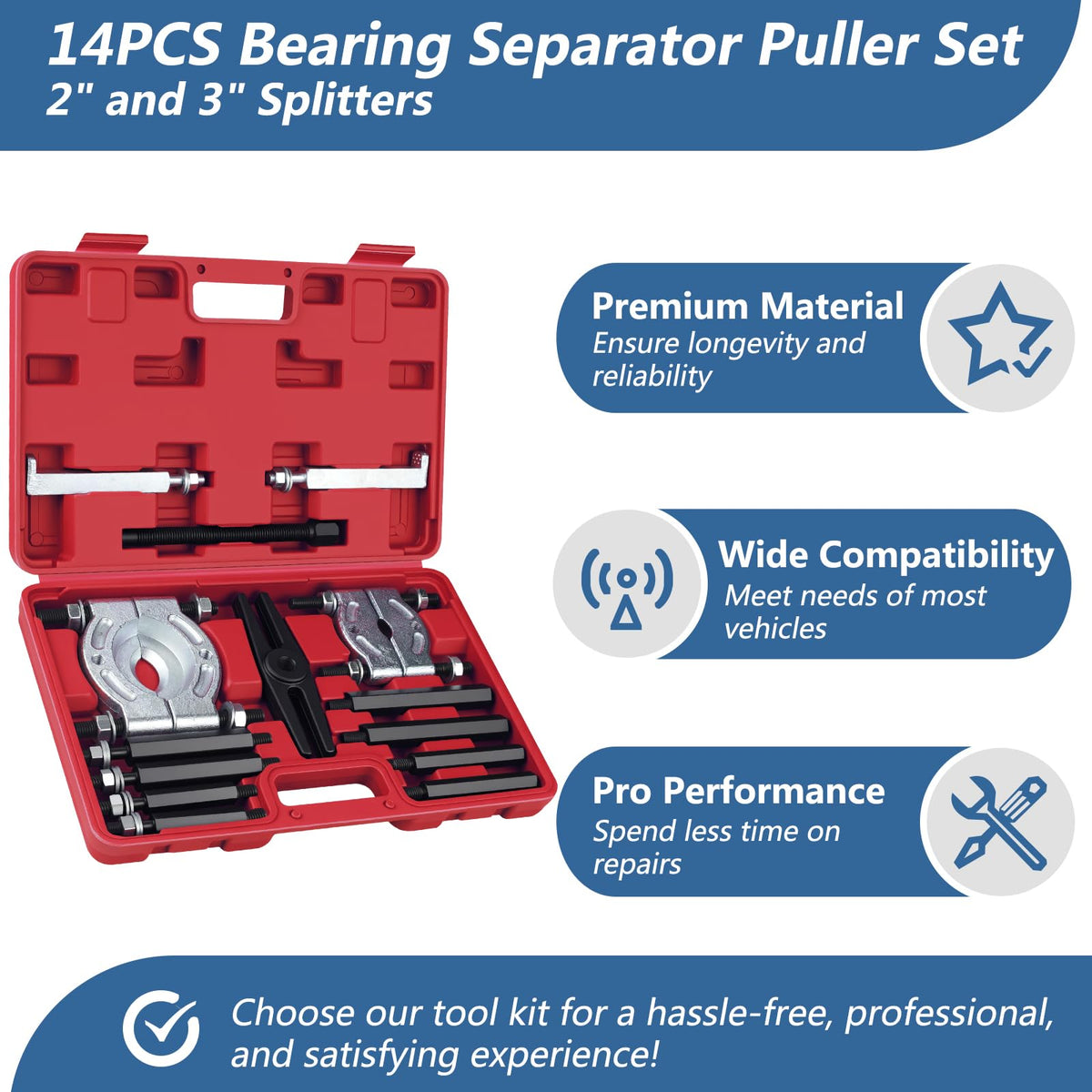

Bicos Bearing Separator Puller Set 14PC — 2" & 3" Splitters, 5-Ton Heavy-Duty Kit for Bearings, Gears & Pulleys

Bicos 14PCS Bearing Separator Puller Set is a heavy-duty 5-ton capacity kit with 2" and 3" splitters designed to remove bearings, gears, pulleys, and steering wheels cleanly and without damage.

This professional-grade bearing separator and puller set includes two separator sizes, a robust crossbar, a long lead screw and all necessary bolts and adapters to cover shafts from 9/32" to 3". Every forged and heat-treated steel component in the Bicos kit is engineered for repeatable, even pressure so you can extract stuck bearings and press-fit parts more efficiently than improvised methods. The kit is compact, organized, and ready for automotive, industrial maintenance, and home-shop use.

How does the kit prevent damage during bearing and gear removal?

The Bicos set is built to distribute pulling force uniformly across the part’s surface, minimizing distortion and accidental scoring that can happen with makeshift tools. Each separator clamps behind the component to create a safe, stable pull point while the crossbar and lead screw apply straight-line force to withdraw the part from the shaft.

• Two precision separators (2" and 3") for secure clamping behind bearings and gears
• Forged, heat-treated steel construction for consistent strength under load

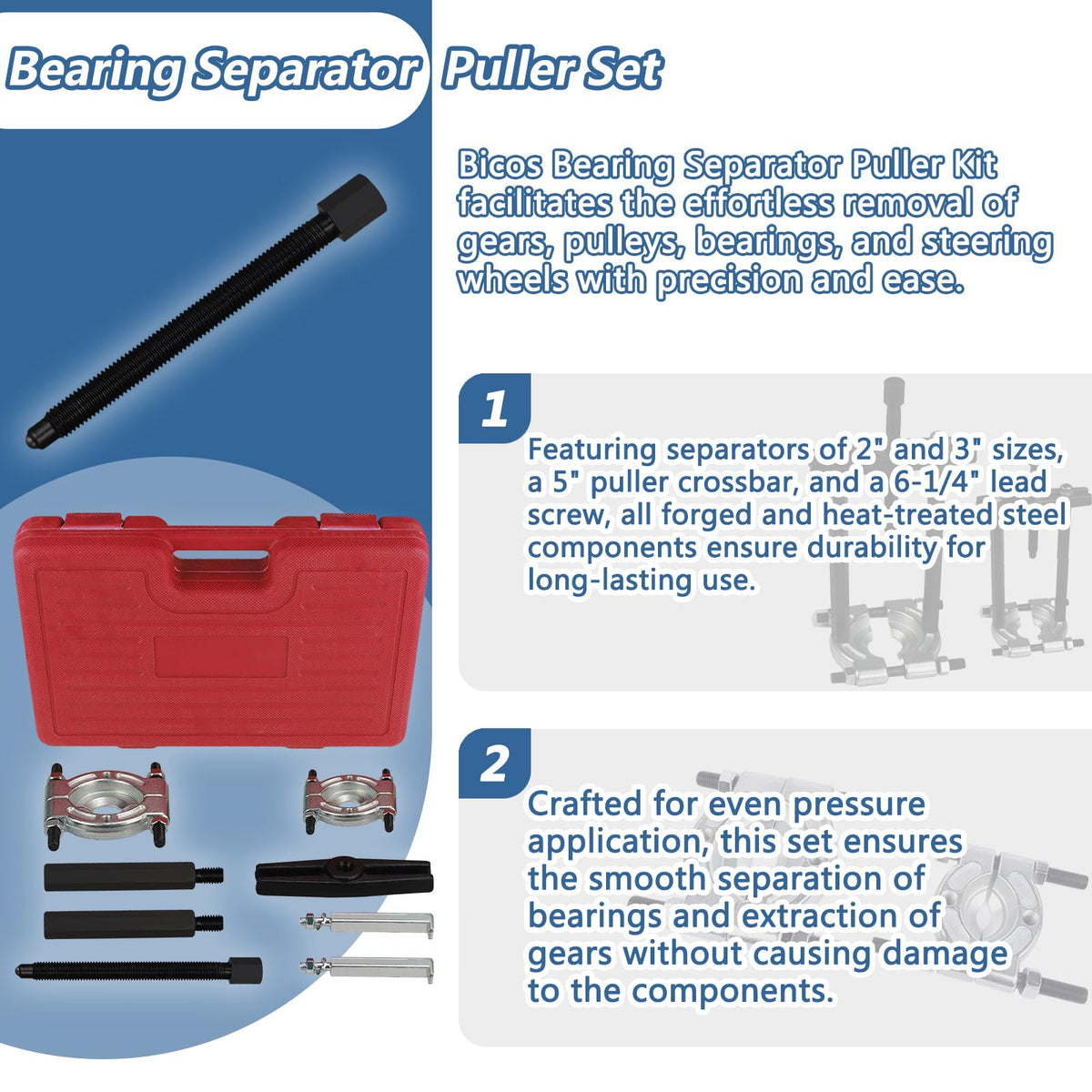

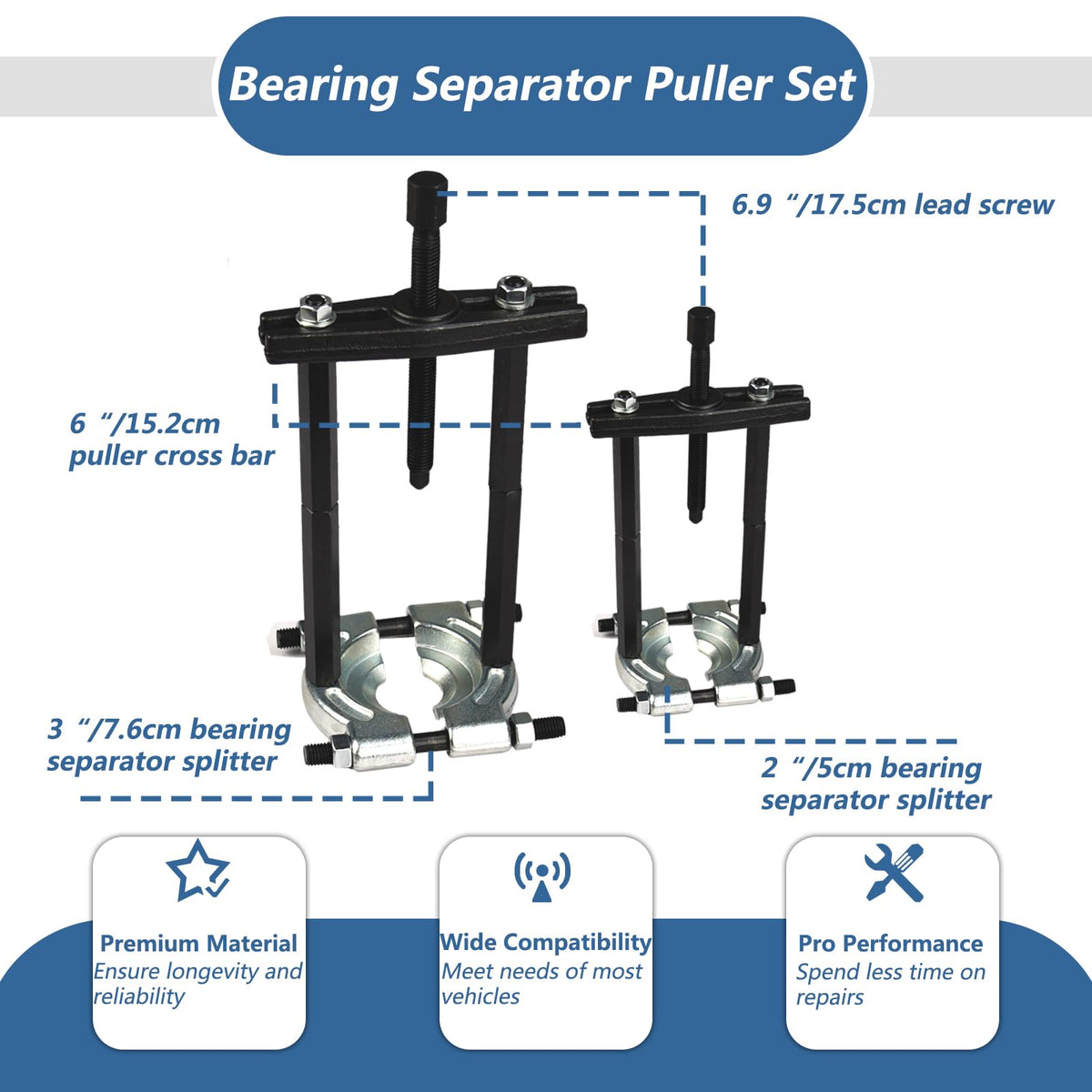

• Long 6-1/4" lead screw and 5" crossbar to maintain alignment during extraction
• Includes bolts and adapters to match a range of diameters and fits

What sizes and components does this 14-piece set cover?

The set supports separators sized to handle diameters from approximately 9/32" up to 3", covering most common small- to medium-sized bearings and pulleys found in automotive and workshop equipment. With included hardware and adapters you can configure the puller for hubs, collars, steering components, and many press-fit parts.

• Separator range: 9/32" to 3" nominal coverage
• Two separator plates (2" and 3") for different diameters and depths
• Crossbar and lead screw lengths suited to typical shaft and hub assemblies
• Additional bolts/adapters to tailor clamping and thread engagement

How durable and reliable is the Bicos bearing separator under heavy use?

Durability is a focus: key component parts are forged and heat-treated for improved tensile strength and resistance to bending under the kit’s 5-ton-rated capacity. Using properly sized separators and aligning the crossbar correctly reduces side-load and wear, helping the tool set hold up through repeated shop tasks.

• Forged, heat-treated steel for separators, crossbar, and lead screw
• 5-ton rated design for high-resistance extraction jobs
• Corrosion-resistant finish to extend service life in workshop environments

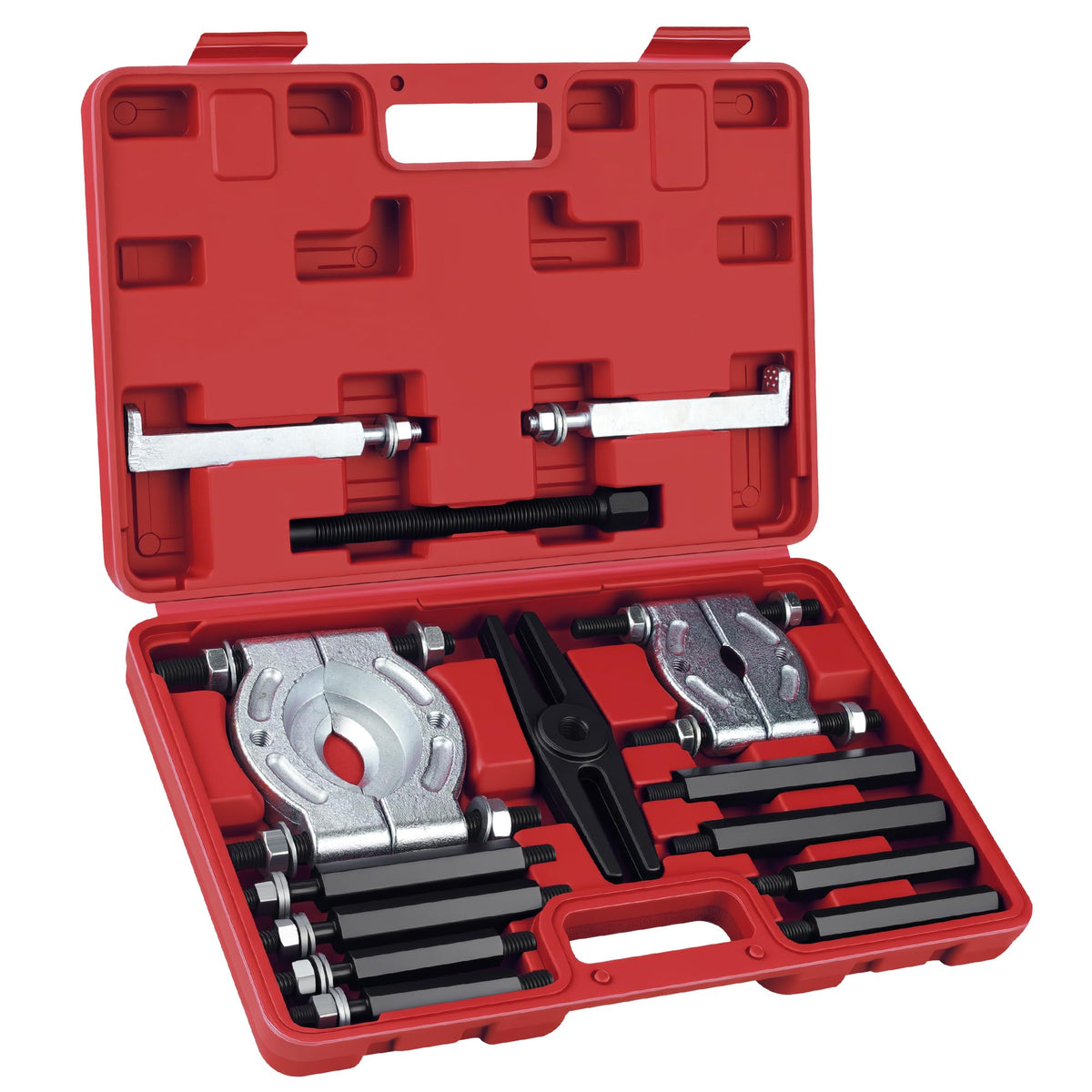

• Compact organized case keeps parts protected and ready

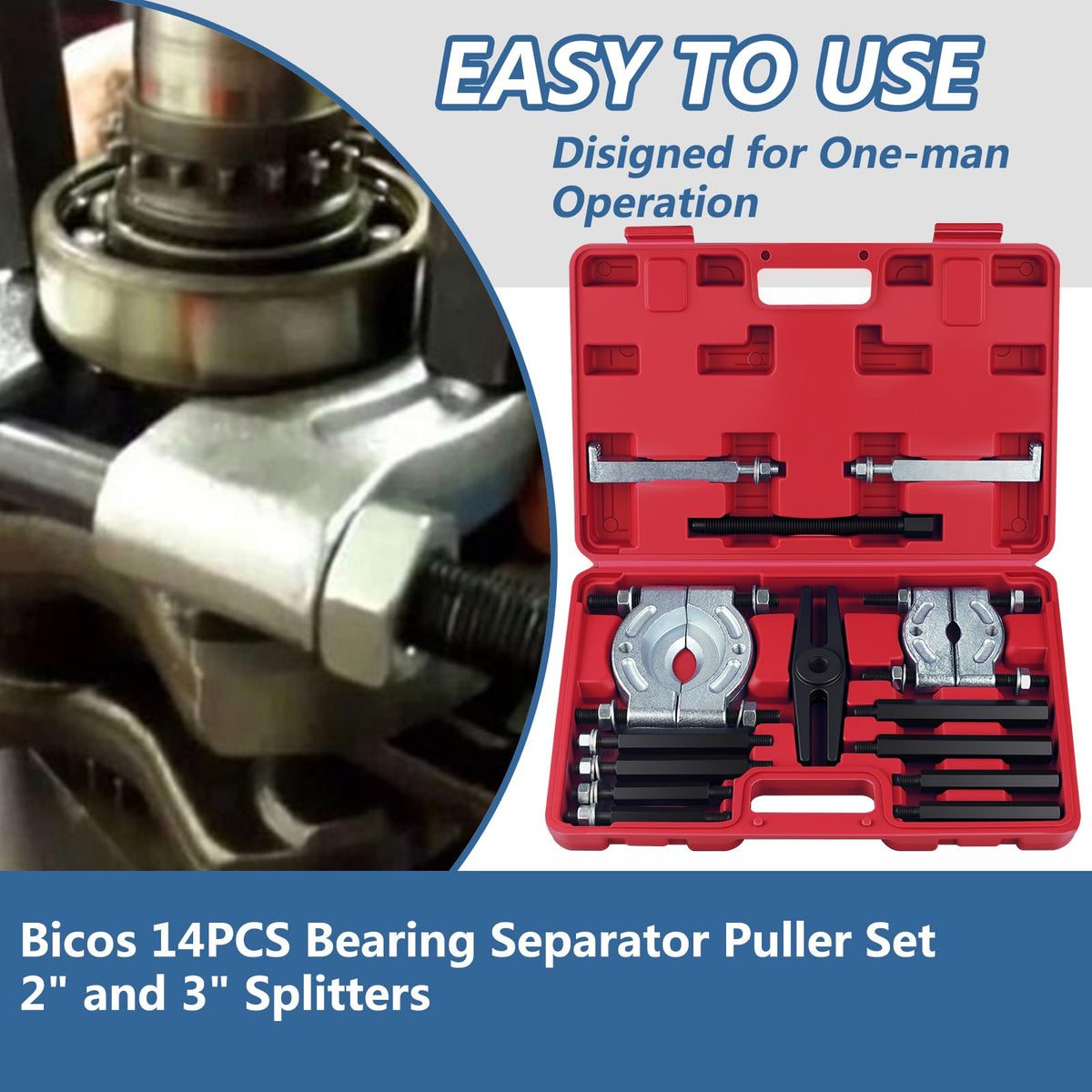

How do I set up and use the puller for safe extraction?

Attach the separator plates behind the part you intend to remove, center the crossbar over the shaft, then thread the lead screw into the crossbar and tighten evenly. Work slowly, ensuring the separator remains flush and the lead screw advances squarely to avoid bending or slipping; frequent repositioning and cleaning mating surfaces improves results.

• Clamp separator plates behind the component before applying force
• Center the crossbar and align the lead screw with the shaft axis
• Apply steady, even pressure—don’t jerk or hammer the assembly
• Lubricate threads and inspect alignment during long pulls

Who is this for: The Bicos 14PCS Bearing Separator Puller Set is ideal for mechanics, hobbyist restorers, maintenance technicians, and small shops that need a reliable, versatile extraction tool. If you work on cars, motorcycles, lawn equipment, industrial machines or do frequent press-fit maintenance, this kit supplies the sizes, strength and organization to make bearing and gear removal faster and safer than improvised alternatives.
