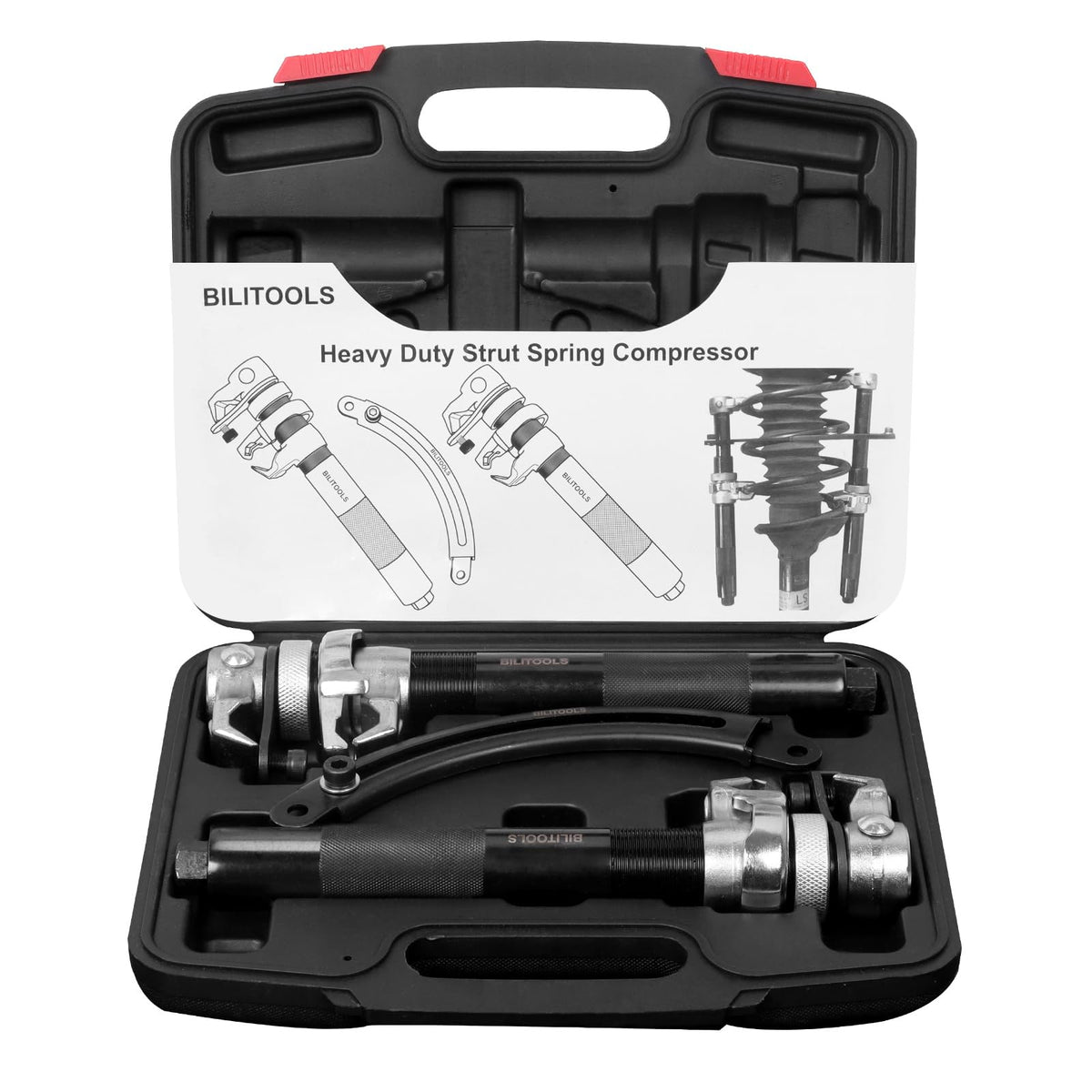

BILITOOLS Coil Spring Compressor 2-Piece, 2645 lb Capacity — 45# Carbon Steel & Anti-Drop Safety

This two-piece strut spring compressor from BILITOOLS is built for mechanics and DIYers who need a dependable way to remove and install straight coil springs on cars and light trucks. Constructed from robust 45# carbon steel and featuring a double-retention anti-drop safety system, the tool aims to reduce slippage and improve stability while working under tension. Before using, confirm spring type and size to ensure compatibility and safe operation.

How does the safety system reduce the risk of accidental release?

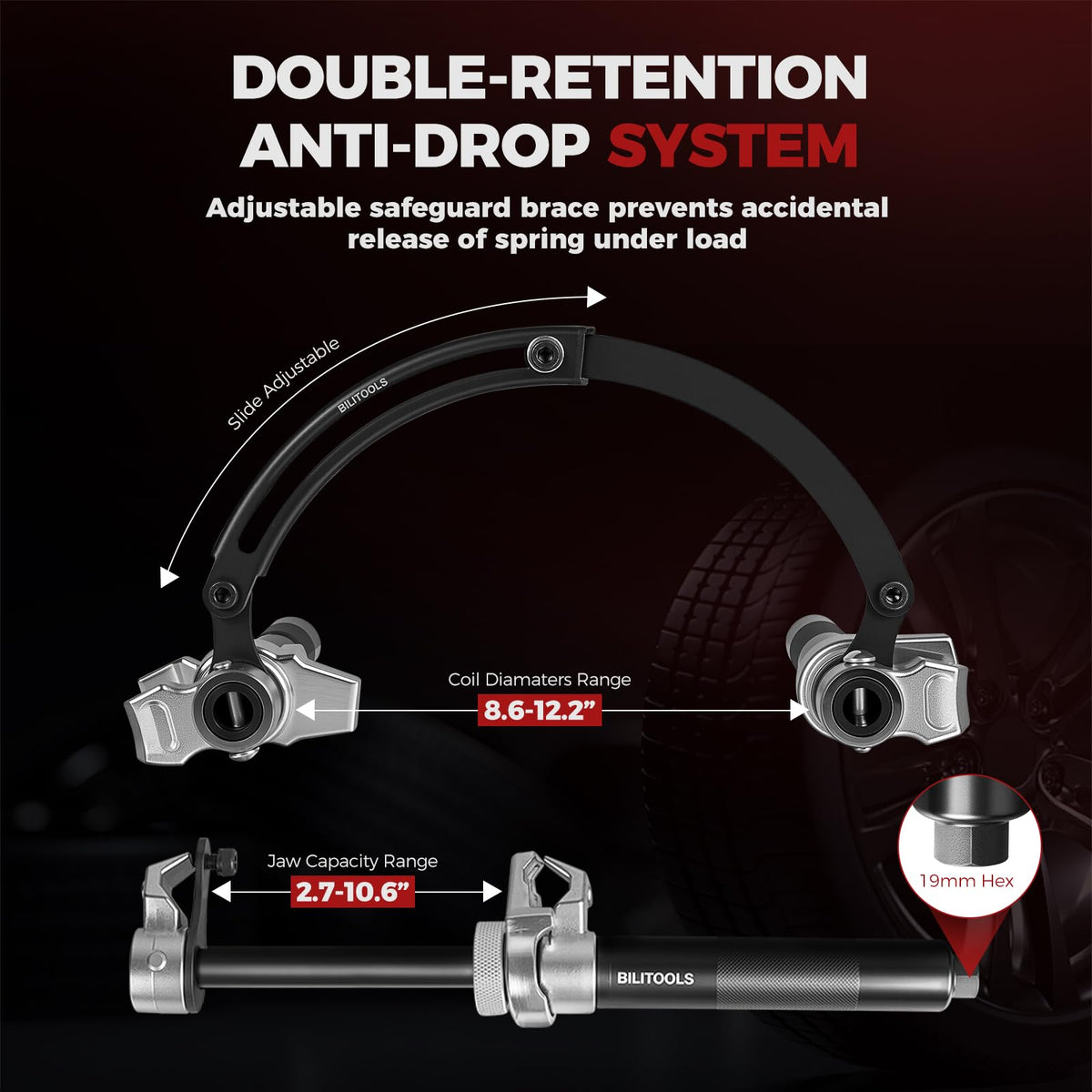

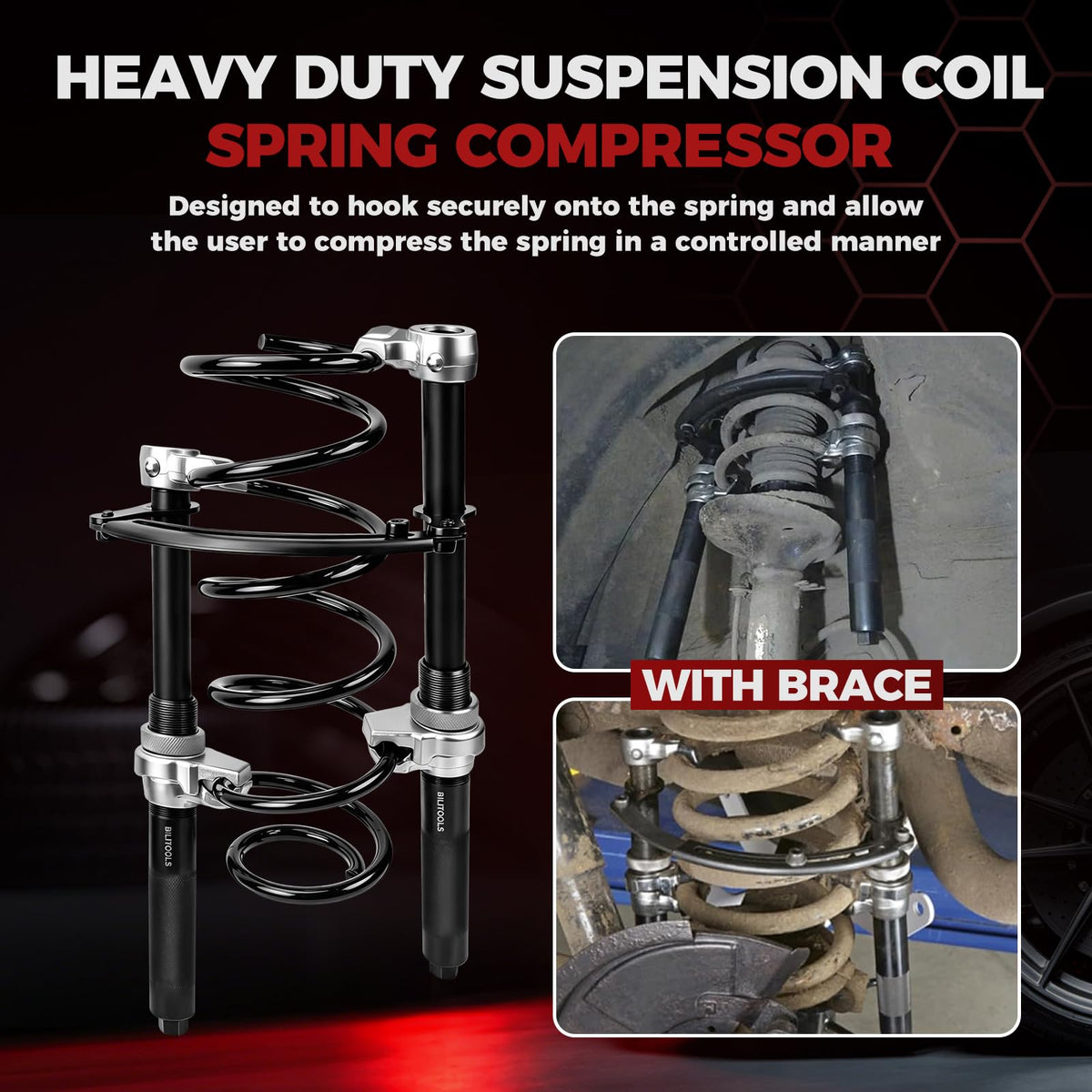

The compressor uses interlocking hook jaws combined with a lockable brace to hold springs in place and prevent sudden detachment. The design forces the components to stay parallel as tension increases, reducing the chance of lateral slip.

• Interlocking hooks provide two points of engagement for each jaw.
• Secure locking mechanism keeps the hooks clamped under load.

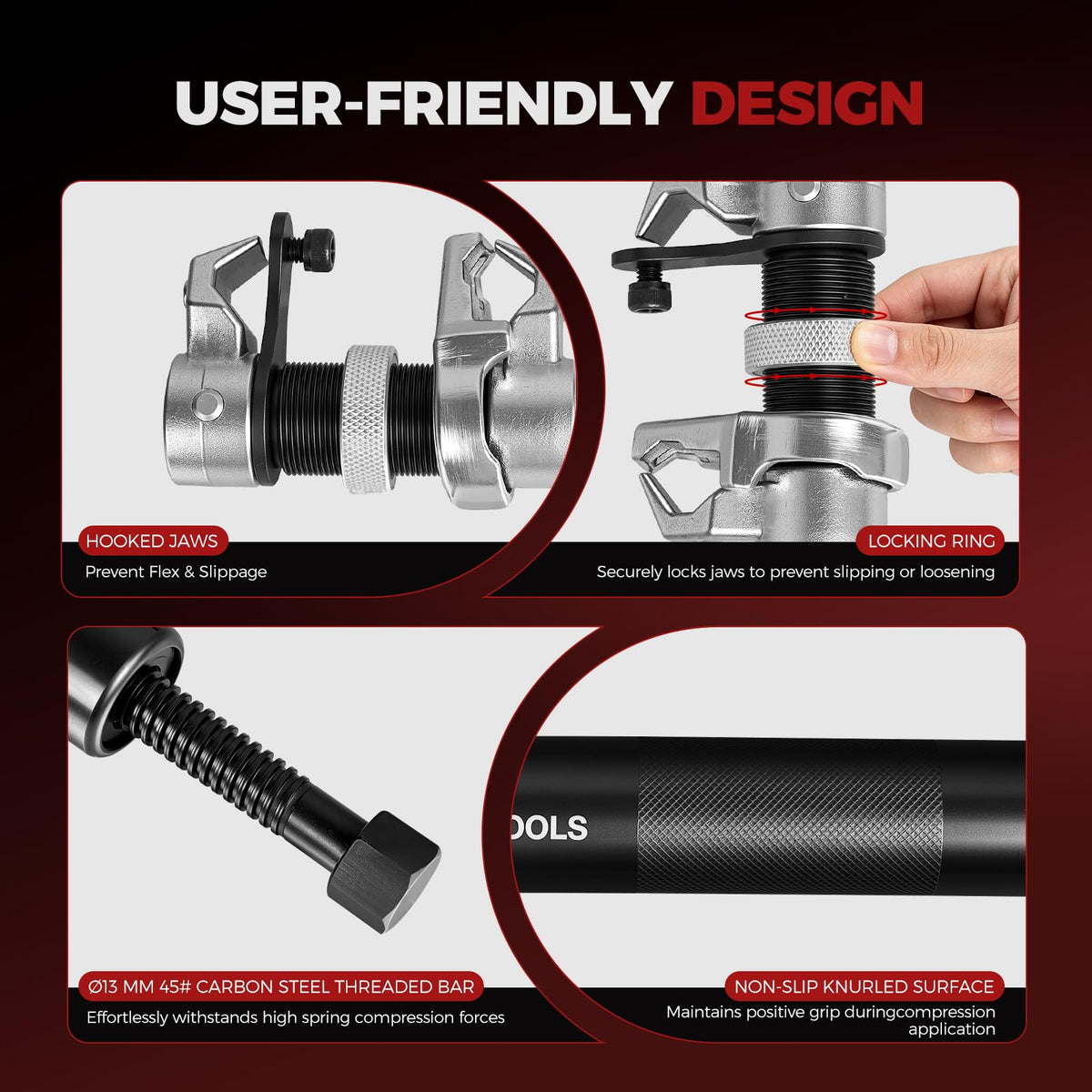

• Adjustable safeguard brace maintains alignment and prevents tool separation.

What springs and vehicles will this tool work with?

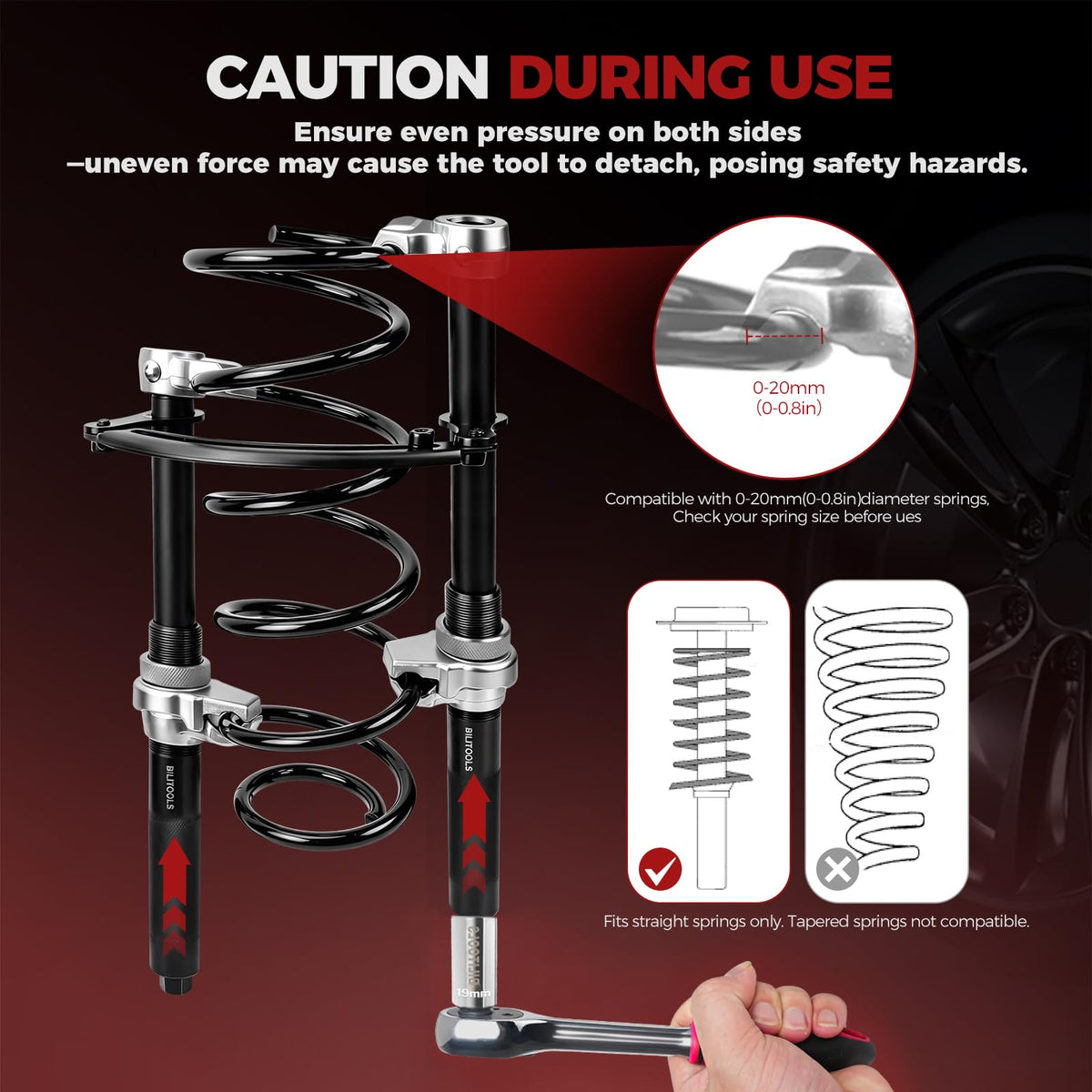

This kit supports straight coil springs within specific diameter and jaw capacity ranges, making it suitable for many sedans and trucks under approximately 3 tons. Tapered springs are not supported, so verify spring shape before starting the job.

• Jaw capacity: 2.7–10.6 inches (70–270 mm) for secure clamping.
• Coil diameter compatibility: adjustable holder fits 8.6–12.2 inches (220–310 mm).
• Wire thickness accepted: 0–0.8 inches (0–20 mm).

How is the tool constructed and what load can it handle?

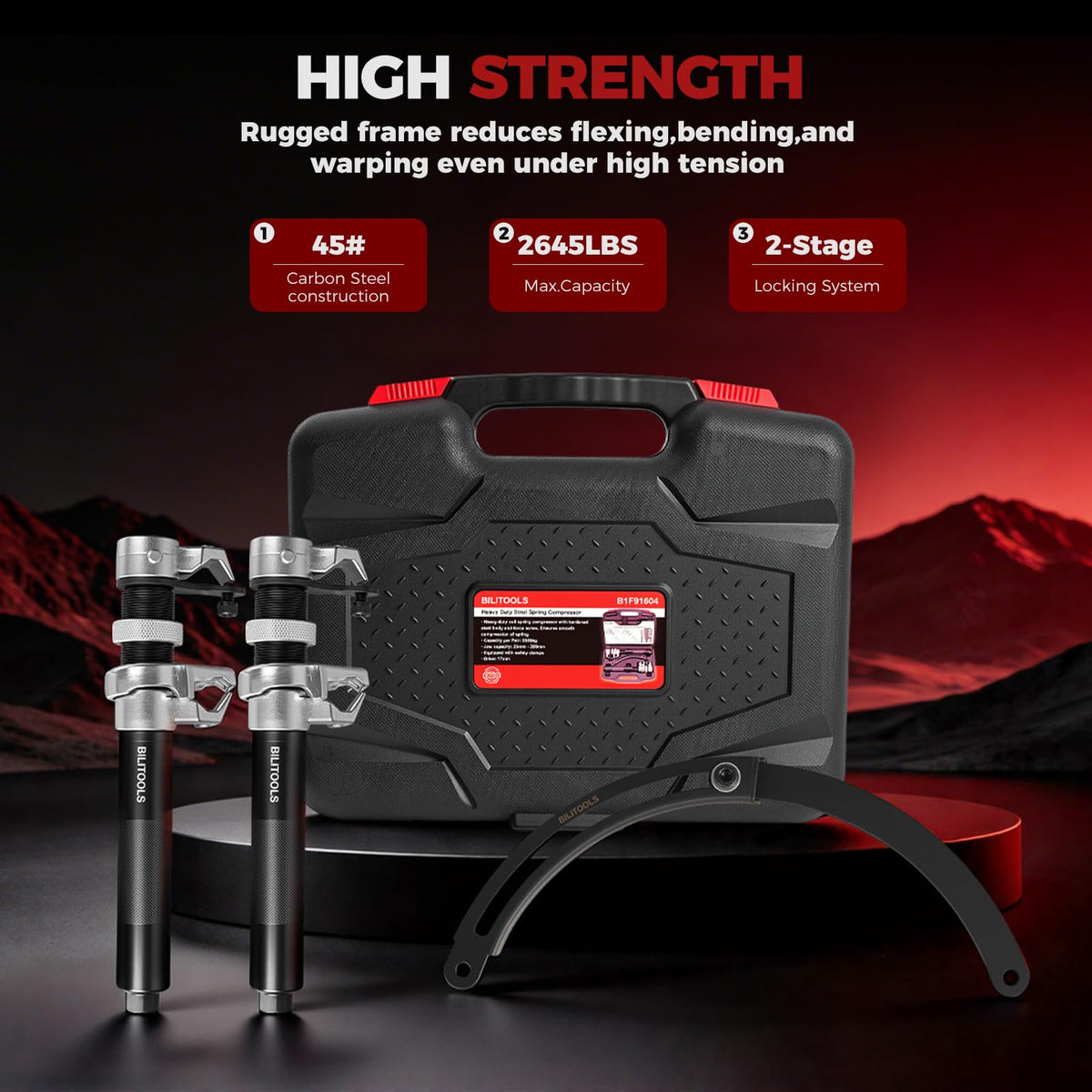

BILITOOLS manufactures this compressor from 45# carbon steel to resist bending and flexing under heavy tension. Each matched pair is rated to withstand a maximum load of about 2645 lb (1200 kg), providing serious clamping strength for professional or home garage use.

• 45# carbon steel frame minimizes warping under pressure.
• Pairs tested to handle up to 2645 lb (1200 kg) safely.
• Durable finish resists corrosion and wear during repeated use.

What tools and procedures are required for safe operation?

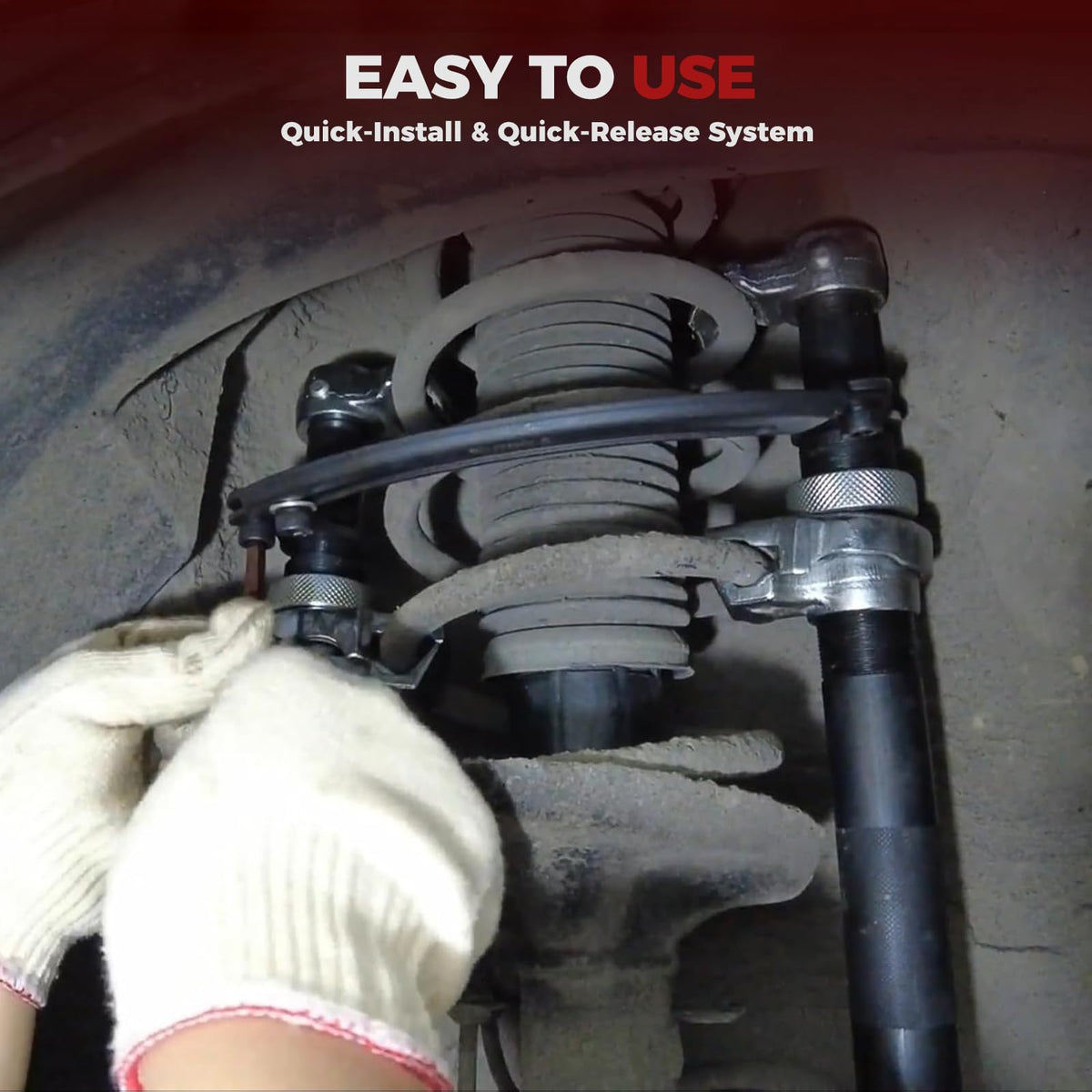

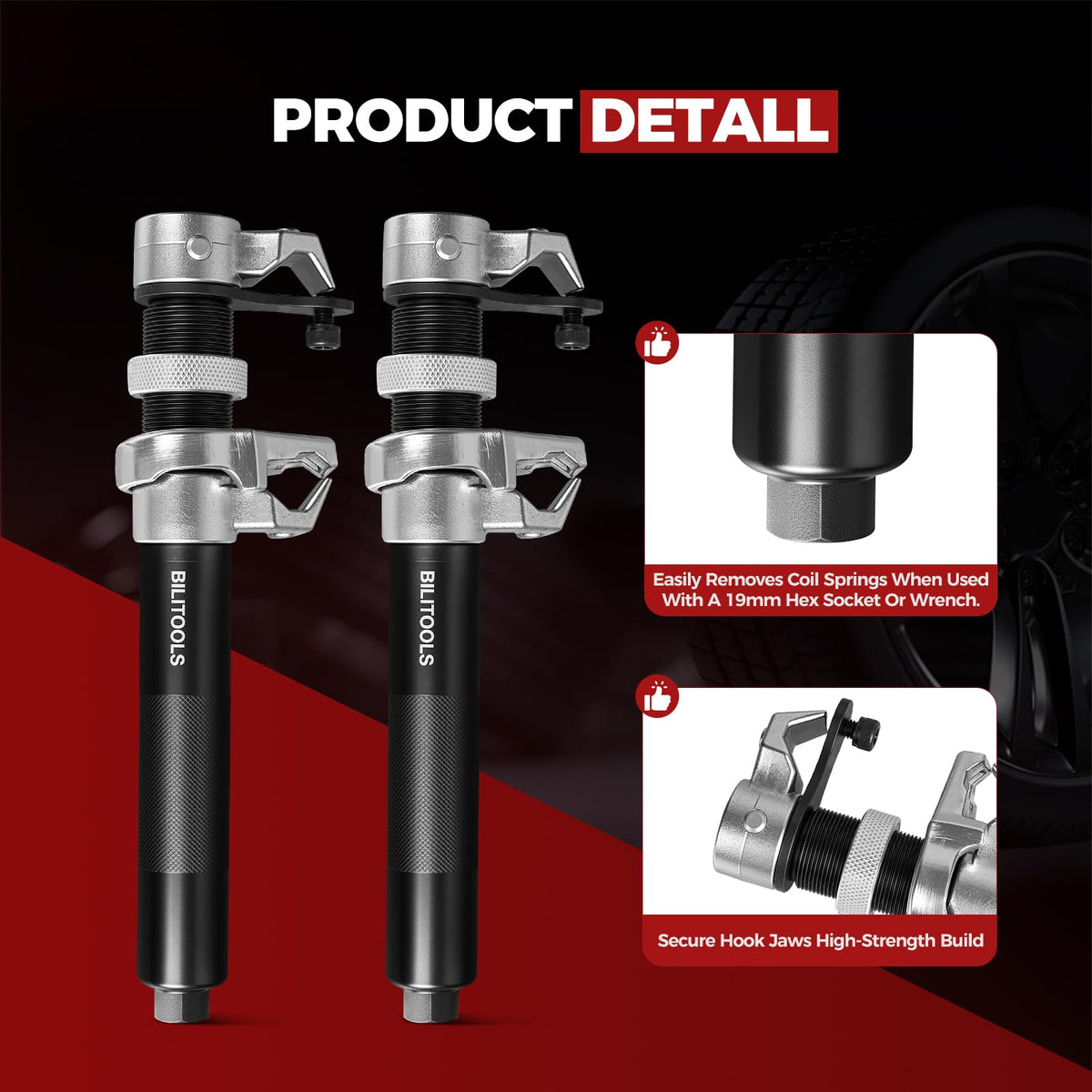

Operation is driven by a hex nut actuator; use a 19 mm hex socket or wrench to compress the springs. Regular maintenance—like greasing the threads—and applying even pressure to both sides are essential steps to keep the compressor functioning safely.

• Use a 19 mm socket or wrench to rotate the hex nut for compression.
• Apply grease to threads before each use to reduce friction and wear.
• Always compress springs evenly on both sides to avoid disengagement.

Who is this for: The BILITOOLS 2-piece coil spring compressor is aimed at experienced DIY mechanics, indie repair shops, and professional technicians who service cars and light trucks with straight coil springs. If you need a rugged, repeatable method to compress springs with a focus on safety and high load capacity, this tool delivers—but it is not suitable for tapered springs or users unfamiliar with spring-compression procedures.
