BINTA Battery Monitor 0-50A Shunt Voltmeter Ammeter — LiFePO4, TFT Color Display, 999Ah Capacity

BINTA 0-50A small battery monitor is a compact shunt-based voltmeter and ammeter that gives live percentage, capacity (up to 999Ah), voltage, current and power readings for LiFePO4 and other lithium systems.

Compact yet feature-rich, this BINTA monitor pairs a precision shunt with a high-definition TFT color screen to track charge and discharge behavior in boats, solar setups, golf carts, scooters and off-grid batteries. It records the last test automatically, supports adjustable backlight and sleep modes, and lets you calibrate the displayed capacity so readings match your actual battery bank. The unit's small form factor and 50A rating make it suitable for tight installations where accurate, real-time monitoring matters.

How will this monitor improve visibility into my battery's state?

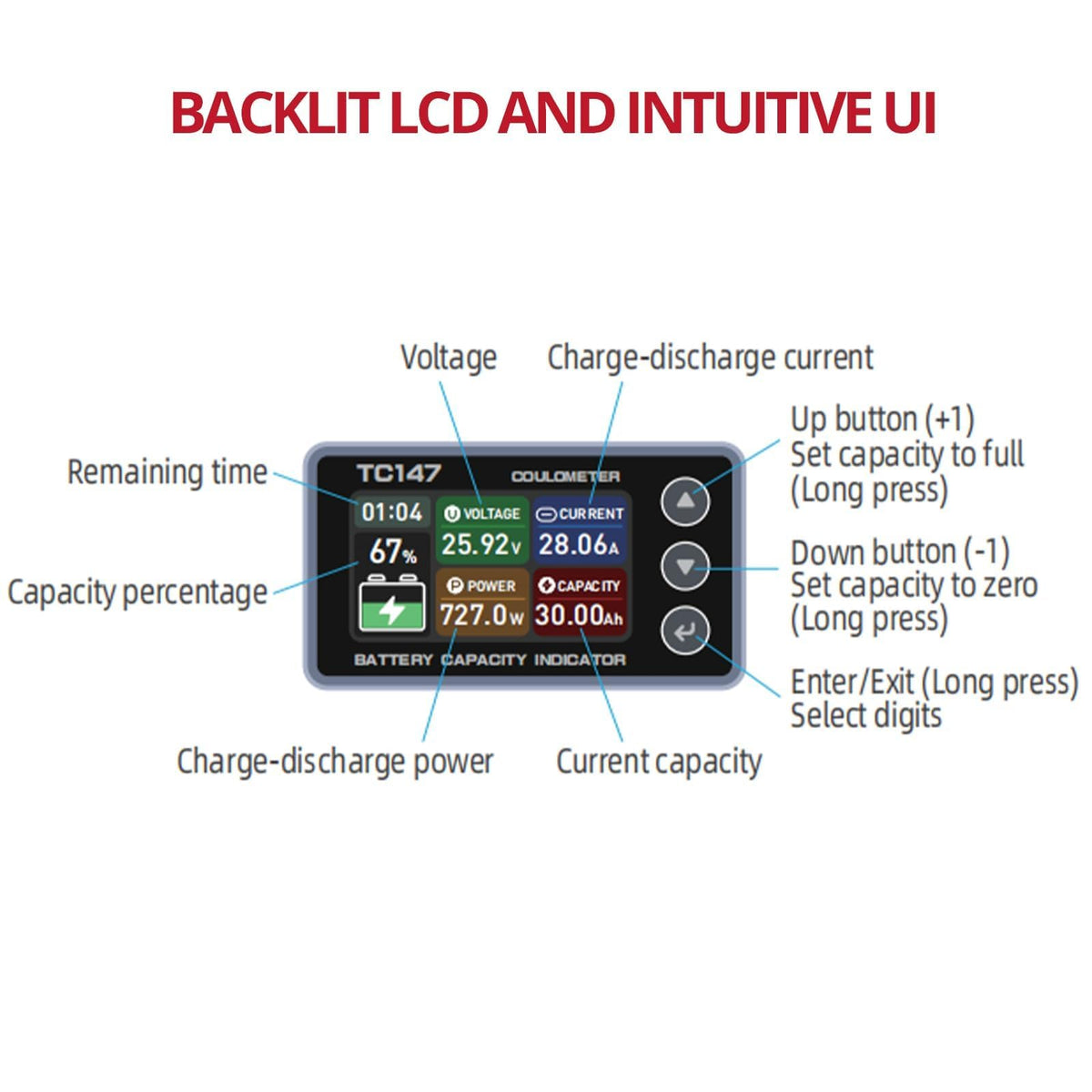

The BINTA monitor displays clear numeric and graphical information so you can instantly see percentage, amp-hours used, current direction and voltage. A real-time curve plots charging and discharging so transient events and trends are easier to spot.

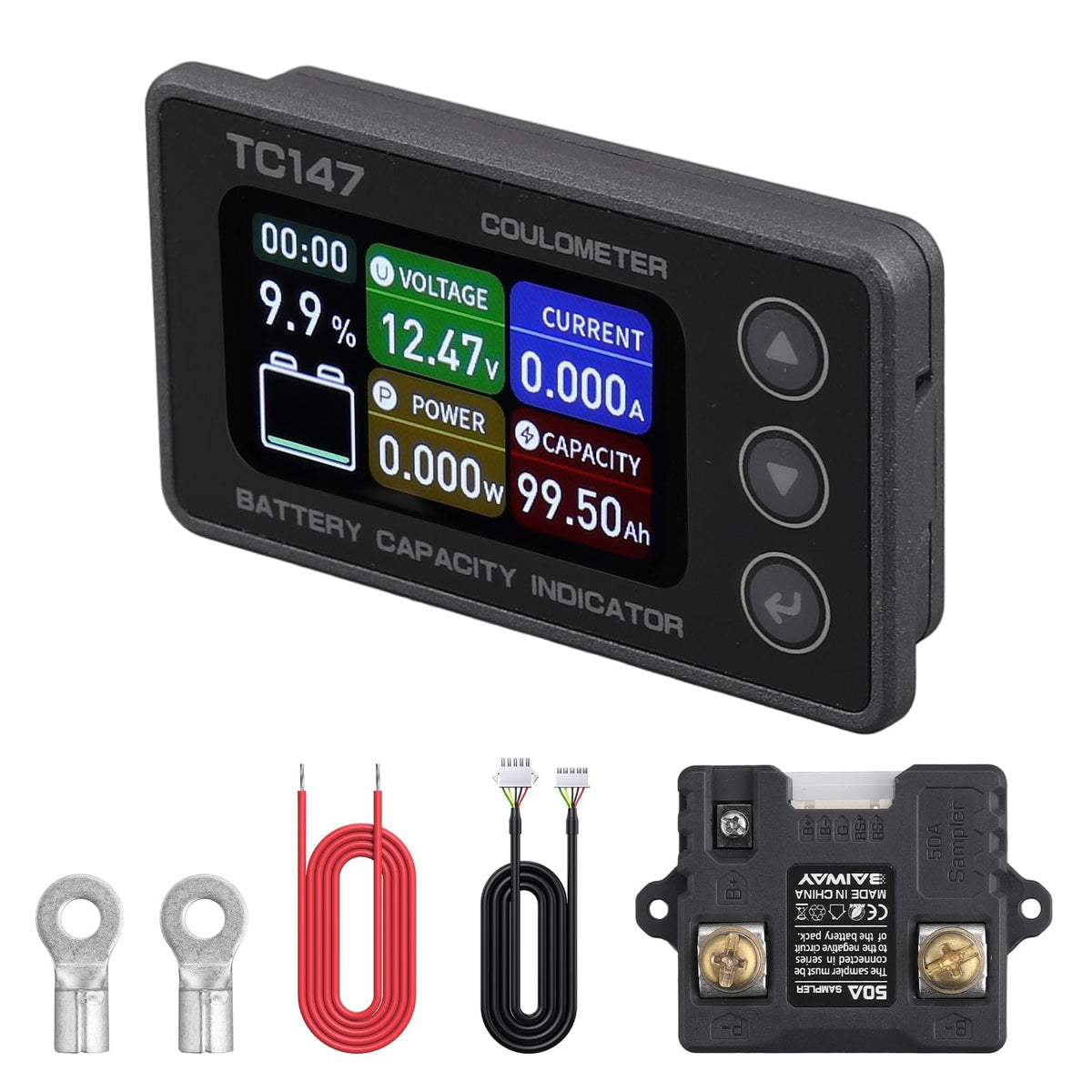

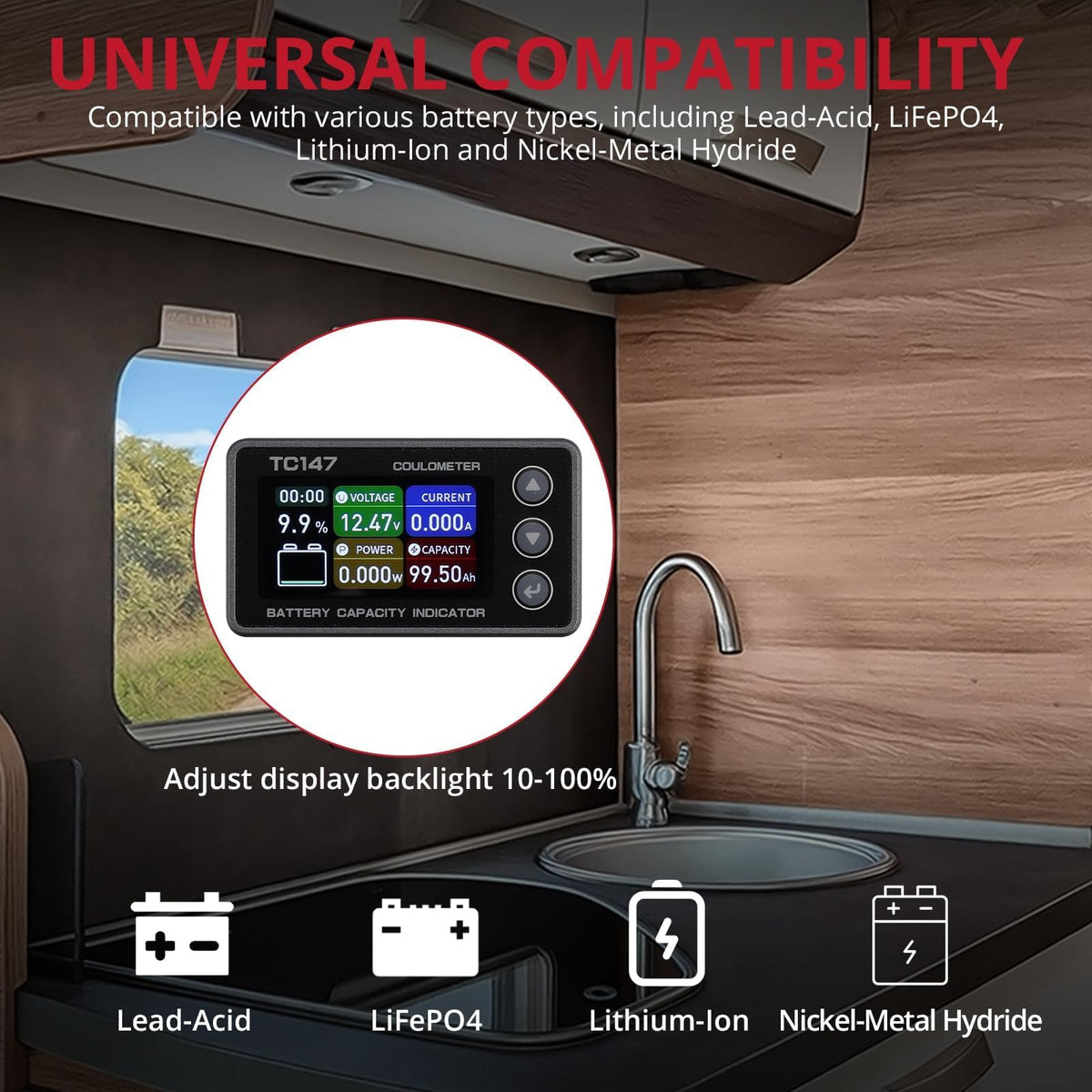

• High-definition TFT color screen with adjustable 10–100% backlight for easy reading.
• Real-time charge/discharge curve and plus/minus current direction symbols.
• Shows percentage, voltage, current, power and capacity up to 999Ah.

How accurate and customizable are the readings for different battery types?

The device uses a dedicated shunt to measure current flow precisely while allowing you to set the battery's usable capacity endpoints. You can program 0% and 100% capacity to align the monitor with the real characteristics of your LiFePO4 or lithium bank for more meaningful state-of-charge values.

• 0–50A shunt gives stable current measurement for small to medium systems.
• User calibration of 0% and 100% capacity for tailored state-of-charge reporting.
• Capacity readout up to 999Ah supports larger batteries and custom setups.

What protections and convenience functions does it include?

BINTA built in practical safeguards and power-saving features so the monitor fits real-world use. Data is saved automatically when systems power down, and a four-digit password prevents accidental setting changes. Adjustable sleep mode and brightness extend the display life and reduce drain.

• Automatic last-data storage to preserve history after shutdown.
• 4-digit password lock to avoid unintended configuration changes.
• Sleep mode and brightness control to reduce power draw and prolong display life.

Can this unit fit in limited spaces and where is it best used?

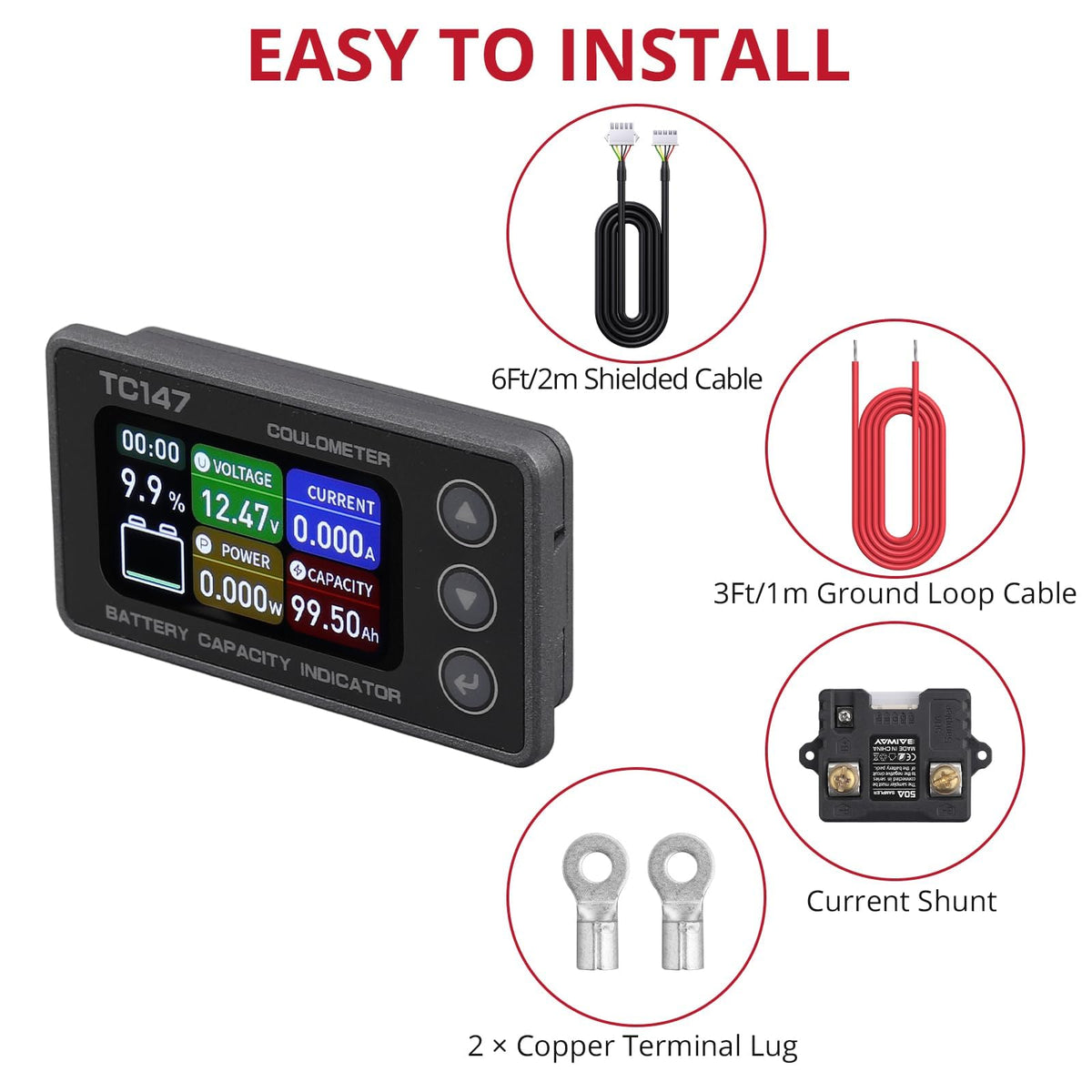

The compact dimensions and integrated shunt make installation in tight compartments straightforward. It is engineered for mobile and small stationary systems that require ongoing monitoring without a large footprint.

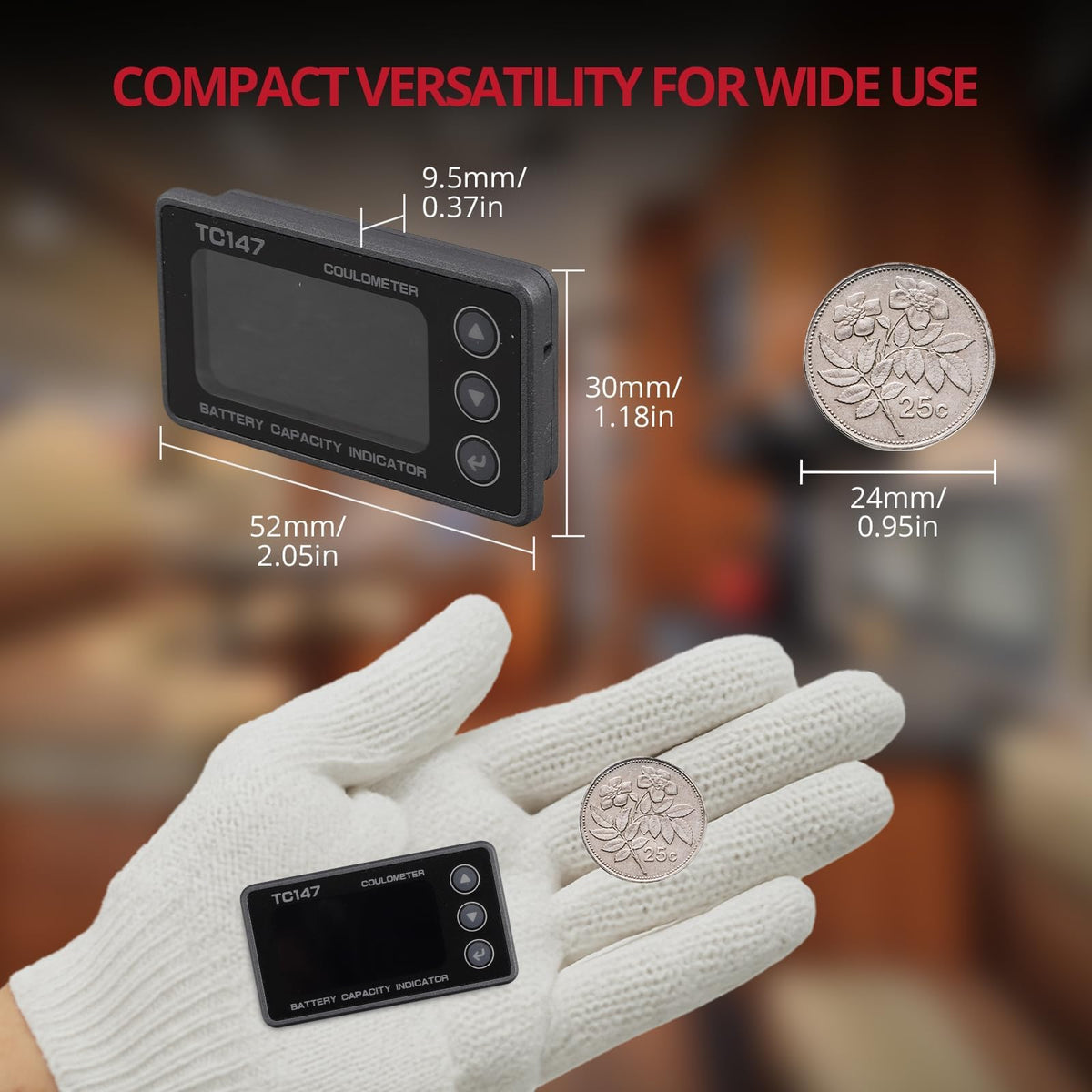

• Small 52.4 × 29.4 × 9.4mm 50A shunt design fits cramped panels and enclosures.

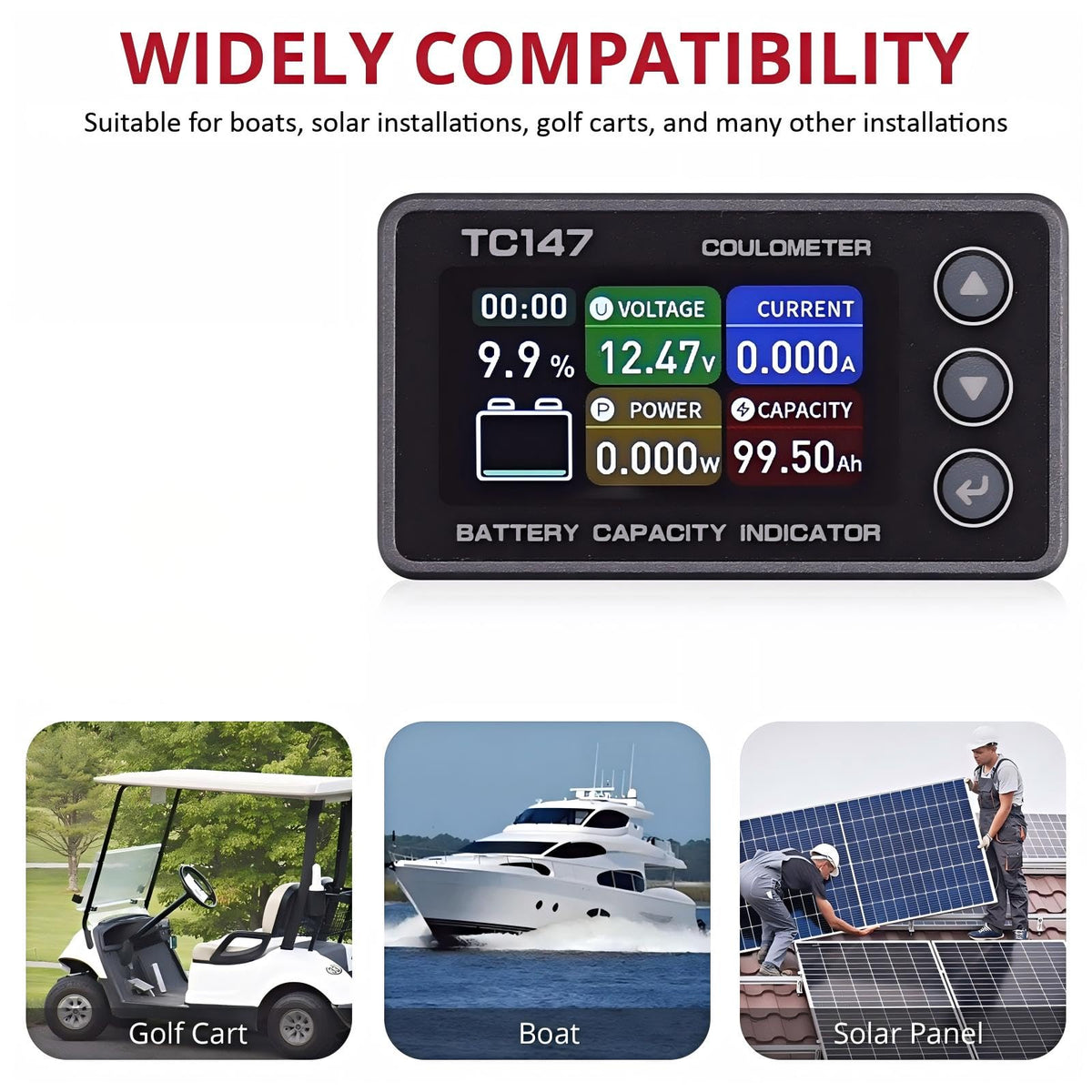

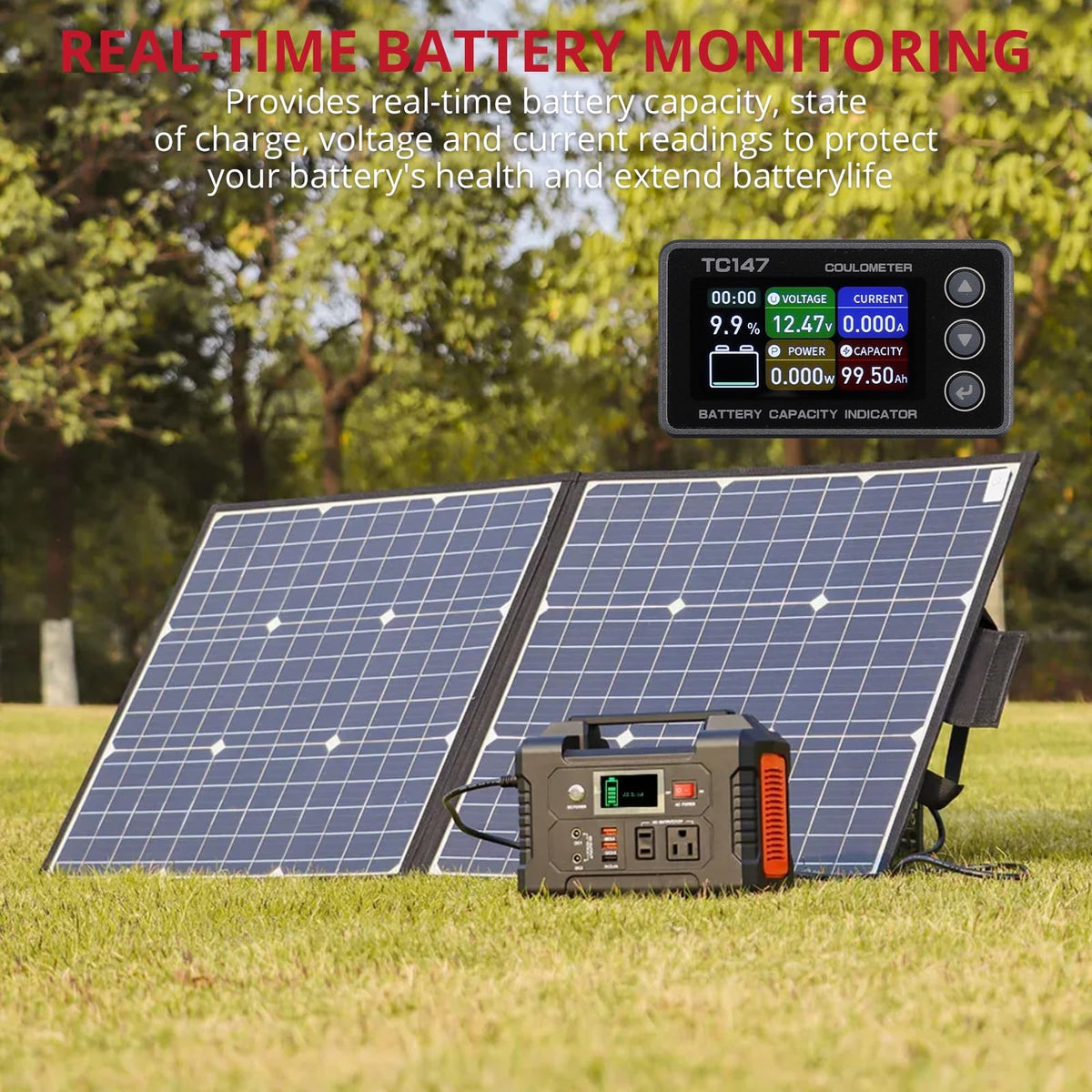

• Useful for portable solar, boats, RVs, golf carts, scooters and cleaning robots.
• Ideal for DIY energy projects and mobile power users who need precise state-of-charge data.

Who is this for? If you run a small to medium lithium battery system and need accurate, at-a-glance information about state of charge, amp-hours used and real-time current direction, the BINTA 0-50A battery monitor is made for you. It suits boat owners, RV and camper installers, off-grid solar hobbyists, electric scooter and golf cart users, and anyone wanting compact, reliable monitoring with password protection, data persistence and user calibration. The unit balances precision monitoring with a tiny footprint for installations where space and clarity both matter.
