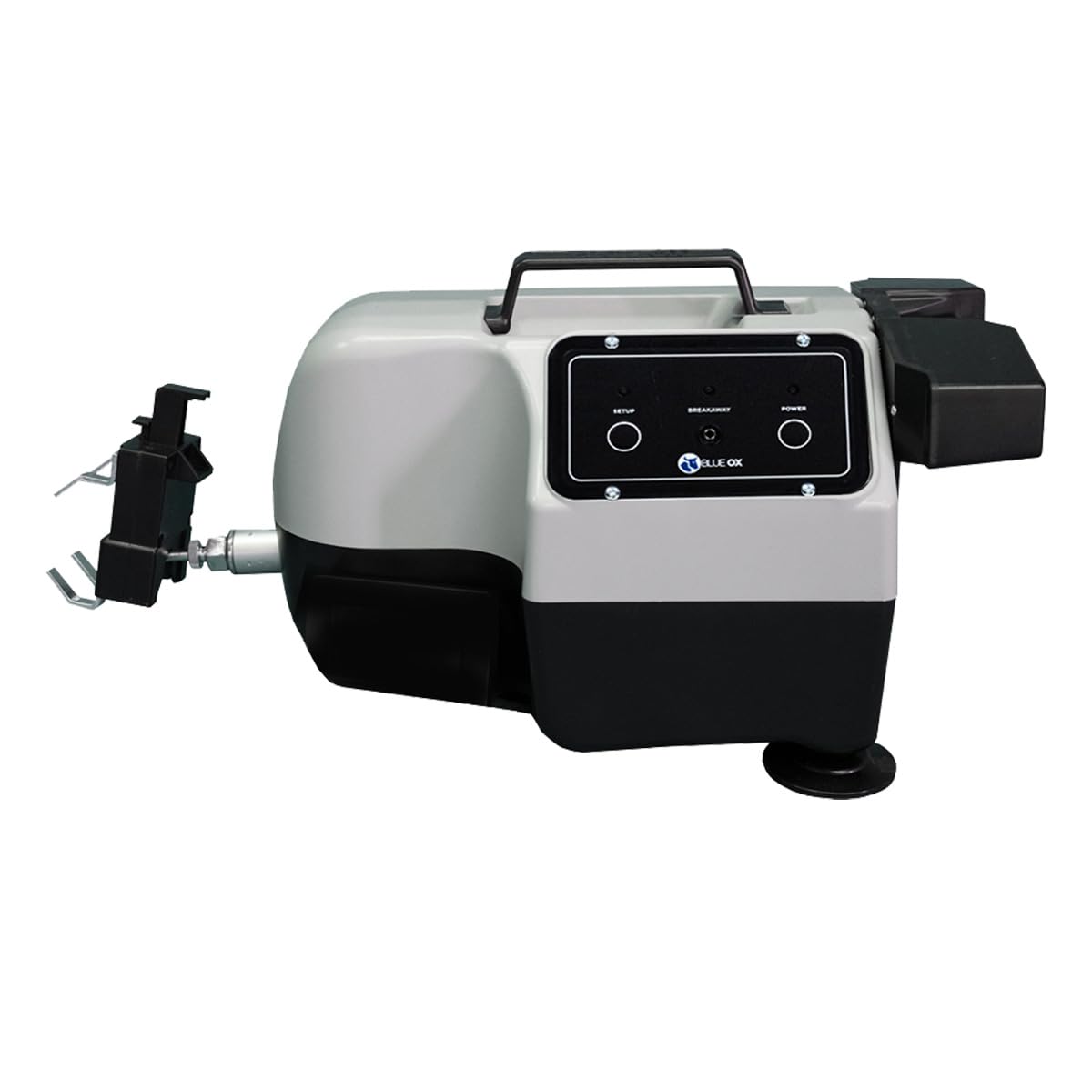

Blue Ox Patriot BRK2022 Flat Tow Brake — All-Electric, Compact 6.2 lb with Automatic Pressure Check

The Blue Ox BRK2022 Patriot flat tow brake is an all-electric, compact supplemental braking system that delivers quicker brake extension and automatic pressure checks for more responsive flat towing.

Designed as a lighter, smaller-profile successor in the Patriot line, the BRK2022 reduces weight and size while adding smart monitoring features. It mounts to most towed vehicles and provides faster actuation of the braking mechanism to improve the towing experience. Built with an in-coach controller that uses extended RF range and a supercapacitor lifetime battery, the unit also includes break-away protection for safety when separated from the tow vehicle.

How does the Patriot BRK2022 improve stopping responsiveness?

The BRK2022 shortens the time between signal and brake action, meaning the towed vehicle reacts faster when the coach brakes. Faster extension of the braking mechanism translates into more immediate deceleration and a tighter braking feel. This can reduce lag and create a more uniform stop between tow vehicle and towed vehicle.

• All-electric actuator for quicker brake deployment
• Optimized internal mechanics to shorten extension time
• Designed to synchronize with coach braking input

What setup and monitoring does the unit provide during towing?

Setup is simplified by an automatic brake-pressure check that runs when you initialize the system. During travel the Patriot continuously monitors brake pressure, alerting to changes or inconsistencies so you can address issues before they become hazards. The in-coach controller communicates over an extended RF range to keep you informed from the driver’s seat.

• Automatic brake-pressure check during initial setup
• Continuous pressure monitoring while underway
• Extended RF range from the in-coach controller for reliable signal

Which vehicles will the BRK2022 fit and which ones are exceptions?

The BRK2022 was redesigned with a smaller footprint (8 x 7.5 x 11.5 inches) and a reduced weight of 6.2 lbs to fit a wider range of towed vehicles, including hybrid models. Its compact shape makes installation simpler in tighter pedal wells and storage spaces. Note that certain vehicles with unique pedal geometries—specifically the Fiat 500 with its rounded brake pedal—are incompatible with this brake.

• Compact dimensions to fit more vehicle interiors
• Lightweight 6.2 lb construction for easier handling and mounting
• Compatible with hybrids; excludes Fiat 500 due to pedal design

What power and safety features are included?

The system is fully electric and uses a supercapacitor-based lifetime battery in the coach controller, minimizing maintenance and avoiding disposable batteries. Break-away protection is included to apply the towed vehicle’s brakes if separation occurs. The extended RF link improves communication reliability between coach and towed vehicle controls.

• All-electric operation—no hydraulic hookup required
• Supercapacitor lifetime battery in the in-coach controller
• Included break-away mechanism for added safety

Who is this for: The Blue Ox BRK2022 Patriot is aimed at RV owners and drivers who flat-tow compact to midsize vehicles and want a lighter, more compact braking unit with faster response and automated monitoring. It benefits users who value simple setup, reduced lag during stops, and a low-maintenance, all-electric design. If you plan to tow a vehicle with an unconventional pedal shape (for example the Fiat 500), check compatibility before purchasing.
