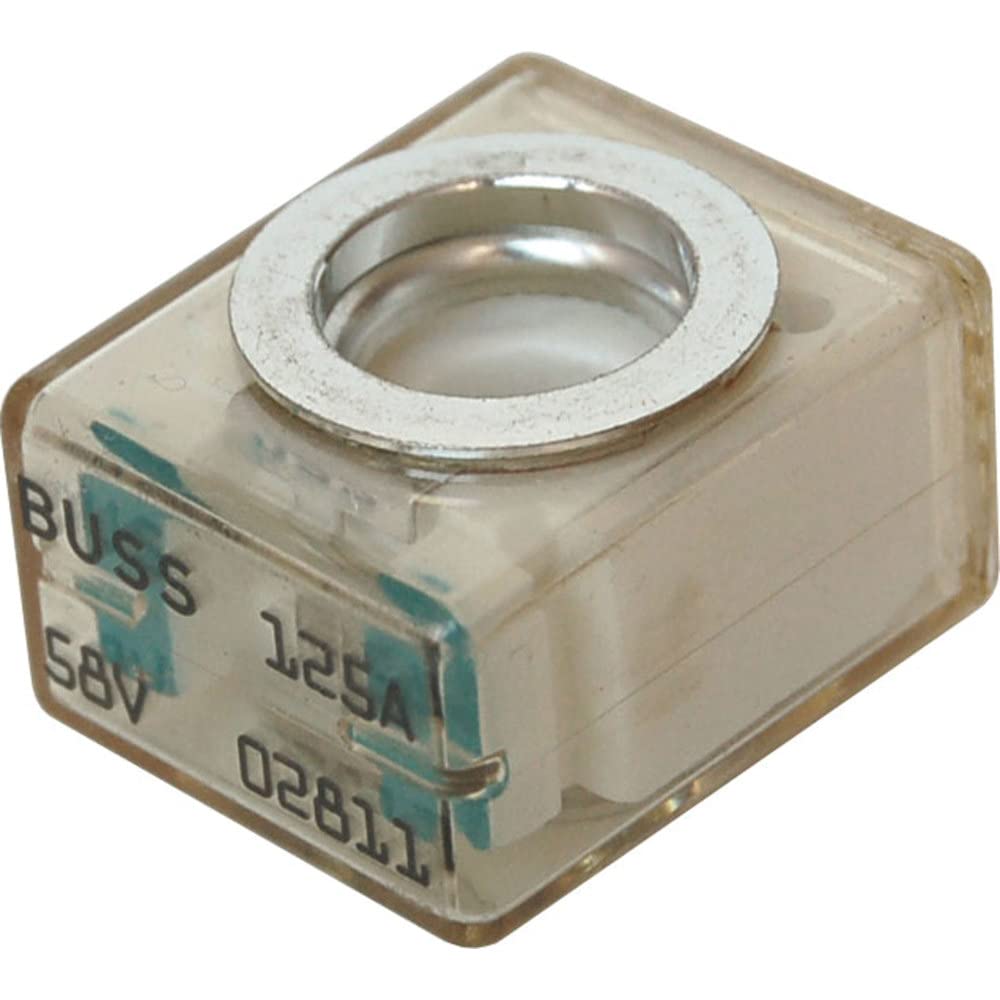

Blue Sea Systems 125A Battery Terminal Fuse — 5184 Compact DC Main Protection, 10,000 AIC

Blue Sea Systems 5184 is a 125-amp battery terminal fuse designed to protect large DC battery banks with a high interrupting capacity for marine and mobile power systems.

This compact terminal-style fuse delivers heavy-duty short-circuit protection for boats, RVs, and other installations that need a reliable DC main safeguard. Built to meet rigorous safety expectations, the 5184 is intended to be used with compatible fuse blocks and offers a high AIC rating appropriate for large-capacity battery banks.

What electrical protection does the 5184 provide?

The 5184 is a 125-amp terminal fuse that interrupts fault currents quickly to protect wiring and components downstream. Its high interrupting rating helps it safely clear large short circuits without catastrophic failure.

• Rated current: 125 A for continuous operation
• Interrupting capacity: 10,000 AIC at 14 V DC
• Designed for DC main circuit protection on sizable battery banks

How must the fuse be installed to work correctly?

Do not mount the fuse directly to the battery terminal; it must be installed in a compatible terminal fuse block. Proper mounting in an approved block ensures secure connections, correct spacing, and reliable mechanical and electrical performance.

• Required fuse blocks: PN 5191 or PN 2151
• Use proper torque and cable lugs to maintain a secure connection
• Keep the fuse accessible for inspection and replacement

Will this fuse fit in tight spaces and marine environments?

The 5184's compact package makes it suitable for installations where space is limited, such as engine compartments and electrical lockers. Its construction and rating are intended for marine and mobile power use, but follow your installation guidelines for location and ventilation.

• Compact dimensions: approximately 3.555 cm L x 8.128 cm W x 0.508 cm H
• Low profile for fitting into crowded electrical panels
• Use in environments where high DC fault clearing is required

Is this product appropriate for my boat or fishing vessel?

The 5184 is marketed in the product category of fishing equipment and is suitable for marine electrical systems that need robust DC main protection. Ensure the 125 A rating and 10,000 AIC capability match your system requirements before installation.

• Intended for marine and recreational vehicle electrical systems
• Choose when a 125 A main-level fuse is required
• Confirm compatibility with fuse blocks PN 5191 or PN 2151

Who is this for: The Blue Sea Systems 5184 fits boat owners, marine electricians, and RV installers who need a dependable 125-amp DC main fuse with a high interrupting capacity. It’s especially useful when protecting large battery banks where meeting ABYC-style fault current performance is important; just be sure to install it in the recommended fuse block for safe, code-compliant operation.
