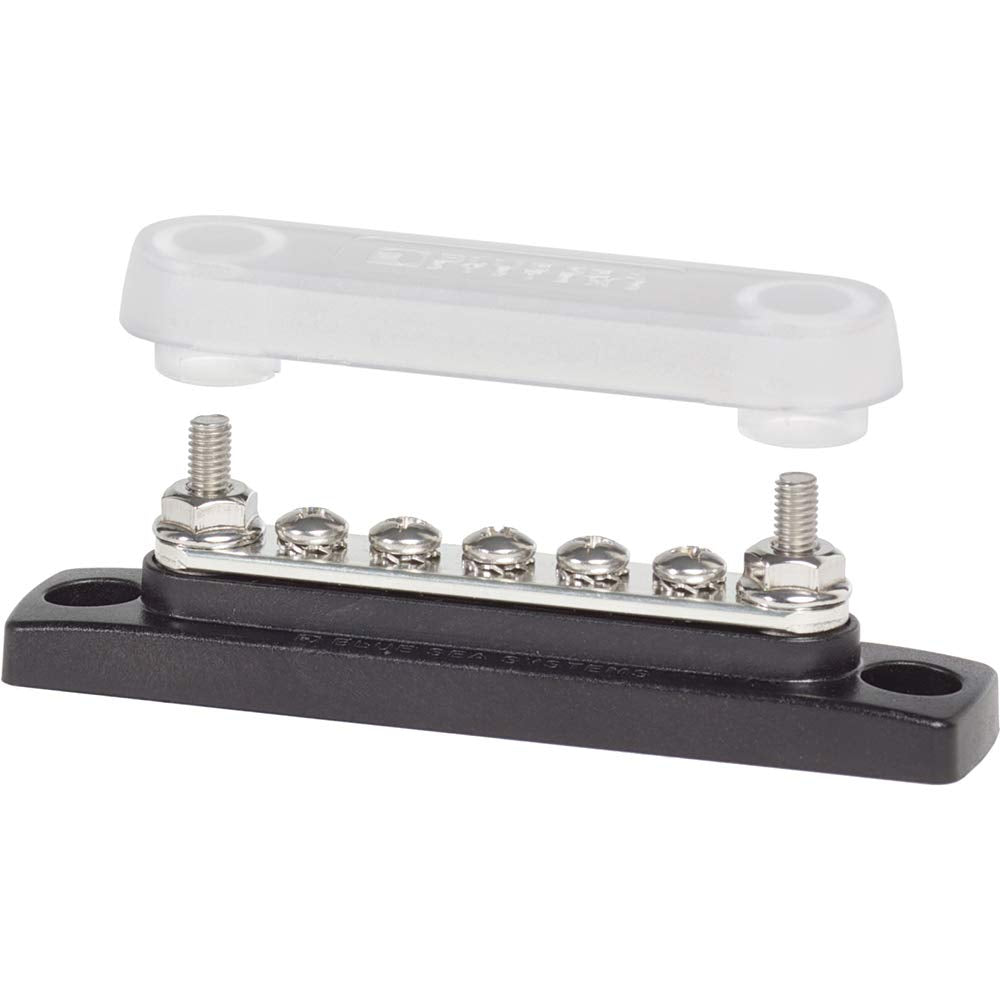

Blue Sea Systems 2314 Mini Busbar 100A — 5-Terminal Block with Clear Cover, Tin-Plated Copper

Blue Sea Systems 2314 is a compact 100A mini busbar that delivers five fused-free connection points and a clear protective cover for tidy, corrosion-resistant DC/AC power distribution.

This compact busbar is designed to centralize multiple battery or accessory connections while keeping conductors organized and accessible. Built on a reinforced polycarbonate base and using tin-plated pure copper conductors, the 2314 balances durability, conductivity and a low profile that fits into tight panel spaces. It’s rated for up to 100 A continuous current and safe for systems up to 48 V DC or 300 V AC, making it suitable for marine, RV, automotive and industrial control applications.

How does this busbar simplify wiring on small electrical panels?

The 2314 replaces multiple individual terminal connections by offering five screw terminals in one compact block, reducing clutter and potential loose connections. A clear polycarbonate cover keeps terminals protected while allowing quick visual checks. Low resistance tin-plated copper ensures efficient current flow, reducing voltage drop across connections.

• Five #8-32 screw terminals for multiple circuits
• Two #10-32 terminal studs for main feed or bus jumpers
• Clear cover for inspection without removal

What electrical ratings and hardware does it use?

The busbar is specified for continuous 100 A operation and maximum voltages of 48 V DC or 300 V AC, matching common low-voltage power systems. Termination hardware is sized to standard fasteners for easy integration into existing harnesses. Mounting holes accept #10 (M5) screws for secure installation to panels, bulkheads or enclosures.

• Continuous current: 100 A AC/DC
• Max voltage: 48 V DC / 300 V AC
• Terminal screws: five of #8-32; studs: two of #10-32
• Two mounting holes fit #10 (M5) screws

How does the construction resist corrosion and wear?

The conductive elements are pure copper with a tin plating that protects against oxidation common in marine and humid environments. The base is a reinforced polycarbonate that resists impact and mounting stress, while the clear polycarbonate cover shields terminals from accidental shorts and contamination. Together these materials prolong service life and maintain low-resistance connections.

• Tin-plated pure copper for superior conductivity and corrosion protection
• Reinforced polycarbonate base for mechanical strength
• Clear polycarbonate cover for protection and visibility

How easy is it to install and maintain?

Installation is straightforward: secure the busbar with two #10 (M5) screws, attach the main feeds to the studs and wire accessories to the five screw terminals. The cover snaps on to prevent accidental shorts and can be removed for service or inspection. Routine maintenance is limited to checking screw torque and visual inspection through the clear cover.

• Mount with two #10 (M5) screws
• Main feeds attach to two #10-32 studs
• Five #8-32 screws for accessory wiring with torque checks

Who is this for: The Blue Sea Systems 2314 mini busbar suits installers and DIYers who need a compact, reliable way to distribute power to multiple loads without fuses — ideal for small boats, campers, off-grid cabinets, and equipment racks. Choose this model when you want a durable, low-profile solution that simplifies wiring, protects connections, and fits into constrained spaces while meeting common marine and low-voltage electrical standards.
