Blue Sea Systems 285 Series Thermal Circuit Breaker 48V DC 120A — Surface-Mount, Trip-Free with Visible Lever

This compact, medium-duty device replaces conventional switches and fuses by acting as both a breaker and an on/off control, designed for marine and industrial use where reliable overload protection and a clear trip indicator are required. The 285 Series model is engineered for applications such as windlasses and electric winches, offering ignition protection and water resistance so it can be safely mounted in challenging environments including gasoline engine spaces.

How does this breaker protect electrical circuits without fuses?

The 7188 uses a thermal element that opens the circuit when excessive current persists, while also functioning as a manual switch. When an overcurrent occurs the mechanism trips and the visible lever moves to show a fault; the mechanism prevents holding it closed under overload.

• Thermal trip element responds to sustained overcurrent conditions.
• Visible lever indicates tripped state for fast troubleshooting.
• Trip-free design disables manual override during faults.
• Rated 48V DC at up to 120A for medium-duty loads.

Where can I install the 7188 on my vessel or equipment?

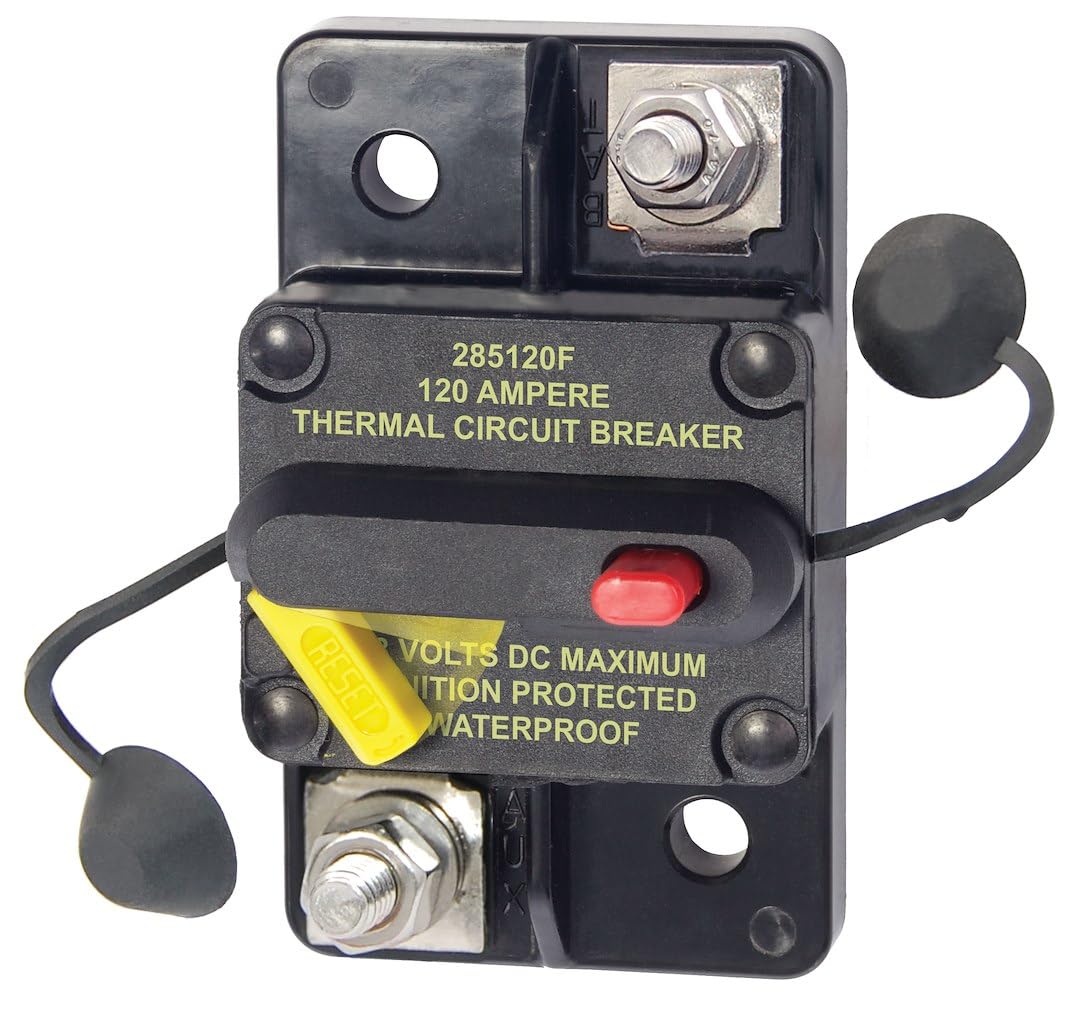

Surface-mount construction and ignition protection allow flexible placement, including engine compartments on gasoline-powered craft. Terminals are on the face for straightforward wiring, and protective terminal caps reduce accidental contact and short risks.

• Surface-mount form factor fits bulkheads or panels.
• Ignition-protected for safe use near gasoline engines.
• Terminal caps shield posts from accidental shorts and contact.
• Face-mounted studs simplify routing and connection of cables.

What makes this a practical choice for windlass and winch systems?

The breaker’s manual switching capability plus tailored trip characteristics suit motors and high-startup-current devices. It offers dependable interruption of fault currents without needing fuse changes, and the clear trip indicator helps operators identify issues fast.

• Combines switch and circuit protection—no separate fuse required.
• Medium-duty rating matches windlass and electric winch loads.
• Visible tripped lever speeds diagnosis during anchoring or haul-in.
• Drop-in replacement compatibility with earlier 185 series units.

How durable and serviceable is the 285 Series breaker?

Built for marine environments, the unit is water-resistant and designed with long service life in mind. Blue Sea Systems backs the breaker with a five-year warranty, and the surface-mount design and terminal placement make inspection and replacement straightforward.

• Water-resistant construction tolerates marine exposure.
• Designed for easy visual inspection of tripped state and terminals.
• Five-year warranty from Blue Sea Systems for added confidence.
• Direct terminal access for quick maintenance or swap-out.

Who is this for: The Blue Sea Systems 7188 285 Series is aimed at boat owners, marine electricians, and equipment installers who need a compact, reliable circuit protector that doubles as a switch. It’s especially useful for those fitting windlasses, electric winches, or other medium-duty DC motors where space, safety near gasoline engines, and easy fault identification are priorities. If you want a drop-in replacement for older 185 series breakers or a durable surface-mounted solution with clear trip feedback and terminal protection, this breaker is a practical choice.
