Blue Sea Systems 50A Battery Terminal Fuse — 50-Amp High AIC Marine DC Protection (blue/sea)

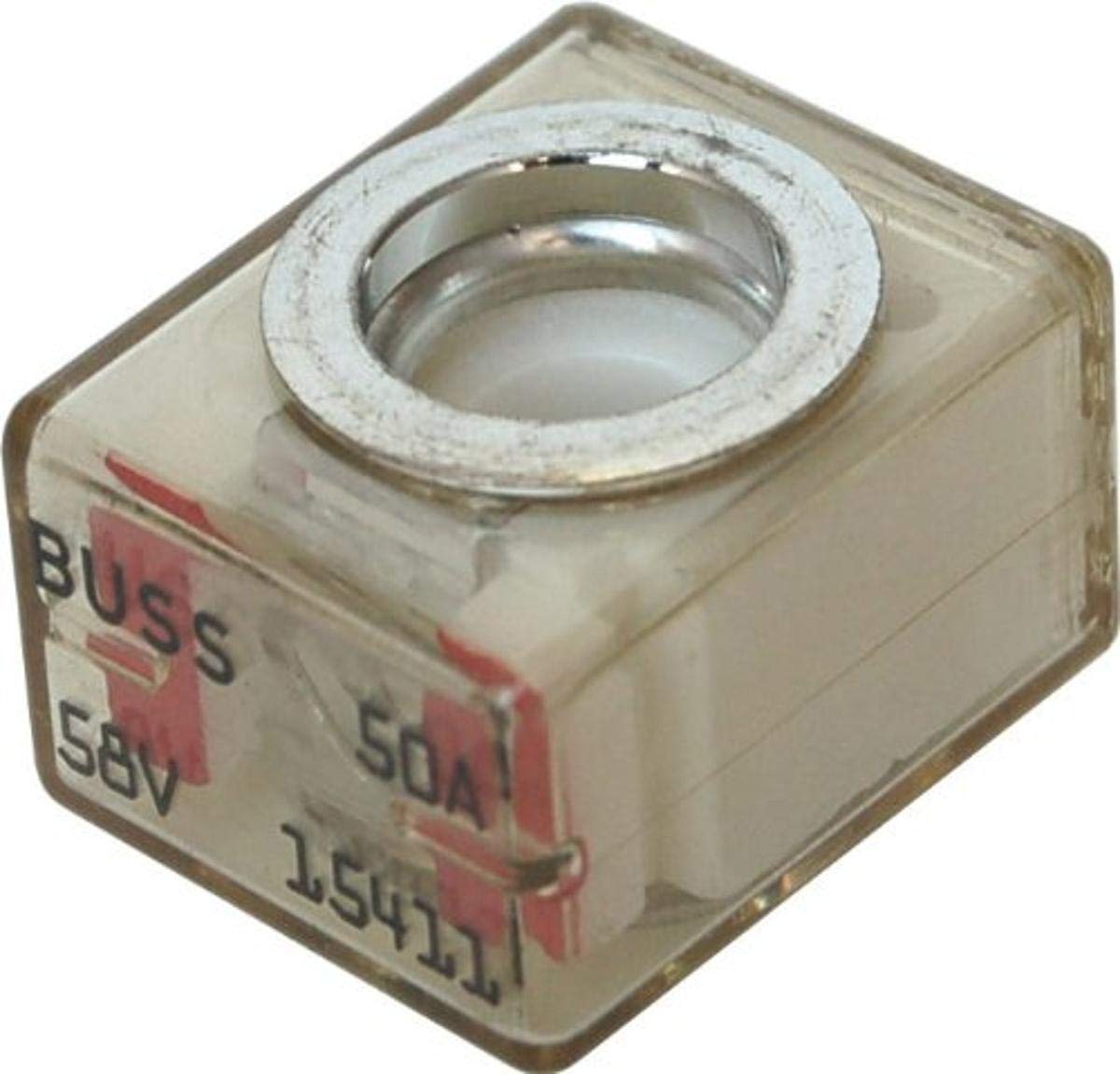

The Blue Sea Systems 5177 is a 50-amp battery terminal fuse designed to provide high-interrupting DC protection when installed in the appropriate terminal fuse block.

This compact fuse is made for marine and mobile electrical systems requiring robust short-circuit protection at the battery. It meets high interrupting capacity needs and is intended to be used with Blue Sea Systems terminal fuse blocks rather than mounted directly on a battery post. The small footprint and clear amperage rating make it straightforward to integrate into a main DC protection scheme on larger battery banks.

How does this fuse fit into a boat or vehicle electrical system?

The 5177 is specifically a terminal-style fuse that must be installed inside a compatible terminal fuse block (PN 5191 or PN 2151). It protects the main DC feed by interrupting large fault currents safely when used in the correct enclosure. Installation keeps the fuse accessible for inspection and replacement without attaching it directly to the battery stud.

• Installs in Blue Sea Systems terminal fuse blocks only (PN 5191 or PN 2151).
• Keeps main DC conductors protected at the battery bank connection point.
• Allows fuse replacement without disconnecting battery cables.

What electrical performance can I expect from the 50-amp unit?

This fuse is rated for 50 amps continuous service and offers a very high interrupting capacity at 14 V DC, meeting stringent safety expectations for large DC systems. The high AIC rating means it can safely clear severe short-circuit events typical in marine battery installations when used as part of the recommended block.

• Rated current: 50 A for normal circuit protection.
• High interrupting capacity (10,000 AIC at 14 V DC) for robust fault clearing.
• Designed to handle the demands of larger battery banks and main DC feeds.

Are there any installation or compatibility requirements I need to know?

Yes — the 5177 must not be mounted directly to a battery terminal. It requires one of Blue Sea Systems' terminal fuse blocks to ensure safe mechanical and electrical installation. Following the manufacturer's guidance ensures proper clearance, secure connections, and access for maintenance.

• Do not mount the fuse directly on a battery post; use PN 5191 or PN 2151 blocks.
• Verify block and fuse amperage match the system’s conductor sizes and load.
• Allow access for inspection and replacement when planning placement.

Who is this for: The Blue Sea Systems 5177 50-amp battery terminal fuse is ideal for boat owners, marine electricians, and mobile-power installers who need a compact, high-AIC protective device for main DC circuits. It suits rigs with larger battery banks where safe interruption of high fault currents is required and where the installer will use a compatible terminal fuse block for proper mounting and serviceability.
