Blue Sea Systems MRBF 80A Terminal Fuse — 10,000 AIC, ignition-protected, blue

Blue Sea Systems 5181 MRBF 80A terminal fuse is a high-interrupt-capacity, ignition-protected main DC fuse designed to protect large battery banks when installed in the appropriate terminal fuse block.

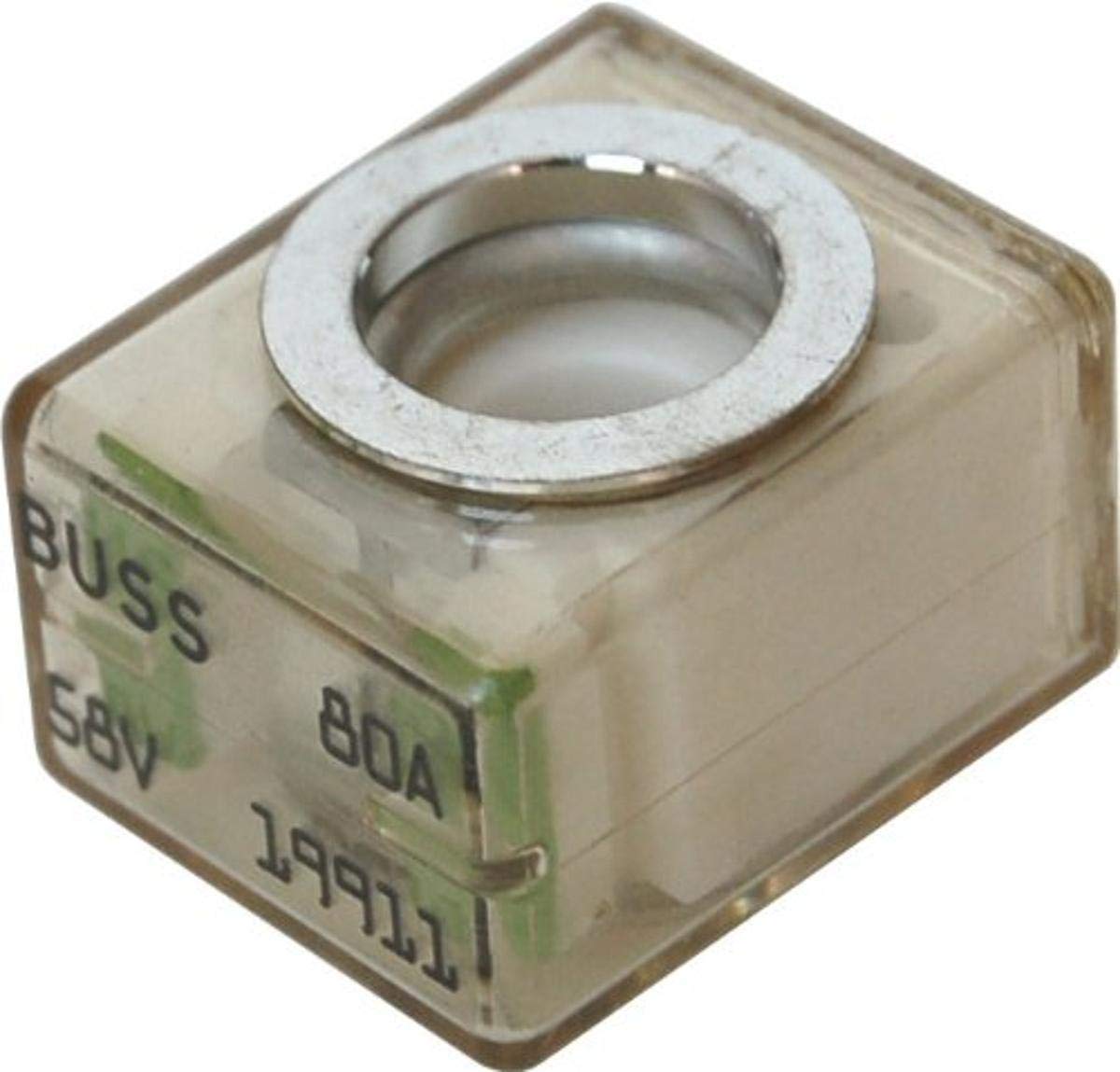

This compact MRBF (Molded Reaction Block Fuse) from Blue Sea Systems delivers a 10,000 AIC interrupt rating at 14 V DC, meeting ABYC requirements for DC main circuit protection on larger battery installations. The 5181 is color-coded for quick amperage identification, features a clear inspection window to see a blown element, and must be installed in one of Blue Sea Systems' compatible terminal fuse blocks (PN 5191 or PN 2151). It’s engineered for marine and mobile applications where high short-circuit capacity, ignition protection, and clear visual indication matter.

How does this fuse meet ABYC DC main protection requirements?

The 5181 provides a 10,000 amp interrupt rating at 14 V DC, which satisfies ABYC guidance for DC main circuit protection on large battery banks. That high interrupt capacity ensures the fuse can safely clear large fault currents without catastrophic failure. Use only the recommended terminal fuse blocks to maintain rated performance and safe heat dissipation.

• 10,000 AIC (Amps Interrupting Capacity) at 14 V DC
• Designed for DC main protection on large battery systems
• Must be mounted in PN 5191 or PN 2151 terminal fuse block

Can I mount the fuse directly to a battery terminal?

No — the 5181 is intended for use inside a compatible terminal fuse block, not for direct attachment to battery posts. Proper mounting in the specified block ensures correct electrical spacing, mechanical support, and cooling, preserving the fuse’s performance and safety characteristics.

• Do not install directly on battery terminals
• Compatible blocks: PN 5191 or PN 2151 only
• Block installation provides secure electrical and mechanical connection

What safety and user-friendly features does this fuse include?

The 5181 is ignition protected for gasoline-powered environments and has a clear window so you can visually confirm a blown element without disassembly. Color coding lets technicians and owners identify the amperage at a glance, simplifying maintenance and reducing installation errors.

• Ignition-protected for safe use aboard gasoline-powered craft
• Clear inspection window shows blown condition
• Color-coded housing for fast amperage recognition

How should I select and use this fuse in my system?

Choose the 80A rating to match or slightly exceed your DC main conductor and equipment load specifications, while still protecting wiring to the desired level. Install the MRBF into the correct Blue Sea terminal fuse block, verify proper torque and connections, and follow ABYC and manufacturer guidance for wiring and placement.

• Select amperage based on conductor size and system design
• Install in PN 5191 or PN 2151 terminal fuse block only
• Confirm torques, clearances, and ABYC-compliant routing during installation

Who is this for: The Blue Sea Systems 5181 MRBF 80A is aimed at marine electricians, boat owners, and mobile power system installers who need a compact, high-interrupt-capacity main fuse that’s safe for gasoline-powered vessels and gives fast visual confirmation of a blown condition. If you’re building or upgrading a large battery bank or DC main distribution and require ABYC-level interrupt capability and a user-friendly inspection feature, this fuse is an appropriate component when paired with the recommended Blue Sea terminal fuse block.
