BlyilyB 12-80V Dual Color Motorcycle Scooter Amber Color

BlyilyB dual-color LED lamp combines an amber sequential turn signal and a red tail/brake light in a single, weatherproof unit for motorcycles and scooters.

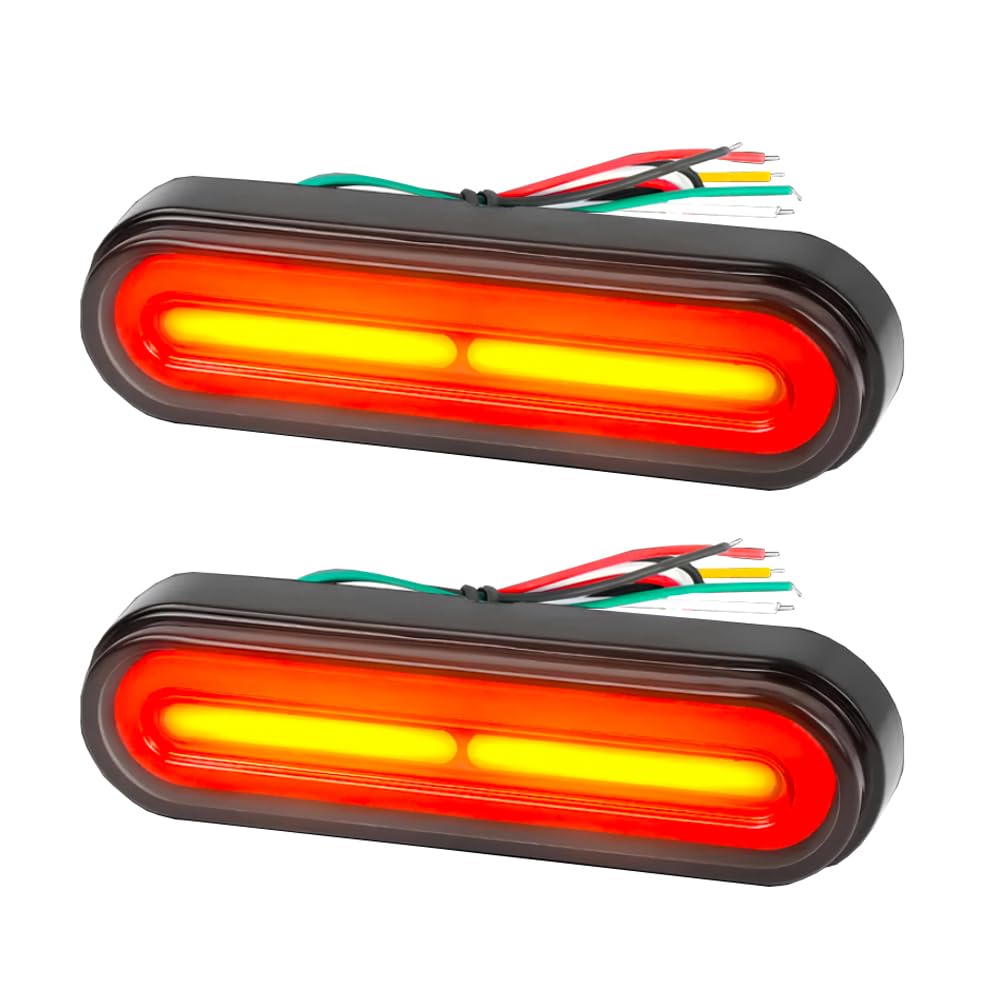

This 3-in-1 rear lamp is designed to simplify installation and increase visibility: it provides running tail light illumination, a distinct flashing brake pattern, and flowing amber turn signals from one compact housing. Rated for 12–80V systems and sealed to IP67, the lamp works across motorcycles, scooters, mopeds and many electric bikes. The pack includes two lamps, though many riders need only one installed at the rear because each unit contains all three functions.

How does this lamp handle different lighting functions?

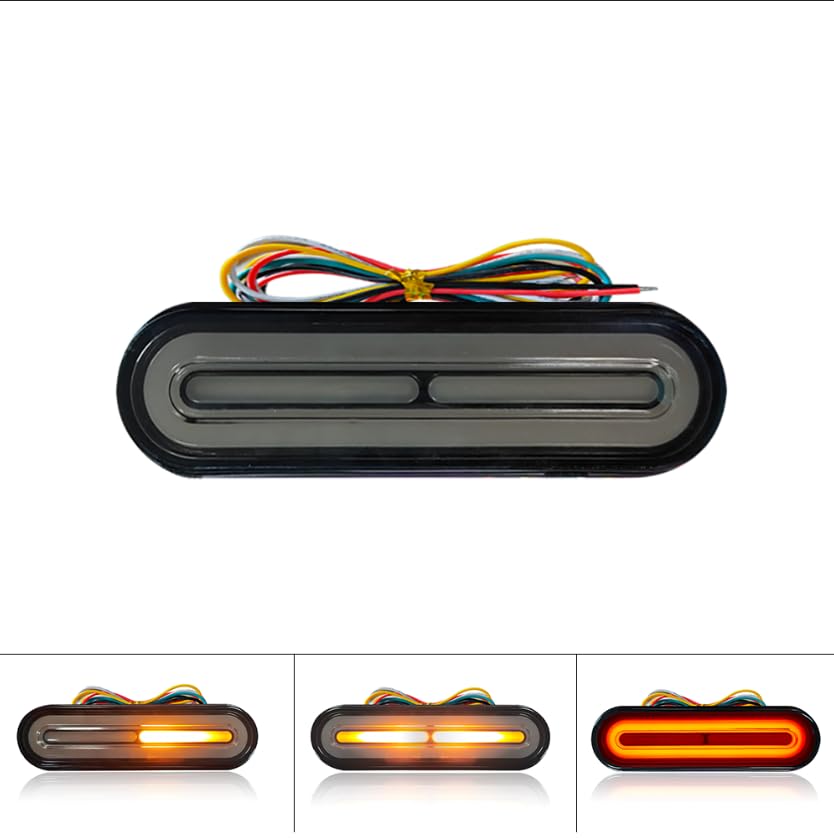

The lamp uses separate LED sequences to indicate running lights, braking, and left/right turns. In normal running mode it displays a breathing red pattern that settles into a steady low-beam red; braking briefly flashes four times before switching to a steady high-beam red; and turn signals use sequential amber flow left or right for clear direction indication.

• 3-in-1 operation: running light, brake light, and sequential turn signal.

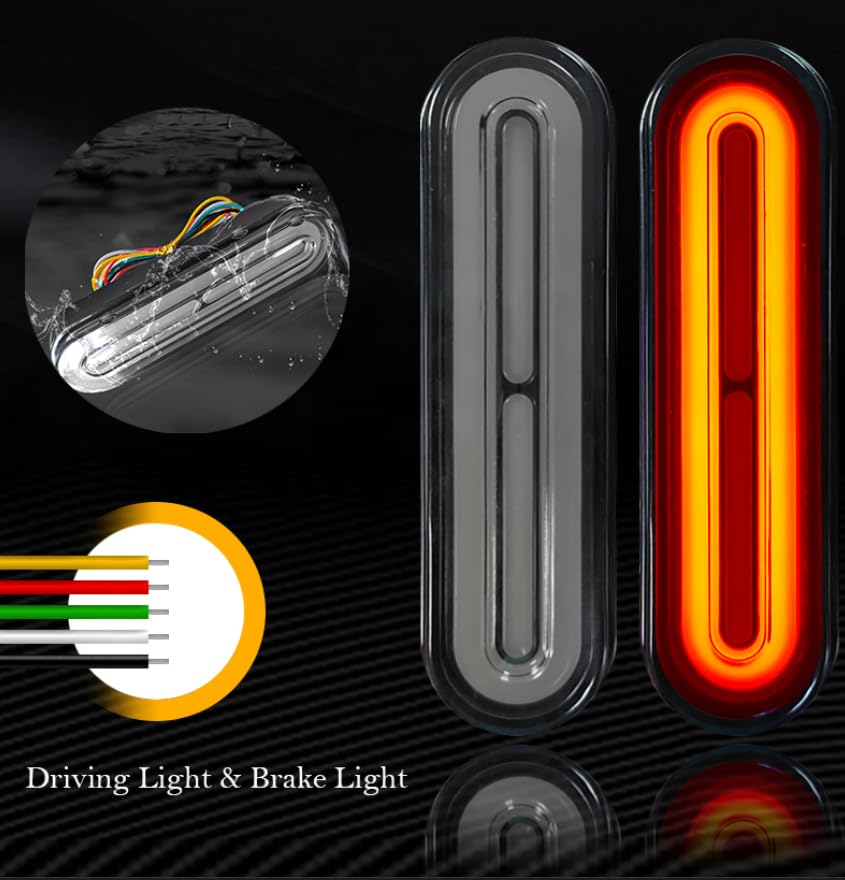

• Red breathing → steady low-beam for tail illumination.
• Brake: four quick flashes then continuous high-beam red.

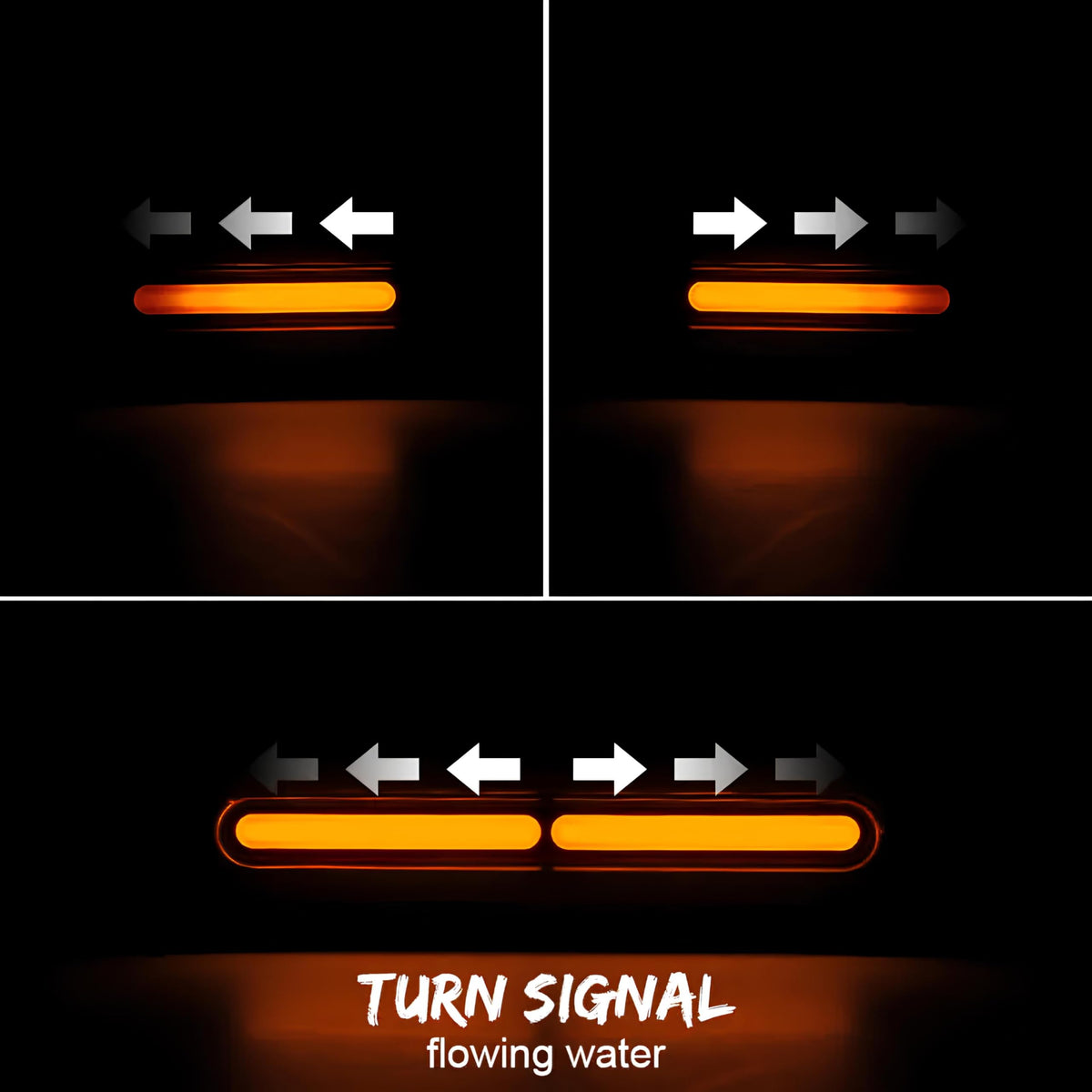

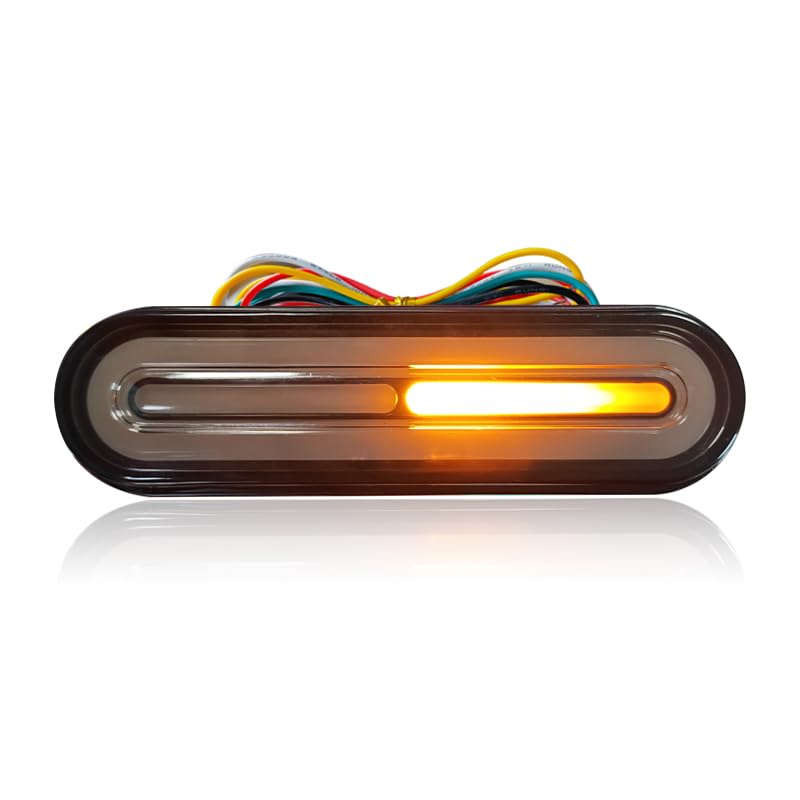

• Amber sequential flow for left and right turn signals.

Will it survive rain and road vibration?

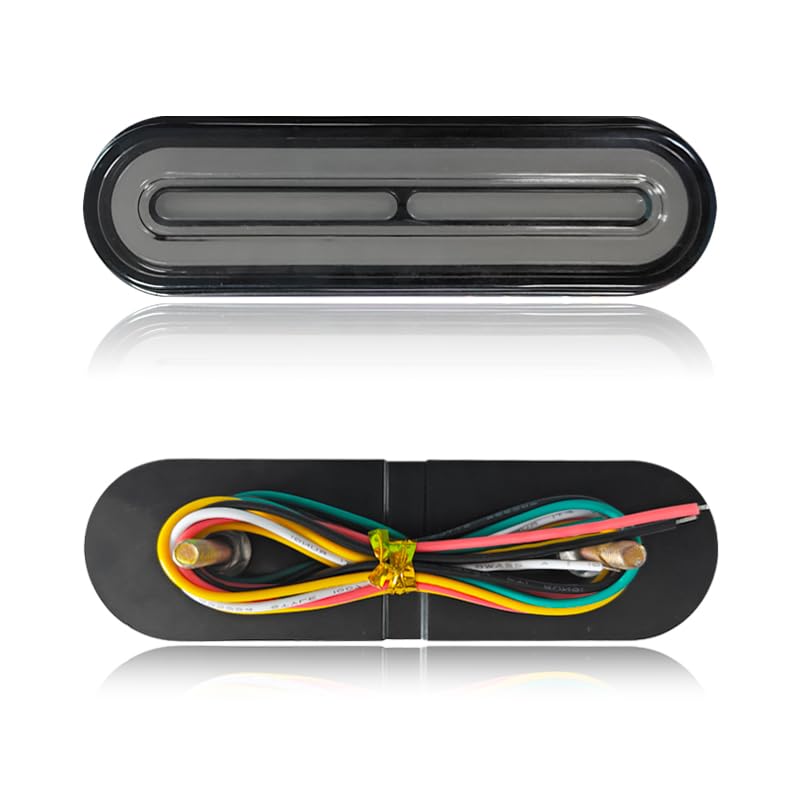

The housing is designed with a glue-sealed construction and an IP67 rating to resist rain, splashes, and road grime. The die-cast body and fixed mounting holes help maintain alignment and performance even on bumpy rides.

• IP67 waterproof sealing for consistent wet-weather performance.
• Glue-sealed assembly prevents water ingress at seams.
• Compact metal housing resists vibration and impact.

How do I wire and fit the lamp to my vehicle?

Wiring follows a simple five-wire color code and the lamp’s physical footprint fits common rear mount points on motorcycles and scooters. Typical installations use the black wire for negative and the colored wires for position, brake, and turn signal functions.

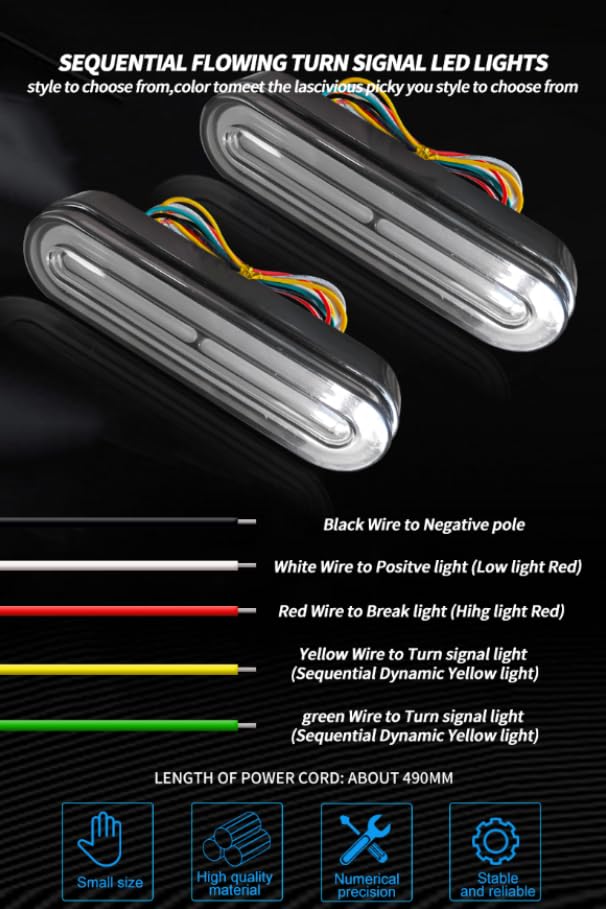

• Wiring: Black = negative, White = position, Red = brake, Yellow/Green = turn signals.

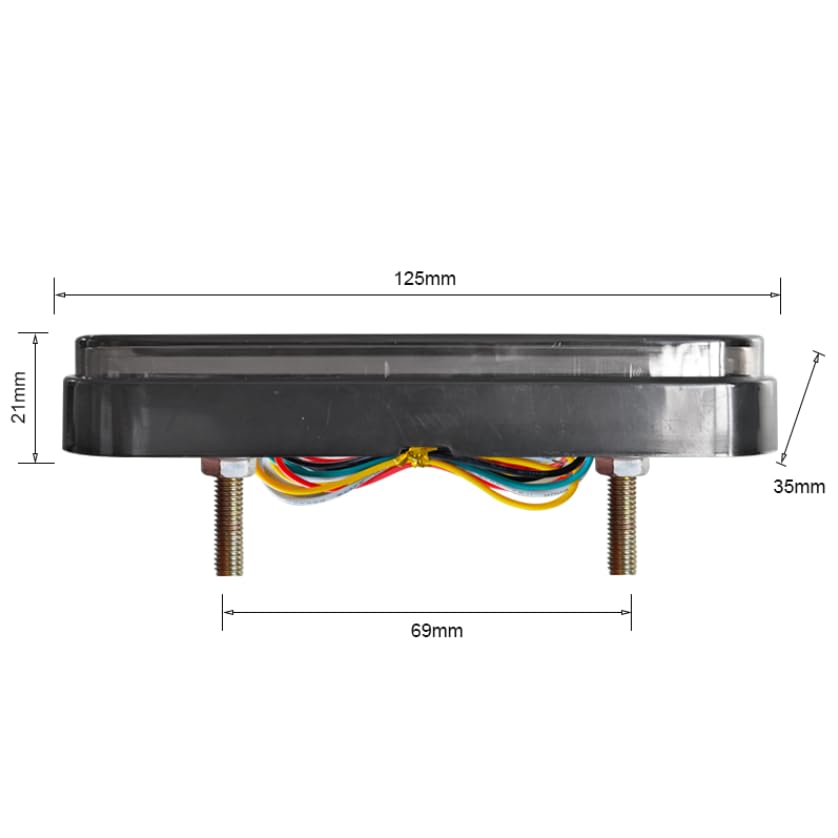

• Dimensions: 125mm length × 35mm width × 21mm height; screw diameter M4.5; hole spacing 69mm.
• Wire length is about 50cm for flexible routing and connection.

What vehicles and voltages are compatible with this light?

The BlyilyB lamp supports a very wide DC input range (12–80V), making it suitable for standard motorcycles, scooters, mopeds, electric mopeds and many custom builds. Always verify vehicle polarity and fuse protection before connecting.

• DC 12–80V operating range for broad vehicle compatibility.
• Common fit for motorcycles, scooters, electric bikes and mopeds.
• Often only one 3-in-1 lamp is required at the rear for full functionality.

Who is this for? Riders who want a compact, weatherproof rear lamp that reduces clutter by combining tail, brake and sequential turn signals into a single unit. It’s suited for commuters, custom bike builders, and riders upgrading visibility and style on scooters, mopeds, and motorcycles. If you need a rugged, easy-to-wire light that works across 12–80V systems and performs reliably in wet conditions, this lamp is a practical choice.
