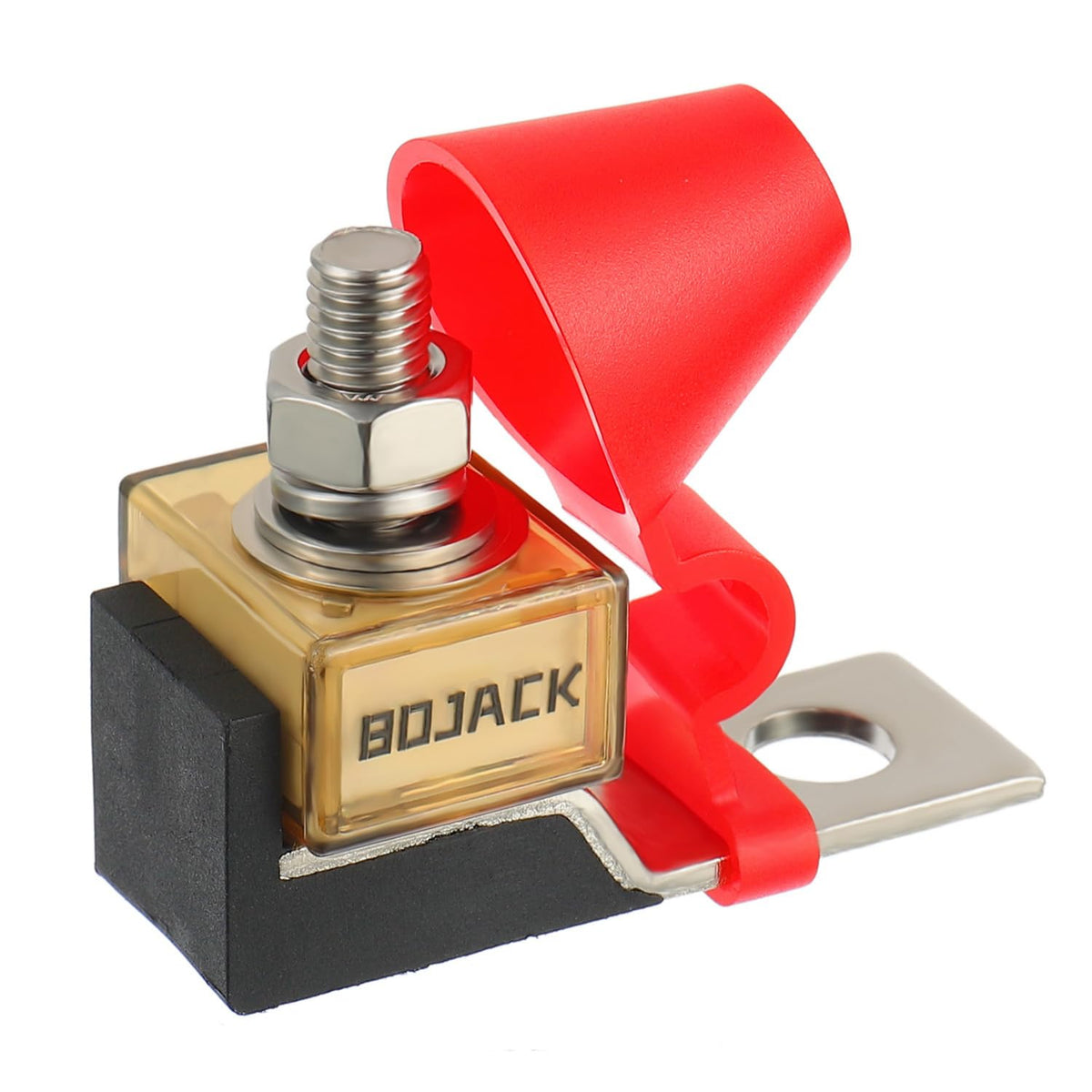

BOJACK 300A Marine Battery Fuse Holder 58V DC IP66 Waterproof, Stainless Steel Studs

BOJACK 300A Marine Rated Battery Fuse 58V DC Max IP66 Waterproof Fuse Holder is a compact, high-current terminal fuse block built to protect DC battery circuits in marine and mobile applications.

This heavy-duty MRBF (Marine Rated Blade Fuse) terminal fuse holder combines robust materials, a waterproof cap, and stainless-steel studs to deliver reliable 300A protection up to 58 volts DC. Designed for tight spaces where full-size fuse blocks won’t fit, it balances corrosion resistance and electrical performance for boats, RVs, inverters, and industrial DC systems.

How does this fuse holder safeguard high-current DC circuits?

The BOJACK 300A fuse holder interrupts excessive current through a replaceable MRBF element to prevent wiring damage and downstream component failure. Its ceramic insulation and nickel-plated copper alloy fuse ensure stable conductivity and heat tolerance during high-load events.

• Rated for 300 amps continuous protection with 58V DC maximum.
• Ceramic insulation and PA66 thermoplastic body resist heat and electrical stress.
• Nickel-plated copper-alloy fuse and stainless steel studs for low-resistance connections.
• Compact footprint for installations where space is limited.

What makes this model suitable for marine environments?

Corrosion and moisture are primary threats aboard vessels; this fuse holder addresses both with IP66 protection and corrosion-resistant hardware. The included waterproof cap keeps water and dust away from the terminal area, helping maintain reliable operation in wet and salty conditions.

• IP66-rated enclosure protects against powerful water jets and dust ingress.
• Stainless-steel studs and hardware resist rust in marine atmospheres.
• Waterproof red insulating cap prevents accidental shorts and environmental damage.
• Thermoplastic and ceramic materials stand up to temperature changes and vibration.

How do I mount and connect the BOJACK terminal fuse block?

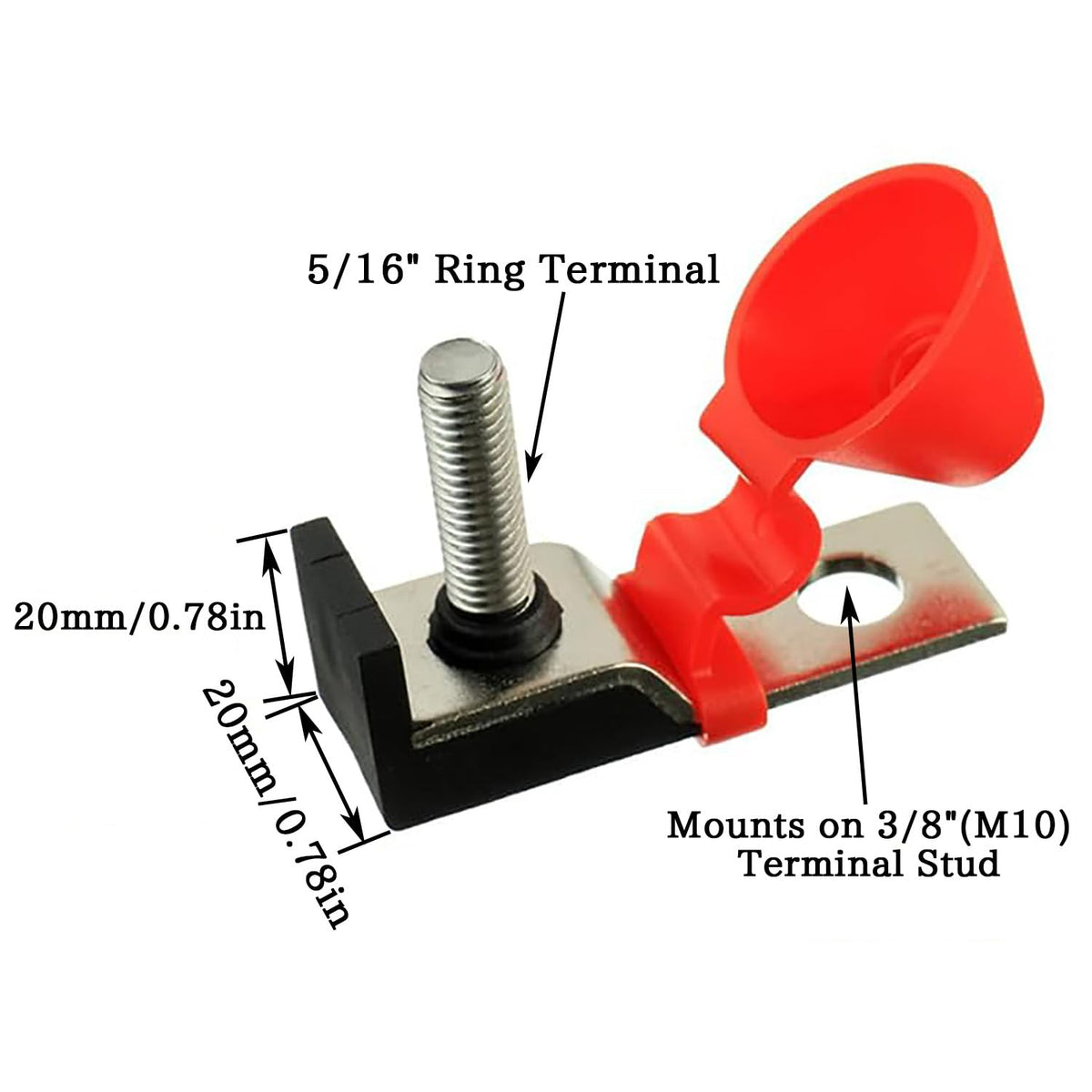

Installation is straightforward: secure the unit using the M10 mounting hole, attach battery or cable lugs to the M8 studs, and fit the supplied nut and washers. Electrical connections are tightened to provide a low-resistance path while the insulating cap offers an added safety barrier after installation.

• Mounting hole: 3/8" (M10) for panel or bulkhead attachment.
• Stud size: 5/16" (M8) for standard battery lug compatibility.

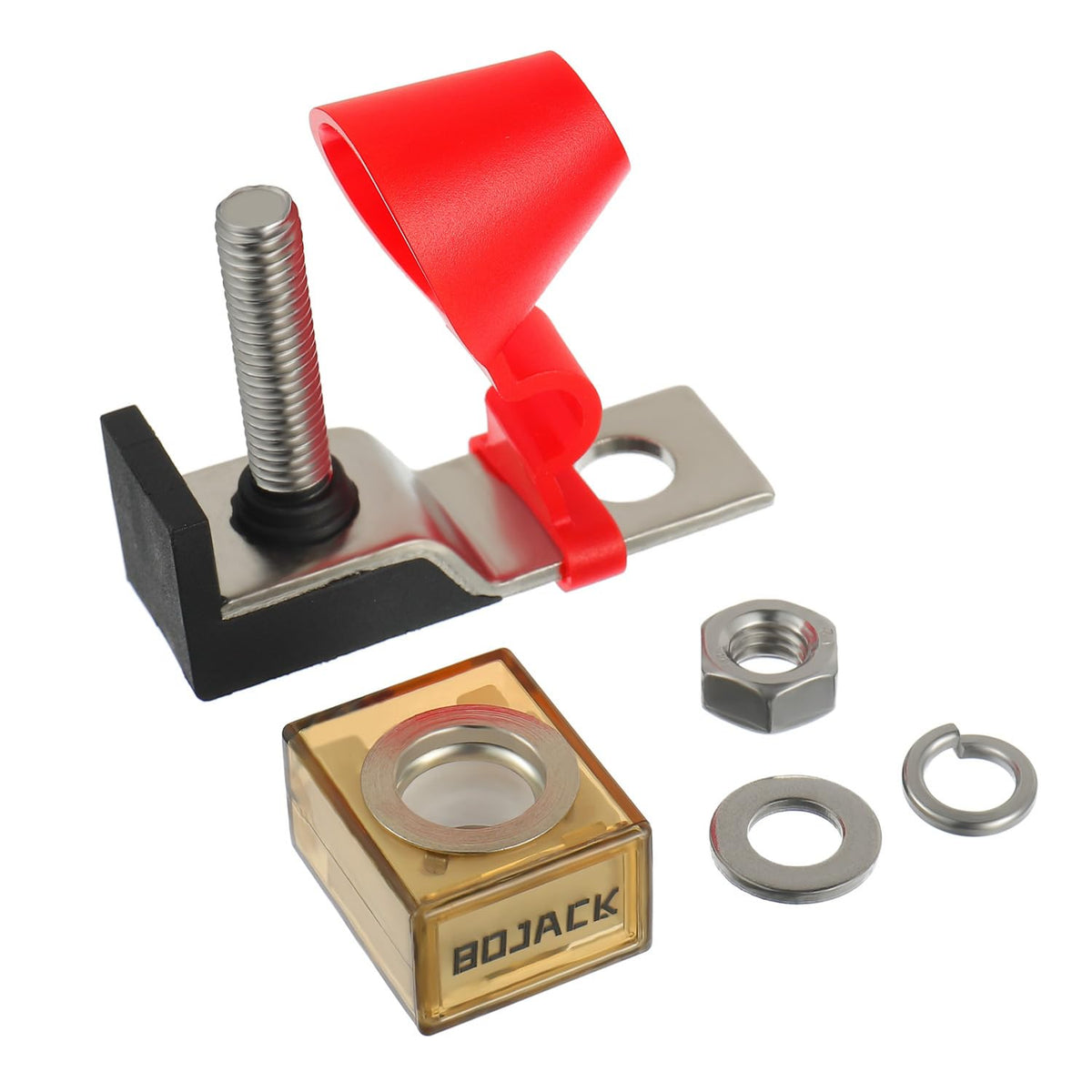

• Includes washer, lock washer, and hex nut for secure fastening.
• Supplied with one 300A MRBF fuse; choose other amperages at purchase if needed.

Which electrical characteristics and materials should I be aware of?

The unit is engineered to balance electrical performance with mechanical resilience. From the nickel-plated copper alloy fuse to the PA66 thermoplastic body and ceramic insulation, each component is selected to maintain conductivity, limit corrosion, and endure vibration and heat common in mobile applications.

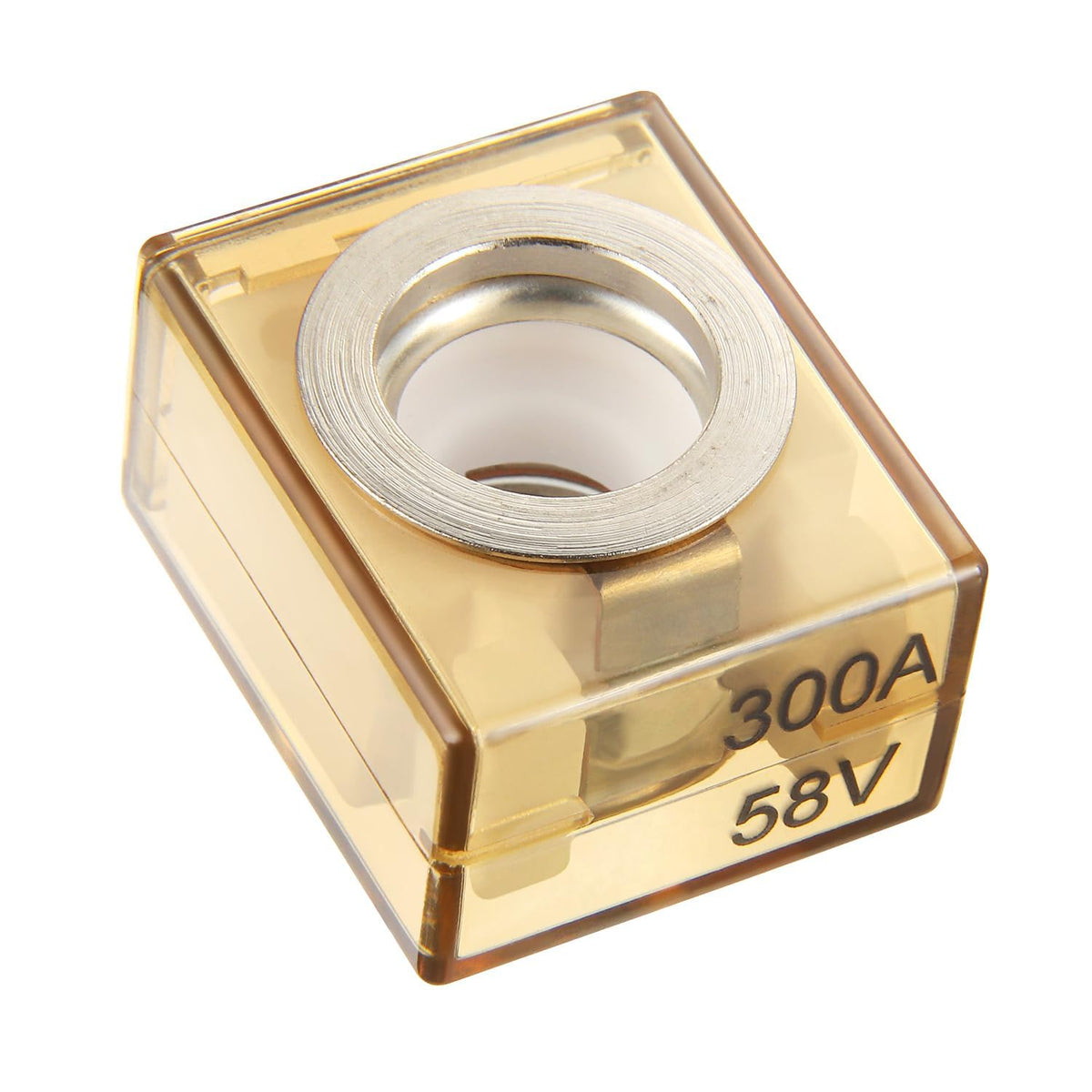

• Fuse material: copper alloy, nickel-plated, 2.5mm thickness for consistent conductivity.
• Housing: PES plastic fuse housing (clear) for visual inspection of the fuse link.
• Body material: PA66-RG301 thermoplastic in black for durability.
• Protection class: IP66, suitable for demanding outdoor and marine use.

Who is this for? The BOJACK 300A Marine Rated Battery Fuse Holder is aimed at boat owners, marine electricians, RV and motorhome builders, inverter and off-grid system installers, and industrial technicians who need a compact, seaworthy solution for protecting high-current DC circuits. If you require dependable 300A protection, corrosion resistance, and space-saving mounting in wet or vibration-prone environments, this terminal fuse block is engineered to meet those needs without sacrificing serviceability or safety.
