Bonbo LS-Series Billet Alignment Kit – Front & Rear Cover and Oil Pan Locator for 4.8–6.0 LS Engines, CNC Aluminum Precision

Bonbo's billet alignment kit centers LS-series front and rear covers and accurately aligns the oil pan to prevent seal misalignment and reduce the risk of leaks during engine assembly.

This precision alignment set is purpose-built for GM LS family engines (4.8, 5.3, 5.7, 6.0 — including LS1, LS2, LS3, LS6, LSA, LQ4, and related variants). Machined from high-grade aluminum, the tools simulate the crank balancer and oil pan locating surfaces so covers and pans slip into perfect position while you install seals or torque fasteners. The result: straighter assemblies, fewer gasket issues, and faster, more confident rebuilds or service jobs.

How does this tool ensure proper front and rear cover alignment?

The billet alignment mandrels mimic the balancer and fit into the crank snout or seal bore to center the covers before final torque. By holding the cover concentric to the crank, the tool lets you seat seals without distortion and verify that bolt holes line up uniformly.

• Centers cover over crank snout like the harmonic balancer would.
• Holds cover while you install and torque fasteners.
• Prevents seal lip twisting and uneven compression.
• Works without the seal installed to locate inner diameter precisely.

Why is oil pan alignment important on LS engines?

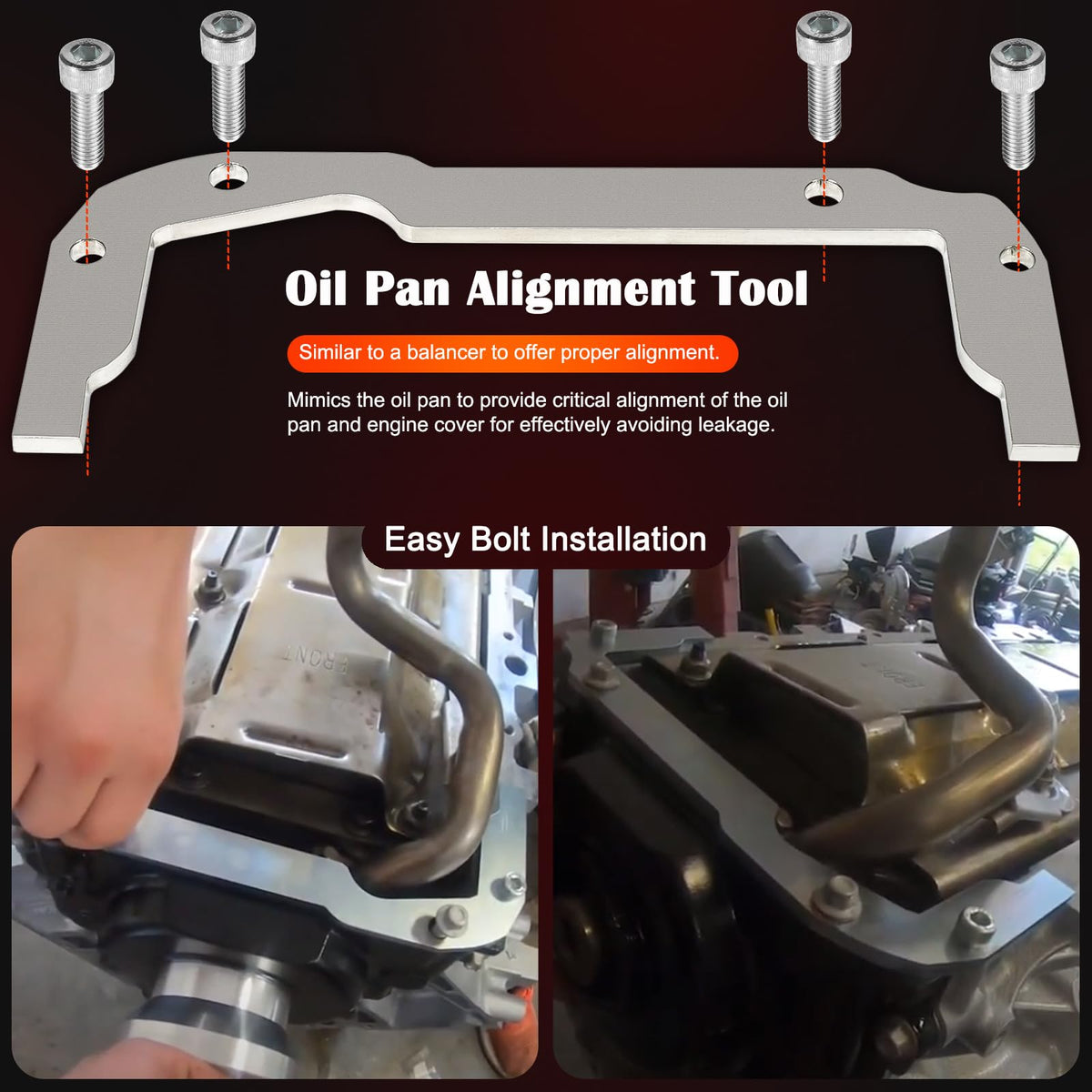

On LS-series V8s the oil pan is a stressed member that contributes to block rigidity; misaligned pans can pull covers out of true and cause leaks or stress. The oil pan alignment adapter in this set reproduces the pan's locating surface so the front and rear covers relate correctly to the pan when assembly is completed.

• Simulates oil pan location to prevent introduced stress.
• Helps align front/rear covers in relation to the pan.
• Makes full-assembly fit checks before final sealing straightforward.

Which LS engine models and service tasks does the kit support?

This kit covers a wide range of GM LS-series variants — useful for rebuilds, seal replacement, engine swaps, and professional shop work. It’s compatible with common passenger-vehicle and light-duty truck LS engines and fits both front and rear cover applications.

• Compatible with LS1, LS2, LS3, LS4, LS6, LS7, LSA, LS9, LQ4, LQ9, L76, L92, L99, and similar blocks.
• Ideal for front/rear seal replacement and pan reinstallation.
• Suits engine rebuilders, performance shops, and DIY mechanics.

What materials and build quality can users expect from the Bonbo kit?

Each component is CNC-machined from premium aluminum to deliver accurate tolerances while resisting corrosion and impact in a shop environment. The lightweight yet rigid construction provides reliable repeatability across multiple assemblies without deforming the mating surfaces.

• High-grade aluminum resists rust and holds precise dimensions.
• Durable finish for repeated shop use and easy cleaning.
• Engineered tolerances ensure consistent centering every time.

Who is this for? The Bonbo front & rear cover billet alignment tool and oil pan alignment adapter are made for professional engine builders, automotive technicians, and serious home mechanics working on GM LS-series V8s who want to eliminate guesswork when installing seals and oil pans. If you rebuild LS engines, perform seal service, or prepare blocks for swaps, this kit speeds assembly and helps protect seals from improper installation.
