Bonbo Timing Tool Kit for Ford 4.6L/5.4L/6.8L 3V Engines — Cam Phaser Holder, Chain Lock & Valve Spring Compressor

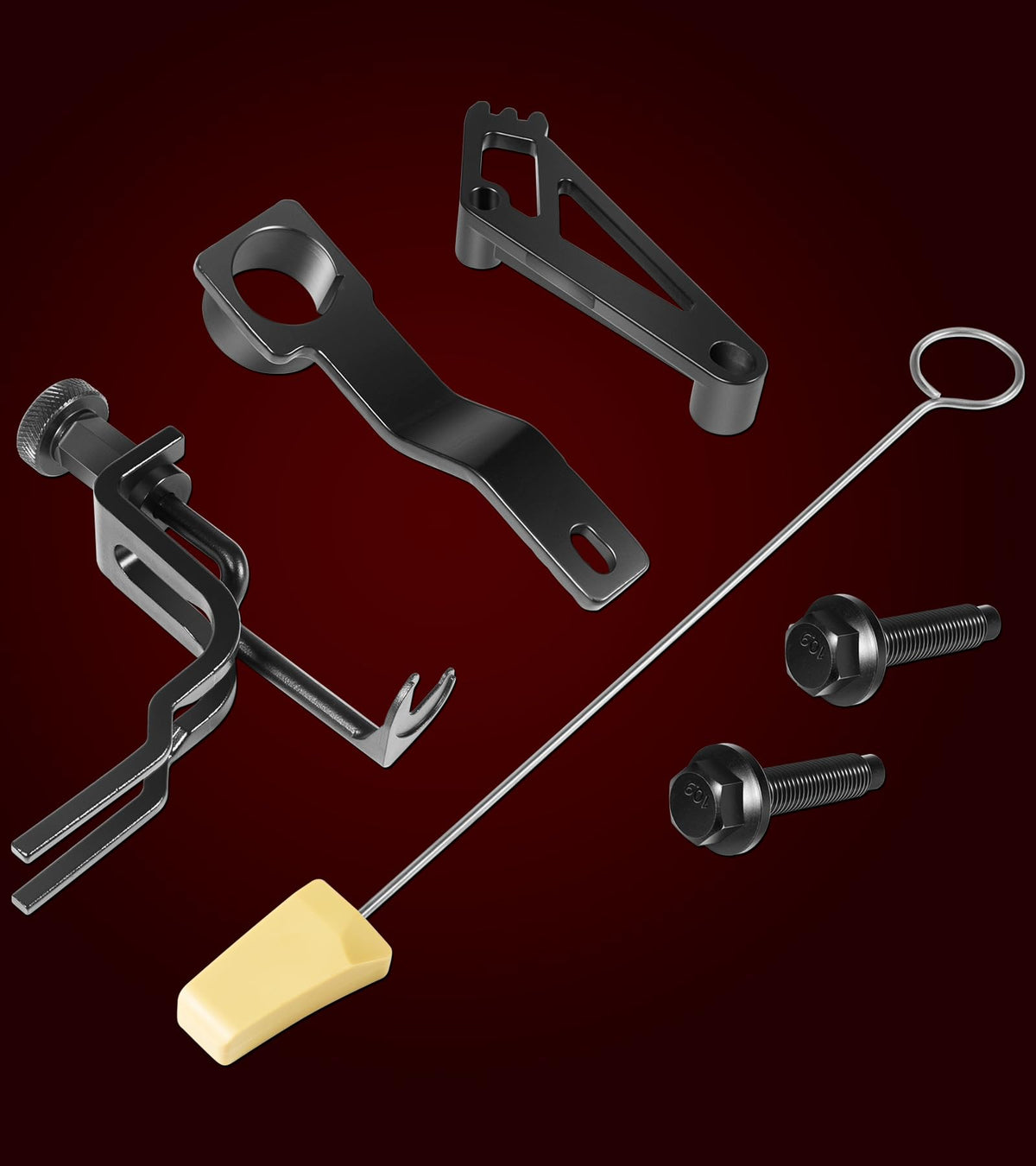

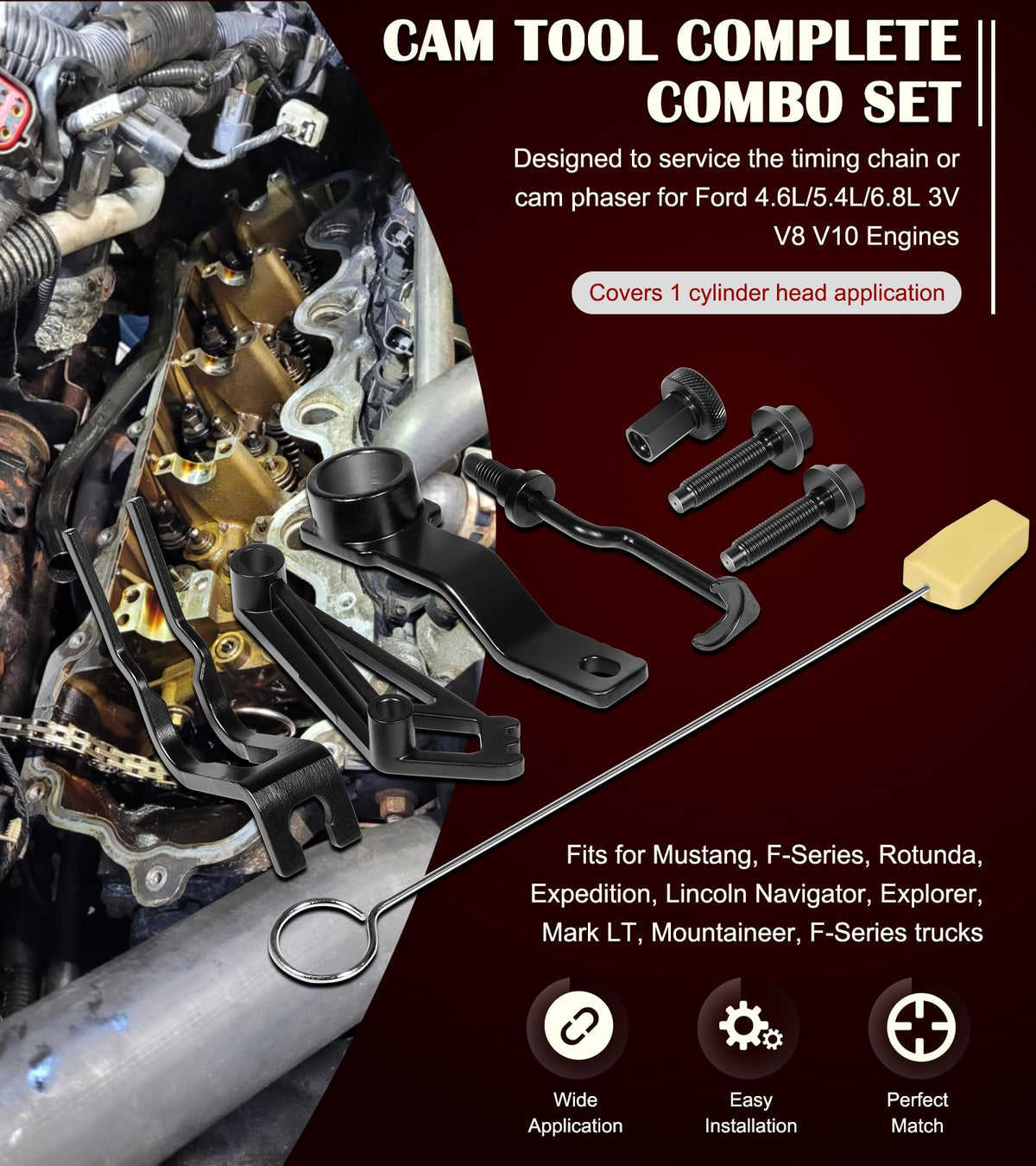

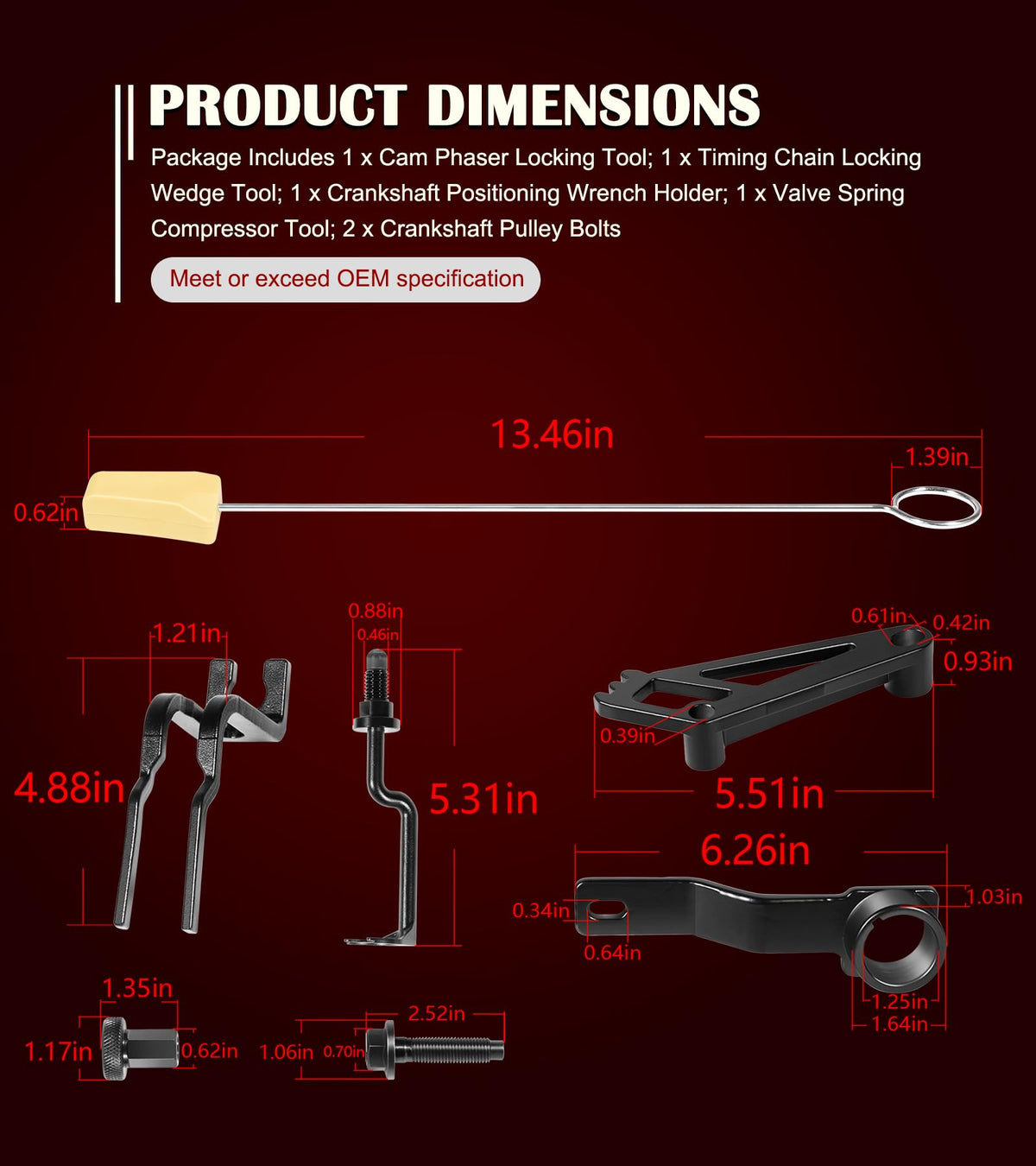

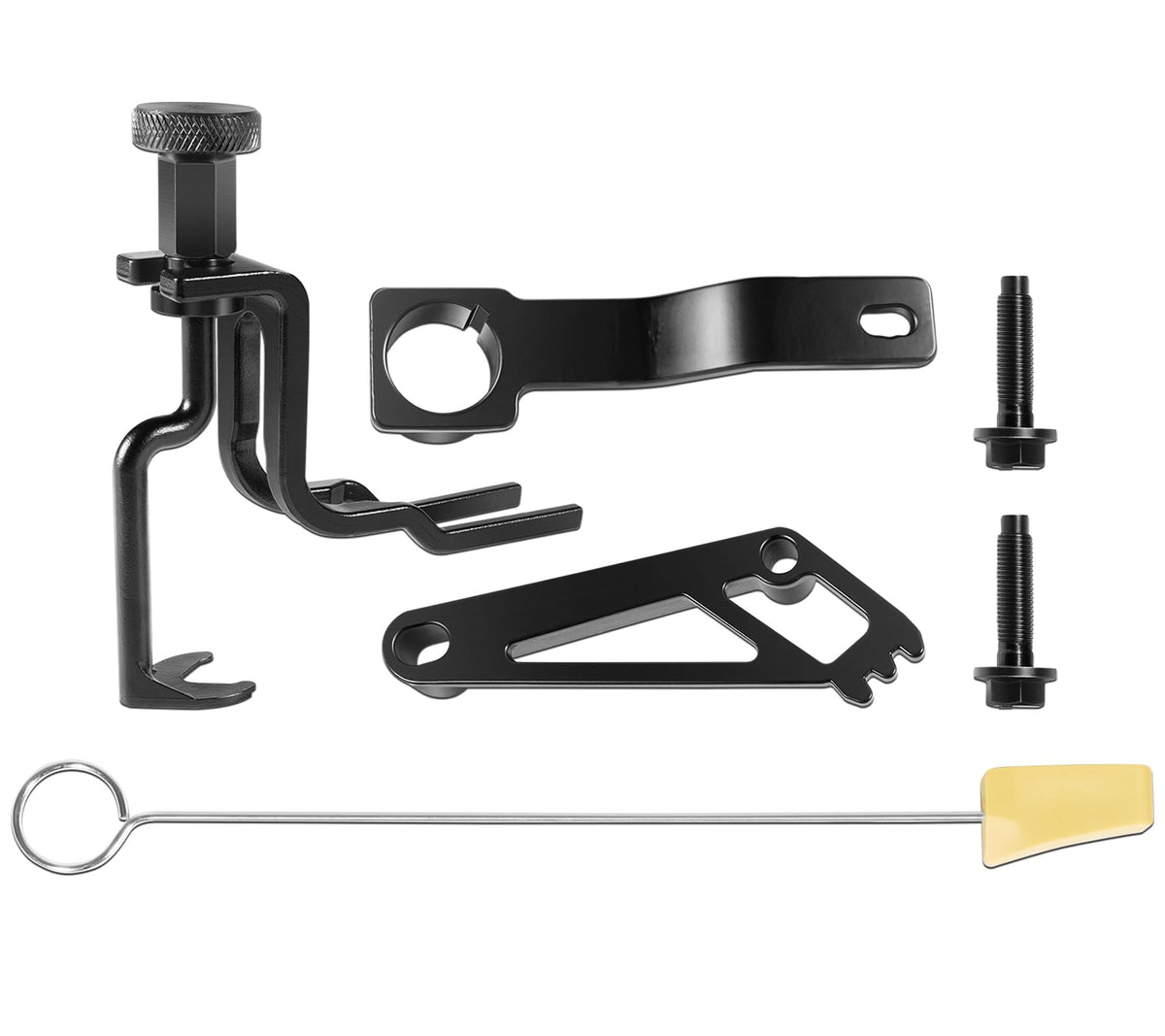

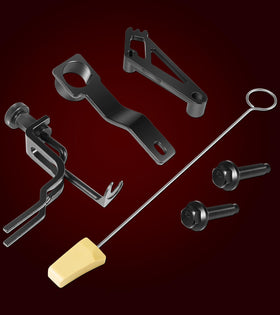

This precision-made toolkit is tailored for Ford 4.6L, 5.4L and 6.8L 3-valve engines used across Mustang, F-Series trucks, Expedition, Navigator, Explorer and related models. It combines a cam phaser holding tool, timing chain locking wedge, crankshaft positioning tool, valve spring compressor and crankshaft pulley bolts so technicians and experienced DIYers can remove, replace or align timing components without guesswork.

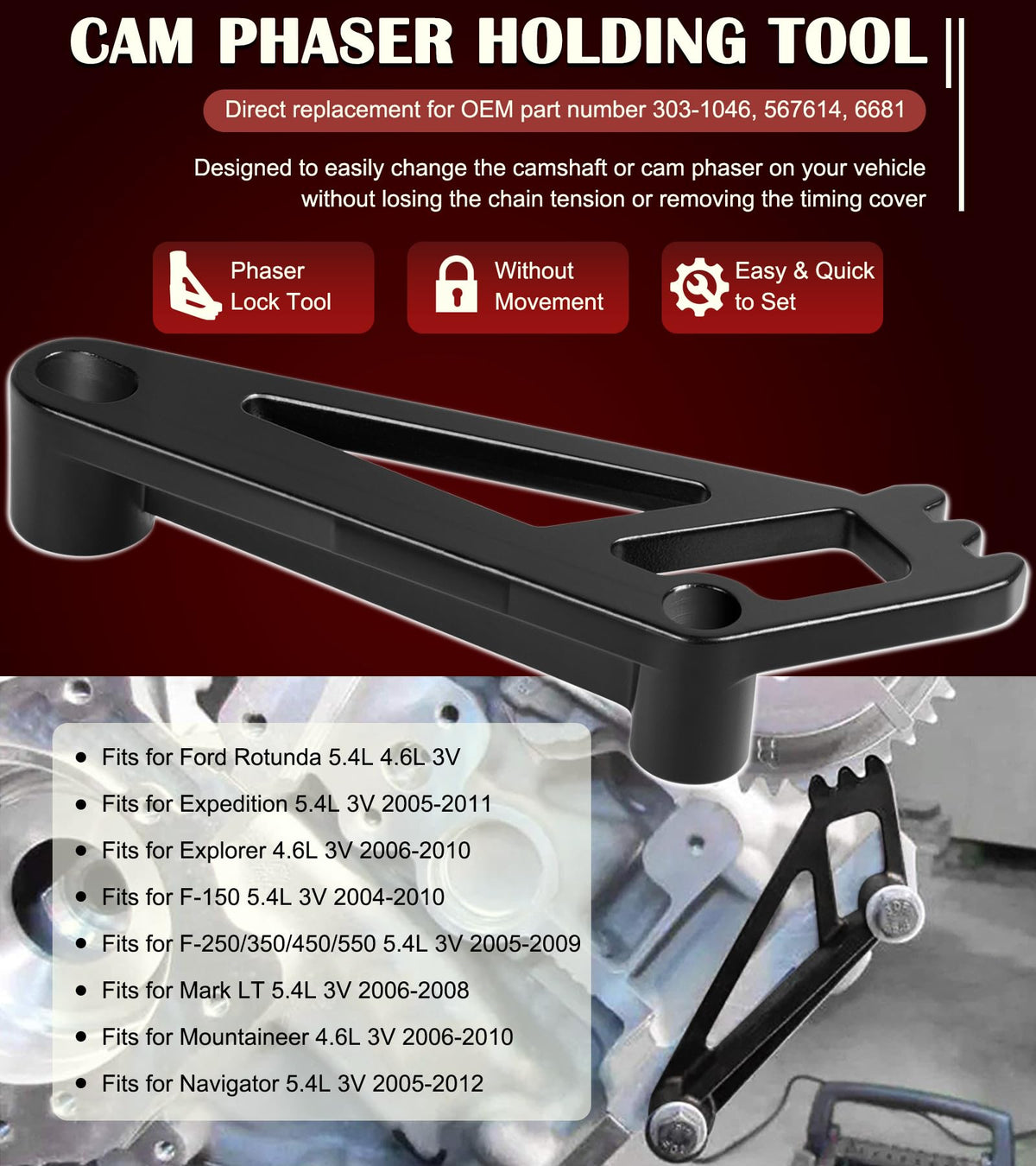

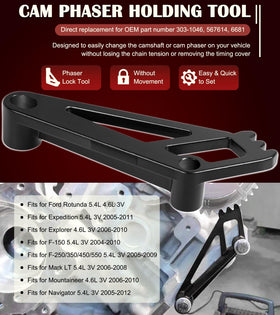

How does the cam phaser holder prevent camshaft movement?

The cam phaser holding tool secures the phaser to keep the camshaft from rotating while you work on the timing chain or replace the phaser itself. It replicates OEM fit so you don’t lose chain tension or remove the timing cover unnecessarily.

• Direct replacement for OEM numbers like 303-1046 and equivalents
• Locks cam phaser in place without disturbing timing chain tension
• Fits Ford 5.4L and 4.6L 3V applications used in trucks and SUVs

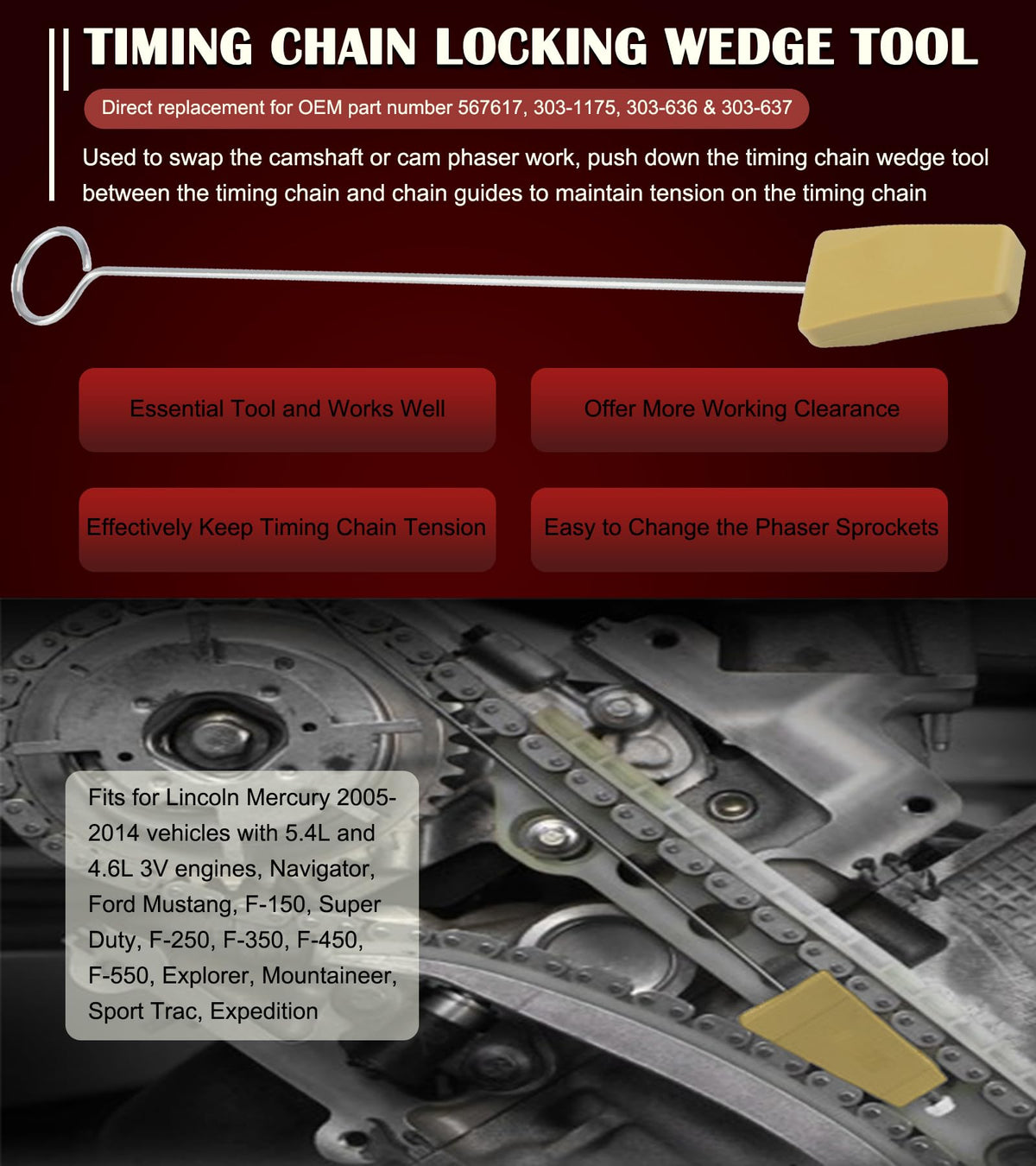

When should I use the timing chain locking wedge and what does it do?

The timing chain locking wedge holds chain position between guides while components are removed or reinstalled, preventing slack or misalignment. It allows you to perform phaser or camshaft service without pulling off the front cover.

• Slides between chain and guide to maintain tension
• Compatible with Lincoln, Mercury and Ford 4.6L/5.4L 3V engines
• Saves time and reduces the risk of incorrect timing during reassembly

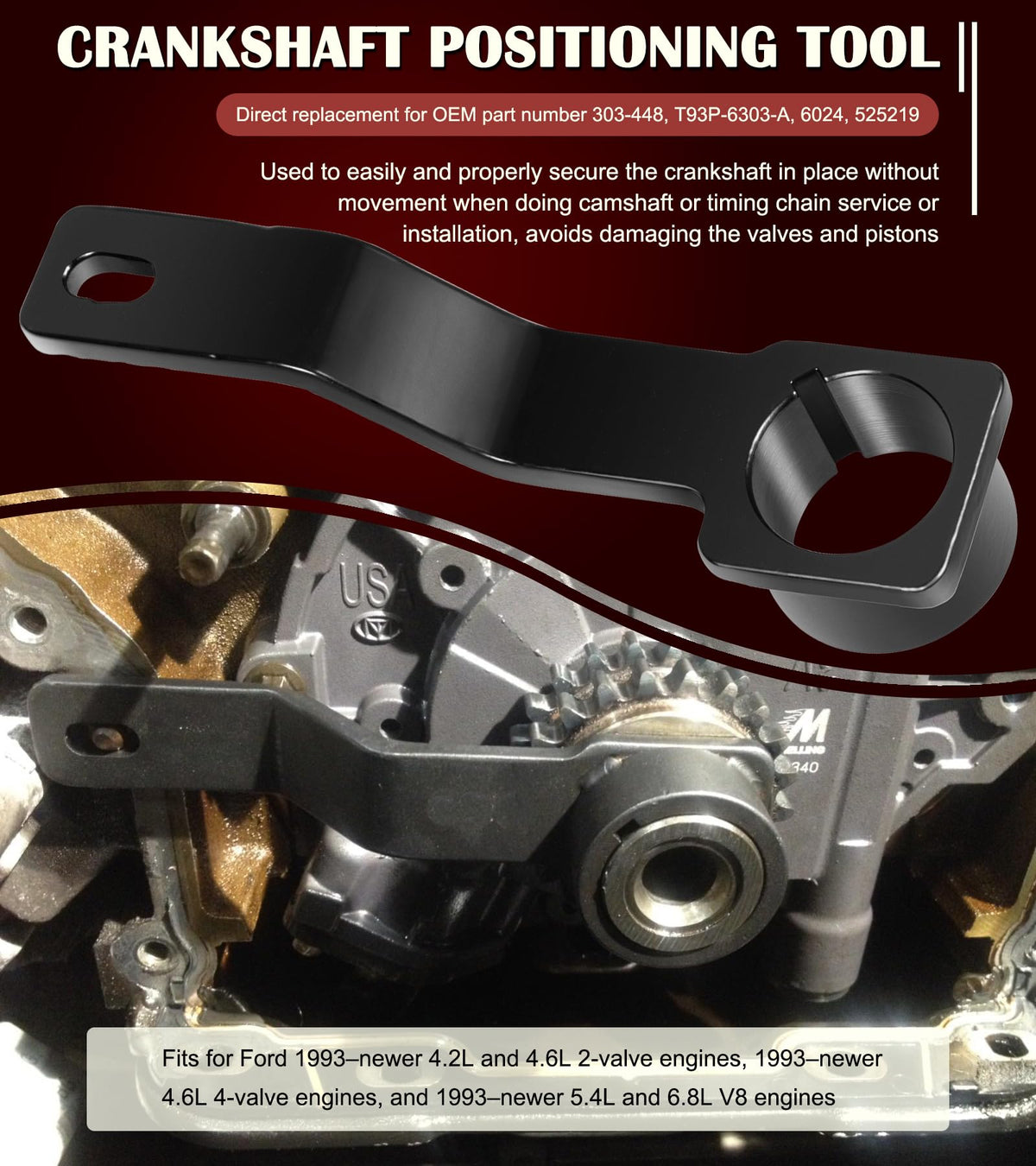

How does the crankshaft positioning tool protect the engine?

The crankshaft positioning tool locks the crank to the top-dead-center (TDC) location so pistons and valves won’t collide during valve or cam work. By stabilizing crank rotation, it minimizes the chance of bent valves or piston damage while you service timing components.

• Replaces OEM items such as 303-448 and T93P-6303-A
• Suitable for Ford 4.2L/4.6L 2-valve, 4.6L 4-valve and larger 5.4L/6.8L engines
• Ensures accurate alignment when setting TDC for timing jobs

What advantages does the valve spring compressor and included bolts provide?

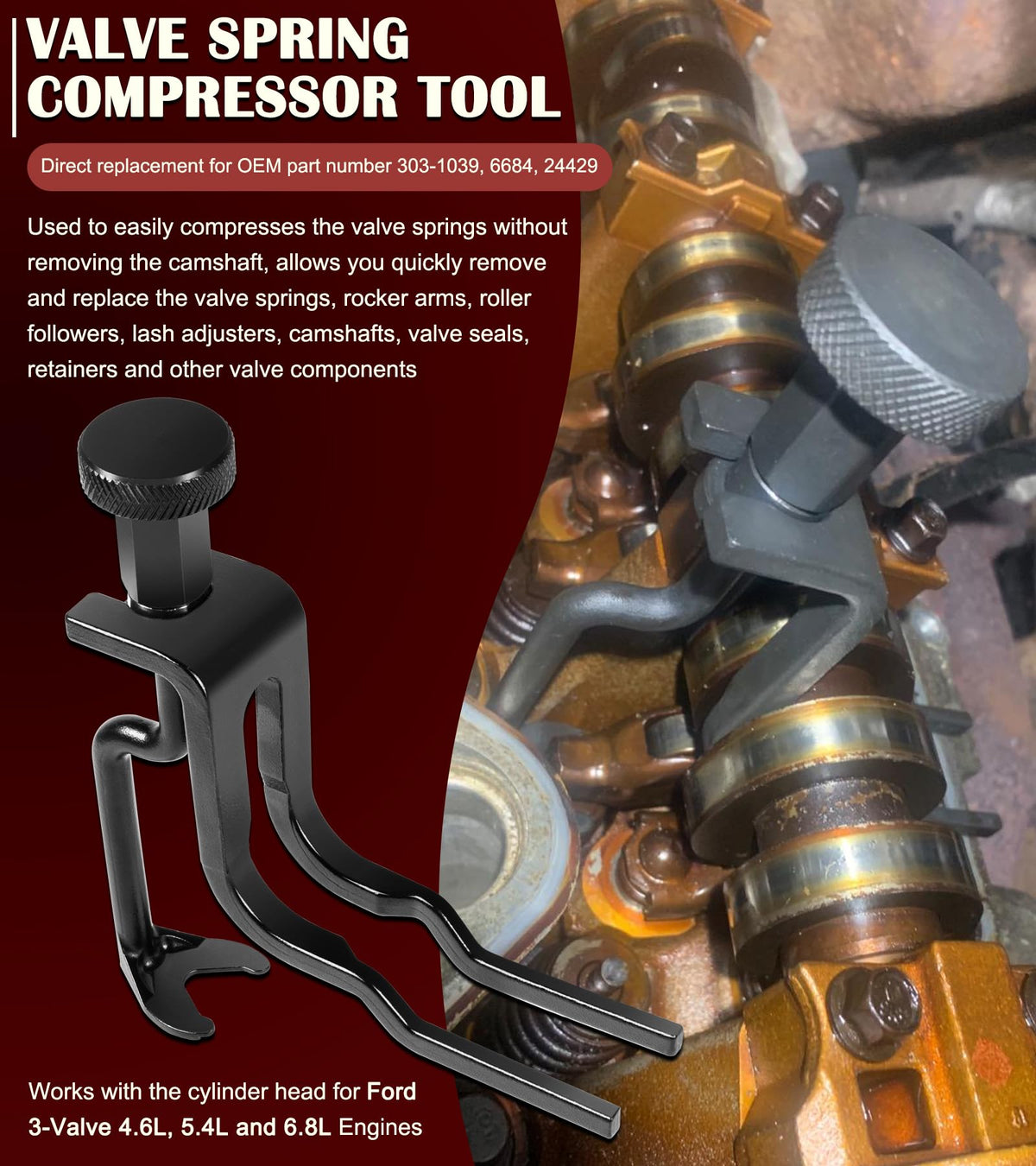

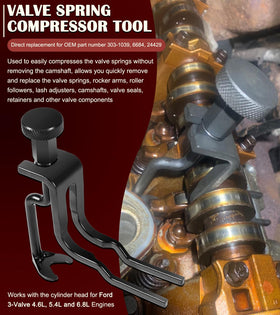

The valve spring compressor compresses springs without removing the camshaft, speeding up work on valve seals, retainers, and springs. The supplied crankshaft pulley bolts match OEM fit and torque requirements to secure the pulley and timing gears during reassembly.

• Valve spring tool replaces OEM 303-1039 and similar numbers

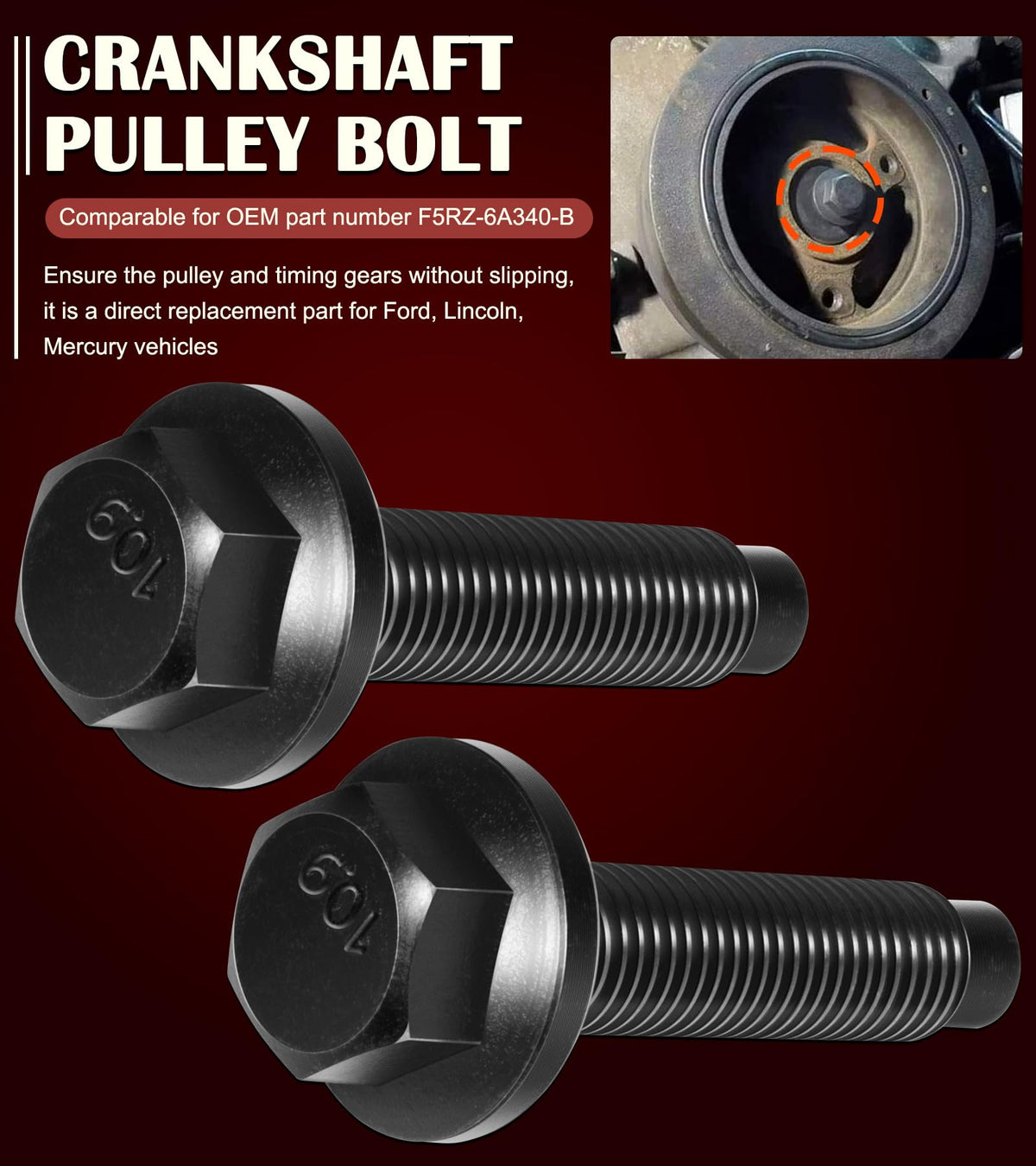

• Pulley bolts comparable to F5RZ-6A340-B for secure installation
• Designed so multiple tools in the kit work together for safe timing service

Who is this for: This Bonbo kit is made for professional mechanics, independent shops and skilled DIY enthusiasts familiar with engine timing procedures on Ford 3V V8/V10 engines. If you service Mustang, F-Series, Expedition, Navigator, Explorer or related models and need a complete set of vehicle-specific timing tools to perform cam phaser swaps, timing chain replacement or valve work with confidence, this kit supplies the main tools required for a correct, repeatable job.
