BORRITT automatic shut-off fuel nozzle Black 3/4in NPT — 13/16in spout, 16 GPM, aluminum alloy

BORRITT Black 3/4" NPT automatic shut-off fuel nozzle is a heavy-duty refueling tool with a 13/16" spout and 16 GPM flow, designed for diesel, gasoline and kerosene service with automatic shut-off at tank fill.

This aluminum-alloy trigger nozzle combines a built-in sensor, ergonomic handle and a 3-notch hold-open clip to deliver fast, controlled fueling for gas stations, transportation fleets, agriculture and industrial refueling. Engineered for compatibility with 3/4" NPT inlets and most 3/4" hose swivels, it supports 12V/24V/110V pump systems and tolerates a wide temperature range for year-round use.

How does the automatic shut-off feature protect tanks and prevent overfilling?

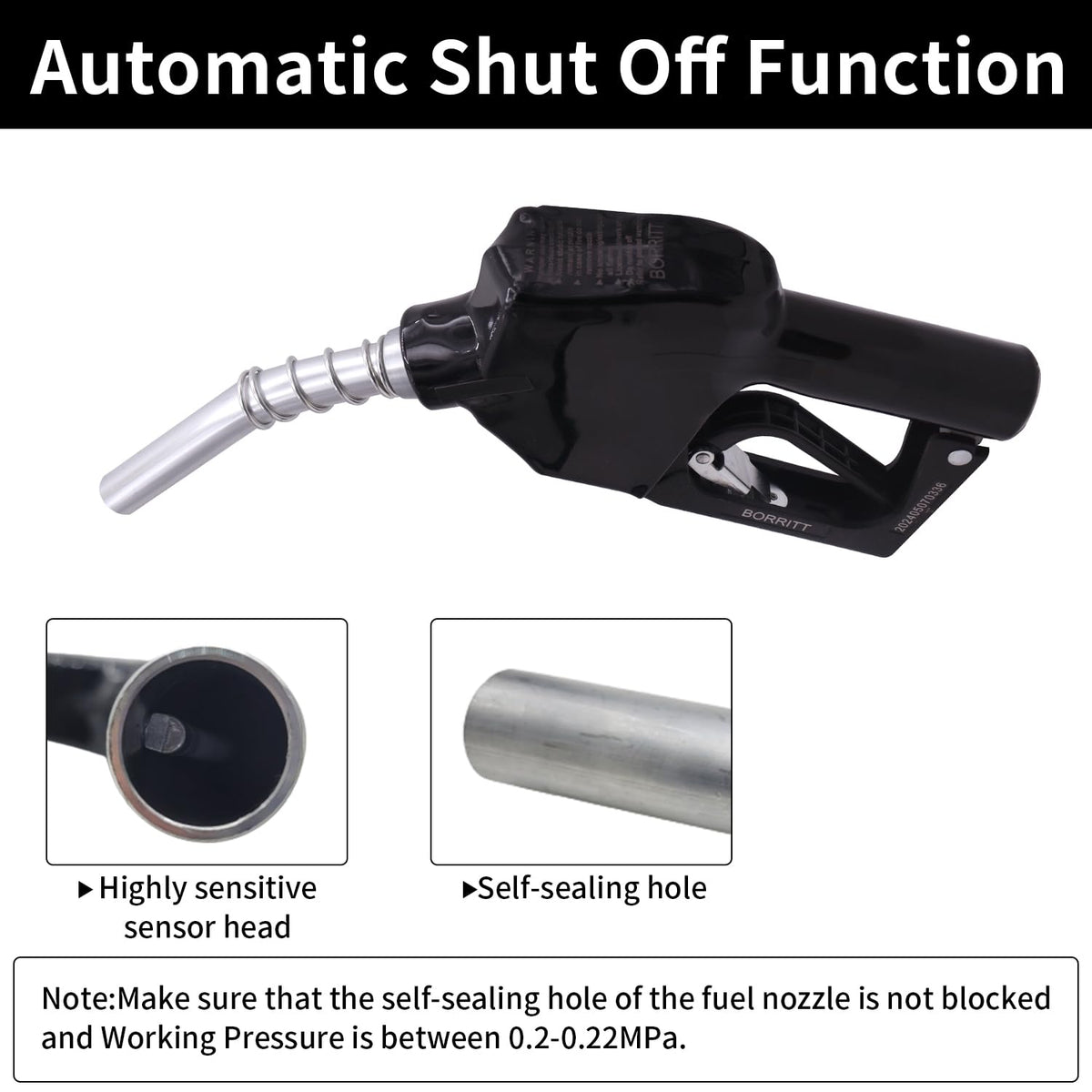

The nozzle’s sensor sits at the tip of the discharge spout and senses when fuel reaches the outlet level, immediately closing the valve to stop flow. This mechanical shut-off reduces spills and minimizes operator attention during refueling.

• Built-in tip sensor triggers automatic cut-off
• Stops flow when fuel reaches spout outlet level
• Reduces overflow and waste during fast refueling

What are the nozzle’s key compatibility and flow specifications?

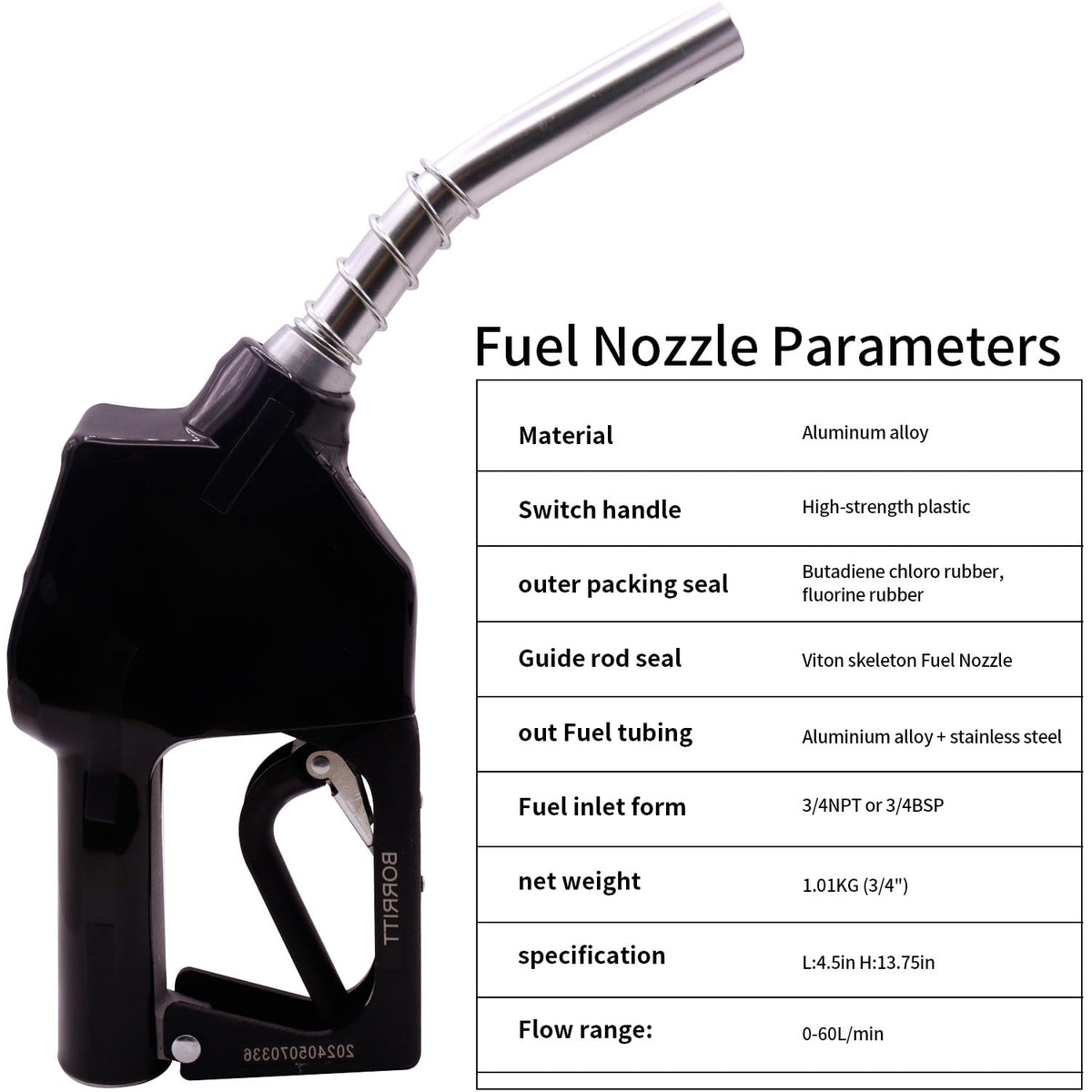

This unit uses a 3/4" NPT threaded inlet with a 13/16" spout outer diameter and supports a maximum flow of 16 gallons per minute. It works across typical pump voltages and fits most commercial 3/4" hose swivels for straightforward installation.

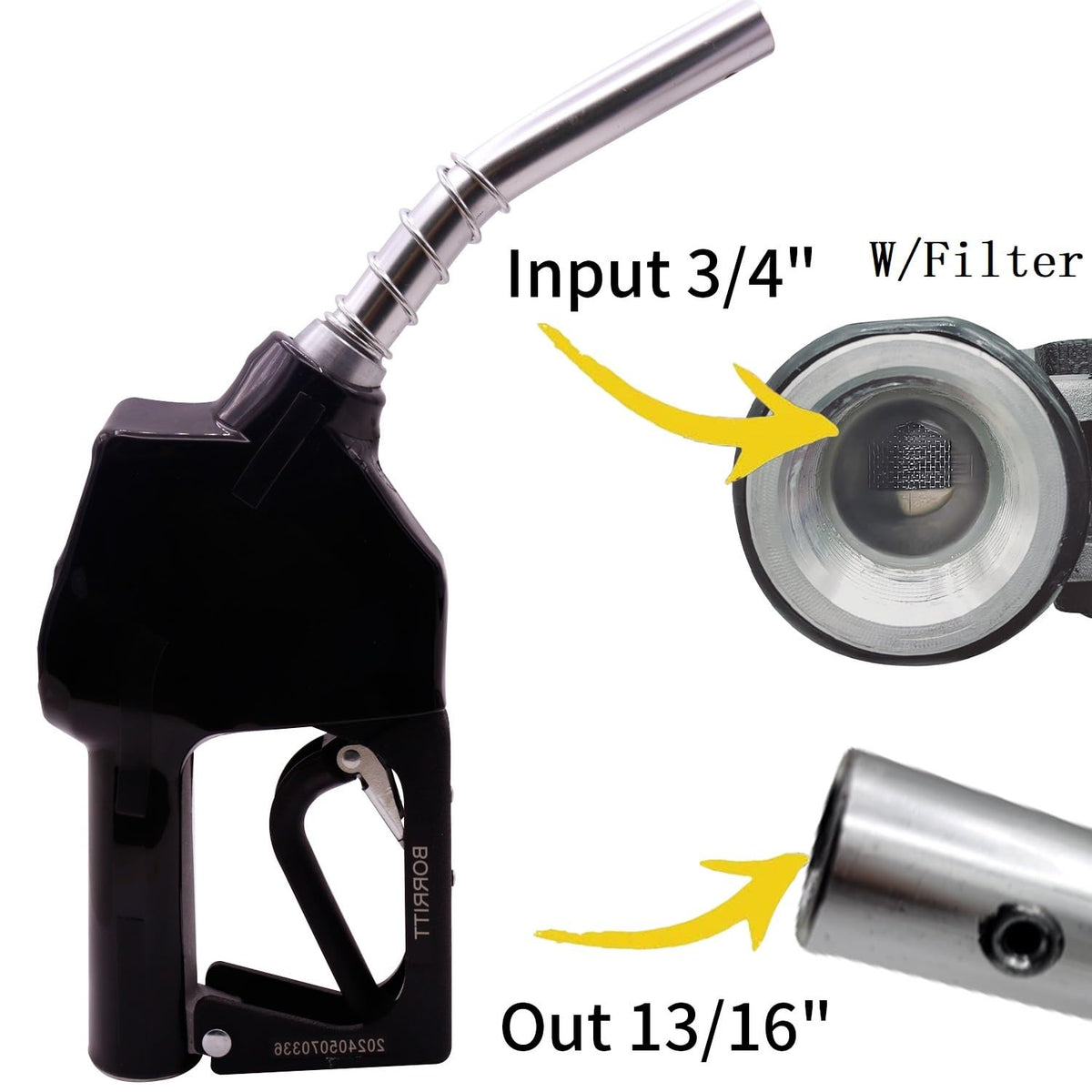

• Inlet: 3/4" NPT (approx. 19 mm)

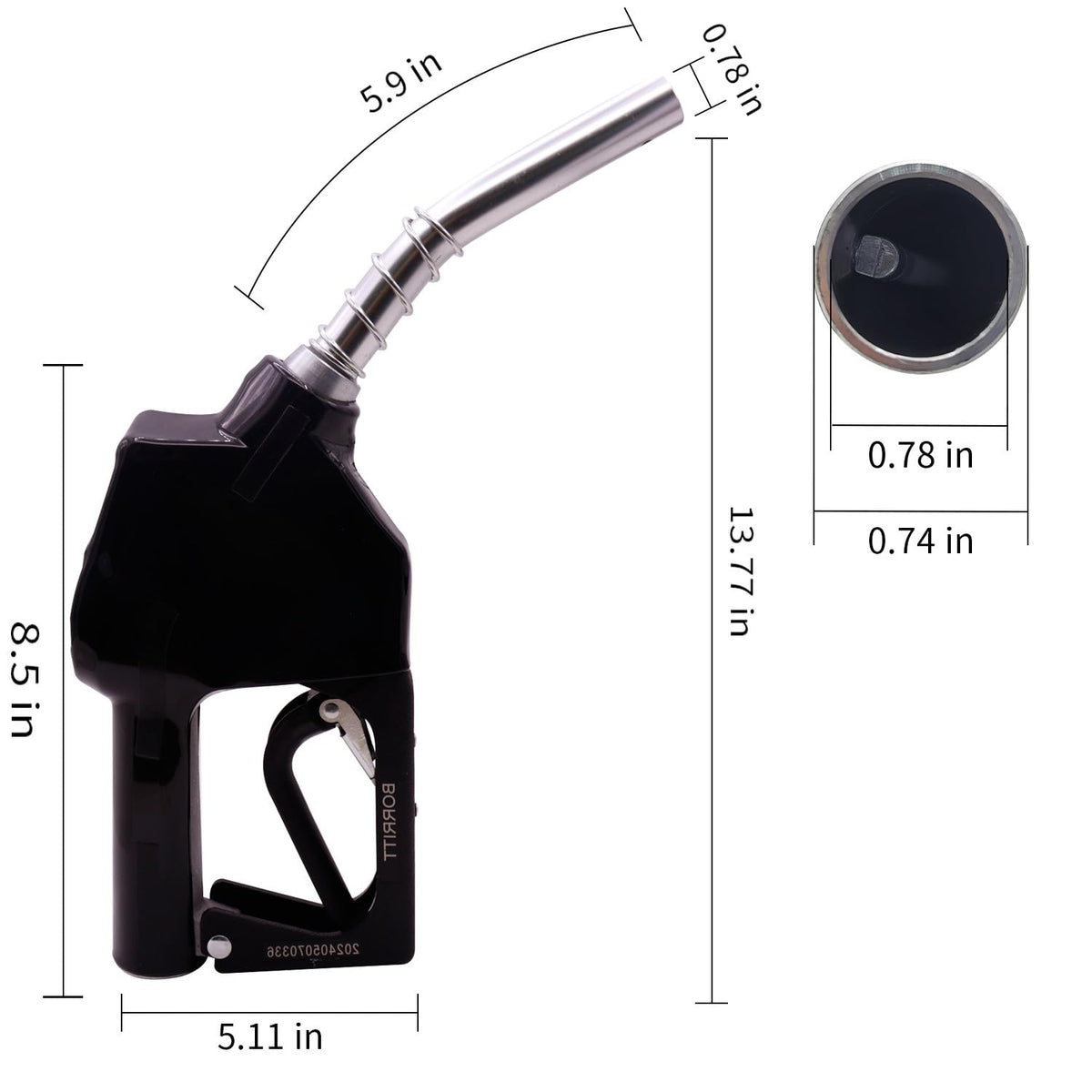

• Spout OD: approx. 13/16" with 7" (180 mm) length
• Max flow rate: 16 GPM; working pressure up to ~32 PSI

How durable and user-friendly is the BORRITT nozzle in daily use?

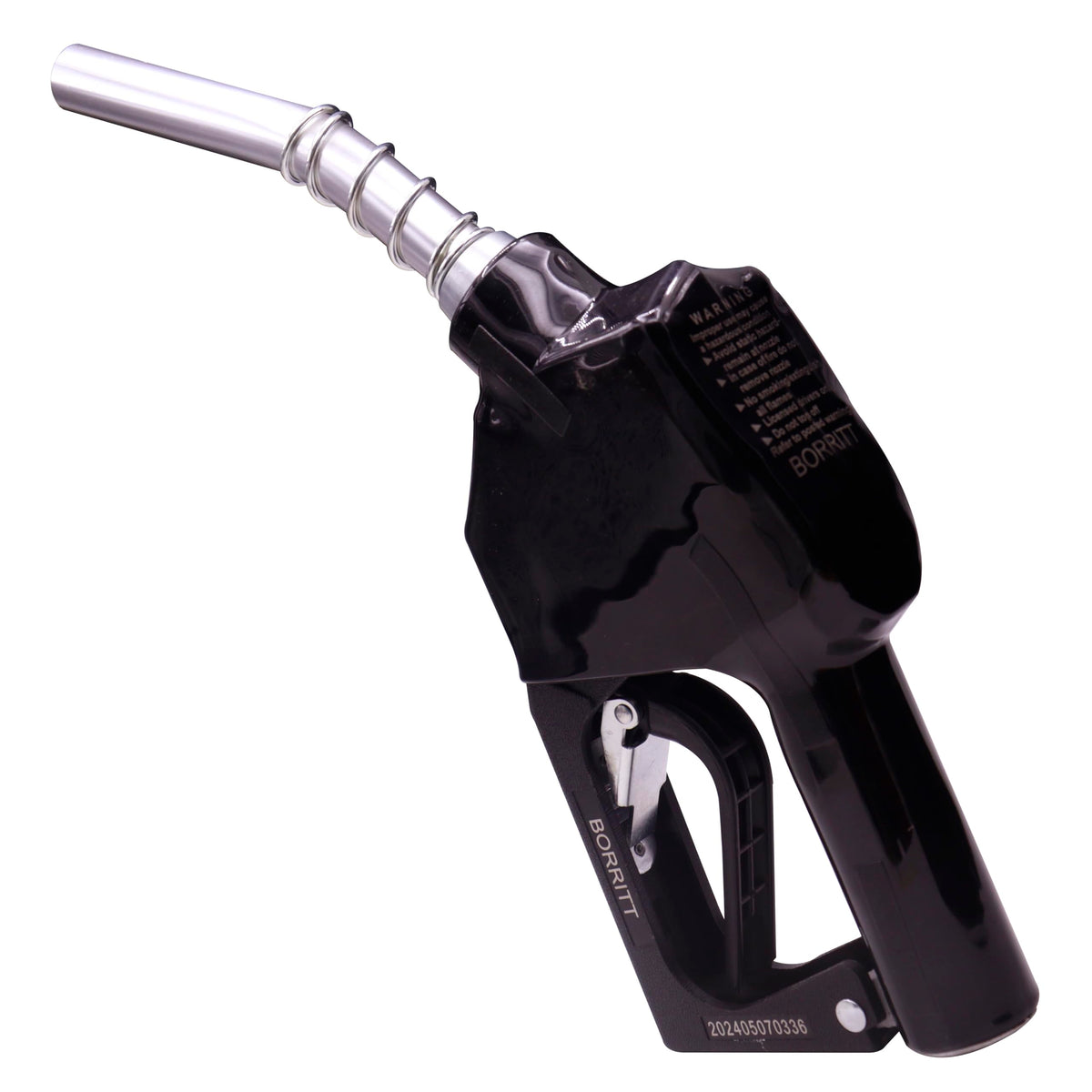

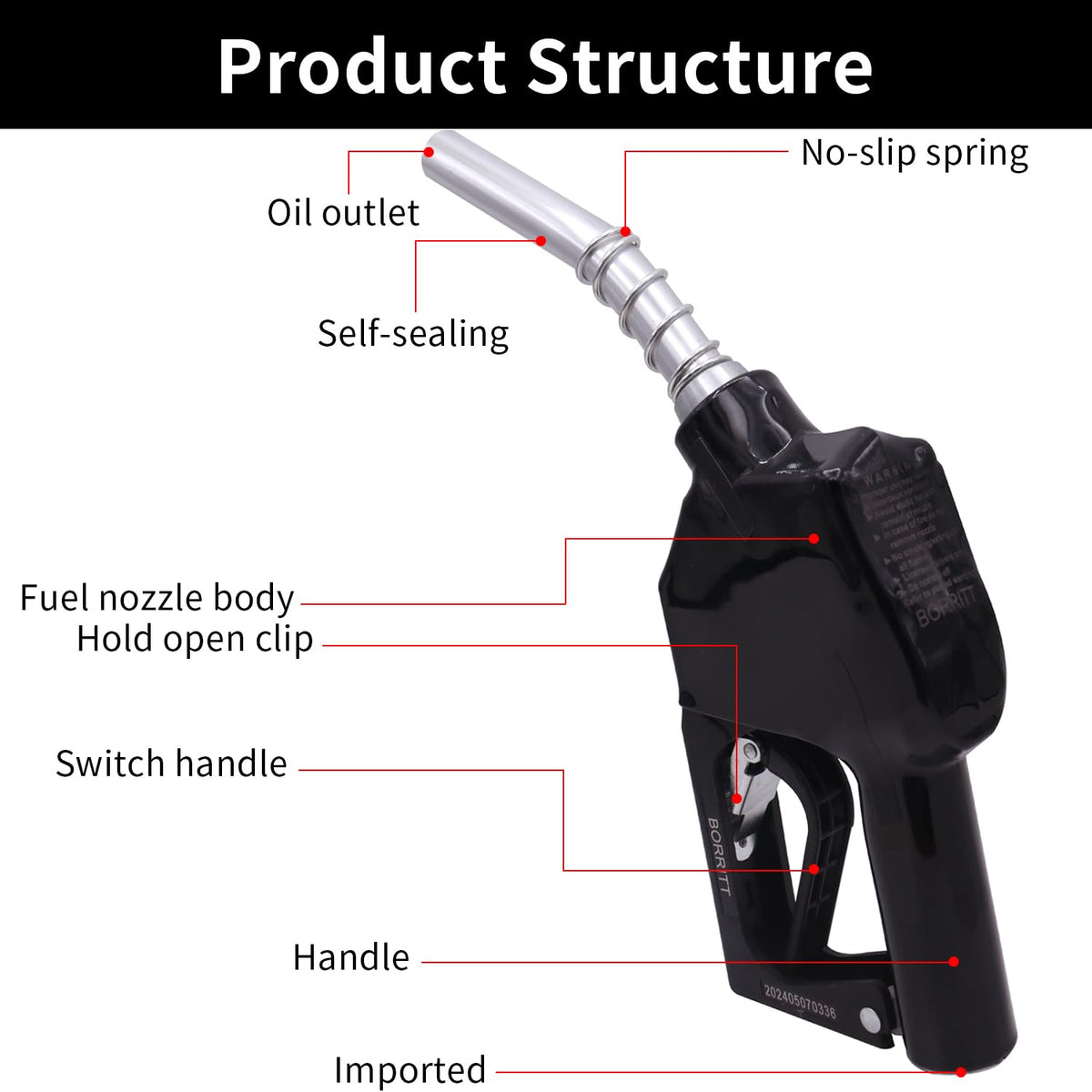

Constructed from heavy-duty cast aluminum with a PVC guard, the nozzle balances rugged performance with operator comfort. The ergonomic handle, thermoplastic trigger and three-position hold-open clip make repetitive fueling tasks easier and reduce hand fatigue.

• Aluminum alloy body resists corrosion and impact
• PVC cover protects hands from metal contact and weather

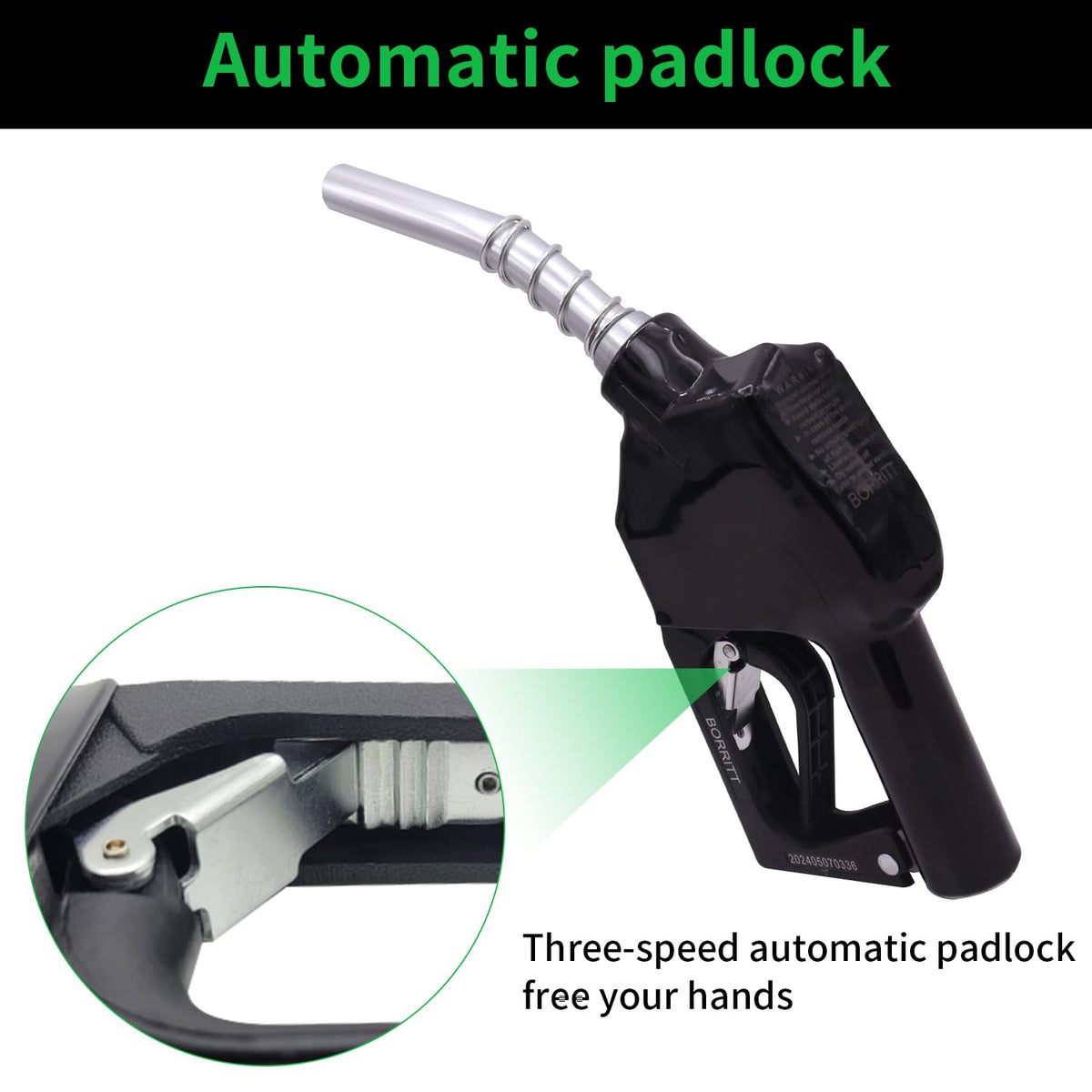

• 3-notch hold-open clip for hands-free continuous fill

Which fuels and conditions is this nozzle suitable for?

The nozzle is built for common liquid fuels such as diesel, gasoline and kerosene and is suitable for many commercial fueling environments. It operates across a broad temperature range but is not intended for gravity-feed tanks.

• Compatible with diesel, gasoline, kerosene and biodiesel blends
• Temperature range: -25 °C to +65 °C
• Not designed for gravity tank applications

Who is this for: The BORRITT 3/4" automatic shut-off fuel nozzle is aimed at professional users — service station operators, fleet maintenance teams, agricultural refueling crews, and industrial sites needing reliable, high-flow dispensing. If you require a rugged, sensor-equipped nozzle that fits standard 3/4" systems and offers hands-free filling options, this model provides a practical balance of performance, durability and operator comfort.
