Bosch 2" Triple Gauge Kit — 3-Gauge Cluster with White Dials, Chrome Bezels & 12V Illumination

The Bosch SP0F000046 Style Line 2" Triple Gauge Kit is a compact three-gauge cluster—oil pressure, voltmeter, and oil/water temperature—with white dials, chrome bezels, and built-in 12V illumination for clean, easy-to-read monitoring.

Engineered for drivers and fabricators who want dependable instrumentation with a classic look, this Bosch triple gauge kit combines precision sensors with a removable chrome mounting panel and durable fittings. The set includes the Mechanical Oil Pressure (SP0F000044), Electrical Voltmeter (SP0F000043), and Oil/Water Temperature (SP0F000045) gauges. Each gauge is sized for a 2-1/16" opening and features a bright pointer against a white dial for quick visual checks, while the included 72" high-temperature nylon tubing and NPT fittings simplify installation.

How do these gauges fit into my dash or custom panel?

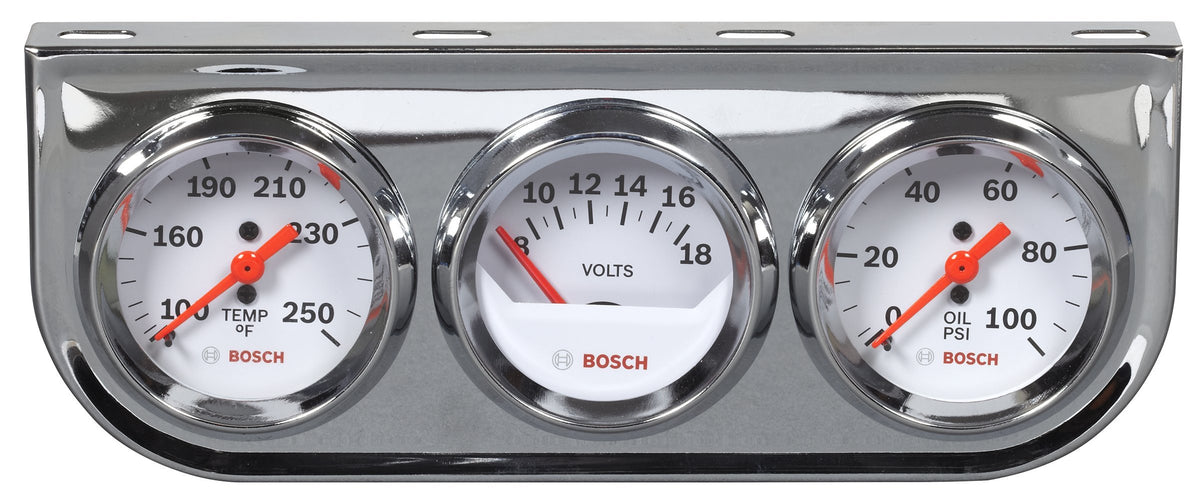

The gauges are 2" instruments designed for a 2-1/16" cutout and mount behind a removable chrome panel for a neat finished look. The modular panel makes installation and service straightforward, and the chrome bezels provide a polished appearance that complements many interiors.

• 2" (fits 2-1/16" opening) gauge size for standard small clusters
• Removable chrome mounting panel for easy access and tidy wiring
• Chromed bezels for a classic, visible trim
• Mounting hardware included to streamline installation

What electrical and plumbing connections are required?

This kit is built for 12 volt negative ground systems and includes the internal 12V lighting needed for night visibility. For fluid sensing, the set supplies 72" of high-temperature nylon tubing with both 1/8" and 1/4" NPT thread fittings so you can connect temperature sensors or route lines to the engine bay without additional hose.

• 12V internal lighting—only for 12V negative ground systems
• 72" high-temperature nylon tubing for reliable fluid routing
• 1/8" and 1/4" NPT fittings included for common sensor ports
• Pre-wired voltmeter connection reduces electrical complexity

Which readings does each gauge provide and how accurate are they?

The kit includes three dedicated instruments: a mechanical oil pressure gauge, an electrical voltmeter, and a combined oil/water temperature gauge. Each gauge is designed for clear, immediate legibility with a bright pointer on a white dial, giving you quick confirmation of system status while driving or tuning.

• Mechanical oil pressure gauge for real-time pressure monitoring
• Electrical voltmeter to keep track of charging system performance
• Oil/water temperature gauge for coolant or oil temperature readings
• White dial face and high-contrast pointer for fast interpretation

What comes in the box and what else might I need?

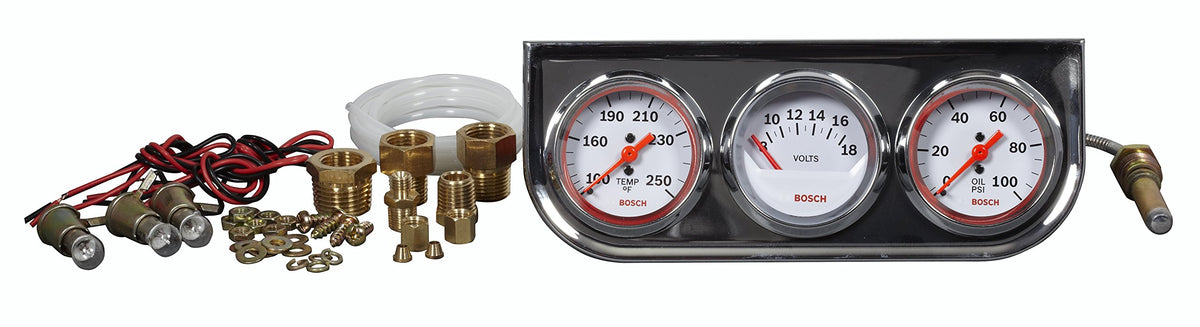

The kit ships with the three Bosch gauges, a removable chrome mounting panel, mounting hardware, 72" of high-temperature nylon tubing with 1/8" and 1/4" NPT fittings, and internal 12V lighting. Depending on your vehicle, you may need adapter fittings, thread sealant, or routing brackets to complete installation; a mechanical oil pressure port adapter or in-line sensor tee may be required on some engines.

• Included: three gauges (SP0F000044, SP0F000043, SP0F000045), panel, hardware, tubing, fittings
• Included: internal 12V illumination for nighttime readability
• May need: additional adapters, thread sealant, or mounting brackets
• May need: professional calibration or routing help for complex installs

Who is this for: the Bosch Style Line 2" Triple Gauge Kit is ideal for classic car restorations, hot rods, marine projects, and custom dashboards where compact instruments, clear daytime legibility, and a chrome-accented aesthetic matter. It suits DIY installers and professional shops that want trusted Bosch engineering paired with an uncluttered, readable presentation. If you need replaceable tachometers, speedometers, or additional Bosch-style instruments later, this kit aligns with Bosch’s broader line of automotive gauges and accessories.
